SX-Amplifier

Amazing power in a just 1U Case!

The new SX series
The new power engine of your sound system

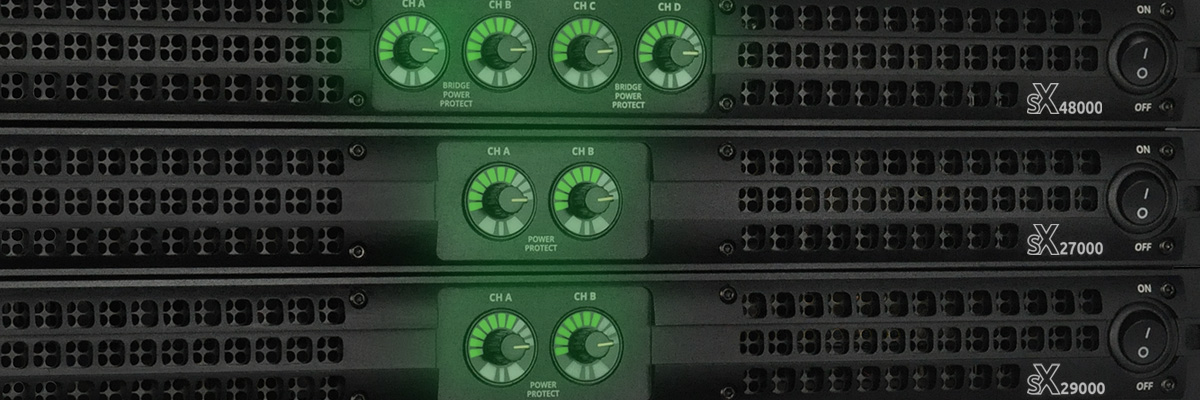

Reliable even under hard touring and stage conditions the SX Series will drive your speaker with pure sound and less distortions. Very low noise temperature-controlled fans make this state of art amplifier series suitable for touring and fixed installations. Powerful up to 4 x 4600 Watt or 2 x 9000 @ 2 Ohm the SX series offer enough power even for huge subwoofer cluster. The digital controlled SMPS power supply offers stable working conditions and high efficiency even under weak or unstable mains supplies. Compact and with a depth of 402mm (486mm) the 1U high case weighs only 8,4 Kg (12Kg). All connectors are original Neutrik. Powercon for the mains connection, NL4 Speakon for the speaker outputs and XLR for the input signals. At the backside are dip switches to select the working mode and input sensitivity. The front panel is equipped with a power switch and multi-function LED rings.


SX-25000 GS1 (EAN) CODE: 4260318511858
SX-27000 GS1 (EAN) CODE: 4260318512992
SX-29000 GS1 (EAN) CODE: 4260318513005

SX-44000 GS1 (EAN) CODE: 4260318512022
SX-46000 GS1 (EAN) CODE: 4260318511865
SX-48000 GS1 (EAN) CODE: 4260318513012


Technical Details

Model Name SX-25000 SX-27000 SX-29000 SX-44000 SX-46000 SX-48000
GS1 (EAN) CODE 4260318511858 4260318512992 4260318513005 4260318512022 4260318511865 4260318513012
System Type 2-Channel
Class D Amplifier
2-Channel
Class D Amplifier
2-Channel
Class D Amplifier
4-Channel
Class D Amplifier
4-Channel
Class D Amplifier
4-Channel
Class D Amplifier
Output Power
all channels driven
20Hz - 20 kHz, 0.1 % THD
2 x 6000W @ 2Ohm
2 x 4300W @ 4Ohm
2 x 2600W @ 8Ohm
2 x 7600W @ 2Ohm
2 x 6500W @ 4Ohm
2 x 3500W @ 8Ohm
2 x 9000W @ 2Ohm
2 x 8400W @ 4Ohm
2 x 4500W @ 8Ohm
4 x 2700W @ 2Ohm
4 x 1830W @ 4Ohm
4 x 1100W @ 8Ohm
4 x 3800W @ 2Ohm
4 x 2700W @ 4Ohm
4 x 1600W @ 8Ohm
4 x 4600W @ 2Ohm
4 x 3650W @ 4Ohm
4 x 2000W @ 8Ohm
Output Power
Bridge mode
-
-
2 x 1600W @ 4Ohm
2 x 1300W @ 8Ohm
2 x 7000W @16Ohm
2 x 1800W @ 4Ohm
2 x 1680W @ 8Ohm
2 x 9000W @16Ohm
2 x 5000W @ 4Ohm
2 x 3660W @ 8Ohm
2 x 3200W @16Ohm
2 x 7600W @ 4Ohm
2 x 5400W @ 8Ohm
2 x 3200W @16Ohm
2 x 920W @ 4Ohm
2 x 7300W @ 8Ohm
2 x 4000W @16Ohm
THD+N @ 8Ω 1kHz,1dB ≤0.05% ≤0.05% ≤0.05% ≤0.05% ≤0.05% ≤0.05%
Slew Rate >30v/μs >30v/μs >30v/μs >30v/μs >30v/μs >30v/μs
Frequency Response
@1Watt, 8Ohm
10Hz - 20kHz
±0.35dB
10Hz - 20kHz
±0.35dB
10Hz - 20kHz
±0.35dB
10Hz - 20kHz
±0.35dB
10Hz - 20kHz
±0.35dB
10Hz - 20kHz
±0.35dB
Damping Factor
(@100Hz)
>5000 >5000 >5000 >3000 >3000 >3000
Signal to Noise Ratio
20Hz -20 kHz
>99dB >99dB >99dB >99dB >99dB >99dB
Channel Separation
Crosstalk@1kHz
>70dB >70dB >70dB >70dB >70dB >70dB
Voltage Gain 45.4dB (0,775V:144V) 46.7dB (0,775V:168V) 47.6dB (0,775V:186V) 41,7dB (0,775V:94V) 43,3dB (0,775V:113V) 44,3dB (0,775V:127V)
Input Sensitivity 0.775V/1V/1.4V/2V 0.775V/1V/1.4V/2V 0.775V/1V/1.4V/2V 0.775V/1V/1.4V/2V 0.775V/1V/1.4V/2V 0.775V/1V/1.4V/2V
Input Impedance 20k Ohm Balanced
10k Ohm Unbalanced
20k Ohm Balanced
10k Ohm Unbalanced
20k Ohm Balanced
10k Ohm Unbalanced
20k Ohm Balanced
10k Ohm Unbalanced
20k Ohm Balanced
10k Ohm Unbalanced
20k Ohm Balanced
10k Ohm Unbalanced
Front Control Power switch, Gain Power switch, Gain Power switch, Gain Power switch, Gain Power switch, Gain Power switch, Gain
Rear Control Sensitivity Switch,
Mode Switch
Sensitivity Switch,
Mode Switch
Sensitivity Switch,
Mode Switch
Sensitivity Switch,
Mode Switch
Sensitivity Switch,
Mode Switch
Sensitivity Switch,
Mode Switch
LED Indicators Signal VU Meter
Protect,
Parallel
Signal VU Meter
Protect,
Parallel,
Bridge
Signal VU Meter
Protect,
Parallel,
Bridge
Signal VU Meter
Protect,
Parallel,
Bridge
Signal VU Meter
Protect,
Parallel,
Bridge
Signal VU Meter
Protect,
Parallel,
Bridge
Input Connectors XLR Active balanced
pin1 gnd
pin 2+
pin3-
XLR Active balanced
pin1 gnd
pin 2+
pin3--
XLR Active balanced
pin1 gnd
pin 2+
pin3-
XLR Active balanced
pin1 gnd
pin 2+
pin3-
XLR Active balanced
pin1 gnd
pin 2+
pin3-
XLR Active balanced
pin1 gnd
pin 2+
pin3-
Output Connectors 2 Neutrik
NL4 Sockets
2 Binding Posts
2 Neutrik
NL4 Sockets
2 Neutrik
NL4 Sockets
4 Neutrik
NL4 Sockets
4 Neutrik
NL4 Sockets
4 Neutrik
NL4 Sockets
Cooling Low noise fan Low noise fan Low noise fan Low noise fan Low noise fan Low noise fan
Protection Full short circuit,
Open circuit,
thermal,
Ultrasonic,
RF Protection
Stable Into reactive or
Mismatched loads
Full short circuit,
Open circuit,
thermal,
Ultrasonic,
RF Protection
Full short circuit,
Open circuit,
thermal,
Ultrasonic,
RF Protection
Full short circuit,
Open circuit,
thermal,
Ultrasonic,
RF Protection
Full short circuit,
Open circuit,
thermal,
Ultrasonic,
RF Protection
Full short circuit,
Open circuit,
thermal,
Ultrasonic,
RF Protection
Load Protection On/Off muting
DC fault power
Supply shutdown
On/Off muting
DC fault power
Supply shutdown
On/Off muting
DC fault power
Supply shutdown
On/Off muting
DC fault power
Supply shutdown
On/Off muting
DC fault power
Supply shutdown
On/Off muting
DC fault power
Supply shutdown
Operating Voltage 230V (+/- 10%), 50-60Hz
USA Version
110V (+/- 10%), 50-60Hz
PFC 100V-240V
50-60Hz
PFC 100V-240V
50-60Hz
230V (+/- 10%), 50-60Hz
USA Version
110V (+/- 10%), 50-60Hz
230V (+/- 10%), 50-60Hz
USA Version
110V (+/- 10%), 50-60Hz
PFC 100V-240V
50-60Hz
Idle
Power Consumption
< 165W < 280W < 320W < 130W < 155W < 265W
Max.
Power Consumption
< 5000W < 8900W < 11000W < 4000W < 6000W < 8500W
Fuse T-30A 2xT-30A 2xT-30A T-25A T-30A 2xT-30A
Dimensions (h/w/d) 19“/1U
483W x 402D x 44H
19“/1U
483W x 486D x 44H
19“/1U
483W x 486D x 44H
19“/1U
483W x 402D x 44H
19“/1U
483W x 402D x 44H
19“/1U
483W x 486D x 44H
Net weight 8,4 kg 12 kg 12 kg 8,2 kg 8,4 kg 12 kg
