HCS-108C

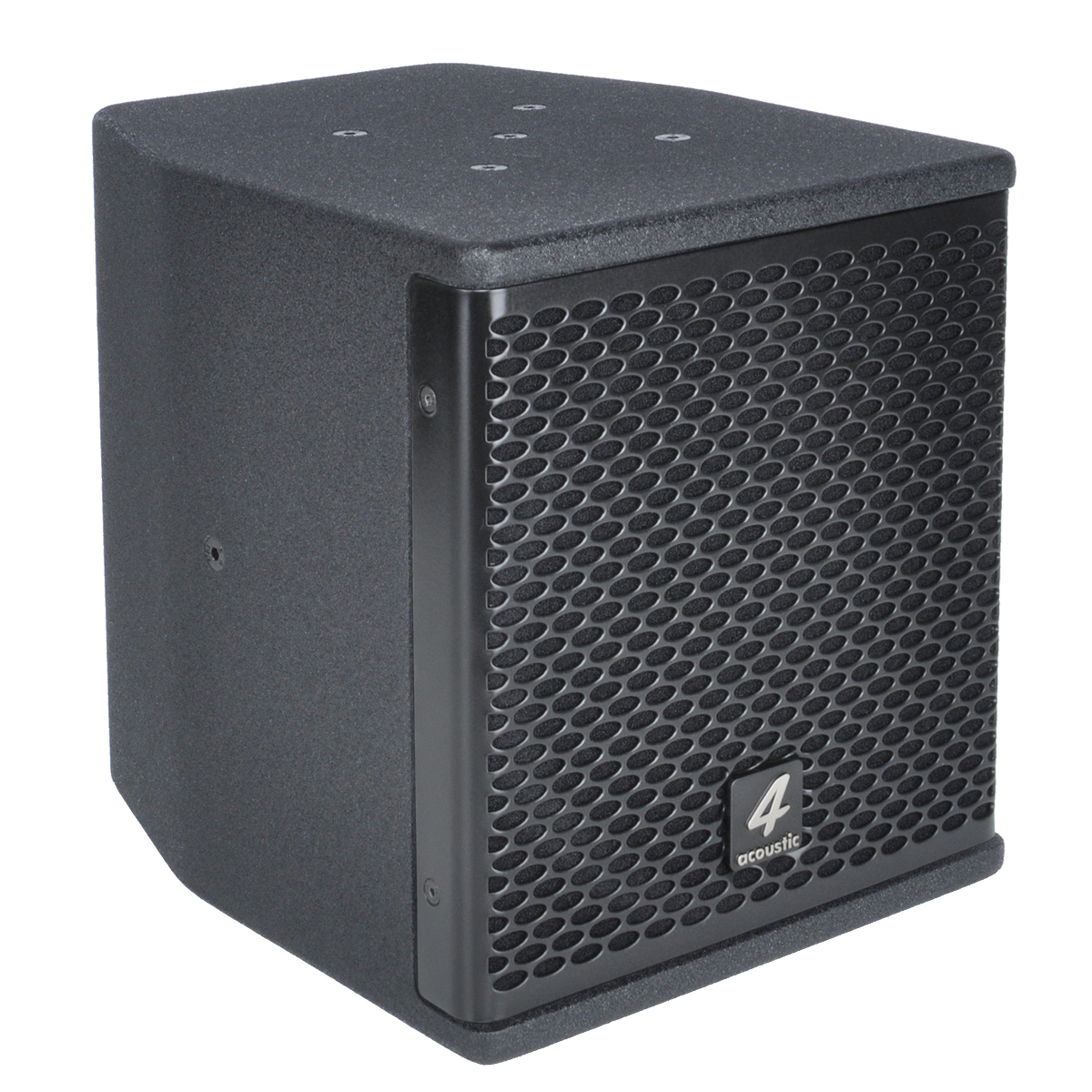

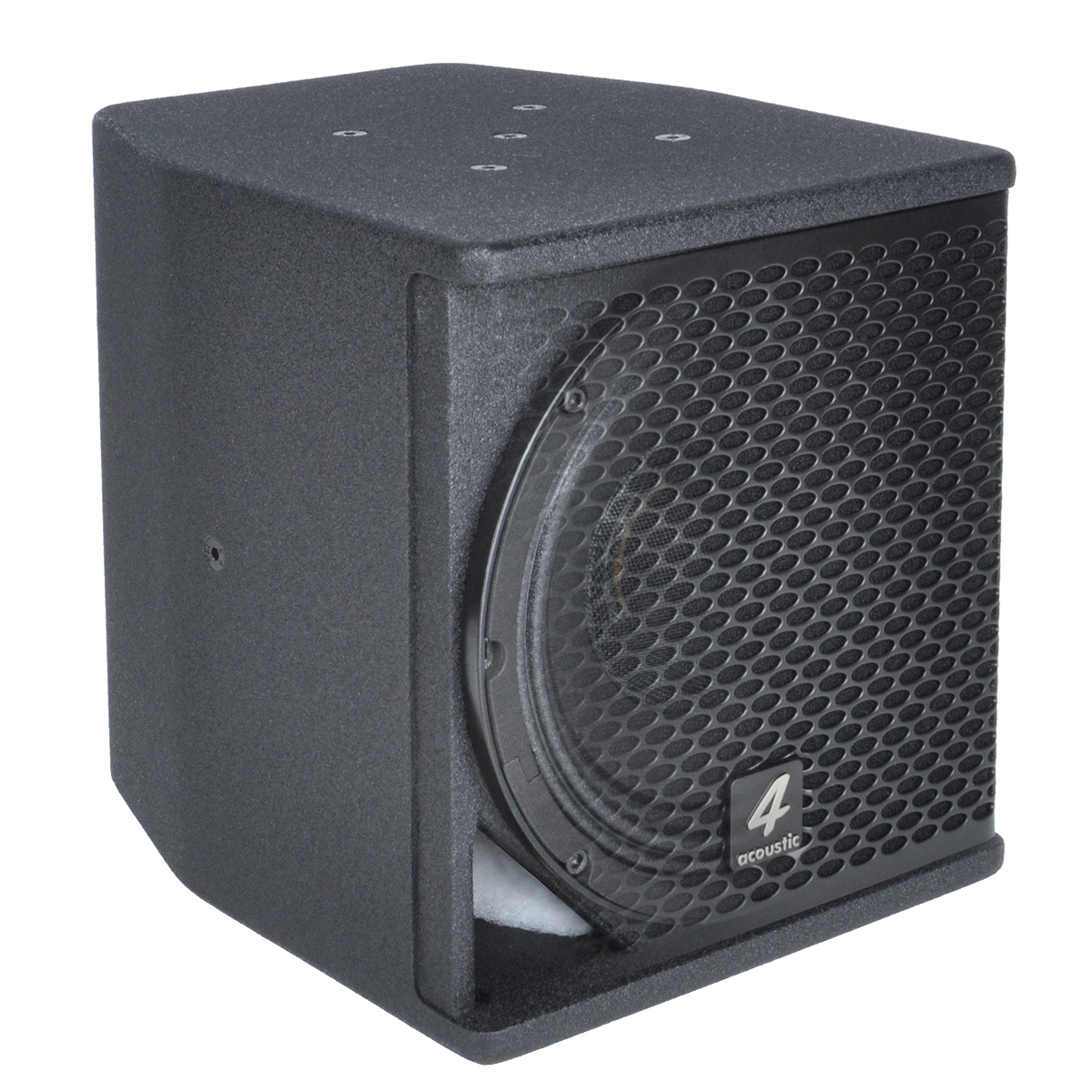

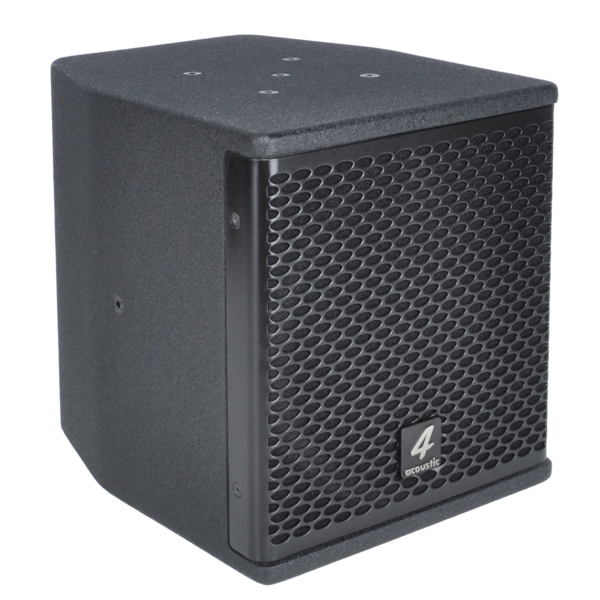

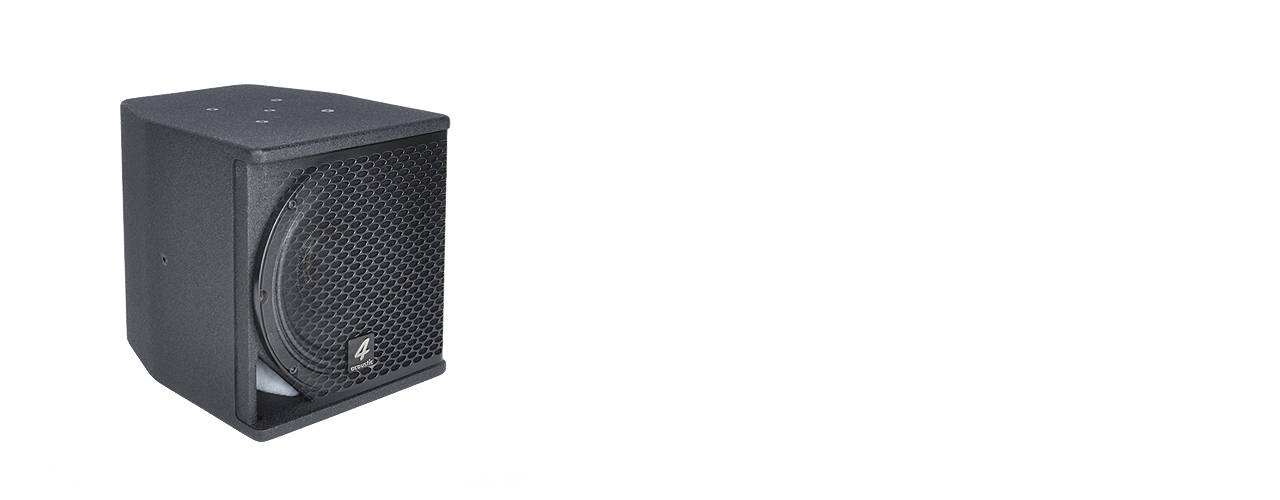

HCS-108C Coaxial Source Point Speaker

HCS-108C Coaxial Source Point Speaker

HCS-108C is a source point coaxial speaker for background sound installations, monitor applications and all kind of near fill supports. The coaxial source point design with state of art neodymium chassis offers a harmonic and powerful sound. The housing is equipped with several suspensions points for hanging brackets and wall mounting kits. To complete this flexible speaker series we offer different color housings and different kind of mounting solutions.

HCS-108C GS1 (EAN) CODE: 4260318510127

Technical Details

Model Name HCS-108C
GS1 (EAN) CODE 4260318510127
System Type 1x8"+1" Coaxial Source Point Speaker
Power Rating 300 W AES
600 W program
1200 W peak
Frequency Range (+/- 3 dB) 55 Hz - 20 kHz
Coverage Pattern (hxv) 100°
Sensitivity 98 dB 1w/1m
Maximum SPL 125 dB
Chassis 1 x STG-8C 250W AES + 50W AES,
coaxial neodymium
Nominal Impedance 8 Ohm

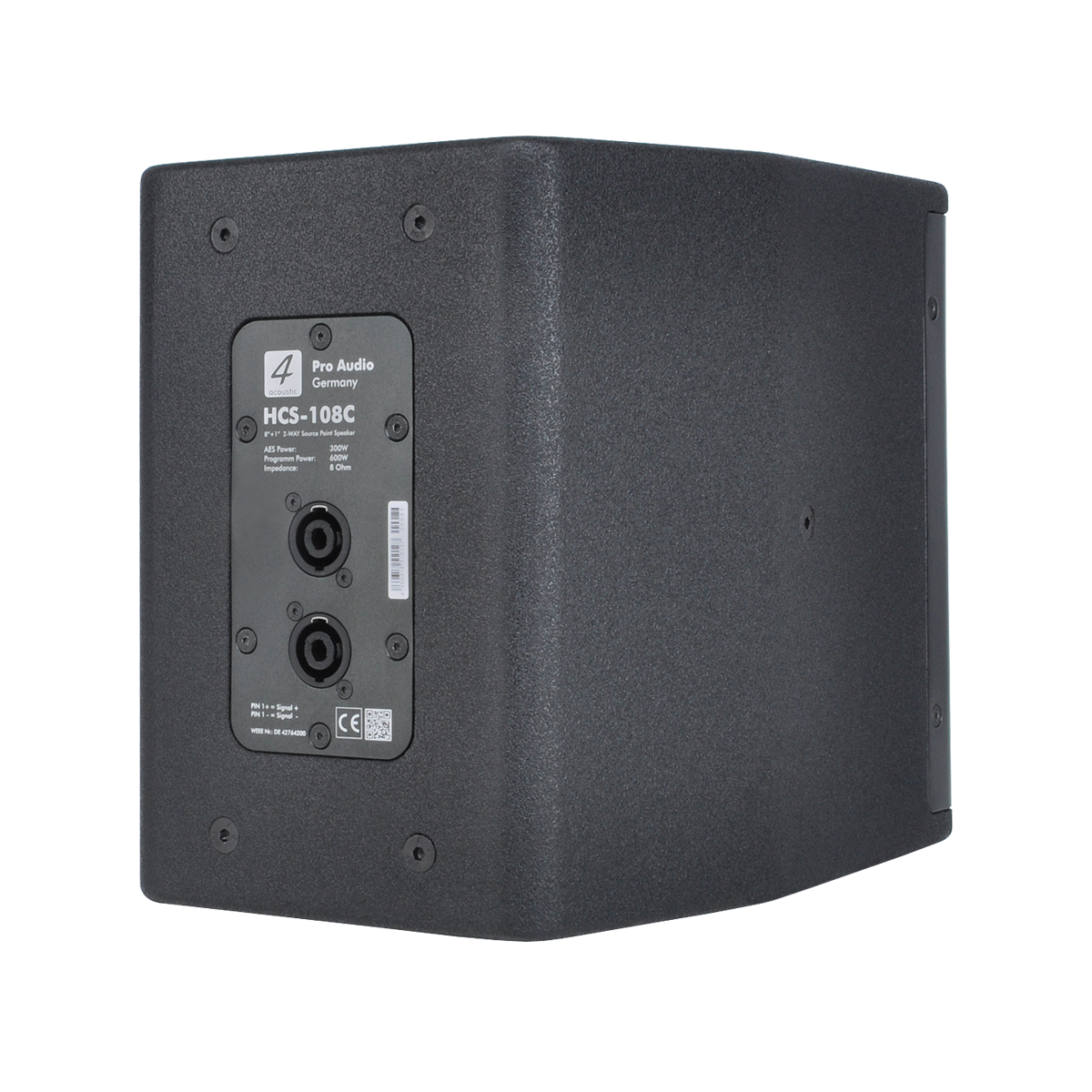

Input Connectors 2 x Neutrik NL4 Socket parallel 1+/1-
Housing Birch Multiplex
Suspension/Mounting 12xM6 suspension
Coating anti-scratch Polyurethane coating
Dimensions (h/w/d) 244x220x265 mm
Net weight 3,8 Kg

Picture Gallery

Accessories

Order Code GS1 (EAN) Code Description

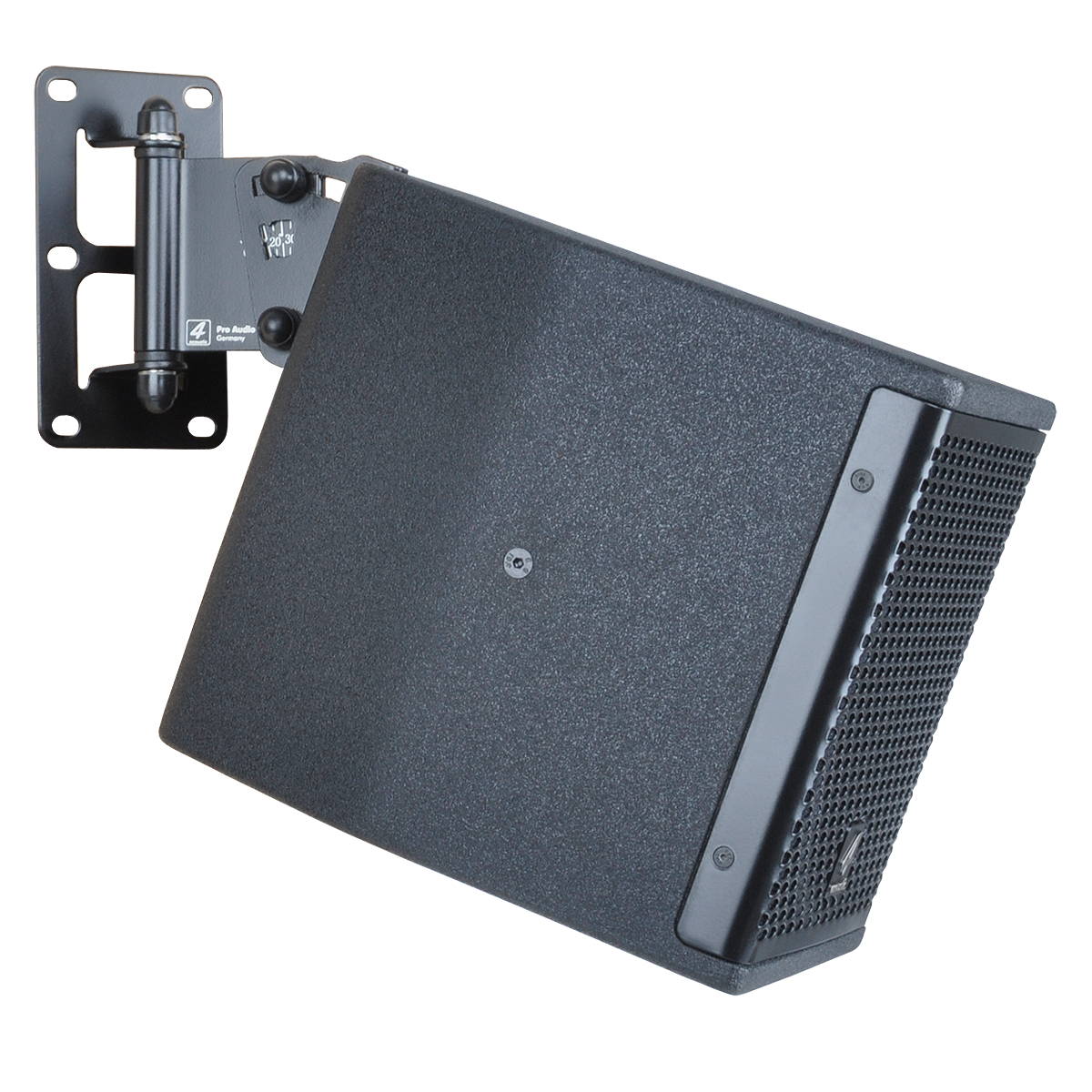

WH-108C 4260318511315 Wall mounting kit for HCS-108C
KA-SP1-50 4260318511339 50 Meter Speaker cable 2x1,5qmm
KA-SP1-100 4260318511346 100 Meter Speaker cable 2x1,5qmm
