HCS-118B

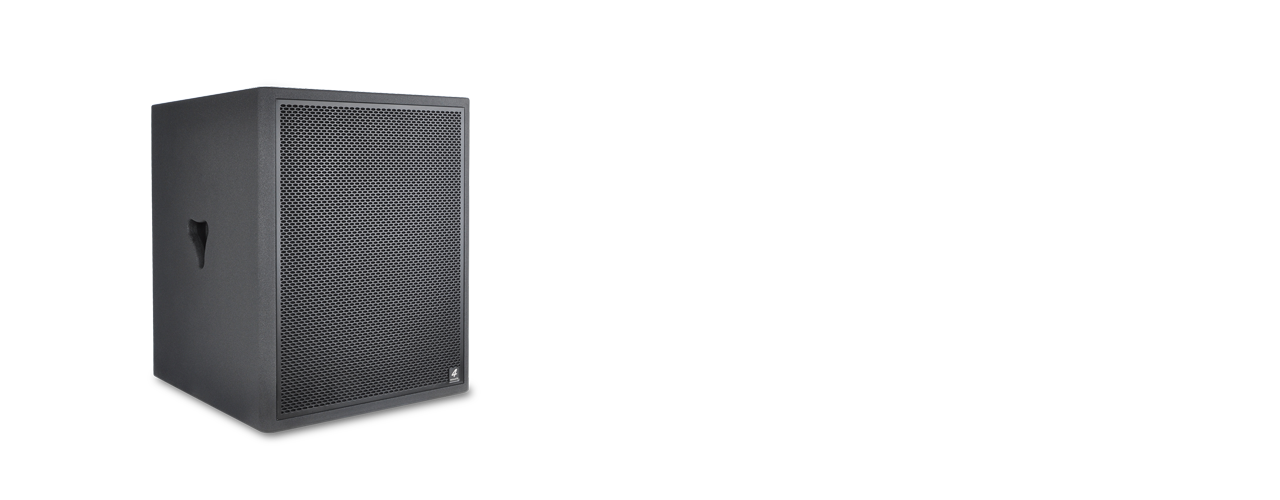

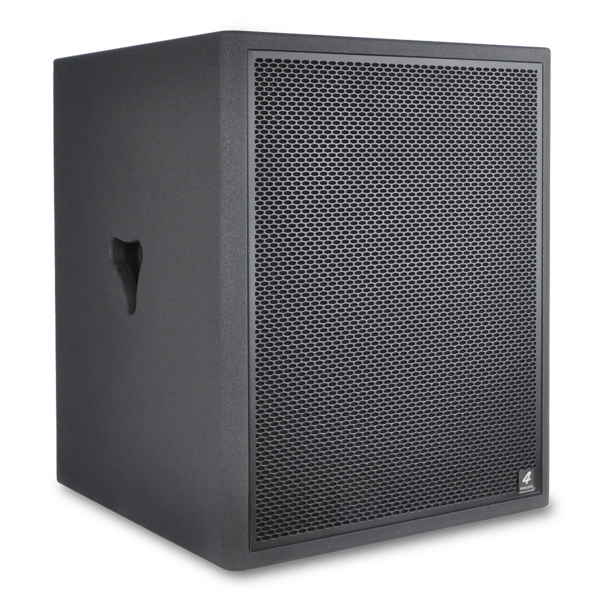

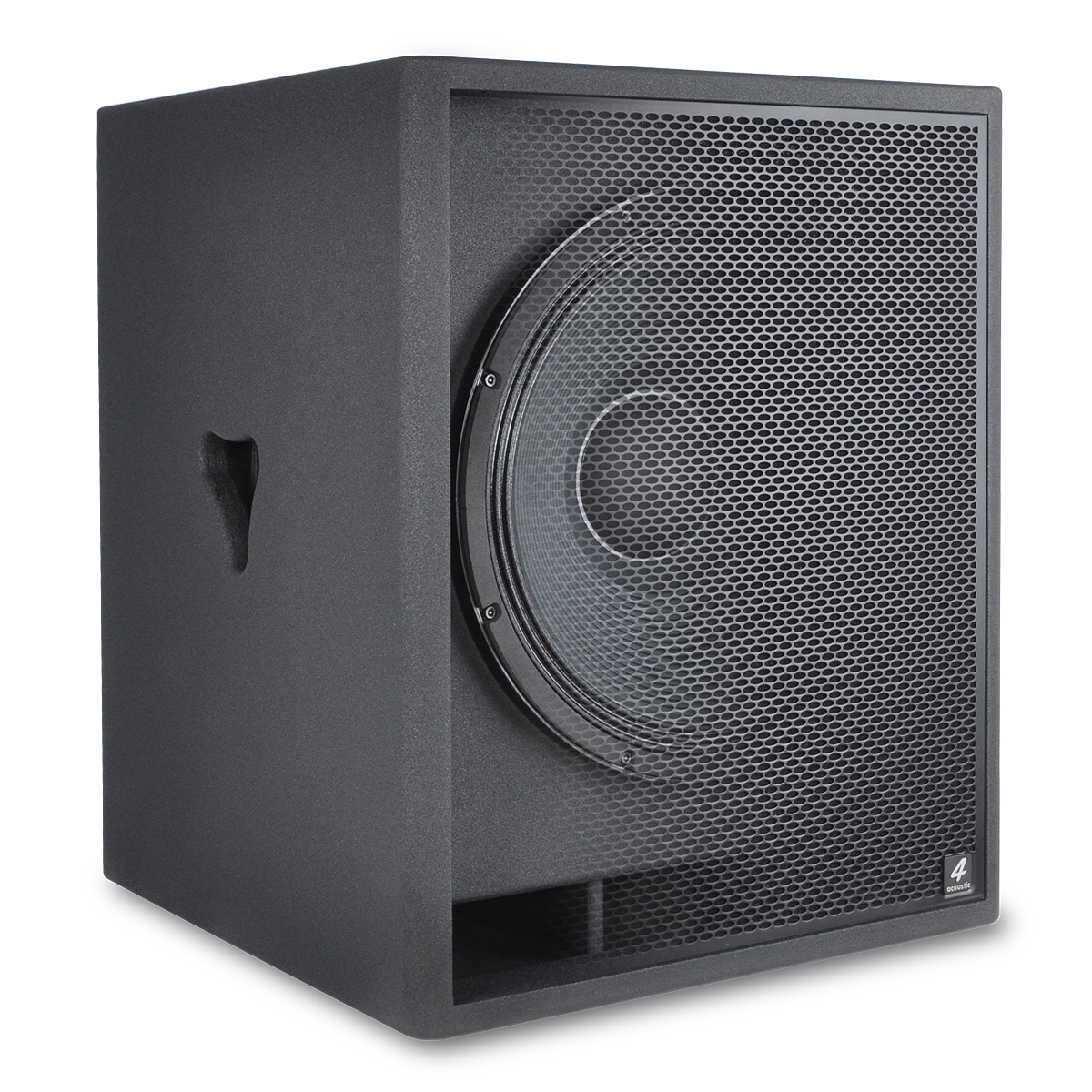

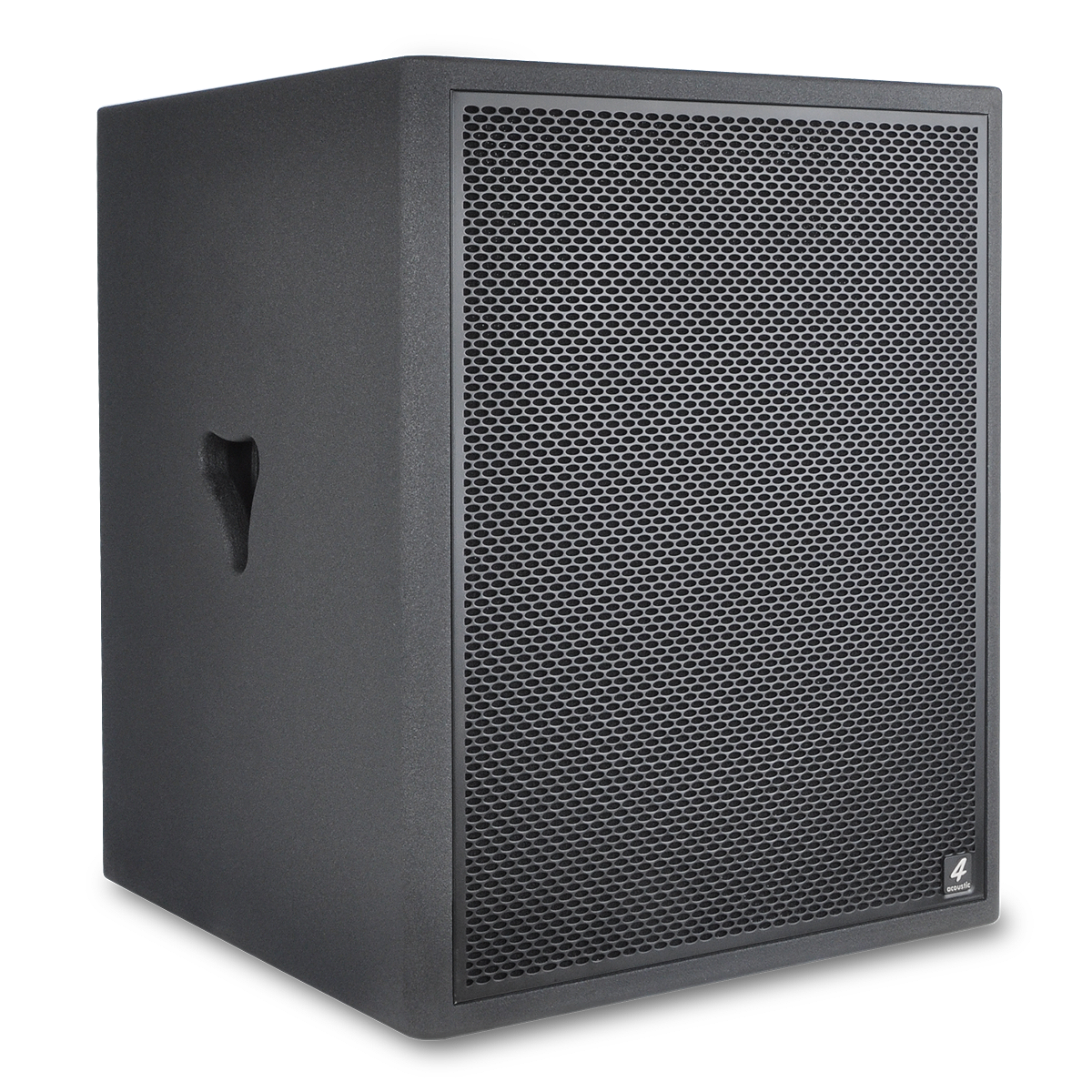

HCS-118B/NB High performance subwoofer

HCS-118B/NB Excellent high performance subwoofer

HCS-118B and HCS-118NB are powerful 18” subwoofers with excellent price / performance ratio. We supply them as HCS-118B equipped with a ferrite chassis or as HCS-118NB with a high performance Neodymium chassis and 1500W AES. The housing is equipped with two handles and a top mounted M20 threaded top hat. It is made of high quality multiplex wood and coated with a strong anti-scratch Polyurethane paint. The 4mm thick aluminum back panel is stocked with two NL-4 sockets to connect the amplifier or a second sub.

HCS-118B    GS1 (EAN) CODE: 4260318510813

HCS-118NB GS1 (EAN) CODE: 4260318511124



Technical Details

Model Name HCS-118B HCS-118NB
GS1 (EAN) CODE 4260318510813 4260318511124
System Type 18“ Subwoofer 18“ Subwoofer
Power Rating 1000 W AES
1400 W program
2800 W peak
1500 W AES
3000 W program
6000 W peak
Frequency Range (+/- 3 dB) 37 Hz - 250 Hz 30 Hz - 250 Hz
Sensitivity 98 dB 1w/1m 98 dB 1w/1m
Maximum SPL 128 dB 132 dB
Chassis STG-18FR 1000W
AES, 4“ voice coil
STG-18N 1500W
AES, 4“ voice coil
Nominal Impedance 8 Ohm 8 Ohm
Input Connectors 2 x Neutrik NL4 Socket
parallel 1+/1-
2 x Neutrik NL4 Socket
parallel 1+/1-
Housing Birch Multiplex Birch Multiplex

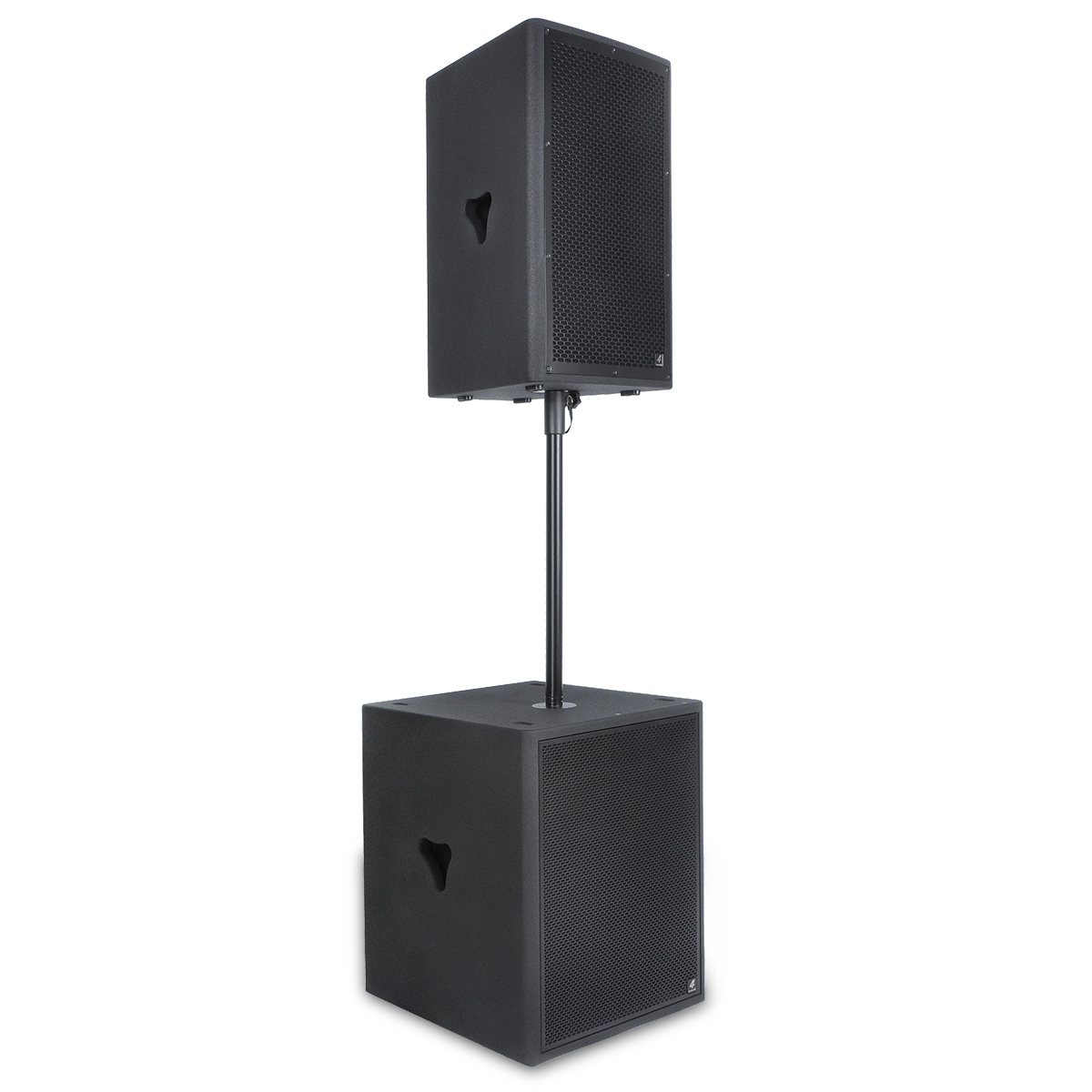

Suspension/Mounting Top mounted M20
threaded top hat
Top mounted M20
threaded top hat
Coating anti-scratch
Polyurethane coating
anti-scratch
Polyurethane coating
Dimensions (h/w/d) 695x570x600 mm 695x570x600 mm
Net weight 43,5 Kg 40,0 Kg

Picture Gallery

Accessories

Order Code GS1 (EAN) Code Description
STG-WH100 4260318511131 100mm blue wheel Set (two pcs. with brake)
STG-M20T 4260318511049 Adjustable M20 threaded distance Tube 1,0 Meter to 1,5 Meter
HCS-118B-BAG 4260318511025 Nylon protection transport cover bag for PCS-118B
KA-SP2-05 4260318510967 5 Meter Speaker cable 2x2,5qmm
KA-SP2-10 4260318510974 10 Meter Speaker cable 2x2,5qmm
KA-SP2-15 4260318510981 15 Meter Speaker cable 2x2,5qmm
KA-SP2-20 4260318510998 20 Meter Speaker cable 2x2,5qmm
SA-2130 4260318510844 2 Channel Class H Amplifier 2 x 1300 Watt @ 8 ohm
