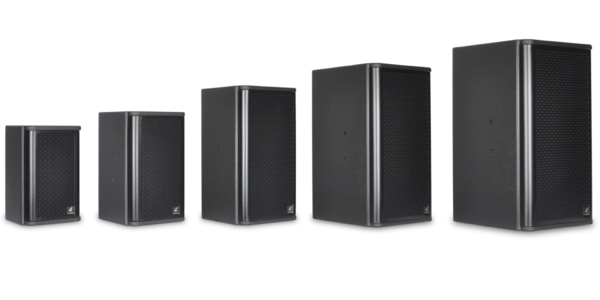

PCS-Q Series full range speaker
PCS-Q Series first class full range speaker
PCS-Q is our first-class full range series mainly designed for fixed installation. This series is equipped with premium components and convinced by linear frequency response and phase reproduction. The result delivers a transparent and pure sound experience. The PCS-Q series needs no complicate EQ settings and can be almost used as plug and play. To correct the Coverage Pattern for vertically or horizontal installation, you can rotate the horn direction accordingly. The housing offers suspension points for wall and roof mounting in three direction, namely top, side, and back. PCS-106Q and PCS-108Q have Vesa 75 size M6 suspension points at the backside to use with our wall mounting kits. With our U-profile hanging kit, you will able to adjust the hanging angle properly to suit the different sound environment.
PCS-106Q GS1 (EAN) CODE: 4260318511636
PCS-108Q GS1 (EAN) CODE: 4260318511643
PCS-110Q GS1 (EAN) CODE: 4260318511469
PCS-112Q GS1 (EAN) CODE: 4260318512008
PCS-115Q GS1 (EAN) CODE: 4260318511711
Technical Details
| Model Name | PCS-106Q | PCS-108Q | PCS-110Q | PCS-112Q | PCS-115Q |
|---|---|---|---|---|---|
| GS1 (EAN) CODE | 4260318511636 | 4260318511643 | 4260318511469 | 4260318512008 | 4260318511711 |
| System Type | 2-Way 6,5“+1“ Fullrange Speaker |
2-Way 8“+1“ Fullrange Speaker |
2-Way 10“+1“ Fullrange Speaker |
2-Way 12“+1,4“ Fullrange Speaker |
2-Way 15“+1,4“ Fullrange Speaker |
| Power Rating | 100 W AES 200 W program 400 W peak |
200 W AES 400 W program 800 W peak |
300 W AES 600 W program 1200 W peak |
500 W AES 1000 W program 2000 W peak |
600 W AES 1200 W program 2400 W peak |
| Frequency Range (+/- 3 dB) | 57 Hz - 20 kHzz | 53 Hz - 20 kHz | 50 Hz - 20 kHz | 41 Hz - 20 kHz | 40 Hz - 20 kHz |
| Coverage Pattern (hxv) | 60° radial | 90°x40° | 90°x40° | 80°x50° | 80°x50° |
| Sensitivity | 95 dB 1w/1m | 96 dB 1w/1m | 98 dB 1w/1m | 101 dB 1w/1m | 101 dB 1w/1m |
| Maximum SPL | 117 dB | 122 dB | 128 dB | 136 dB | 136 dB |
| Woofer | 1 x STG-6Q | 1 x STG-10Q | 1 x STG-10Q | 1 x STG-12Q | 1 x STG-15Q |
| Driver | 1 x STG-34R | 1 x STG-34R | 1 x STG-45F | 1 x STG-75B | 1 x STG-75B |
| Nominal Impedance | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm |
| Input Connectors | 2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
| Housing | Birch Multiplex | Birch Multiplex | Birch Multiplex | Birch Multiplex | Birch Multiplex |
| Suspension/Mounting | VESA 75 (Backside) 10 x M8 suspension U-Profil-Base |
VESA 75 (Backside) 35 mm pole socket 10 x M8 suspension U-Profil-Base |
35 mm pole socket 10 x M8 suspension U-Profil-Base |
35 mm pole socket 10 x M8 suspension U-Profil-Base |
35 mm pole socket 10 x M8 suspension U-Profil-Base |
| Coating | Anti-scratch Polyurethane coating |
Anti-scratch Polyurethane coating |
Anti-scratch Polyurethane coating |
Anti-scratch Polyurethane coating |
Anti-scratch Polyurethane coating |
| Dimensions (h/w/d) | 365x249x242 mm | 450x275x290 mm | 525x312x295 mm | 620x374x385 mm | 700x419x436 mm |
| Net weight | 9,5 Kg | 13,0 Kg | 16,5 Kg | 23,0 Kg | 34,0 Kg |
Accessories
| Order Code | GS1 (EAN) Code | Description |
|---|---|---|
| STG-STD | 4260318511032 | Tripot Speaker Stand |
| KA-SP2-05 | 4260318510967 | 5 Meter Speaker cable 2x2,5qmm |
| KA-SP2-10 | 4260318510974 | 10 Meter Speaker cable 2x2,5qmm |
| KA-SP2-15 | 4260318510981 | 15 Meter Speaker cable 2x2,5qmm |
| KA-SP2-20 | 4260318510998 | 20 Meter Speaker cable 2x2,5qmm |
| SA-2080 | 4260318510820 | 2 Channel Class H Amplifier 2 x 800 Watt @ 8 ohm |
| SA-2100 | 4260318510837 | 2 Channel Class H Amplifier 2 x 1000 W @ 8 ohm |
| SA-2130 | 4260318510844 | 2 Channel Class H Amplifier 2 x 1300 Watt @ 8 ohm |
Downloads
Documents
Pictures

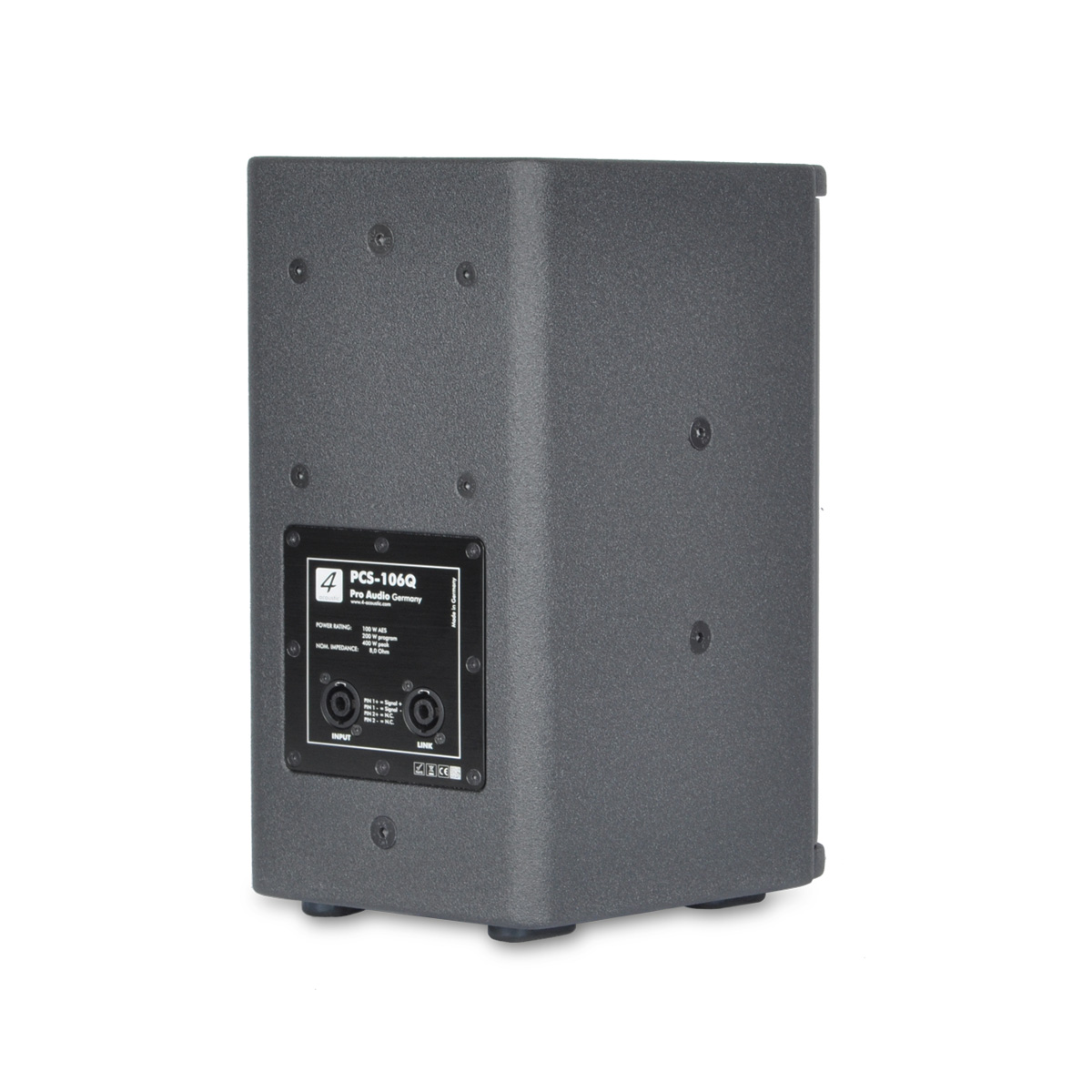

- PCS-106Q-03.png (1.0 MiB)
- PCS-106Q-04.png (1.2 MiB)
- PCS-108Q-01.png (1.0 MiB)
- PCS-108Q-02.png (1.0 MiB)

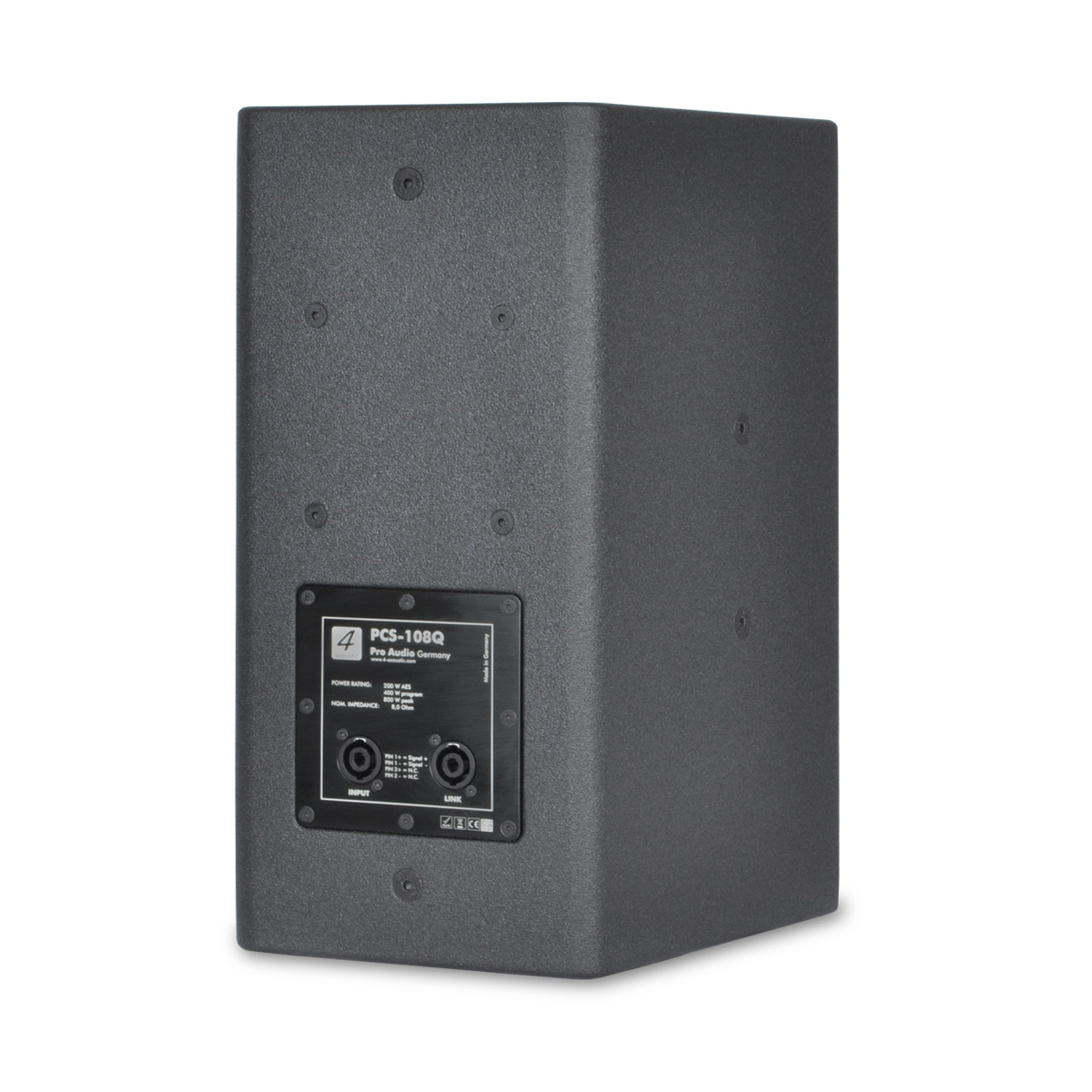

- PCS-108Q-03.png (1.2 MiB)
- PCS-108Q-04.png (1.4 MiB)
- PCS-110Q-01.png (1.2 MiB)
- PCS-110Q-02.png (1.2 MiB)

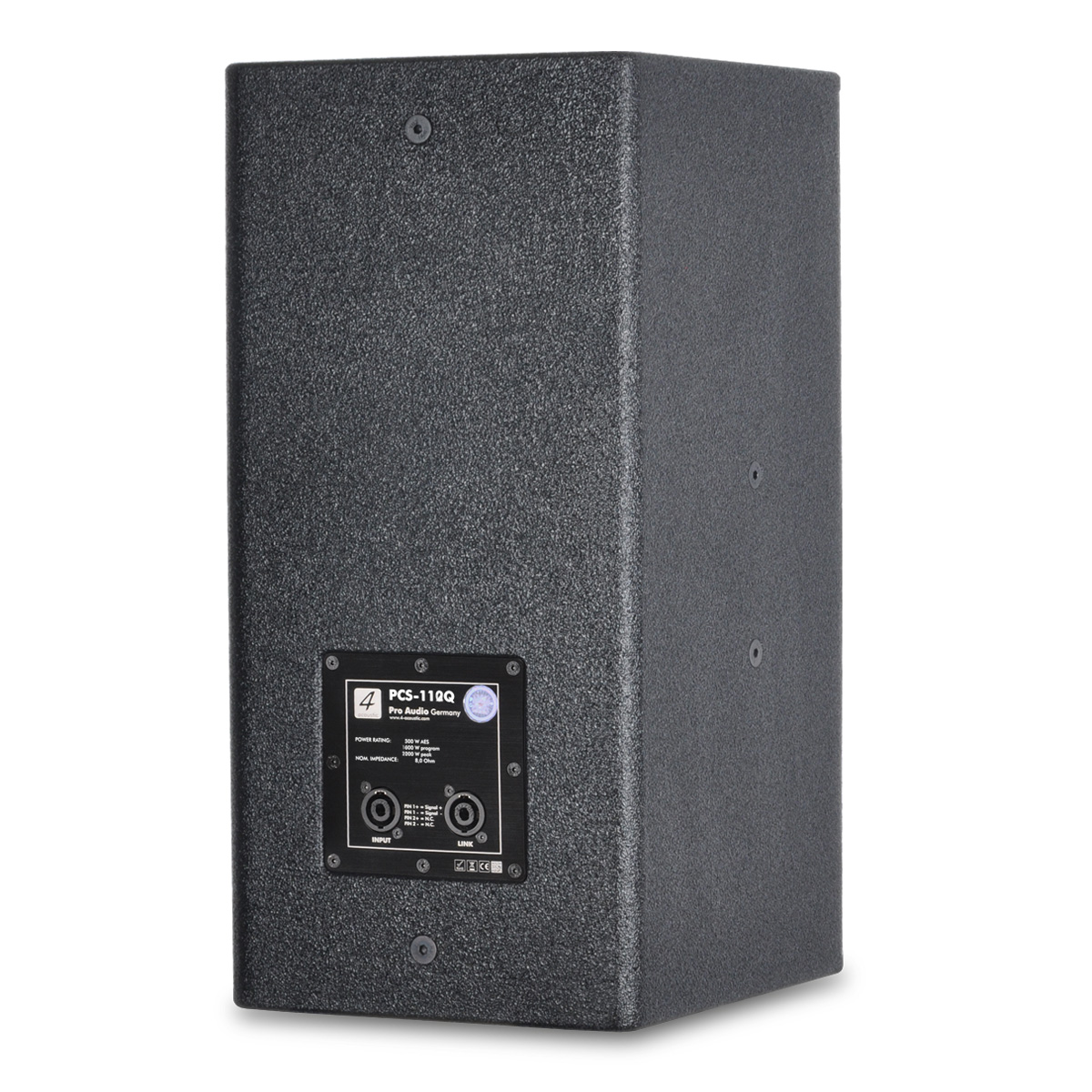

- PCS-110Q-03.png (1.5 MiB)
- PCS-112Q-01.png (1.4 MiB)
- PCS-112Q-02.png (1.4 MiB)

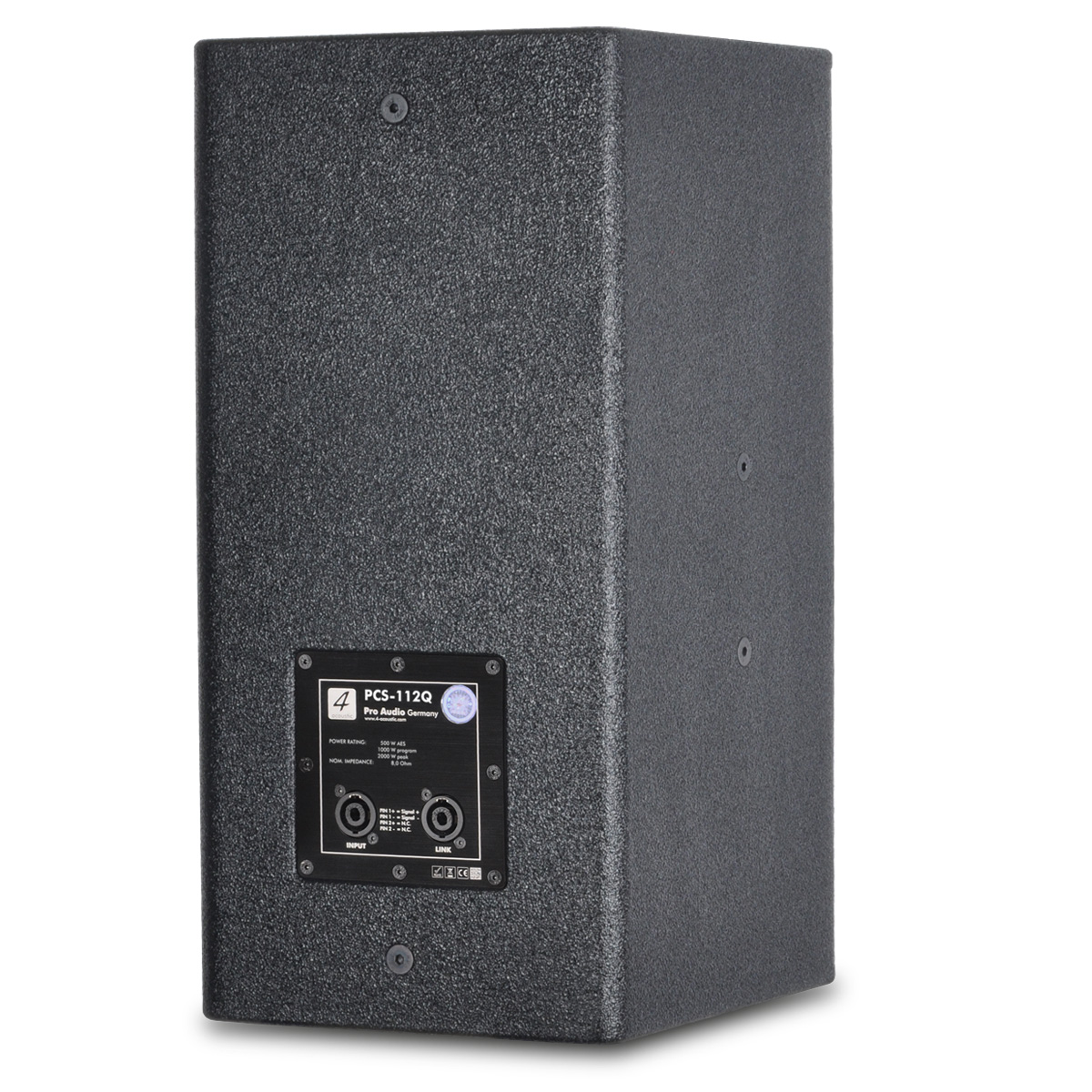

- PCS-112Q-03.png (1.7 MiB)
- PCS-115Q-01.png (1.3 MiB)
- PCS-115Q-02.png (1.4 MiB)

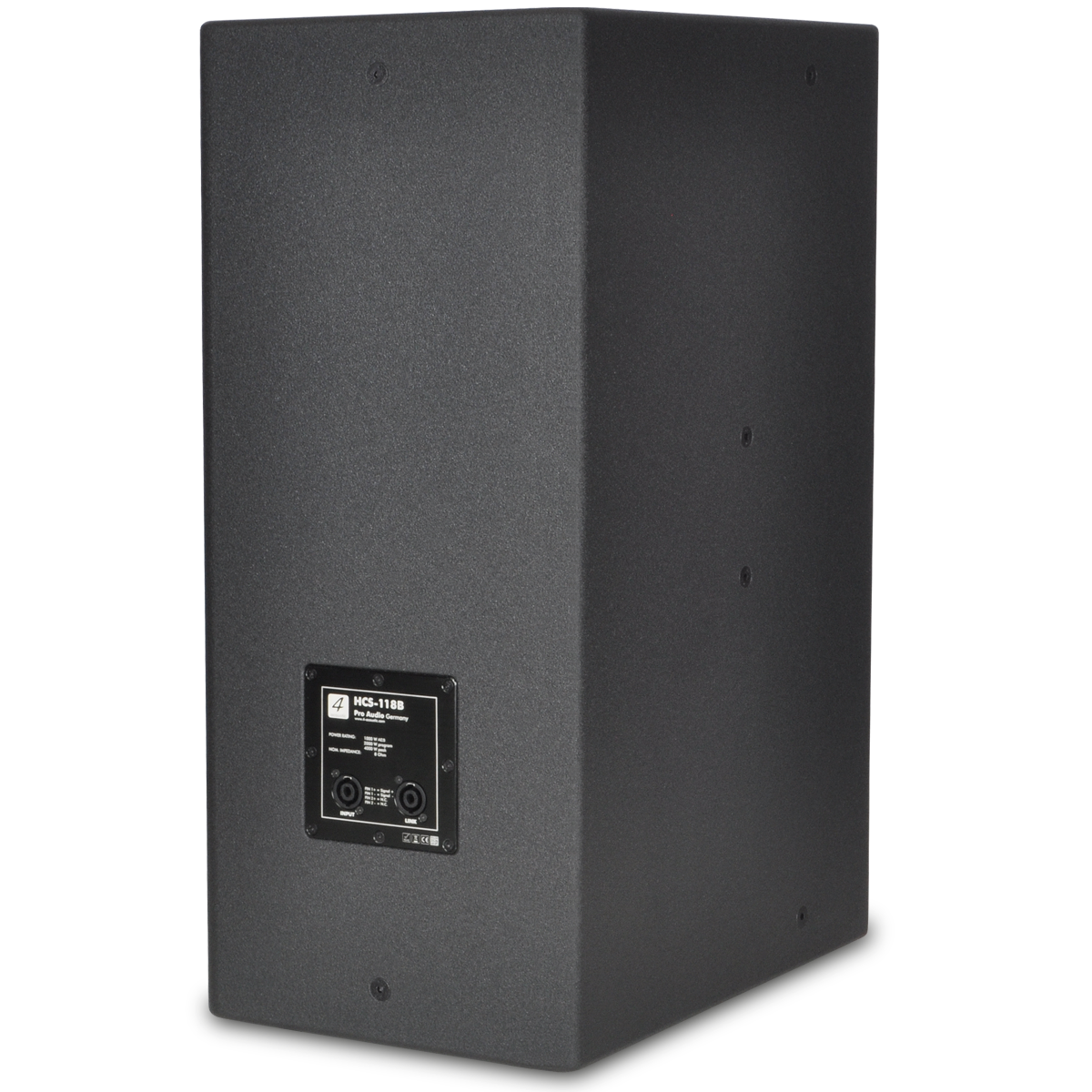

- PCS-115Q-03.png (1.5 MiB)
