PCS-315NB

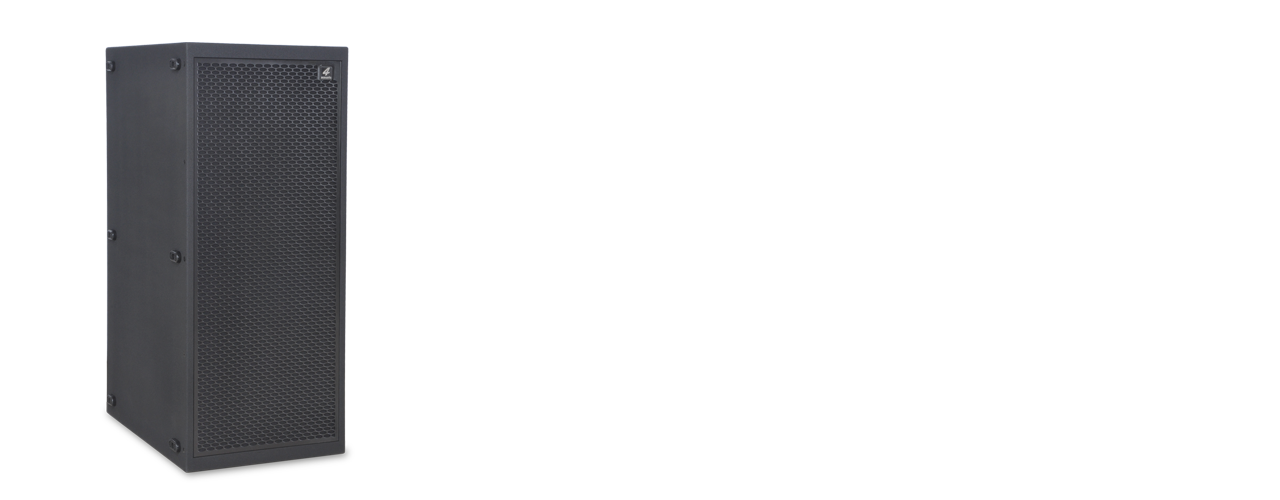

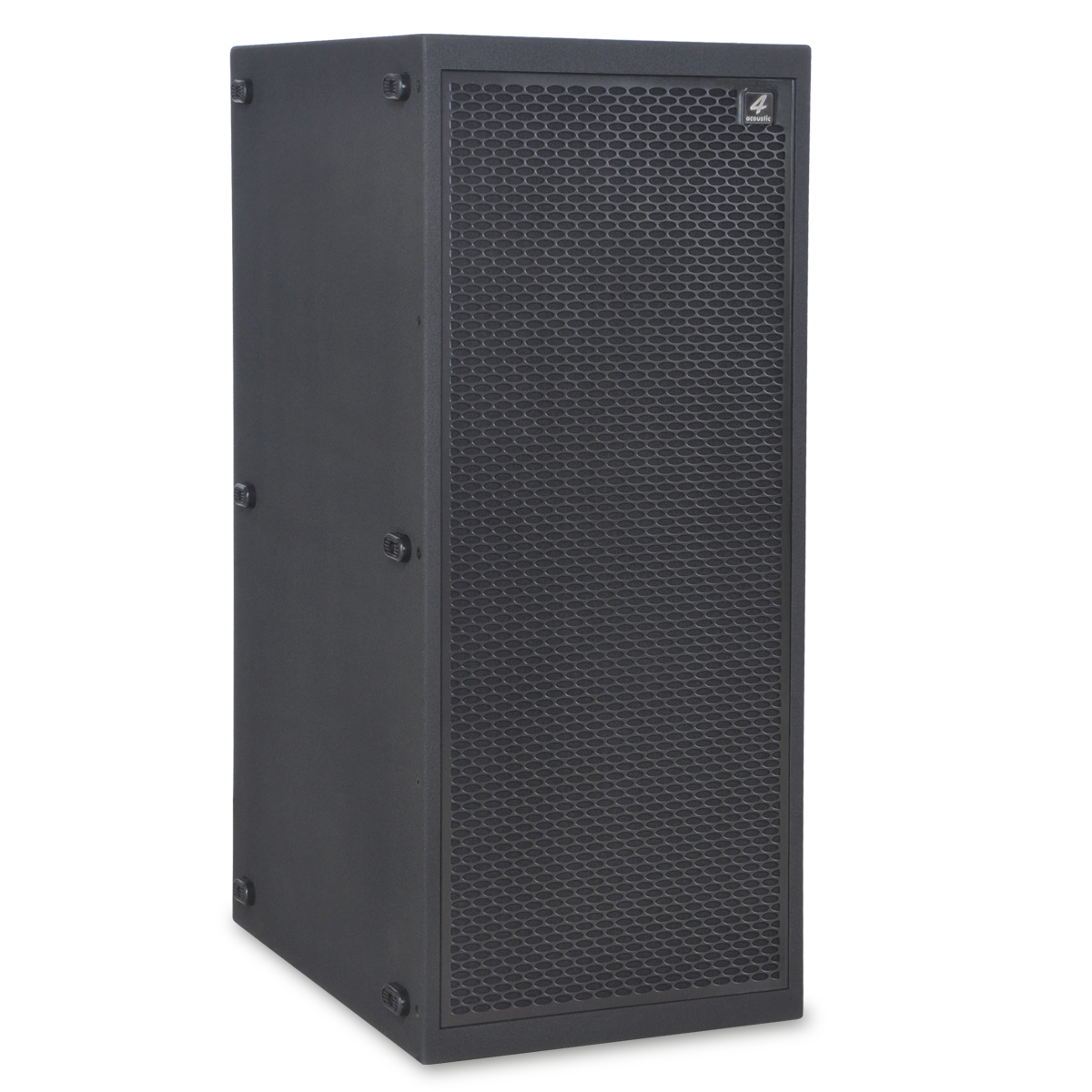

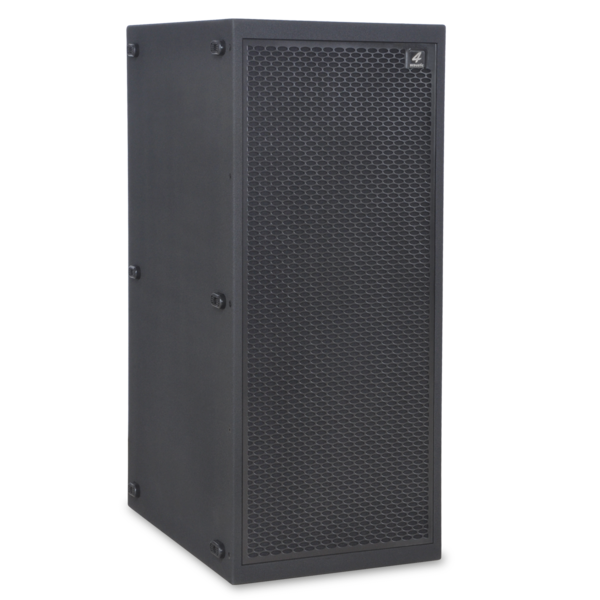

PCS-315NB Triple 15“ ground stack subwoofer

PCS-315NB Triple 15“ ground stack subwoofer

Amazing 7200 W program power!

Three premium neodymium chassis each with 1200 watt AES power installed in a just 430x1000x600 mm large case. Amazing is also the sound pressure of up to 140dB. The peak power performance of this incredible subwoofer is over 14400 Watts. The frequency response covers 38 Hz to 200 Hz and provides a flexible connecting point to the mid / high systems. The nominal impedance is 2,7 ohm.

PCS-315NB GS1 (EAN) CODE: 4260318510479

Technical Details

Model Name PCS-315NB
GS1 (EAN) CODE 4260318510479
System Type Triple 15“ ground stack subwoofer
Power Rating 3600 W AES
4200 W program
14400 W peak
Frequency Range (-10 dB) 38 Hz - 200 Hz
Sensitivity 101 dB 1w/1m
Maximum SPL 140 dB
Woofer 3 x STG-15NB 1200W AES, 4“ voice coil

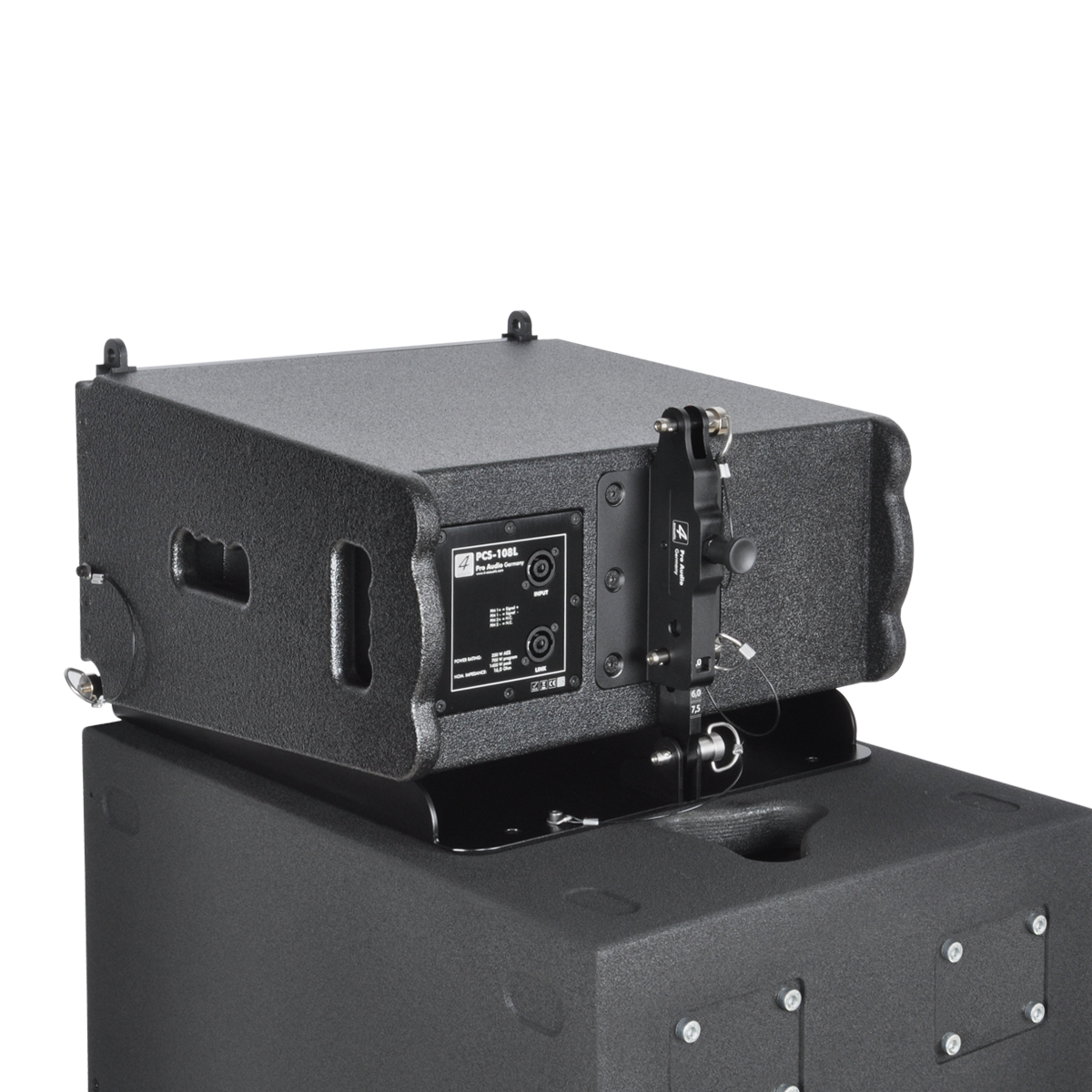

Suspension/Mounting Snap In function for PCS-108L
Nominal Impedance 2,7 Ohm
Input Connectors 2 x Neutrik NL4 Socket parallel 1+/1-
Housing Birch Multiplex
Coating Water-resistant Polyurea coating
Dimensions (h/w/d) 1000x430x600 mm
Net weight 65,5 kg

Picture Gallery

Accessories

Order Code GS1 (EAN) Code Description
STG-WH100 4260318511131 100mm blue wheel Set (two pcs. with brake)

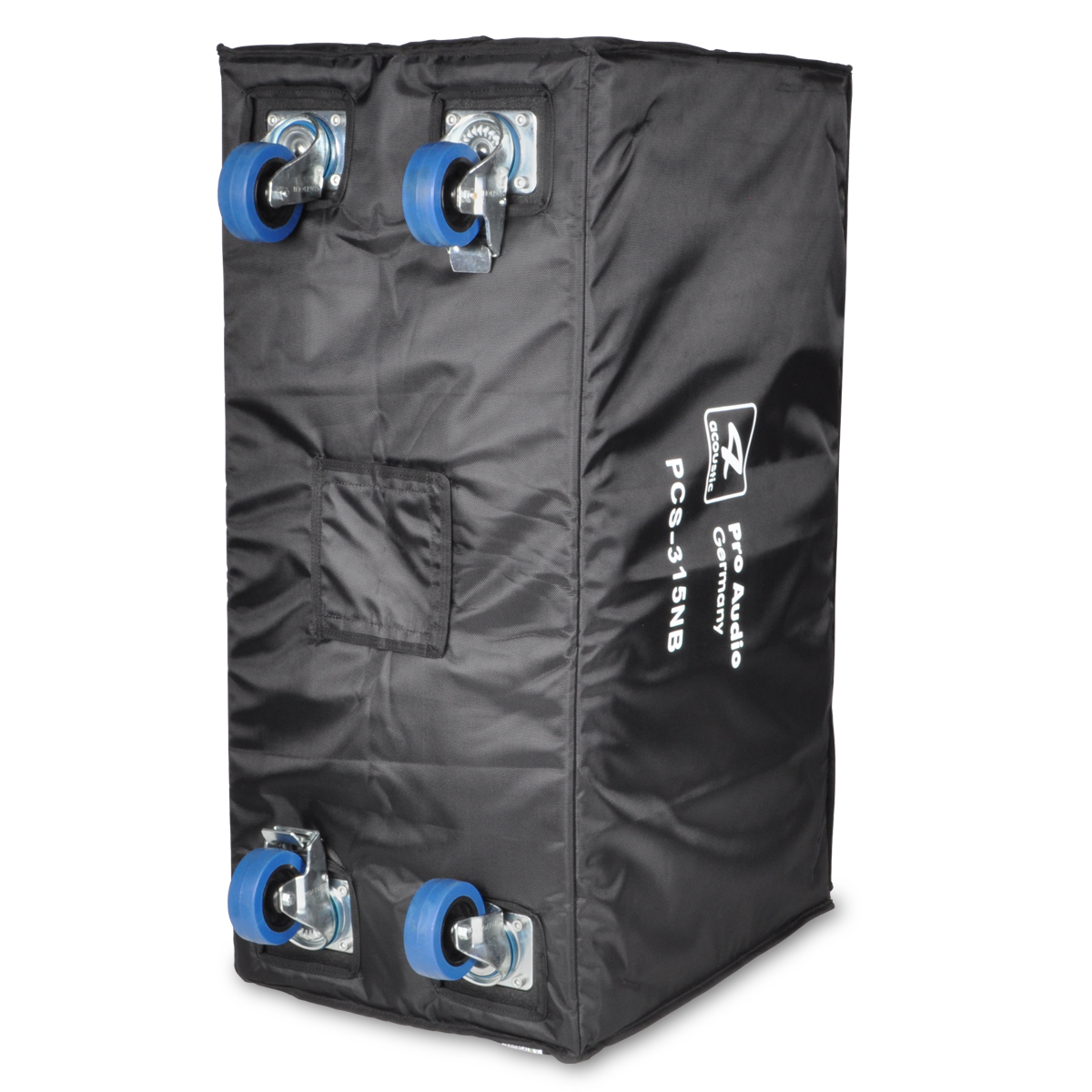

PCS-315NB-BAG 4260318511568 Nylon protection transport cover bag for PCS-315NB
KA-SP4-0.5 4260318511155 0,5 Meter speaker cable 4x2,5qmm
KA-SP4-05 4260318511193 5 Meter Speaker cable 4x2,5qmm
KA-SP4-10 4260318511209 10 Meter Speaker cable 4x2,5qmm
KA-SP4-15 4260318511216 15 Meter Speaker cable 4x2,5qmm
KA-SP4-20 4260318511223 20 Meter Speaker cable 4x2,5qmm
