PCS-318NB

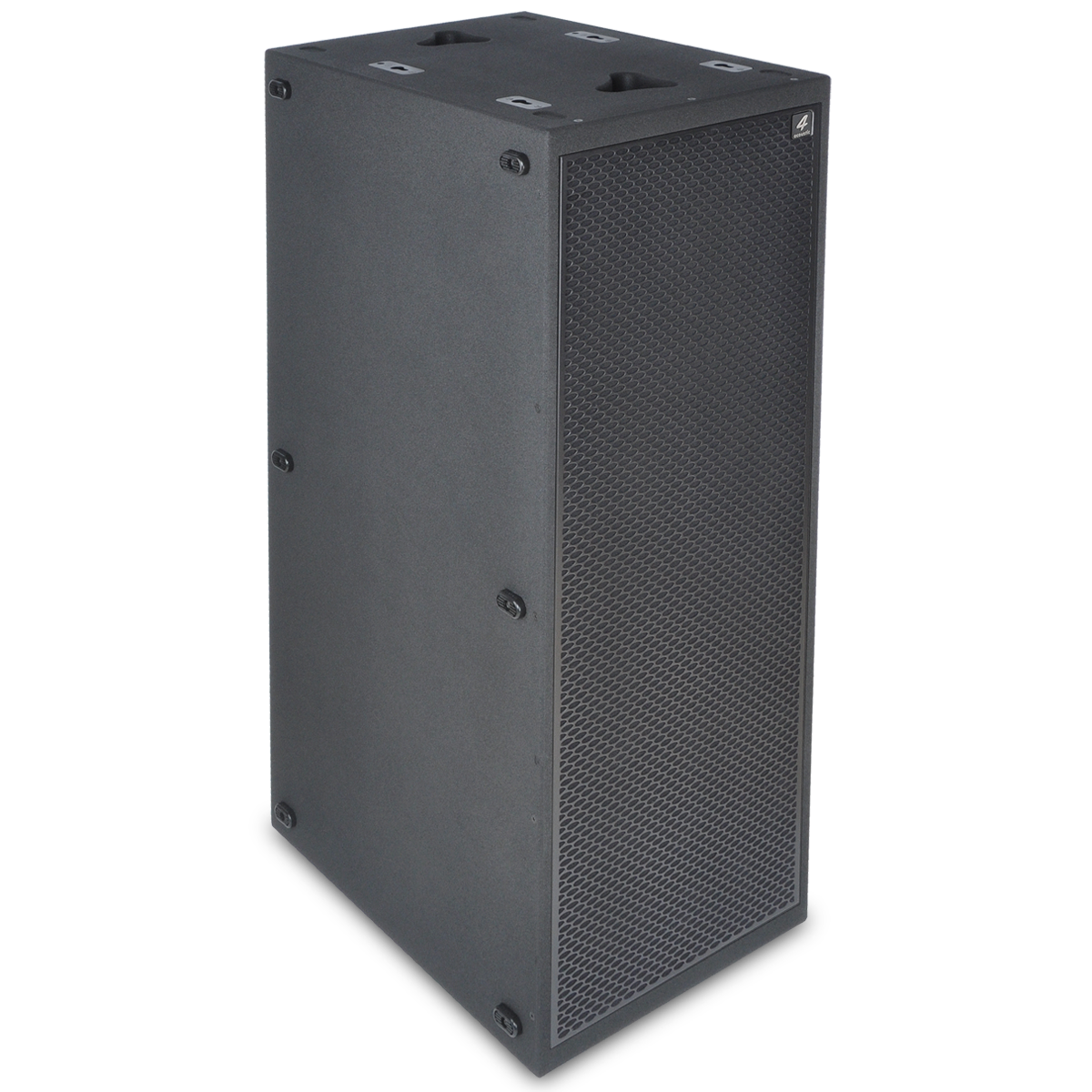

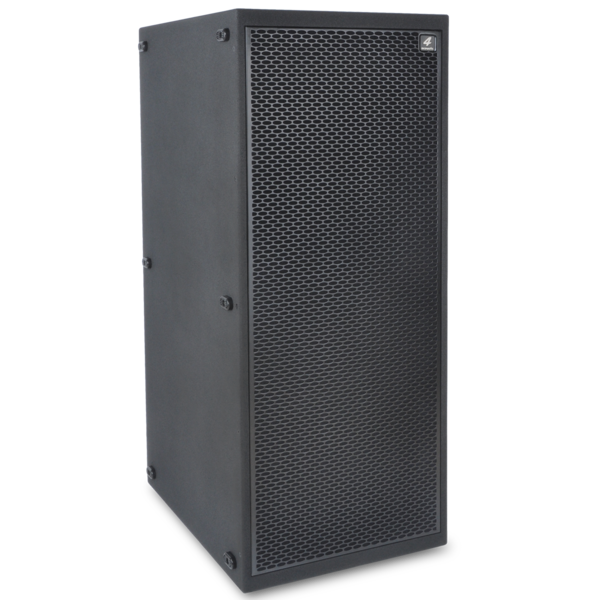

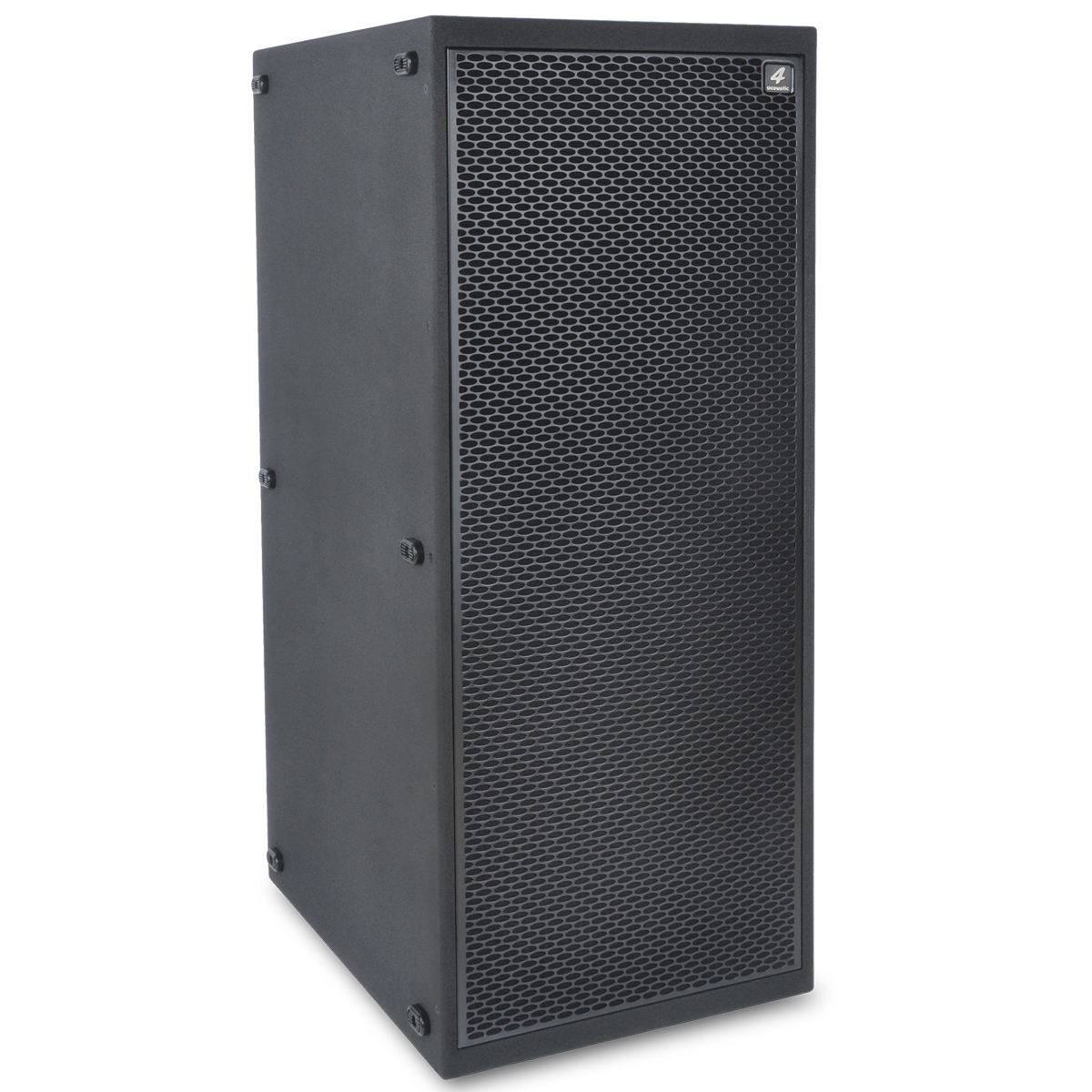

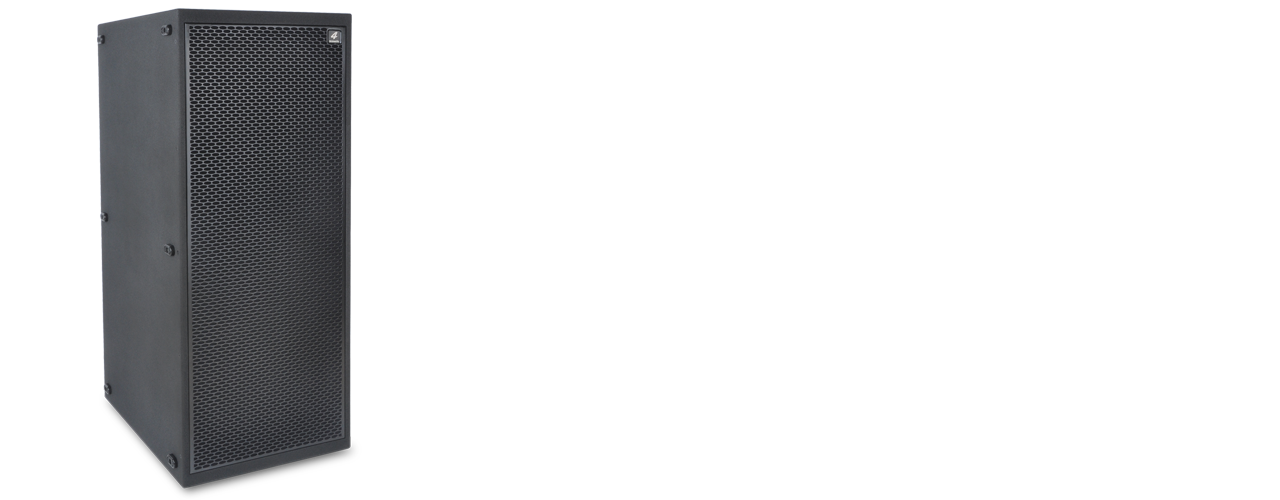

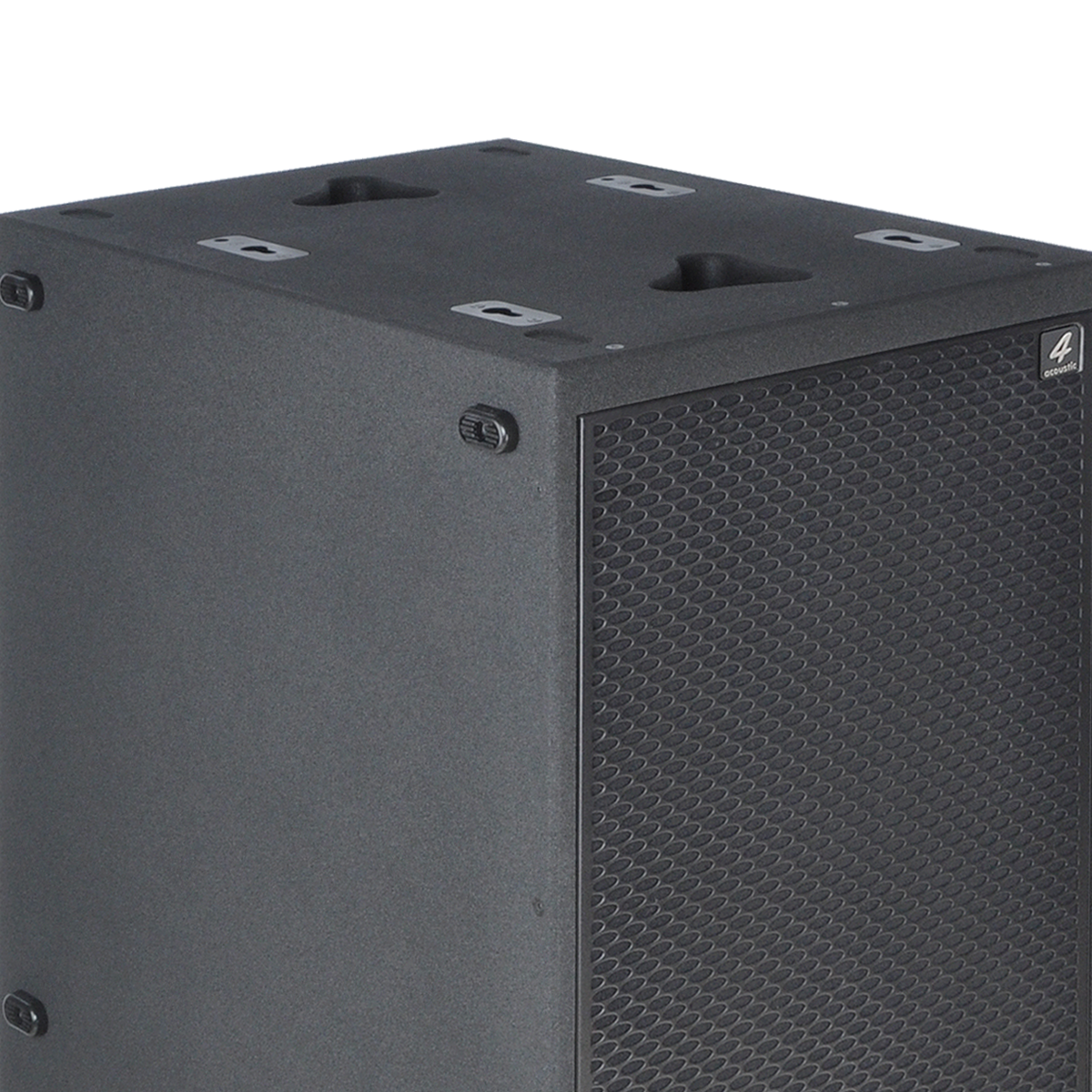

PCS-318NB Triple 18“ ground stack subwoofer

PCS-318NB Triple 18“ ground stack subwoofer

Amazing 9000 W program power!

Three premium neodymium chassis each with 1500 watts AES power installed in a just 500x1200x700 mm large case. Amazing is also the sound pressure of up to 154dB. The peak power performance of this incredible subwoofer is over 18000 Watts. The frequency response covers 28 Hz to 160 Hz and provides a flexible connecting point to the mid / high systems. The nominal impedance is 2,7 ohm.

PCS-318NB GS1 (EAN) CODE: 4260318510486

Technical Details

Model Name PCS-318NB
GS1 (EAN) CODE 4260318510486
System Type Triple 18“ ground stack subwoofer
Power Rating 4500 W AES
9000 W program
18000 W peak
Frequency Range (-10 dB) 28 Hz - 160 Hz
Sensitivity 103 dB 1w/1m
Maximum SPL 154 dB
Woofer 3 x STG-18NB 1500W AES, 4“ voice coil

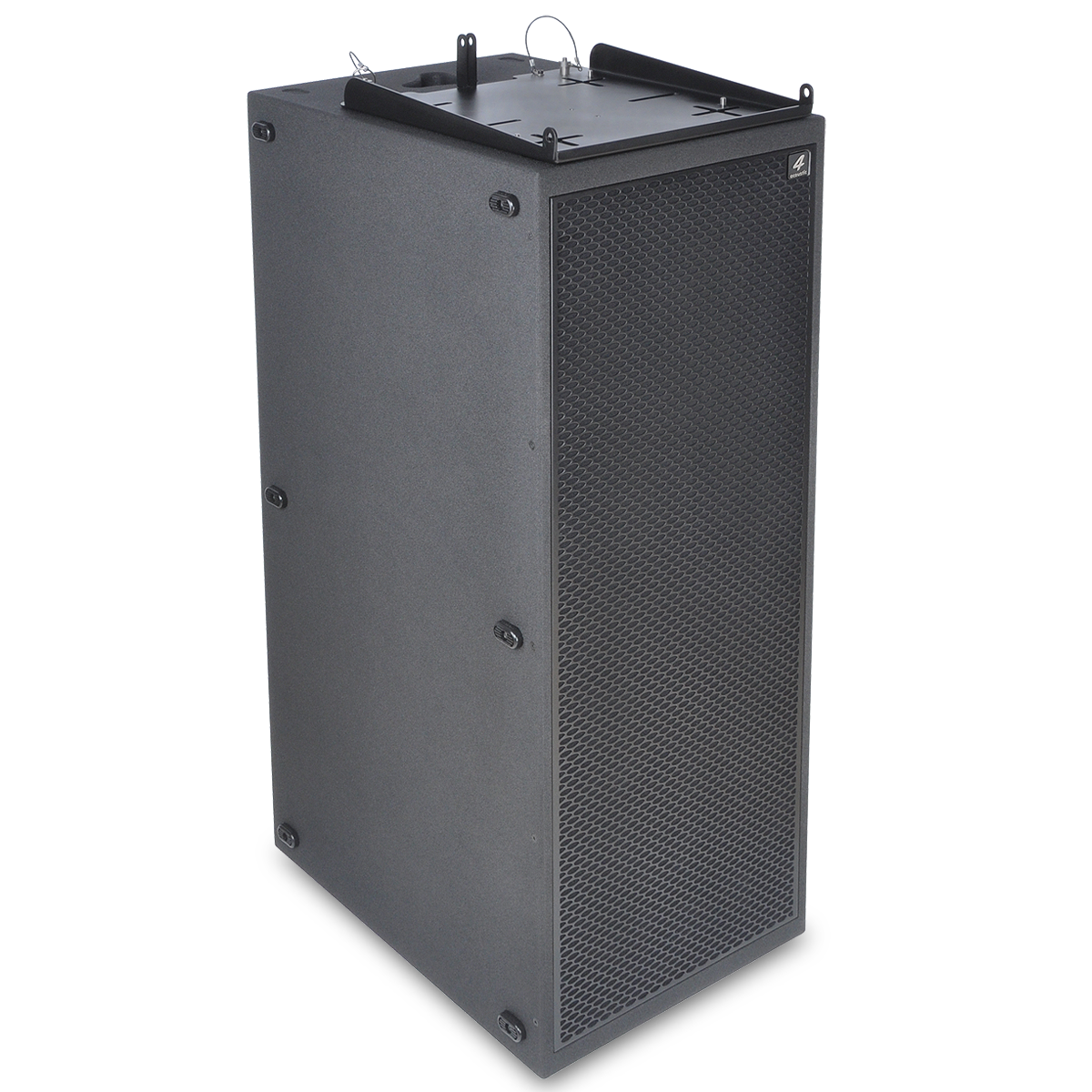

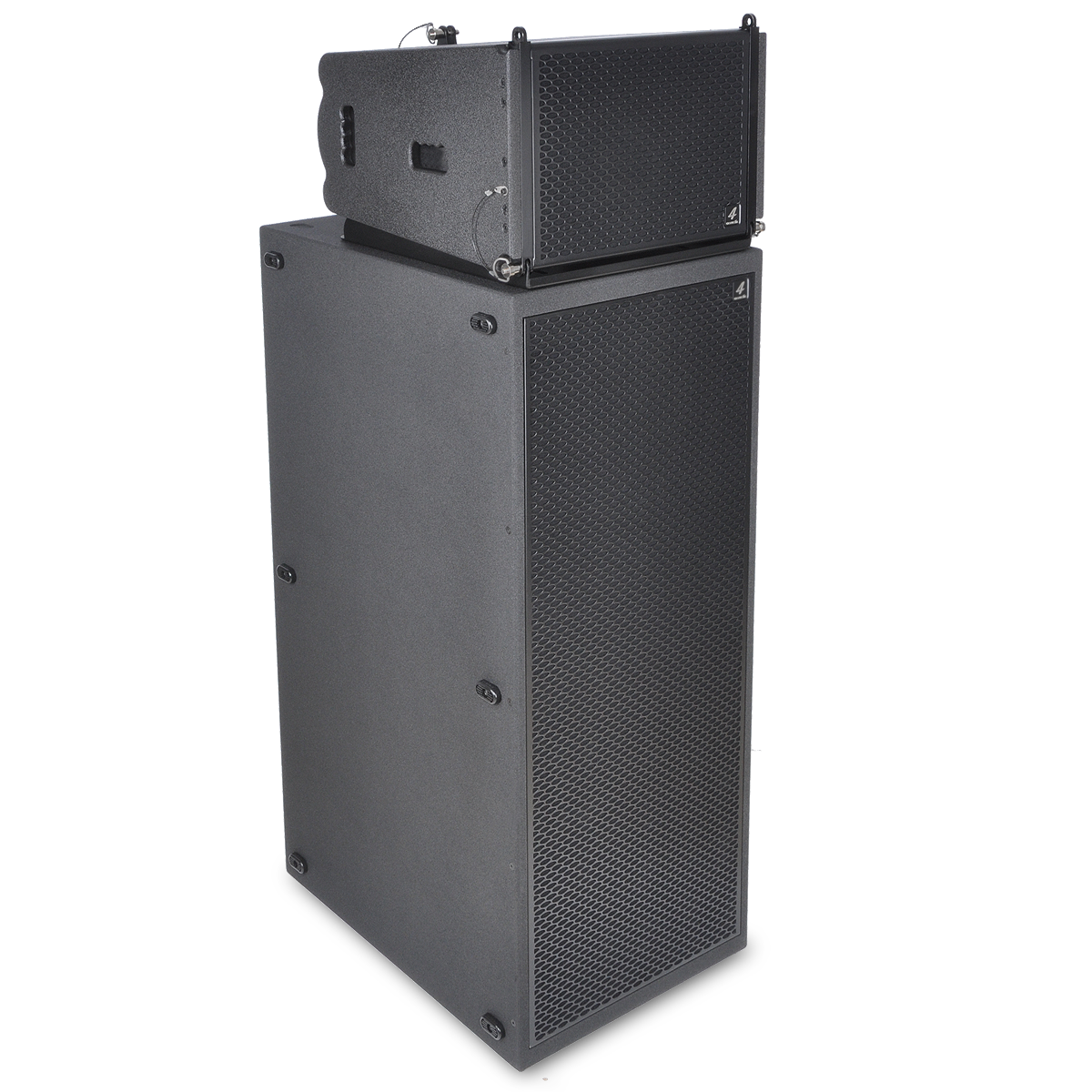

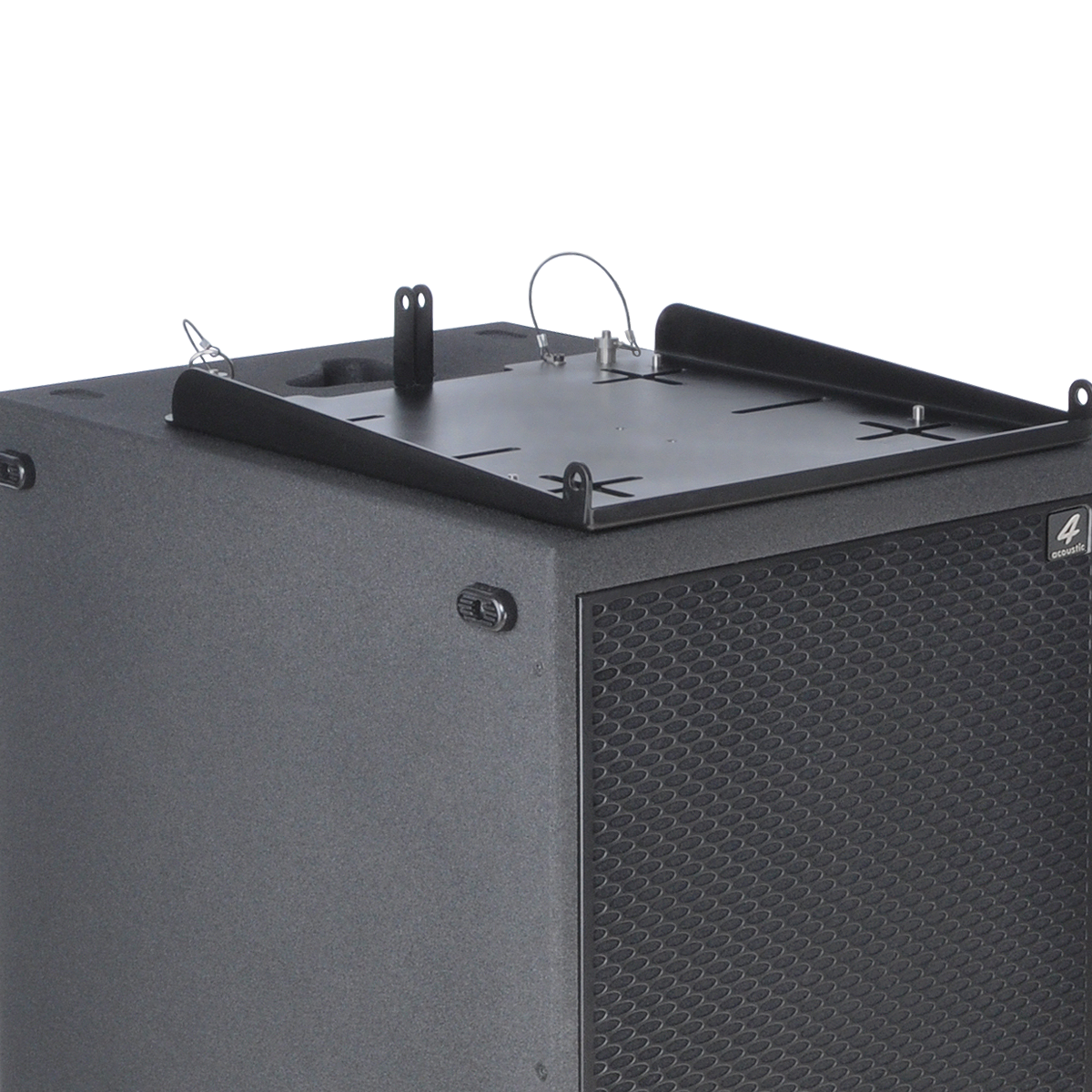

Suspension/Mounting Snap In function for PCS-110L and PCS-210L flight frame
Nominal Impedance 2,7 Ohm
Input Connectors 2 x Neutrik NL4 Socket parallel 1+/1-
Housing Birch Multiplex
Coating Water-resistant Polyurea coating
Dimensions (h/w/d) 1200x500x700 mm
Net weight 91,5 kg

Picture Gallery

Accessories

Order Code GS1 (EAN) Code Description
STG-WH100 4260318511131 100mm blue wheel Set (two pcs. with brake)
PCS-318NB-BAG 4260318511261 Nylon protection transport cover bag for PCS-318NB
KA-SP4-0.5 4260318511155 0,5 Meter speaker cable 4x2,5qmm
KA-SP4-05 4260318511193 5 Meter Speaker cable 4x2,5qmm
KA-SP4-10 4260318511209 10 Meter Speaker cable 4x2,5qmm
KA-SP4-15 4260318511216 15 Meter Speaker cable 4x2,5qmm
KA-SP4-20 4260318511223 20 Meter Speaker cable 4x2,5qmm
