SI Series

The SI Series

The SI Series

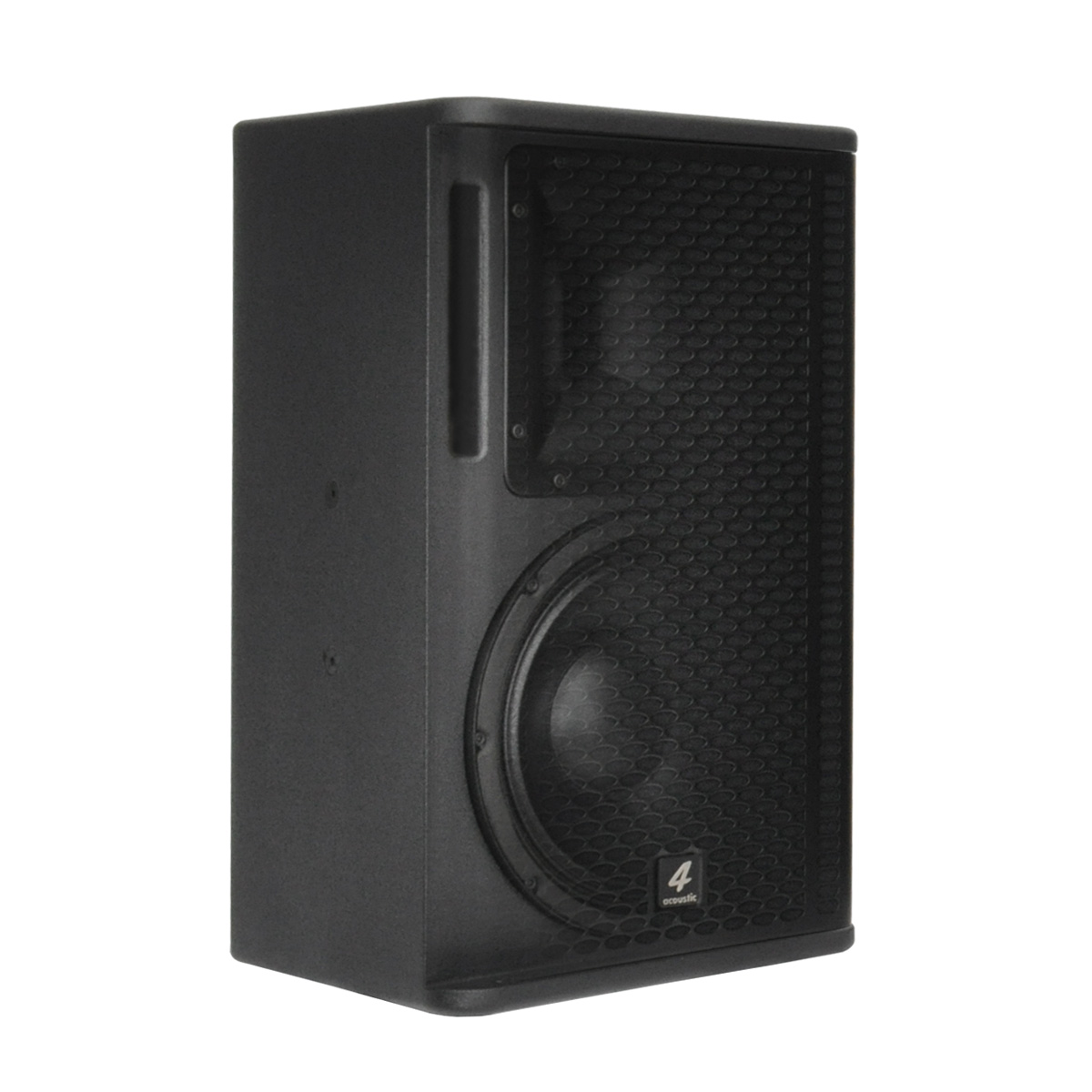

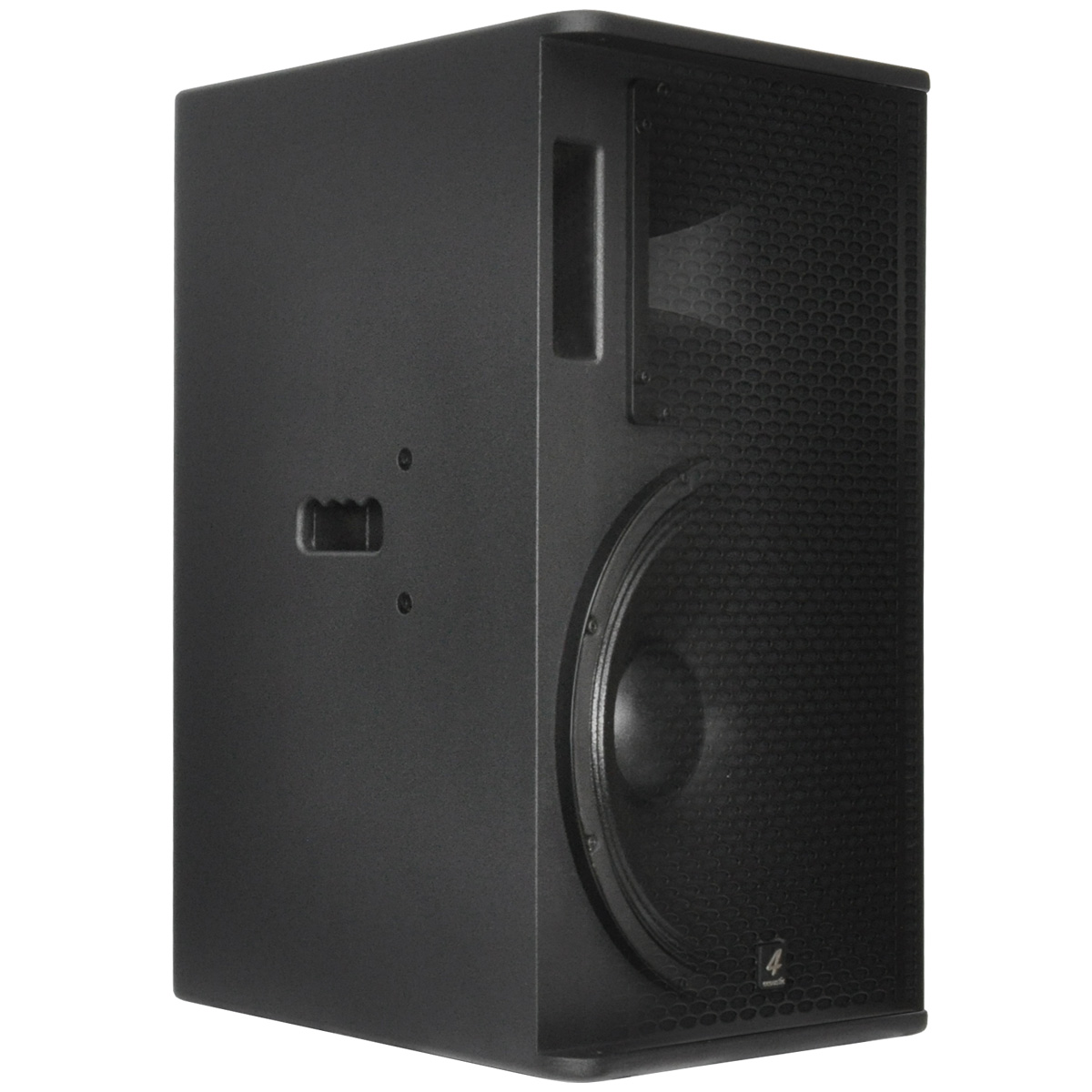

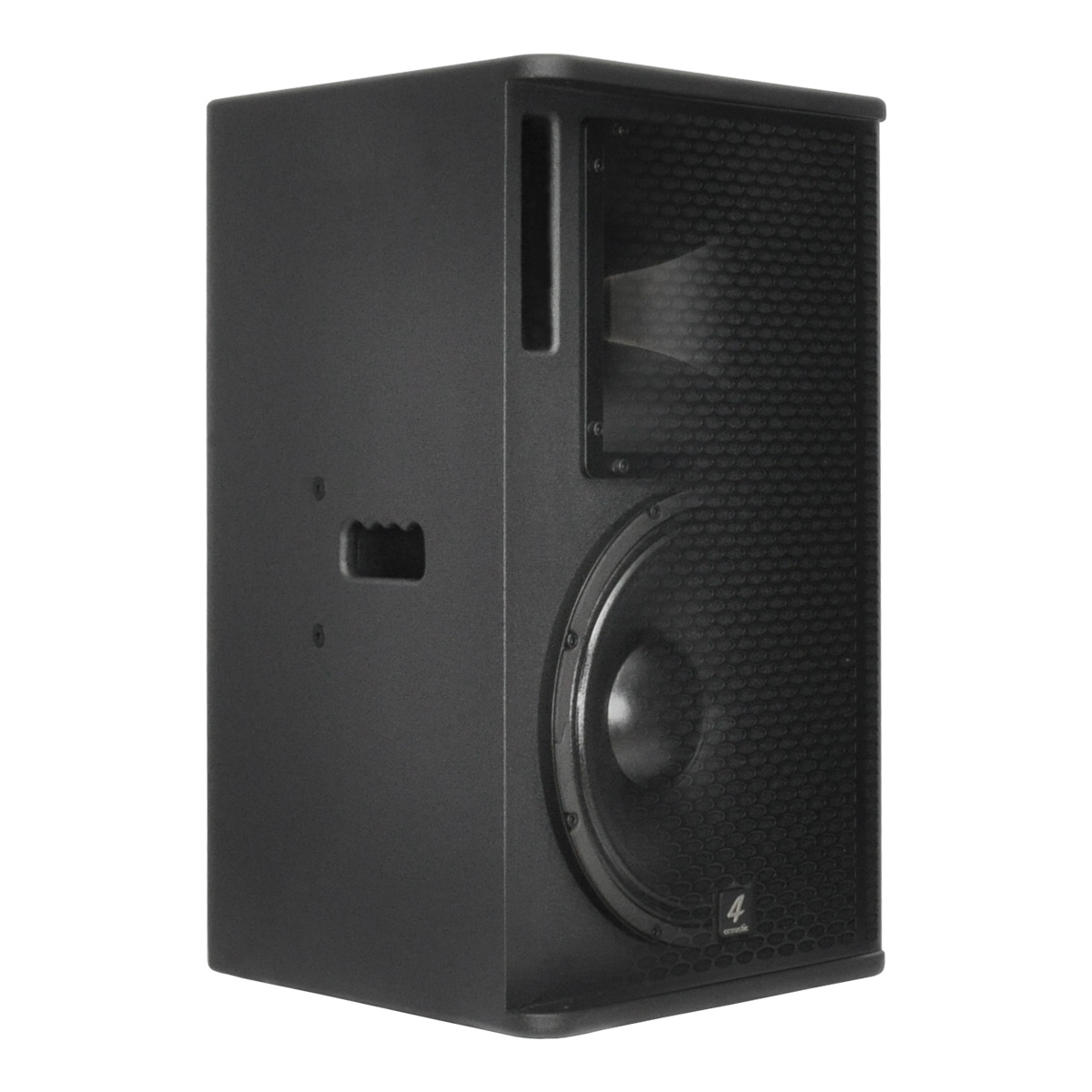

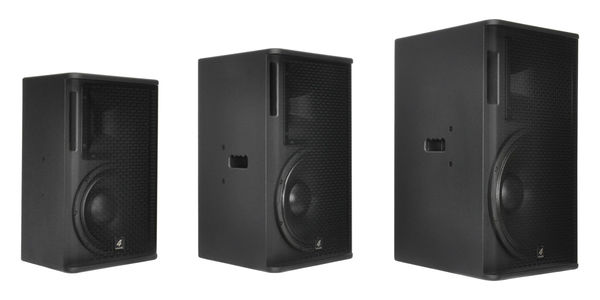

The SI Series is designed for professional near-field sound reinforcement systems in clubs and music bars as well as for high-quality KTV installations. High-quality components and a perfectly tuned crossover ensure extremely high efficiency and optimum sound quality.Combined with our professional subwoofers, the SI series can scale any size of near field sound reinforcement. The SI series is equipped with several suspension points for fixed installation in horizontal and vertical direction.



SI-10 GS1 (EAN) CODE: 4260318512893

SI-12 GS1 (EAN) CODE: 4260318512886

SI-15 GS1 (EAN) CODE: 4260318512909

Technical Details

Model Name SI-10 SI-12 SI-15
GS1 (EAN) CODE 4260318512893 4260318512886 4260318512909
System Type 2-Way 10“+1“
Fullrange Speaker
2-Way 12“+1,4“
Fullrange Speaker
2-Way 15“+1,4“
Fullrange Speaker
Power Rating 300 W AES
600 W program
1200 W peak
500 W AES
1000 W program
2000 W peak
600 W AES
1200 W program
2400 W peak
Frequency Range (+/- 3 dB) 50 Hz - 20 kHz 41 Hz - 20 kHz 40 Hz - 20 kHz
Coverage Pattern (hxv) 90°x40° 80°x50° 80°x50°
Sensitivity 98 dB 1w/1m 101 dB 1w/1m 101 dB 1w/1m
Maximum SPL 128 dB 136 dB 136 dB
Woofer 1 x STG-10Q 1 x STG-12Q 1 x STG-15Q
Driver 1 x STG-45F 1 x STG-75B 1 x STG-75B
Nominal Impedance 8 Ohm 8 Ohm 8 Ohm
Input Connectors 2 x Neutrik NL4 Socket
parallel 1+/1-
2 x Neutrik NL4 Socket
parallel 1+/1-
2 x Neutrik NL4 Socket
parallel 1+/1-
Housing Birch Multiplex Birch Multiplex Birch Multiplex
Suspension/Mounting 35 mm pole socket
10 x M8 suspension
U-Profil-Base
35 mm pole socket
10 x M8 suspension
U-Profil-Base
35 mm pole socket
10 x M8 suspension
U-Profil-Base
Coating Anti-scratch
Polyurethane coating
Anti-scratch
Polyurethane coating
Anti-scratch
Polyurethane coating
Dimensions (h/w/d) 525x312x295 mm 620x374x385 mm 700x419x436 mm
Net weight 16,5 Kg 23,0 Kg 34,0 Kg

Picture Gallery
