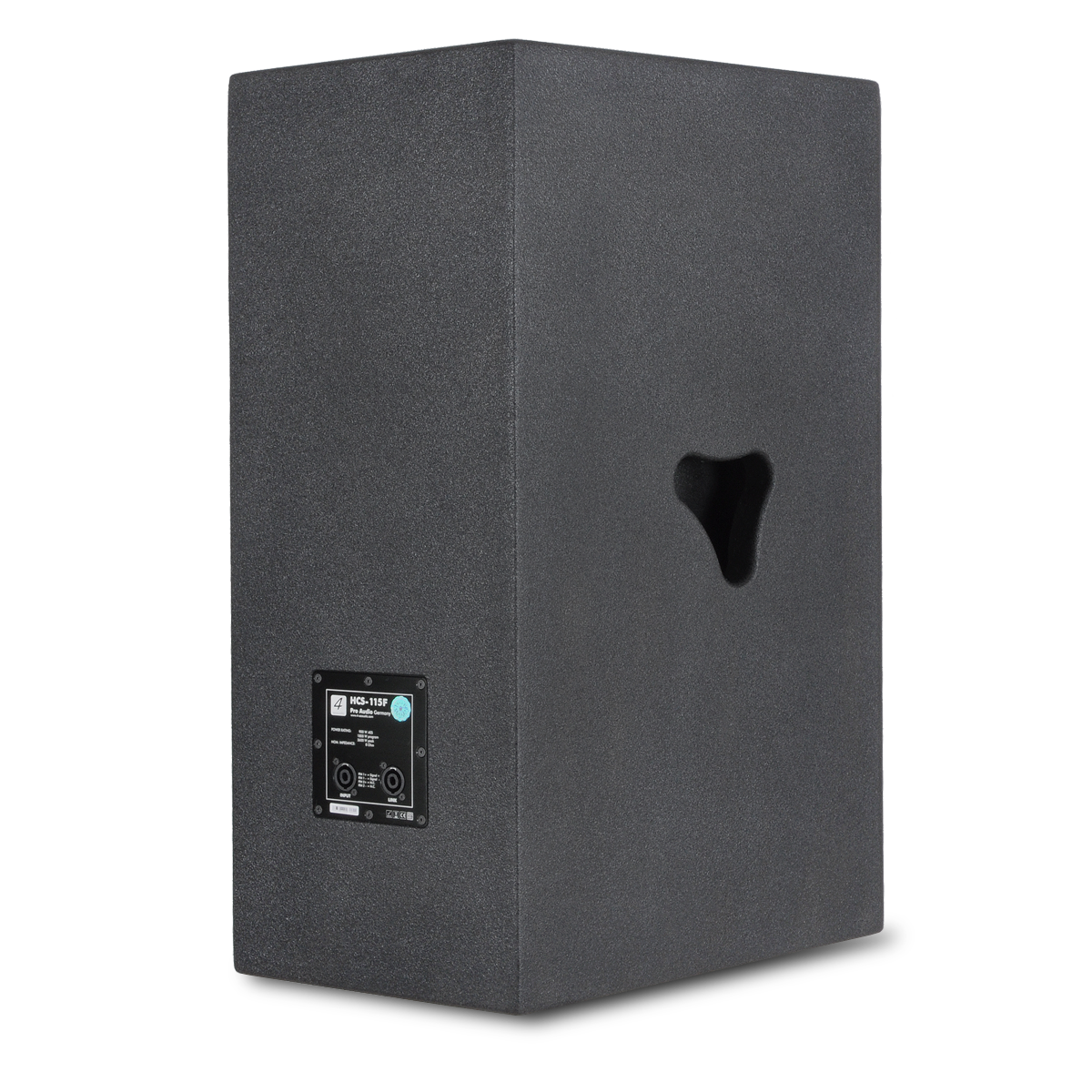

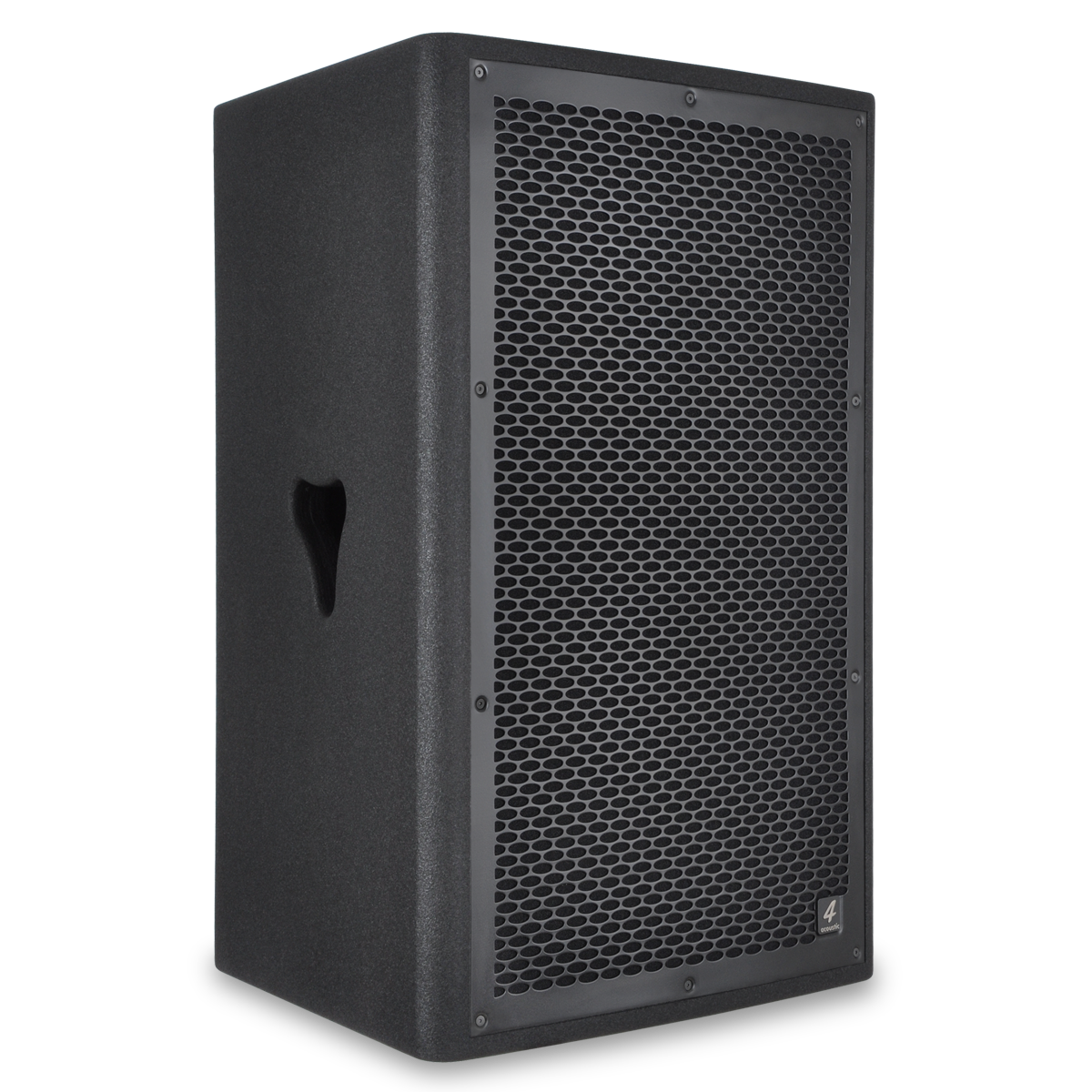

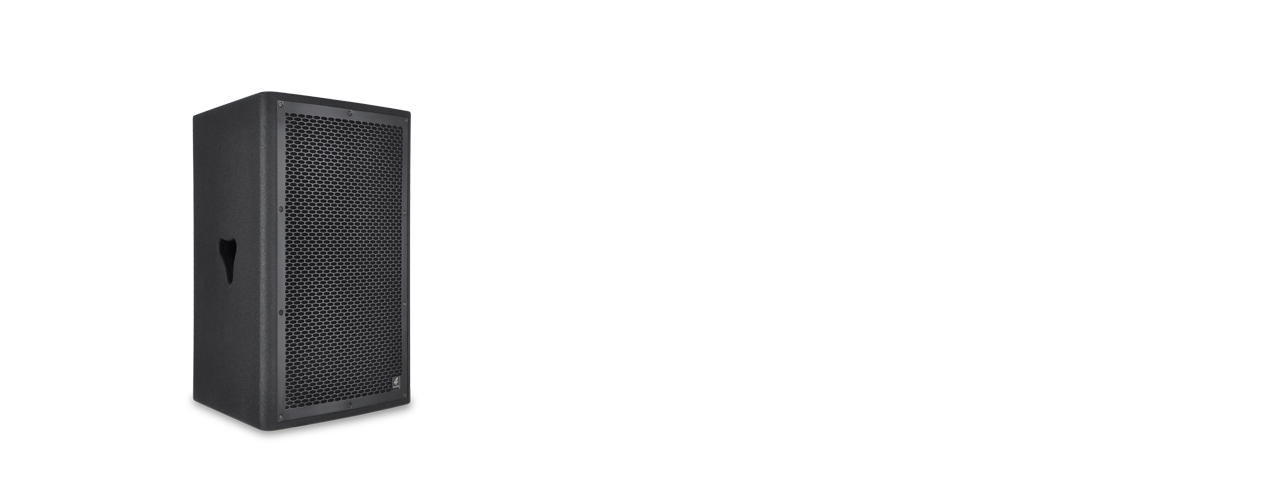

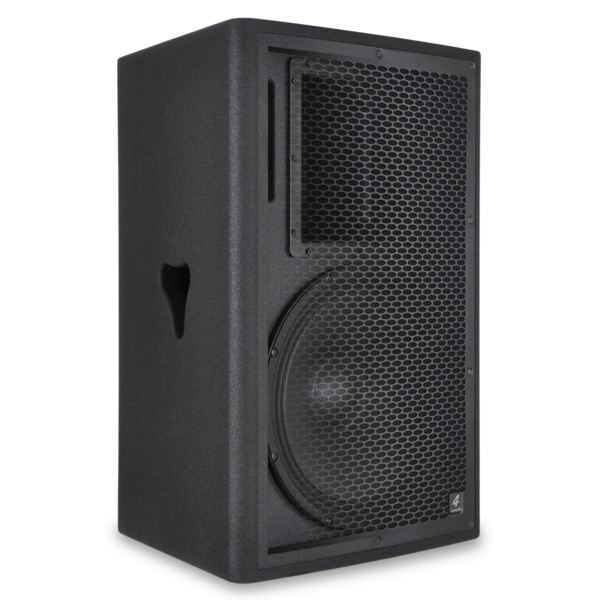

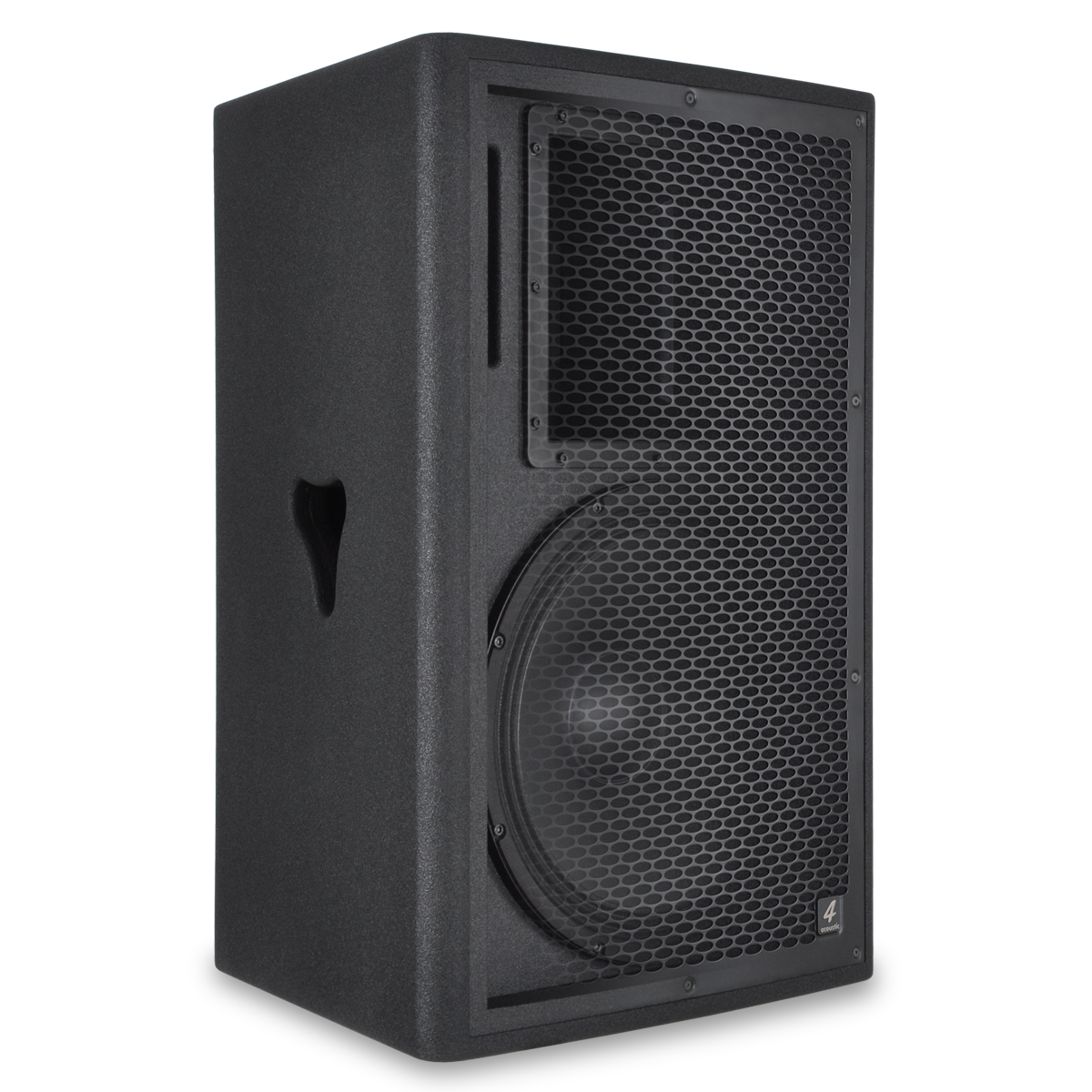

HCS-115F 15“+1,4“ 2-Way Fullrange Speaker
HCS-115F High power 2-way fullrange speaker

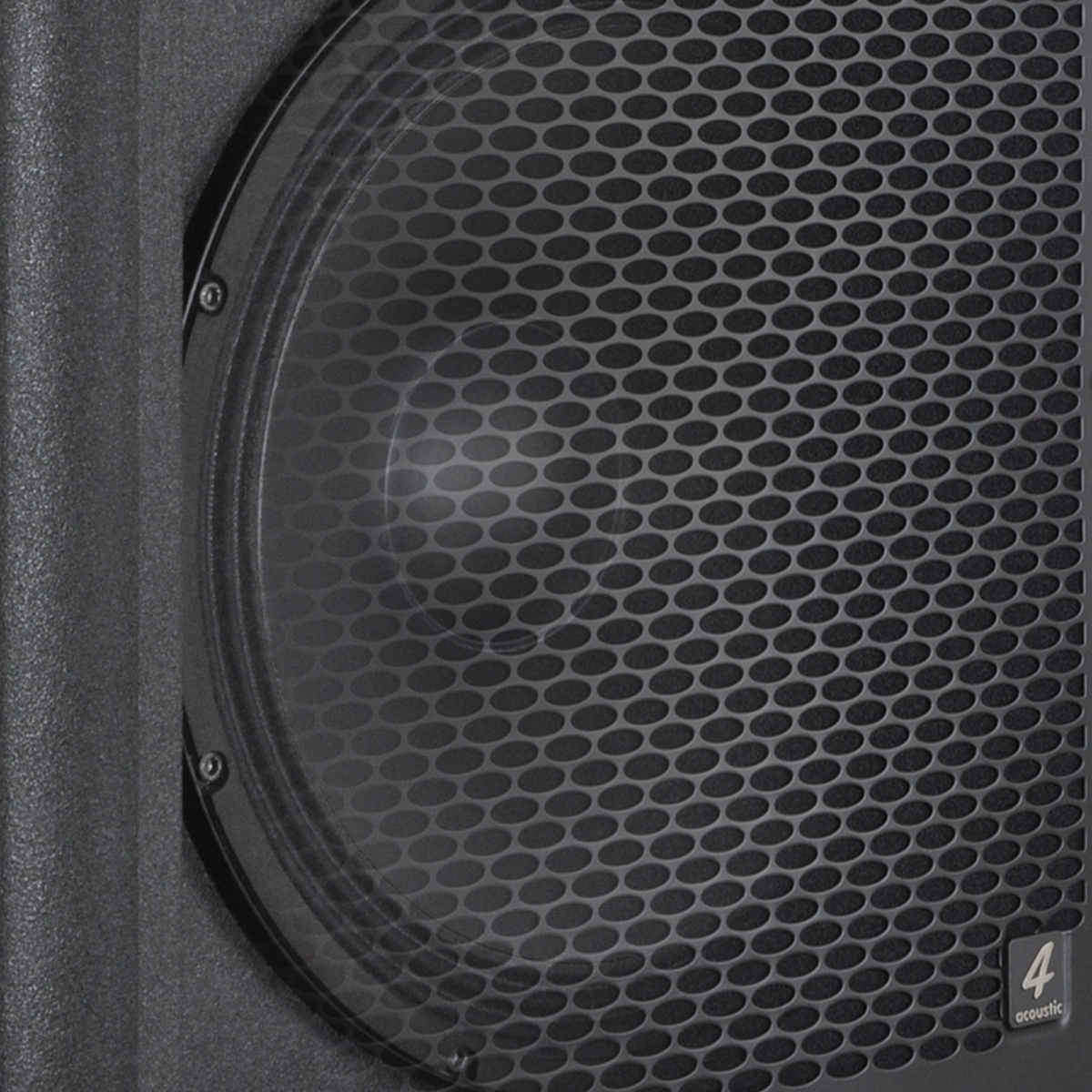

HCS-115F is a high power 2-way full range speaker with 900W AES power. This box was developed uncompromisingly for tough use in the touring and rental business. The 15 " bass chassis delivers a powerful and punchy sub and has a power consumption of 800W AES. The Oversized compression driver has a 1.4 "mouth opening and a massive 3" voice coil. With a line uptake of 200W AES this will hardly come to the limits. The HCS-115F convinces on a technical level as well as in a convincing price / performance ratio.
HCS-115F GS1 (EAN) CODE: 4260318510912
Technical Details
| Model Name | HCS-115F |
|---|---|
| GS1 (EAN) CODE | 4260318510905 |
| System Type | 2-Way 15“+1,4“ Fullrange Speaker |
| Power Rating | 900 W AES 1800 W program 3600 W peak |
| Frequency Range (+/- 3 dB) | 45 Hz - 20 kHz |
| Coverage Pattern (hxv) | 90°x45° |
| Sensitivity | 100 dB 1w/1m |
| Maximum SPL | 128 dB |
| Woofer | STG-15FR 800W AES, 3“ voice coil |
| Driver | STG-75F 200W AES, 3“ voice coil |
| Nominal Impedance | 8 Ohm |
| Input Connectors | 2 x Neutrik NL4 Socket parallel 1+/1- |
| Housing | Birch Multiplex |
| Suspension/Mounting | 35 mm pole socket |
| Coating | anti-scratch Polyurethane coating |
| Dimensions (h/w/d) | 760x494x457 mm |
| Net weight | 40,0 kg |
Accessories
| Order Code | GS1 (EAN) Code | Description |
|---|---|---|
| HCS-115F-BAG | 4260318511001 | Nylon protection transport cover bag |
| STG-SPST | 4260318511032 | Tripot Speaker Stand |
| KA-SP2-05 | 4260318510967 | 5 Meter Speaker cable 2x2,5qmm |
| KA-SP2-10 | 4260318510974 | 10 Meter Speaker cable 2x2,5qmm |
| KA-SP2-15 | 4260318510981 | 15 Meter Speaker cable 2x2,5qmm |
| KA-SP2-20 | 4260318510998 | 20 Meter Speaker cable 2x2,5qmm |
| SA-2130 | 4260318510844 | 2 Channel Class H Amplifier 2 x 1300 Watt @ 8 ohm |
