CLS-Serie

Club Sound at its best

To meet the great demand for a powerful horn-loaded club sound system for impressive club sound reinforcement, we have developed our CLS series. With creative details, mechanically and acoustically, these horn-loaded systems convince with a transparent, powerful reproduction and an extremely high sound pressure. The CLS series consists of a horn-loaded double 18" sub bass CLS-218HB, a horn-loaded double 15" low/mid bass CLS-215HB and an also horn-loaded 3-way top CLS-212T with 2x12", 4x6.5" and 1.4" drivers. Thanks to the built-in passive crossover for the mid-high range, the CLS-212T top is operated with only two amplifier channels Biamp. The connection is made via a 4-wire speaker cable with Neutrik NL4 connectors.

CLS-215HB GS1 (EAN) CODE: 4260318512930
CLS-218HB GS1 (EAN) CODE: 4260318512923
CLS-218HBN GS1 (EAN) CODE: 4260318512978
CLS-212T GS1 (EAN) CODE: 4260318512947


Model Name CLS-215HB CLS-218HB CLS-218HBN CLS-212T
GS1 (EAN) CODE 4260318512930 4260318512923 4260318512978 4260318512947
System Type 2x15“ Horn Subwoofer 2x18“ Horn Subwoofer 2x18“ Neodymium Horn Subwoofer 2x12“/4x6,5"/1x1,4" Top Cabinet
Power Rating 1600 W AES
3200 W program
6400 W peak
3400 W AES
6800 W program
13600 W peak
3400 W AES
6800 W program
13600 W peak
Low/Mid
1000 W AES
2000 W program
4000 W peak
Mid/High
1100W AES
2200W program
4400W peak
Frequency Range (+/- 3 dB) 60 Hz - 240 Hz 30 Hz - 160 Hz 30 Hz - 160 Hz 55 Hz - 20 kHz
Coverage Pattern (hxv)       60°x40°
Sensitivity 104 dB 1w/1m 103 dB 1w/1m 103 dB 1w/1m Low/Mid 101 dB 1w/1m
Mid/High 104 dB 1w/1m
Maximum SPL 136 dB 138 dB 138 dB Low/Mid 138 dB
Mid/High 140 dB
Chassis STG-15HB-L 800W AES
4“ voice coil
STG-18HBF 1700W AES
4,5“ voice coil
STG-18HBN 1700W AES
4,5“ voice coil
Low STG-12L-16
Mid STG-M65-8
High STG-44NBL-8
Nominal Impedance 4 Ohm 4 Ohm 4 Ohm Low/Mid 8 Ohm
Mid/High 8 Ohm
Input Connectors 2 x Neutrik NL4 Socket
parallel 1+/1-
2 x Neutrik NL4 Socket
parallel 1+/1-
2 x Neutrik NL4 Socket
parallel 1+/1-
2 x Neutrik NL4 Socket
Mid/High 1+/1-
Low/Mid 2+/2-
Housing Birch Multiplex Birch Multiplex Birch Multiplex Birch Multiplex
Suspension/Mounting       Flight rail system at the top and buttom
Coating anti-scratch
Polyurethane coating
anti-scratch
Polyurethane coating
anti-scratch
Polyurethane coating
anti-scratch
Polyurethane coating
Dimensions (h/w/d) 496x1054x770 mm 600x1500x770 mm 600x1500x770 mm 900x562x499 mm
Net weight 88 Kg 128,5 Kg 122,0 Kg 44,0 Kg

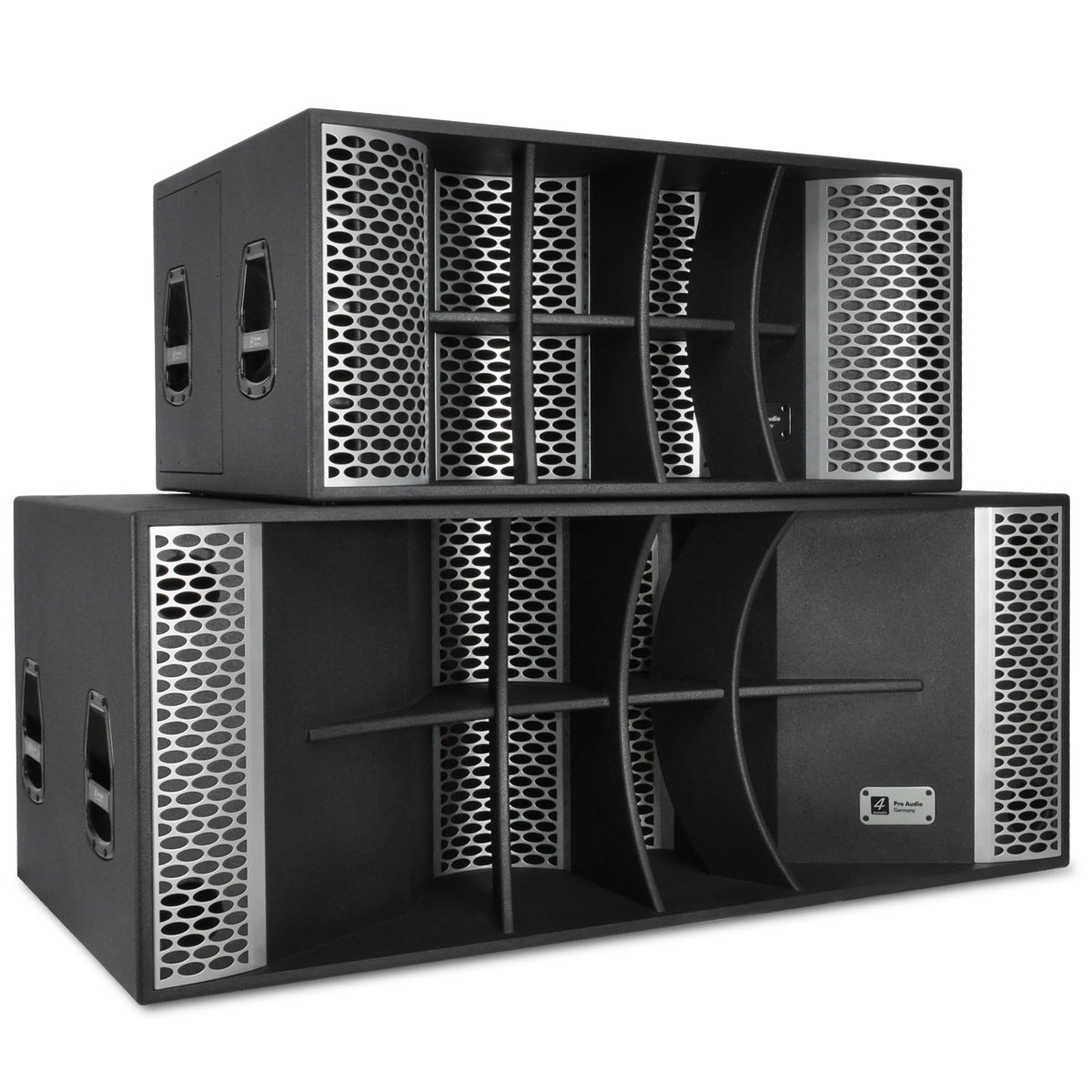

CLS-215HB/CLS-218HB
