PCS-108L

PCS-108L  1x8“/2x1“ 2-Way Line Array Module

PCS-108L 1x8“/2x1“ Line Array Module

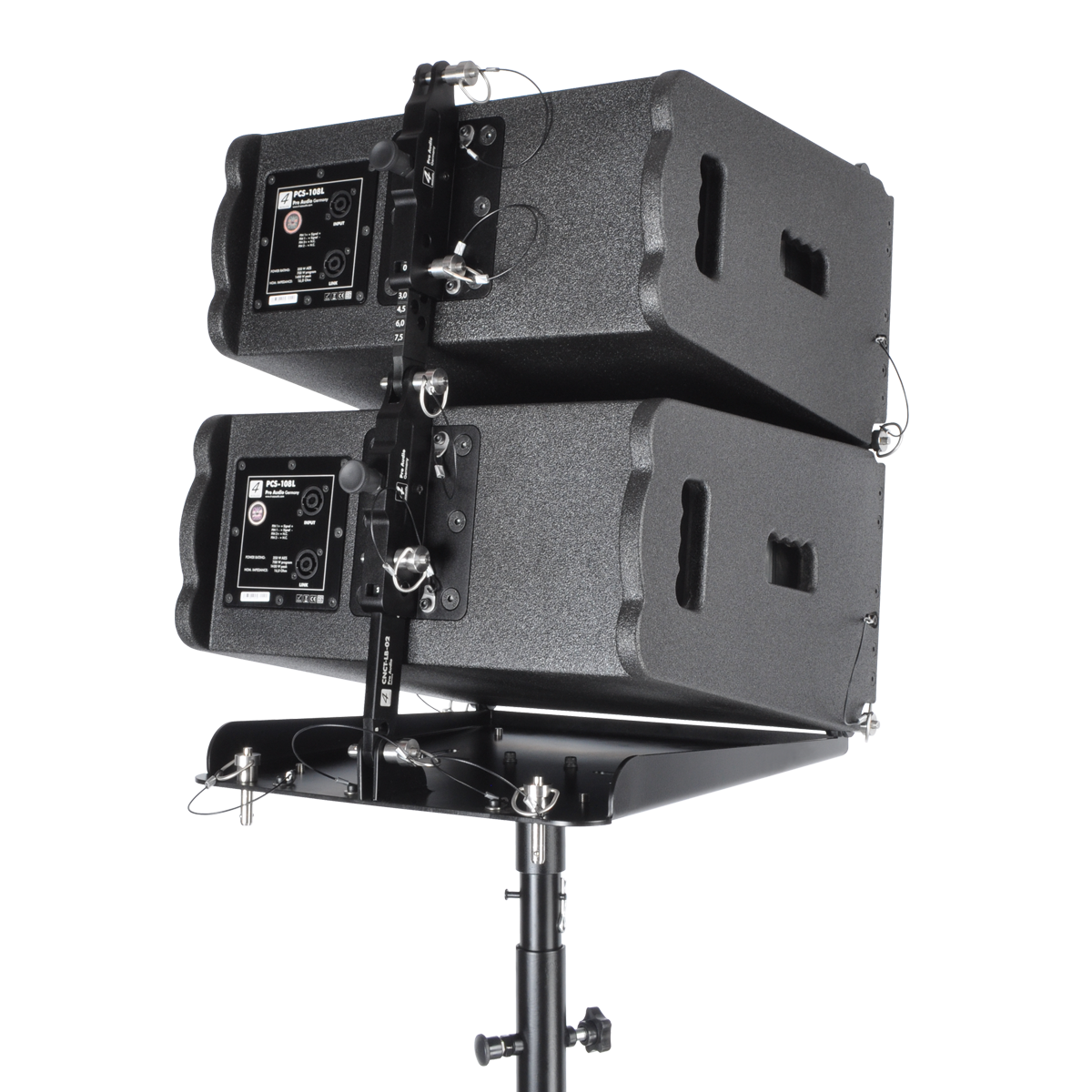

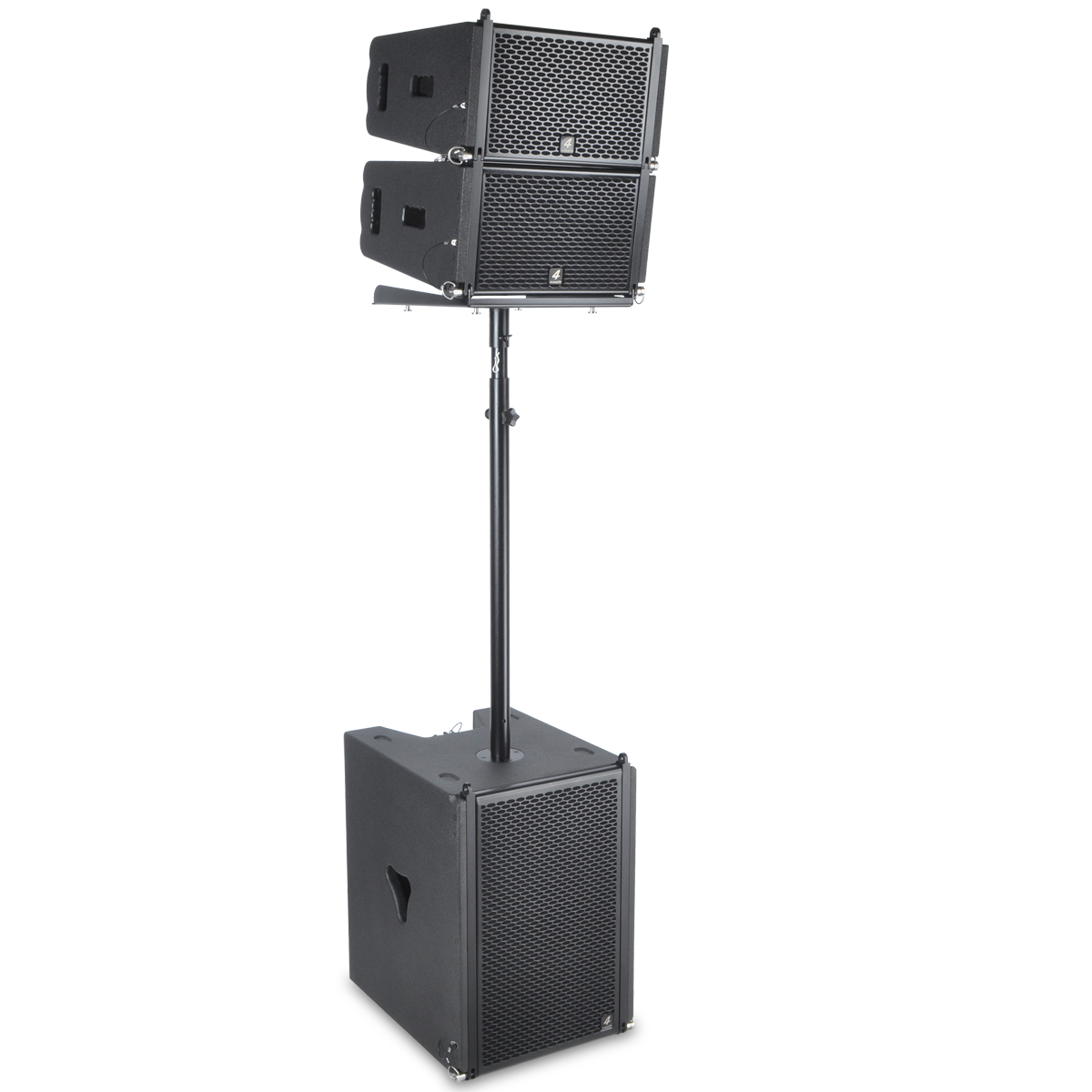

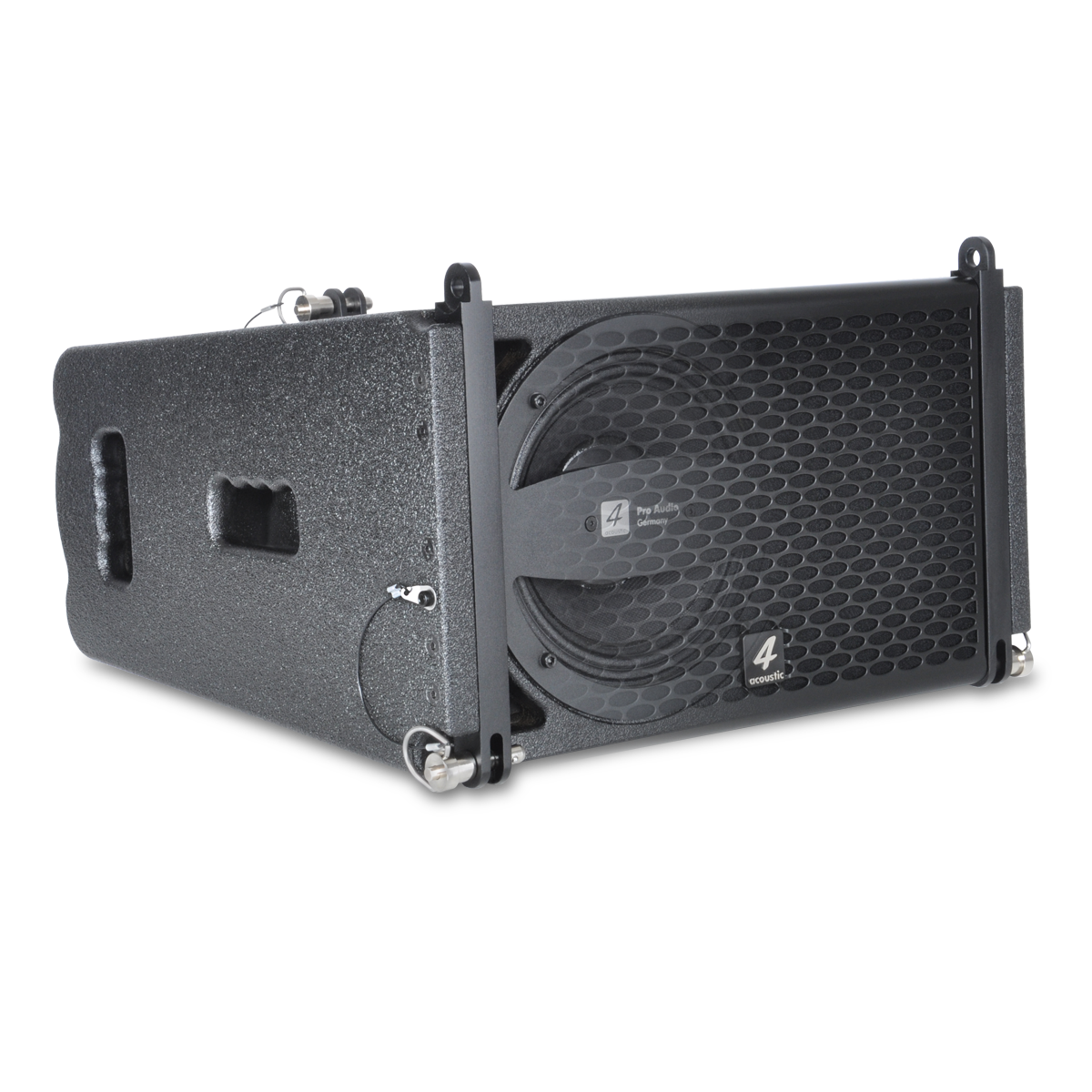

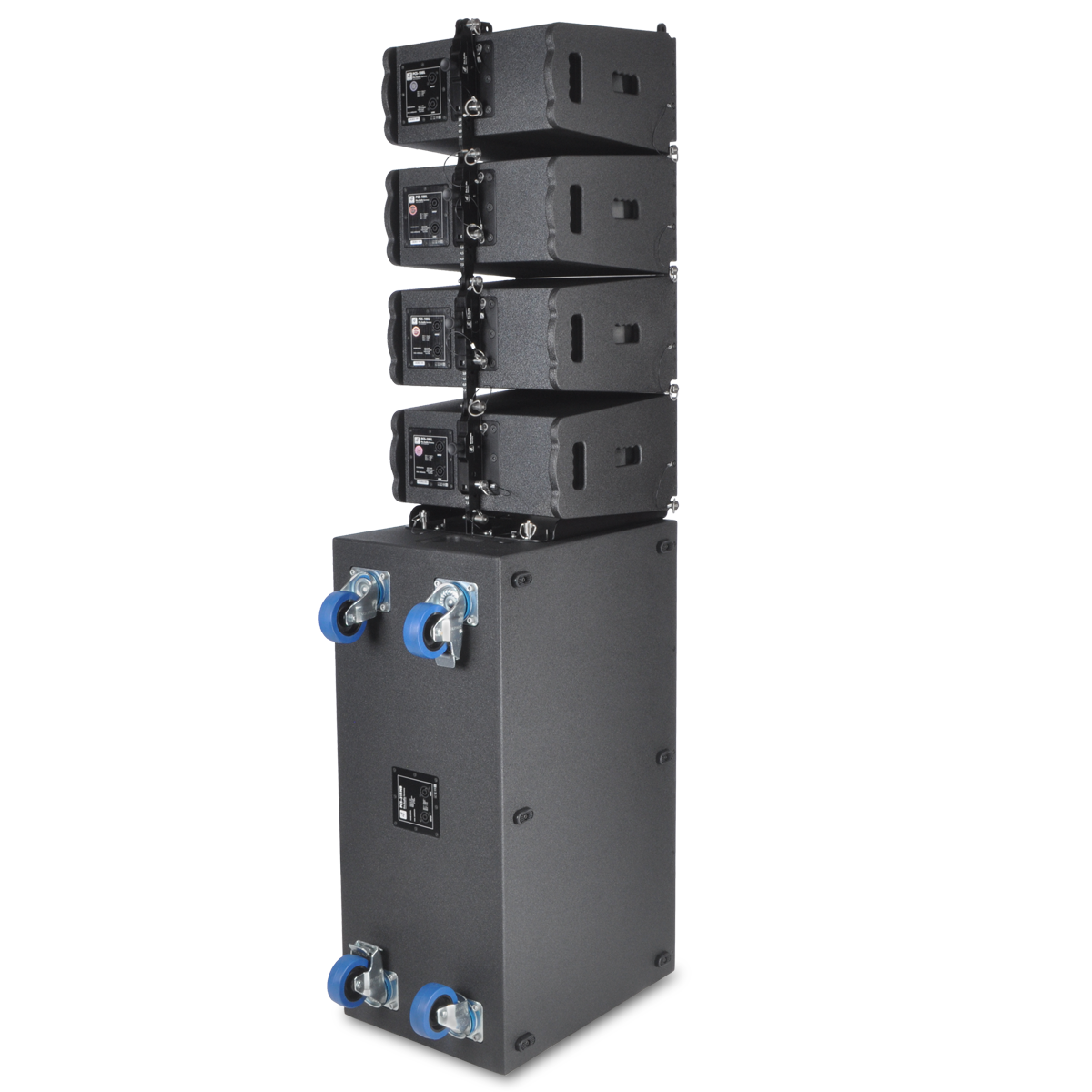

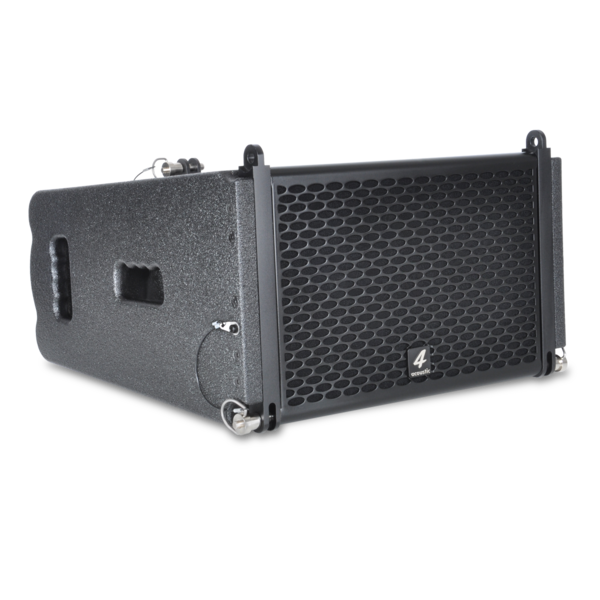

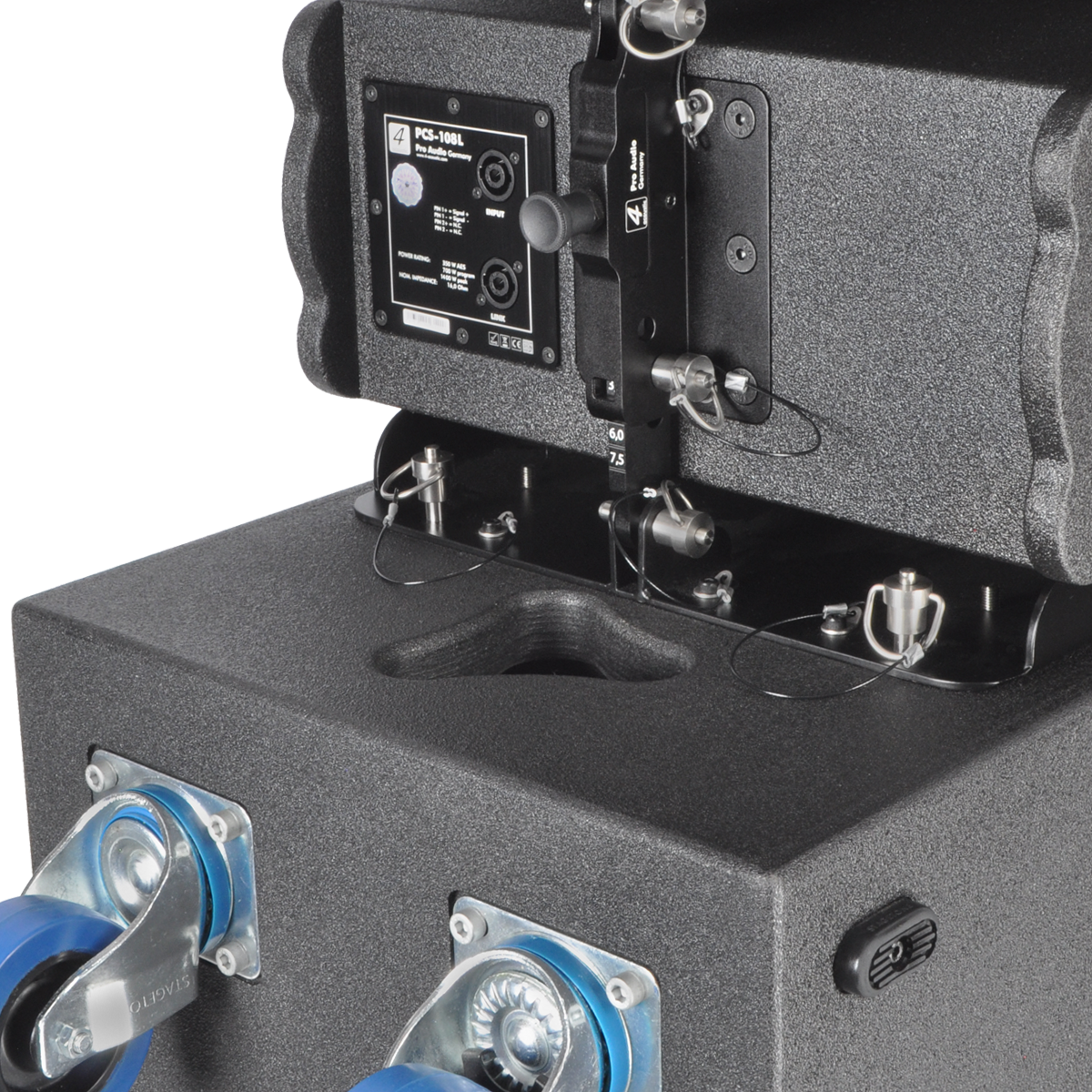

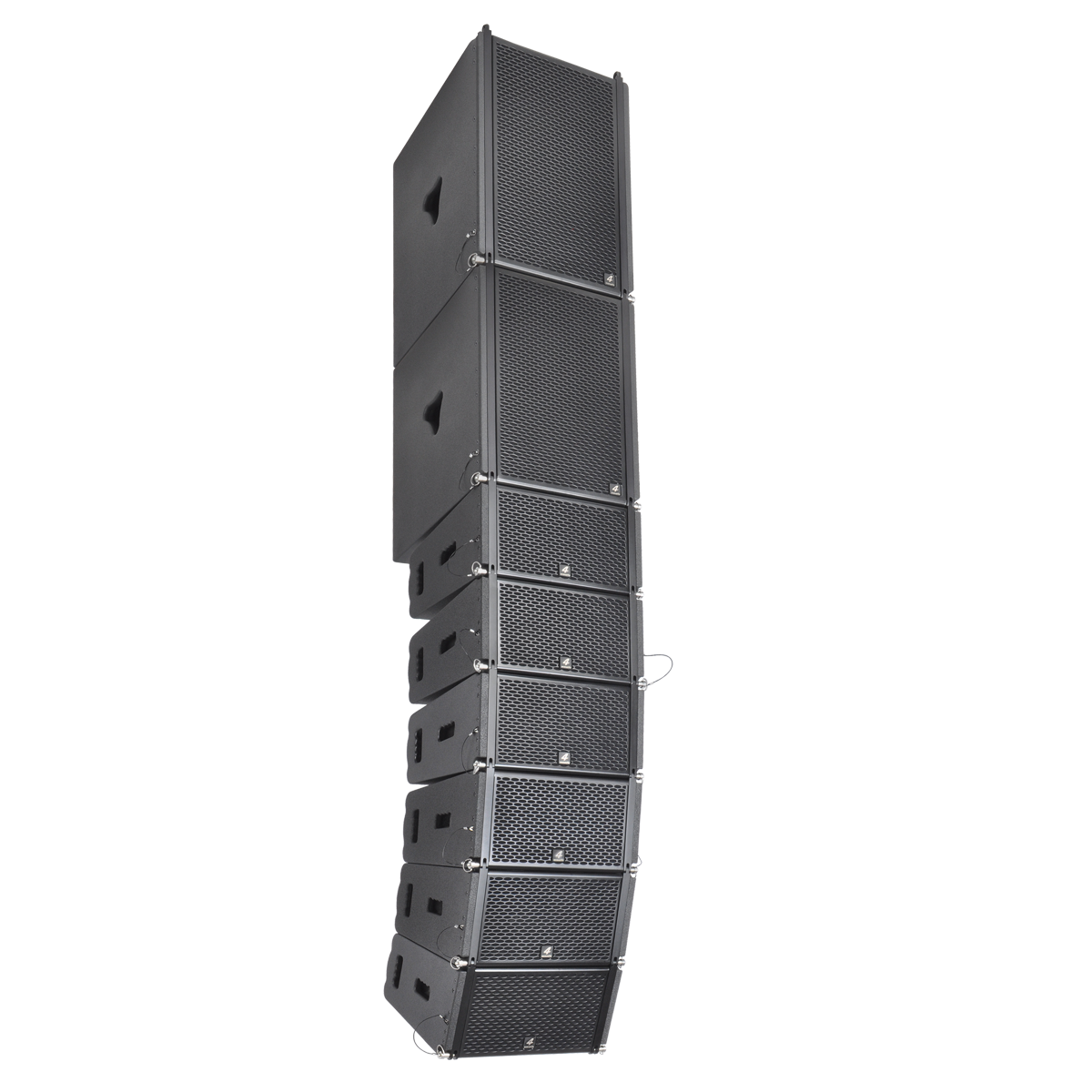

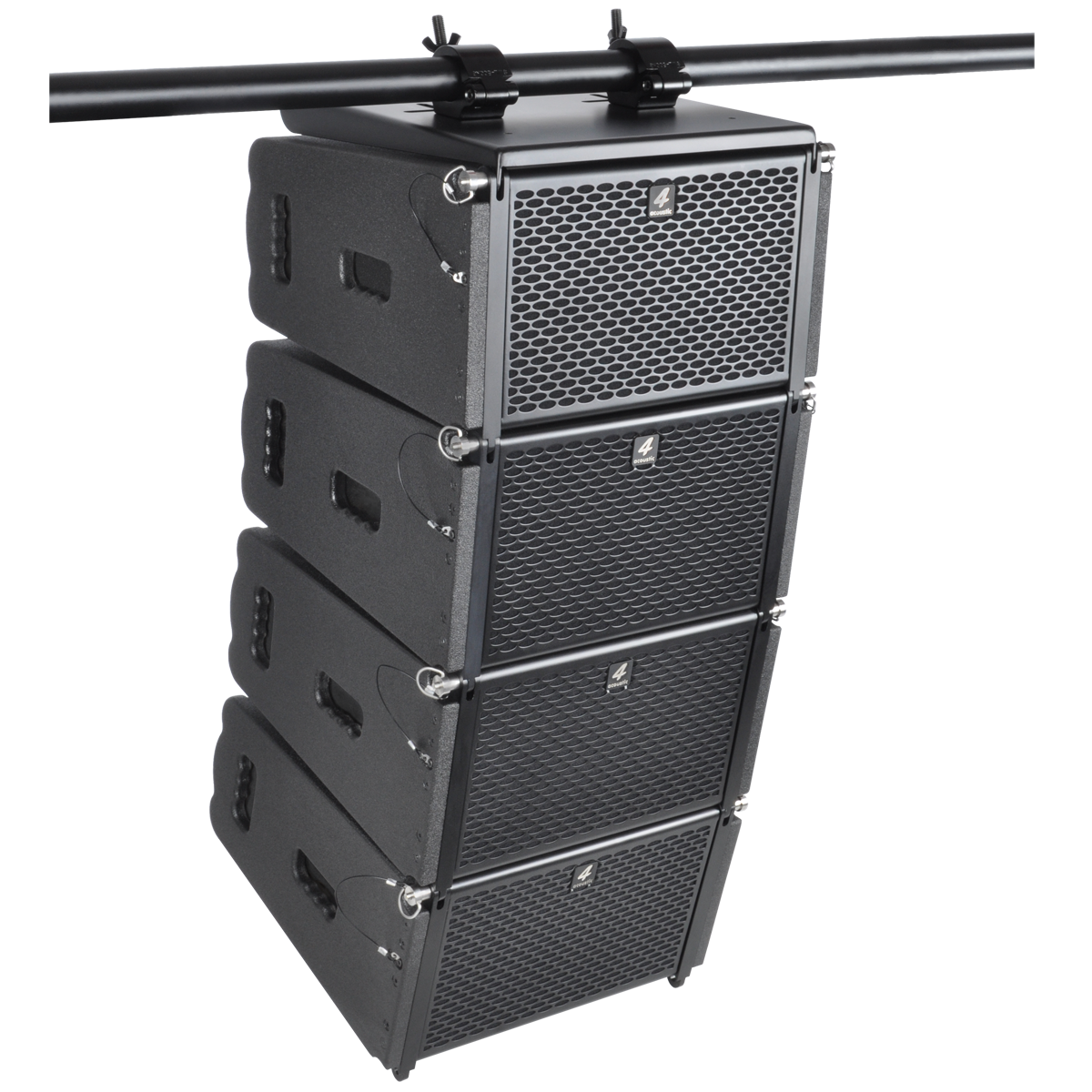

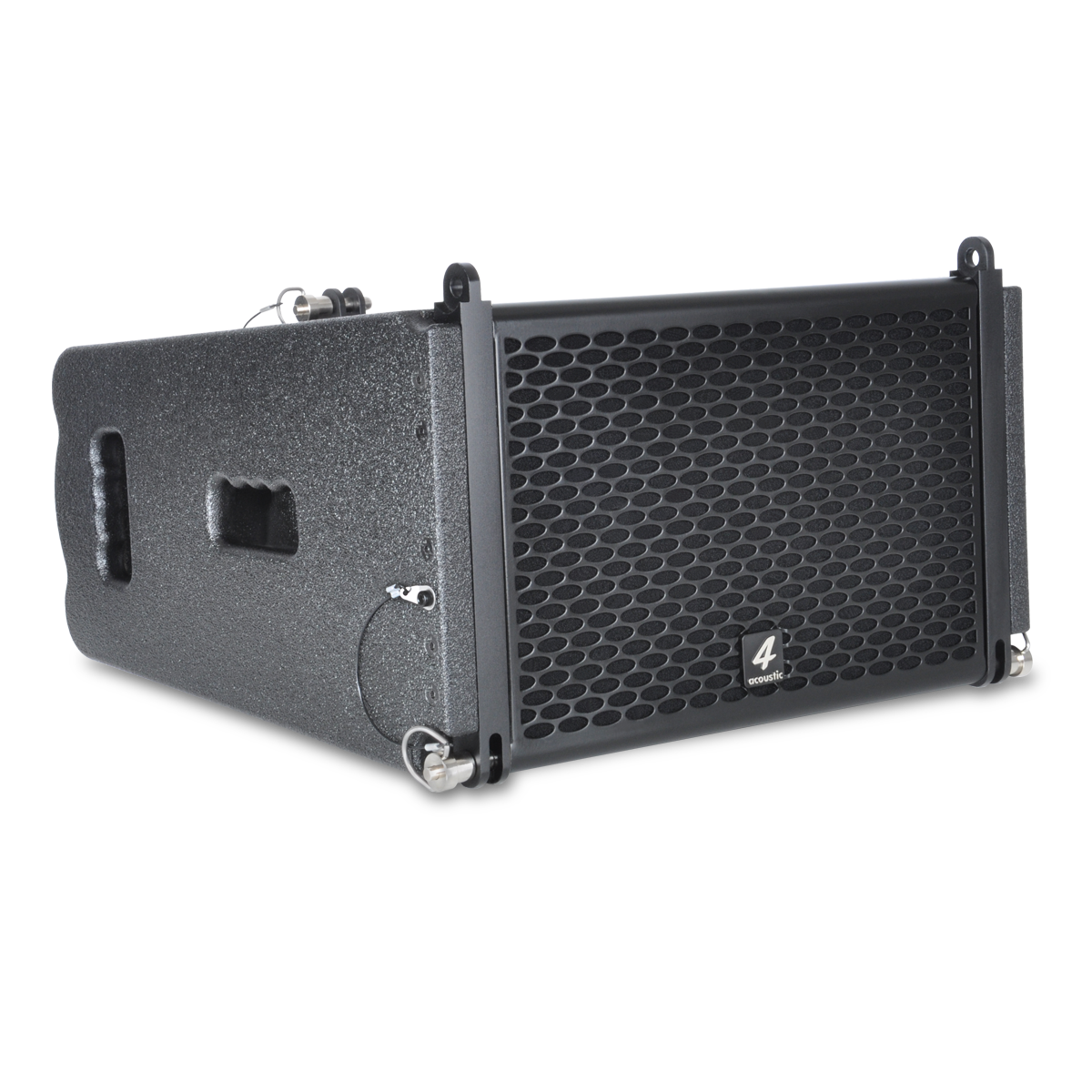

PCS-108L is a compact size, high power speaker to use in vertical line array columns up to 24 units per flight frame. The mechanical design offers a vertical adjustment from 0° to 9° with a resolution of 1,5° per step. For an easy setup of the vertical angel PCS-108L is equipped with a simple but clever mechanical brake. The entire flyware is made of high quality, extreme resilient aluminum components. This two way passive system comprise of a 8” Neodymium woofer and two 1” drivers connected to an accurate calculated wave transformer. The maximum SPL of a single unit is 131 dB. The coverage pattern is 10°x120° (v x h). The impact and weather resistant housing is made of best quality multiplex wood and covered with a strong, water-resistant Polyurea coating. Four integrated handles will support an easy transport and installation. The front side of the speaker is protected by a 1,5 mm strong, black metal grill covert with black color acoustic foam. The flight frame construction allows hanging and standing installation on PCS subwoofers. The compact size and 2-way passive design guarantee a maximum of flexibility in use with our DSP system controller and DSP integrated system amplifiers.

PCS-108L GS1 (EAN) CODE: 4260318510530

Technical Details

Model Name PCS-108L
GS1 (EAN) CODE 4260318510530
System Type 1x8“/2x1“ 2_Way Line Array Module
Power Rating 350 W AES
700 W program
1400 W peak
Frequency Range (+/- 3 dB) 75 Hz - 20 kHz
Coverage Pattern (hxv) 120°x10°
Sensitivity 100 dB 1w/1m
Maximum SPL 131 dB
Woofer 1 x STG-8L 250W AES, 2,5“ voice coil, neodymium
Driver 2 x STG-45NB 50W AES, 1,75“ voice coil, neodymium
Nominal Impedance 16 Ohm

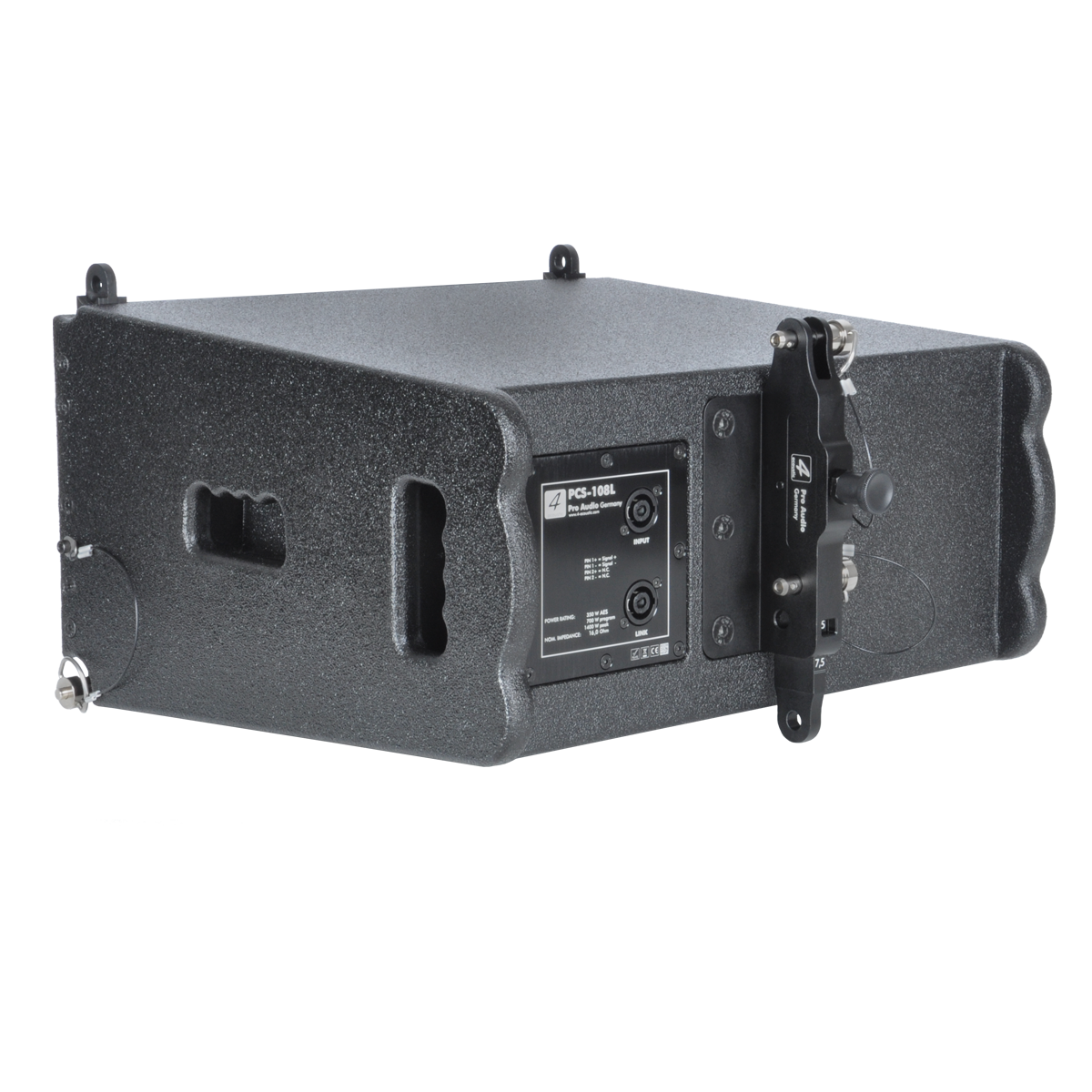

Input Connectors 2 x Neutrik NL4 Socket
parallel 1+/1-
Housing Birch Multiplex
Coating Water-resistant Polyurea coating
Dimensions (h/w/d) 250x430x446 mm
Net weight 16,0 kg

Accessories

Order Code GS1 (EAN) Code Description

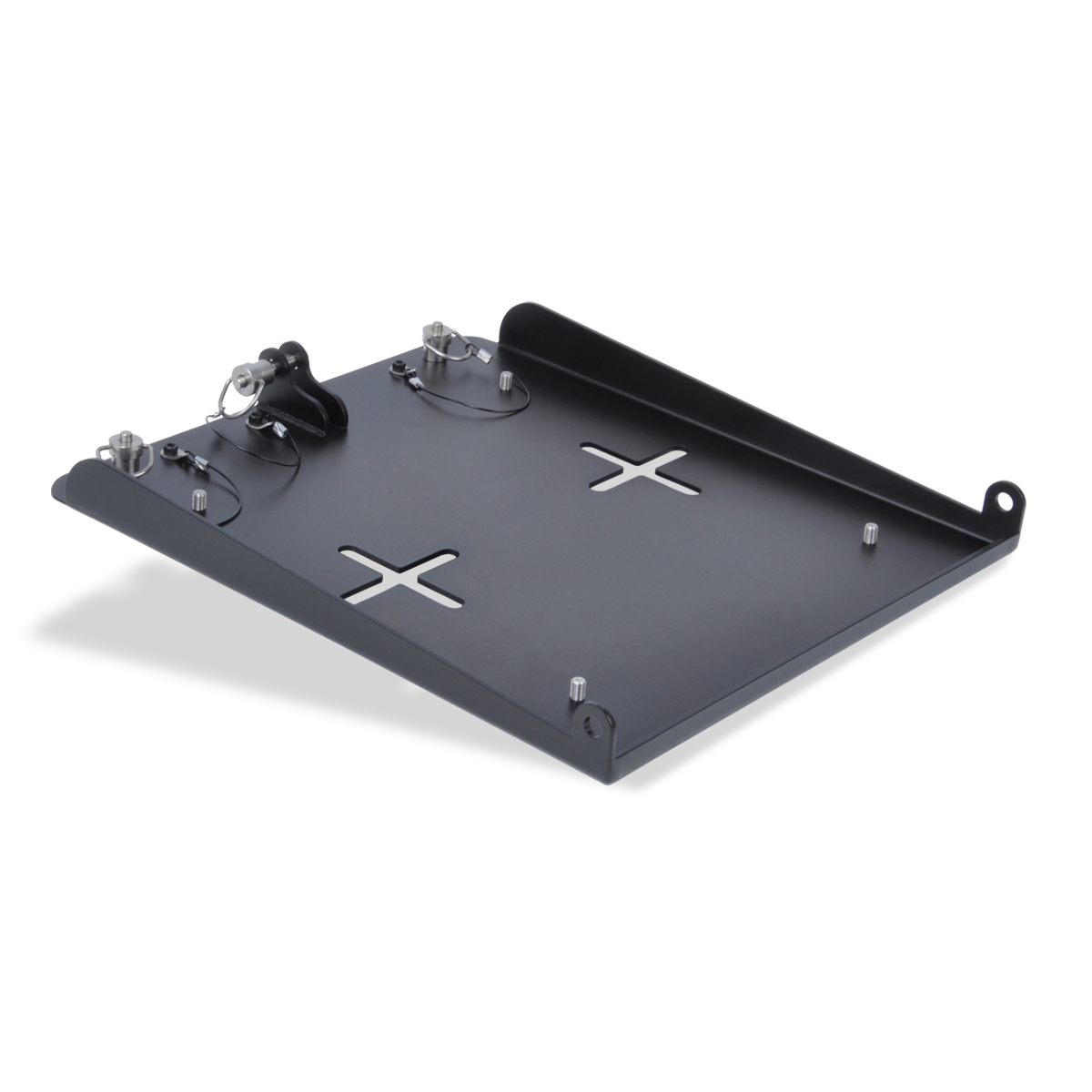

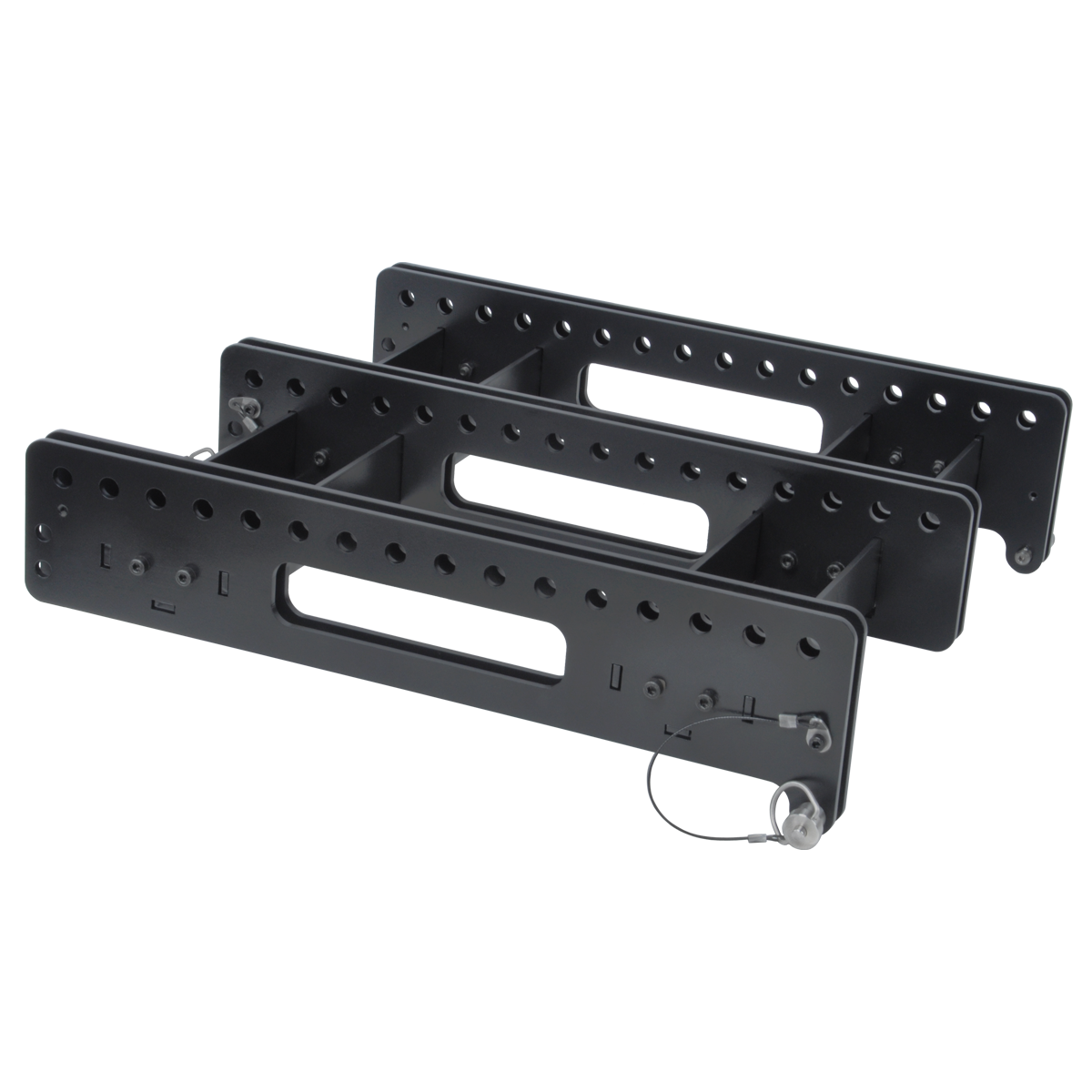

PCS-108L-FFR 4260318510547 Flight Frame for PCS-108L or PCS-115LB
PCS-108L-FFR-L 4260318510554 Flight Frame Light for PCS-108L
PCS-108L-FC 4260318511353 Flight Case with wheels for 4 pcs. PCS-108L modules
KA-SP2-0.5 4260318510929 0,5 Meter speaker cable 2x2,5qmm
KA-SP2-05 4260318510967 5 Meter Speaker cable 2x2,5qmm
KA-SP2-10 4260318510974 10 Meter Speaker cable 2x2,5qmm
KA-SP2-15 4260318510981 15 Meter Speaker cable 2x2,5qmm
KA-SP2-20 4260318510998 20 Meter Speaker cable 2x2,5qmm
