PCS-215LB

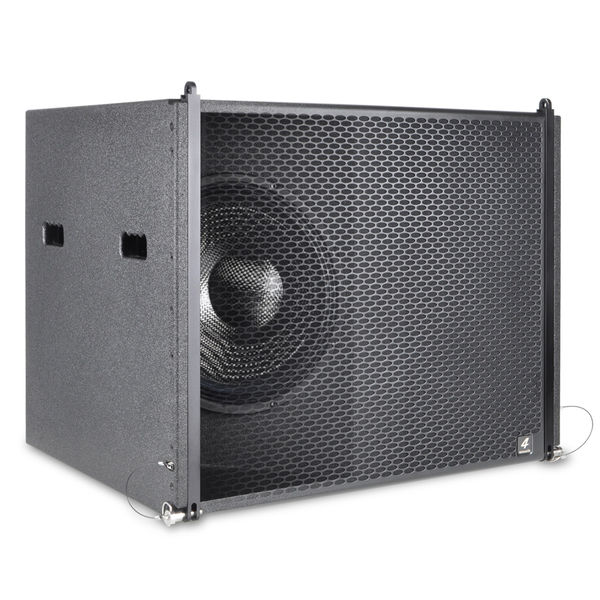

PCS-215LB Double 15“ line array subwoofer

PCS-215LB Double 15“ line array subwoofer

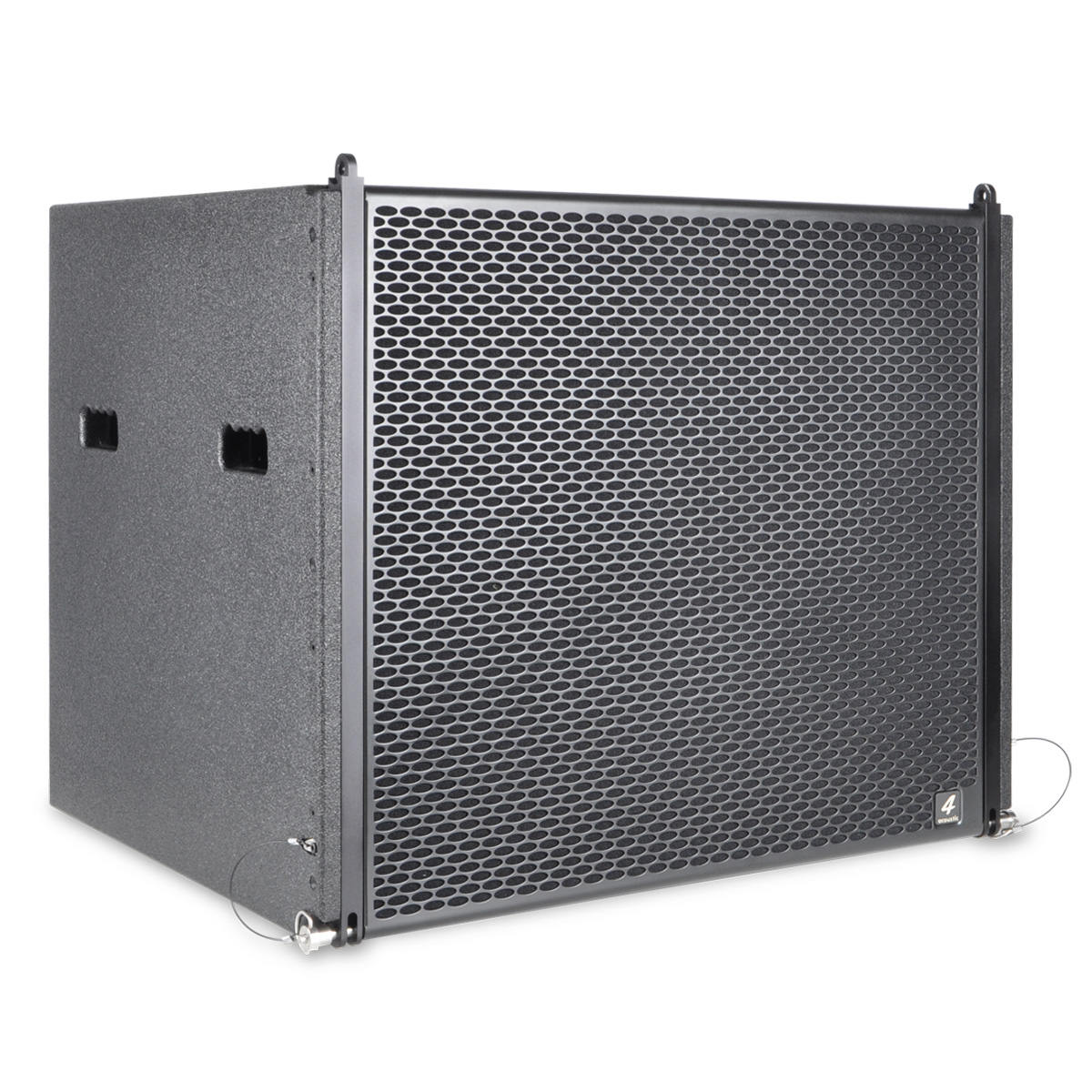

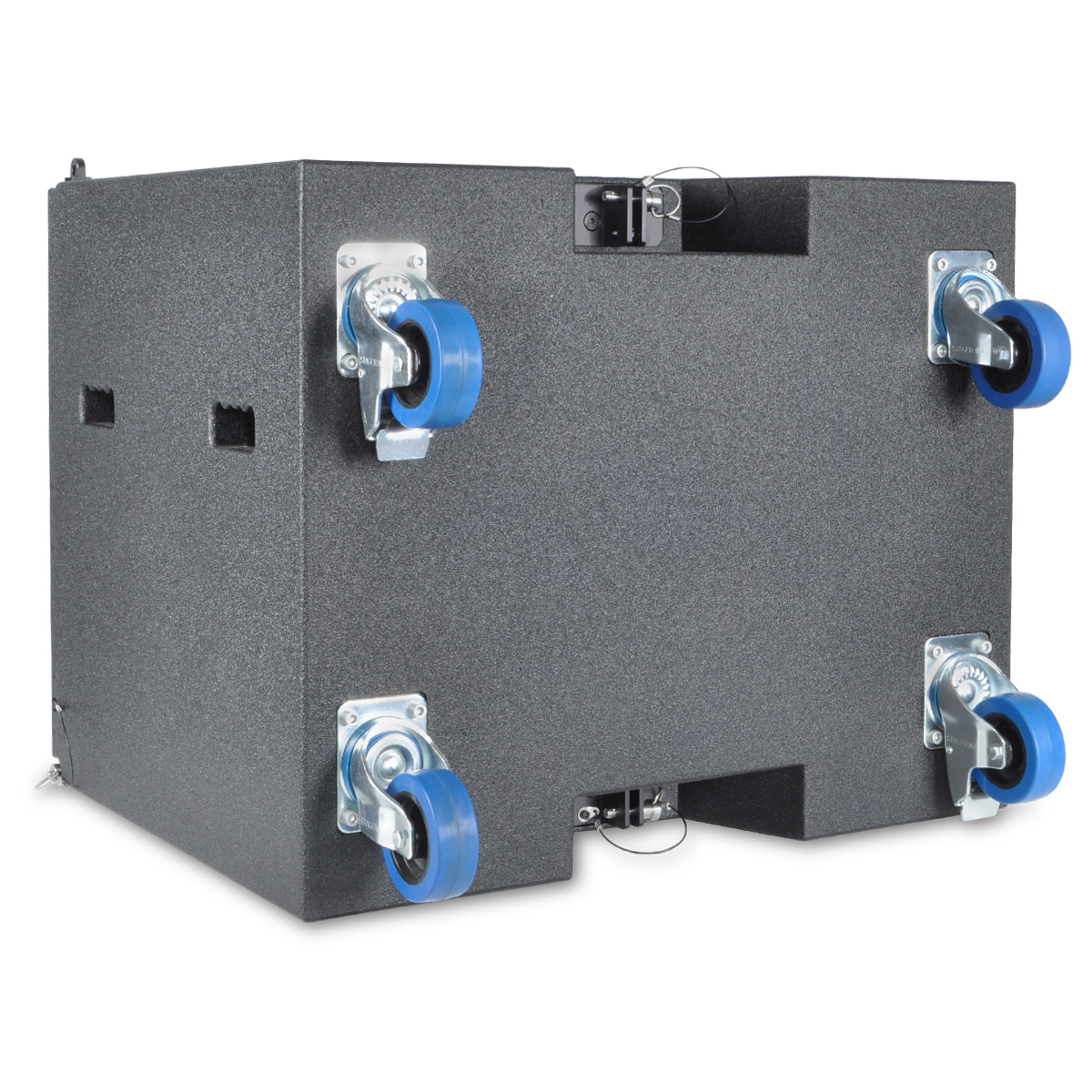

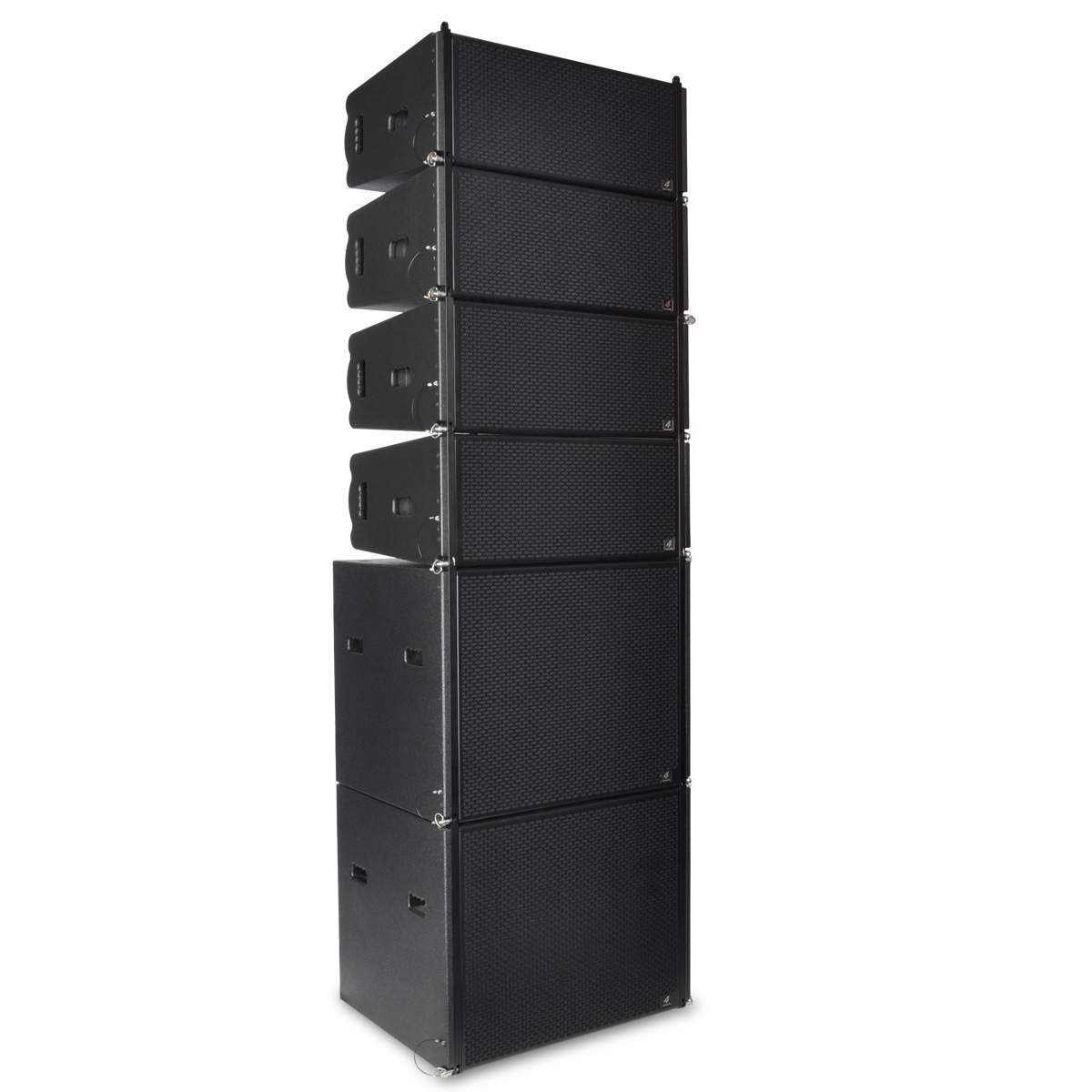

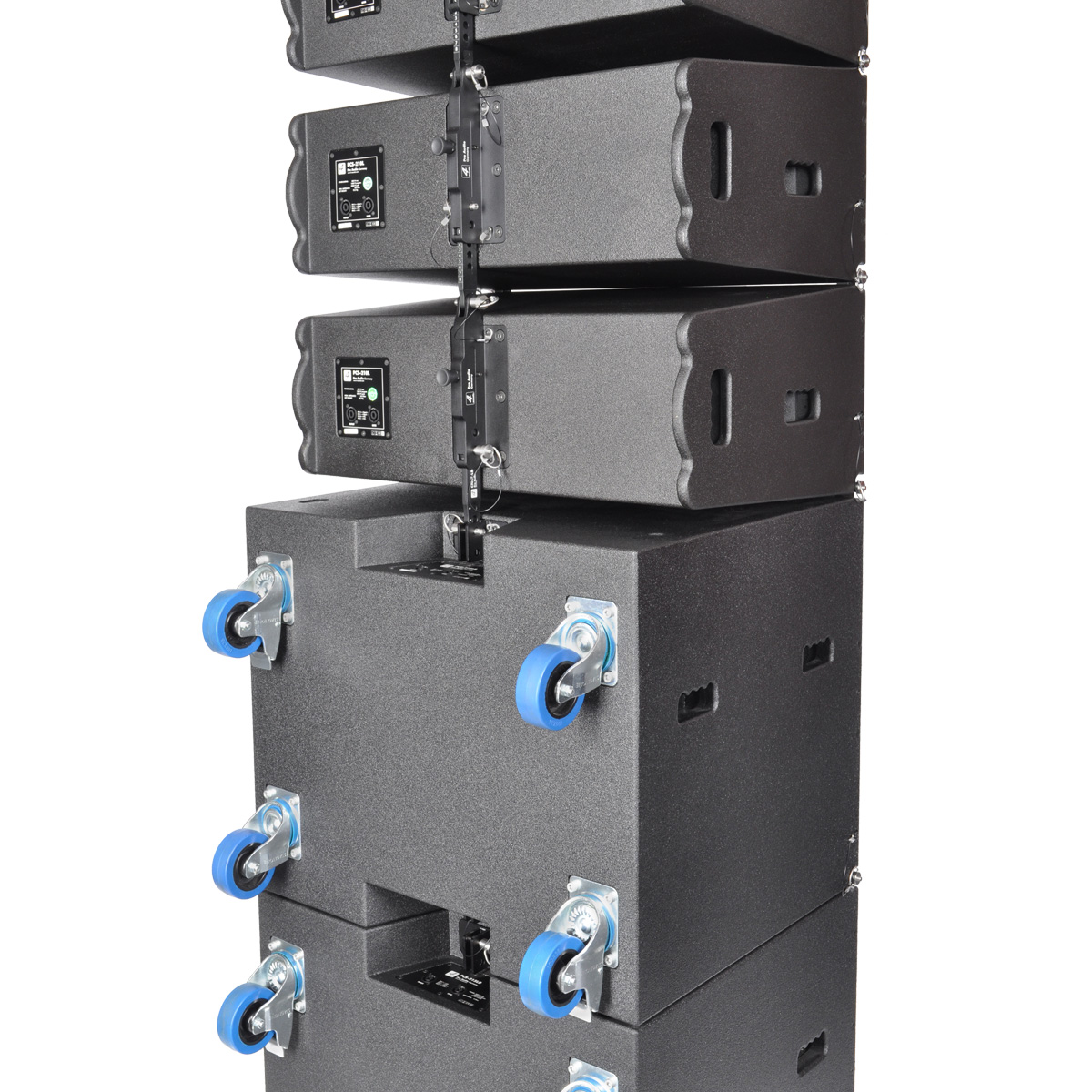

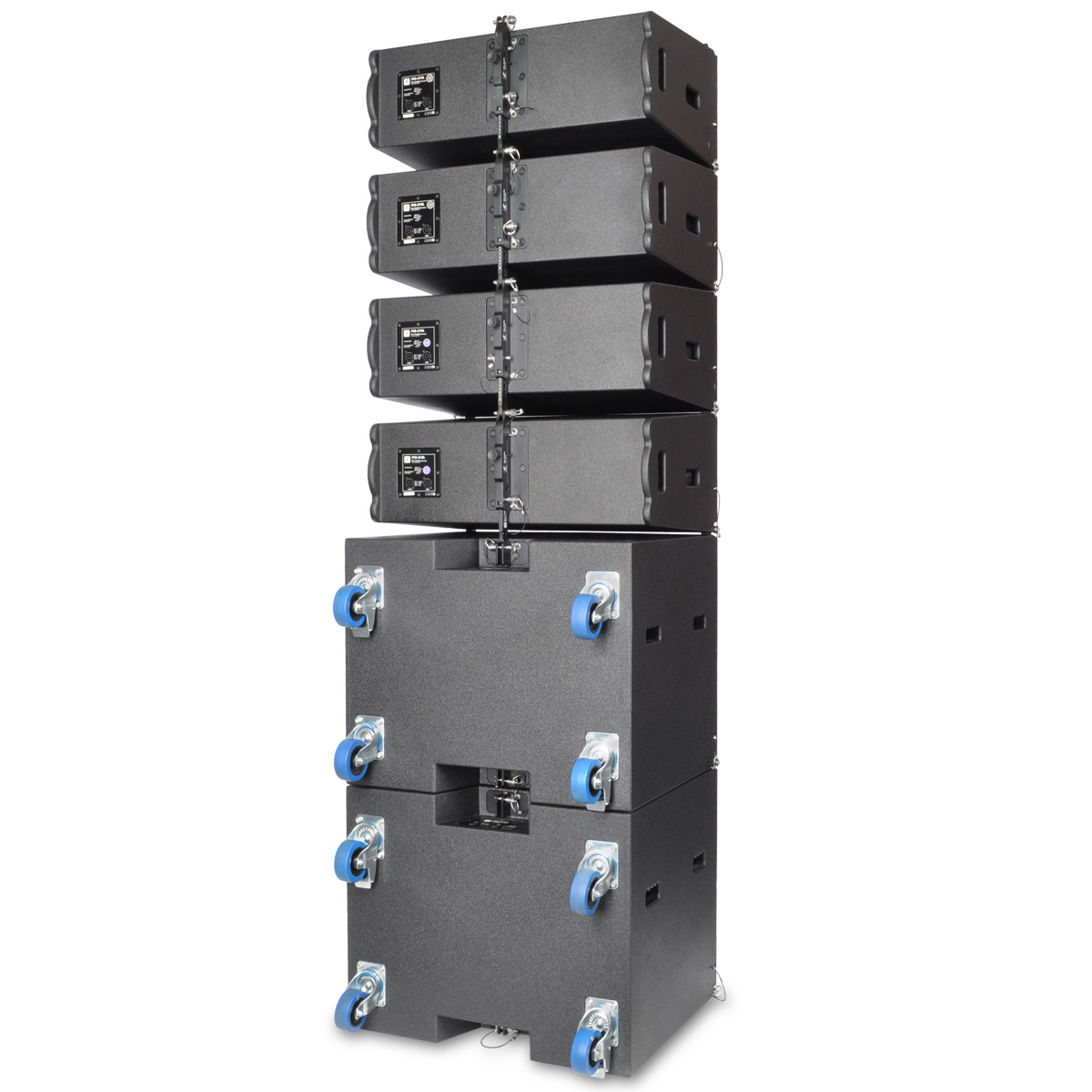

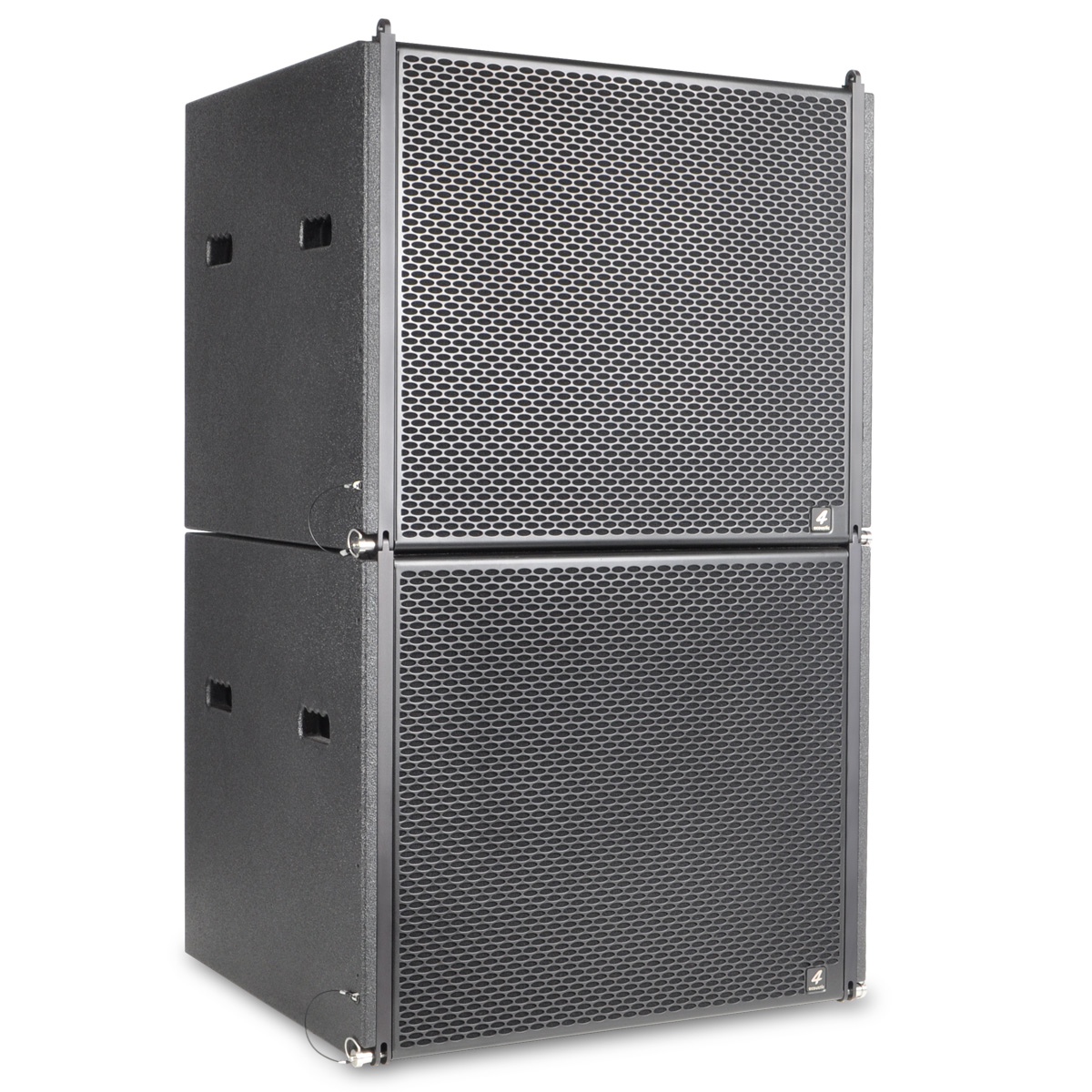

PCS-215LB is a very compact size, high power double 15” subwoofer to use with our vertical line array speaker PCS-210L. With an upside and downside aluminum connecting panel the wiring can be done very easy. The connection of the four parallel NL4 sockets is 2+/2- for the sub and 1+/1- to link the line array. The mechanical design offers hanging and stacking installations with only one type of flight frame. Our flight frame PCS-210L-FFR can be used for PCS-210L and PCS-215LB. The entire flyware is made of high quality, extreme resilient aluminum components. PCS-215LB is equipped with two 15” premium neodymium woofer with 1200W AES power. The maximum SPL of a single unit is 135 dB. The shock-proof and water-resistant housing is made of best quality baltic multiplex wood and covered with a strong, black water-resistant Polyurea coating. Strong integrated handles will support an easy transport and installation. The backside is prepared to use with 100 mm blue wheels. The front side of the speaker is protected by a 1,5 mm strong, black metal grill covered with black color acoustic foam.

PCS-215LB GS1 (EAN) CODE: 4260318510677

Technical Details

Model Name PCS-215LB
GS1 (EAN) CODE 4260318510677
System Type Double 15“ line array subwoofer
Power Rating 2400 W AES
4800 W program
9600 W peak
Frequency Range (-10 dB) 39 Hz - 200 Hz
Sensitivity 99 dB 1w/1m
Maximum SPL 135 dB
Woofer 2 x STG-15NB 1200W AES, 4“ voice coil
Suspension/Mounting Line array fly ware for PCS-210L-FFR
Top mounted M20 threaded top hat
to suit M20 tapped poles
Nominal Impedance 8 Ohm
Input Connectors Upside and downside connection panel
4 x Neutrik NL4 Socket parallel 2+/2-
Housing Birch Multiplex
Coating Water-resistant Polyurea coating
Dimensions (h/w/d) 600x750x600 mm
Net weight 54,0 kg

Accessories

Order Code GS1 (EAN) Code Description

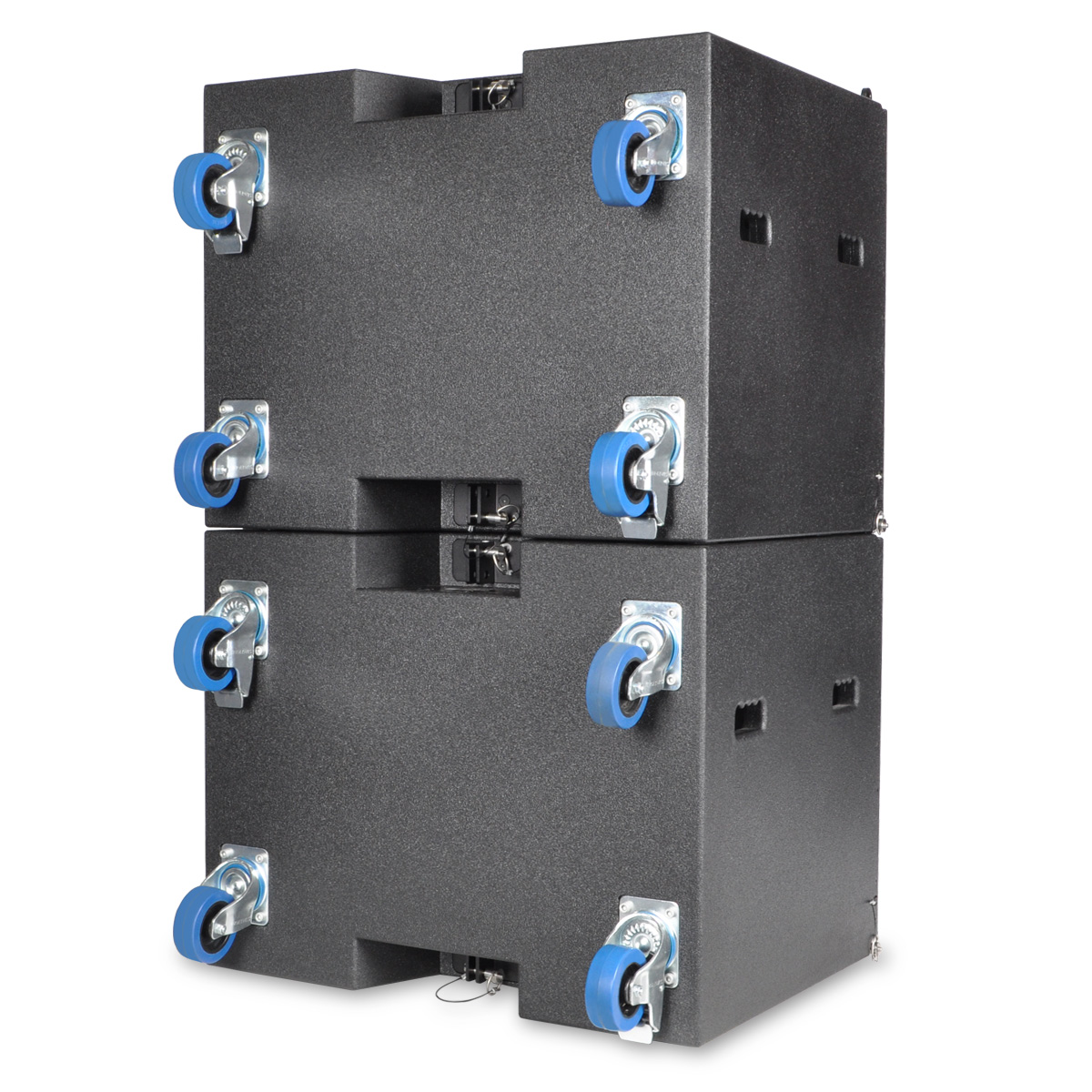

STG-WH100 4260318511131 100mm blue wheel Set (two pcs. with brake)

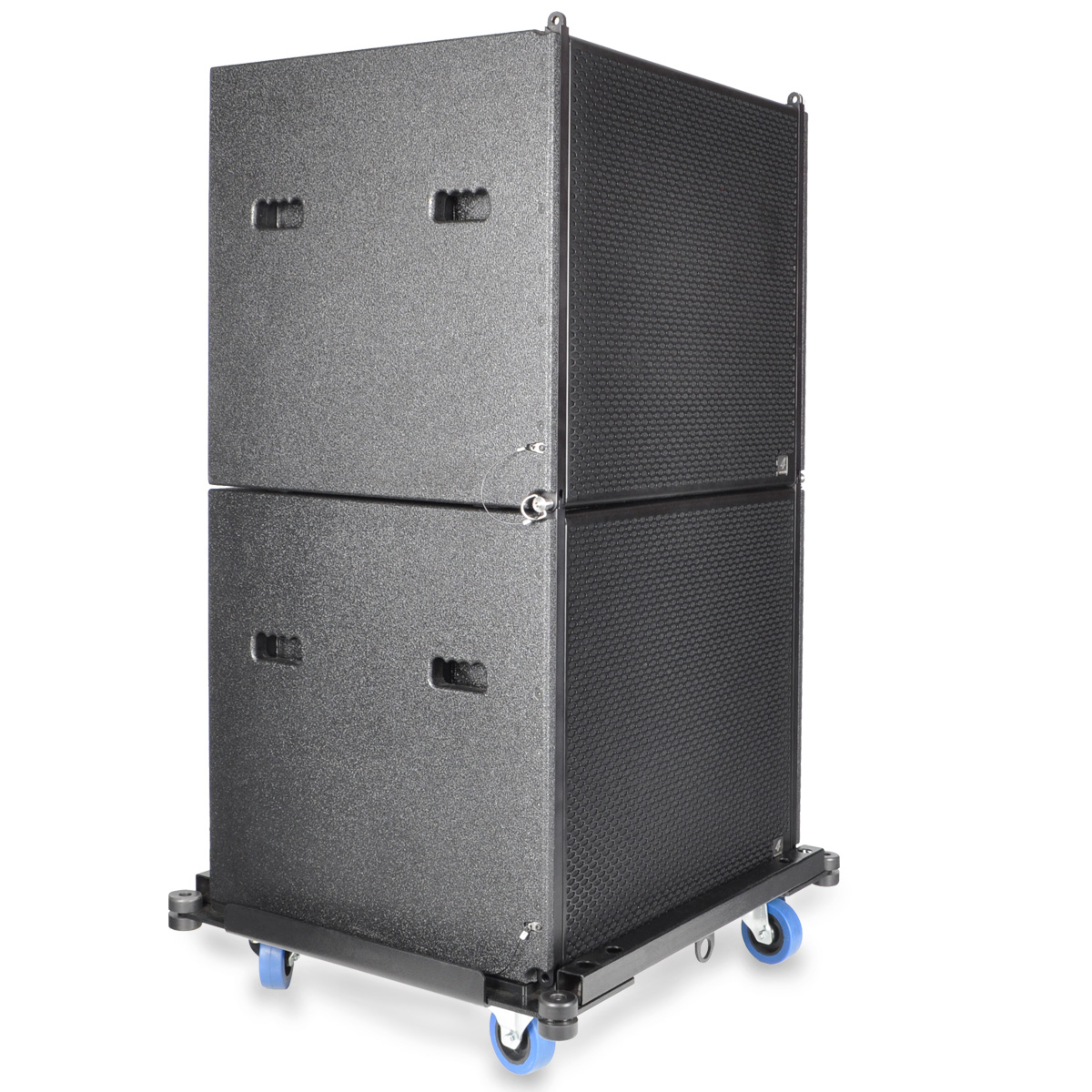

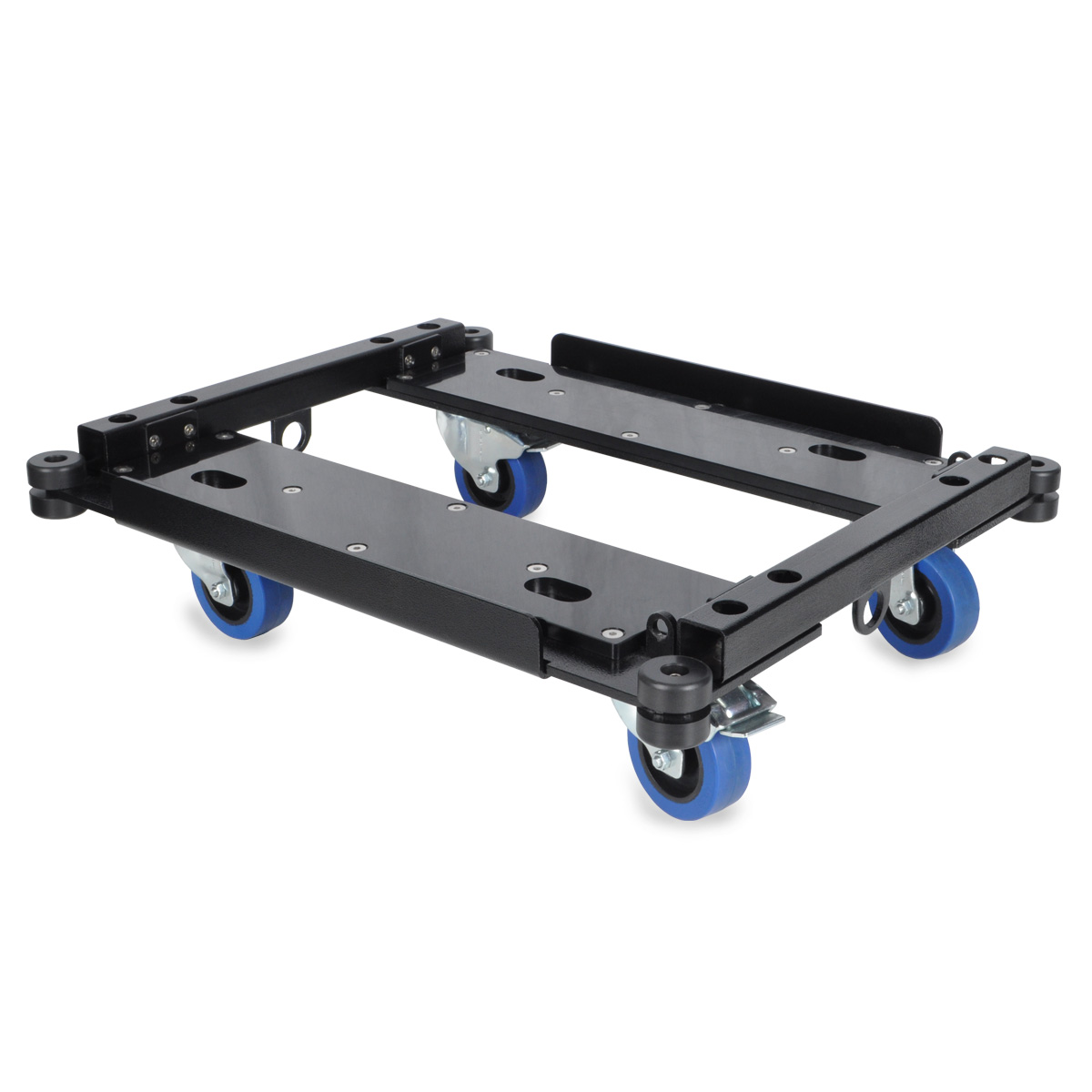

PCS-215LB-TR   Trolly with wheels for PCS-215LB

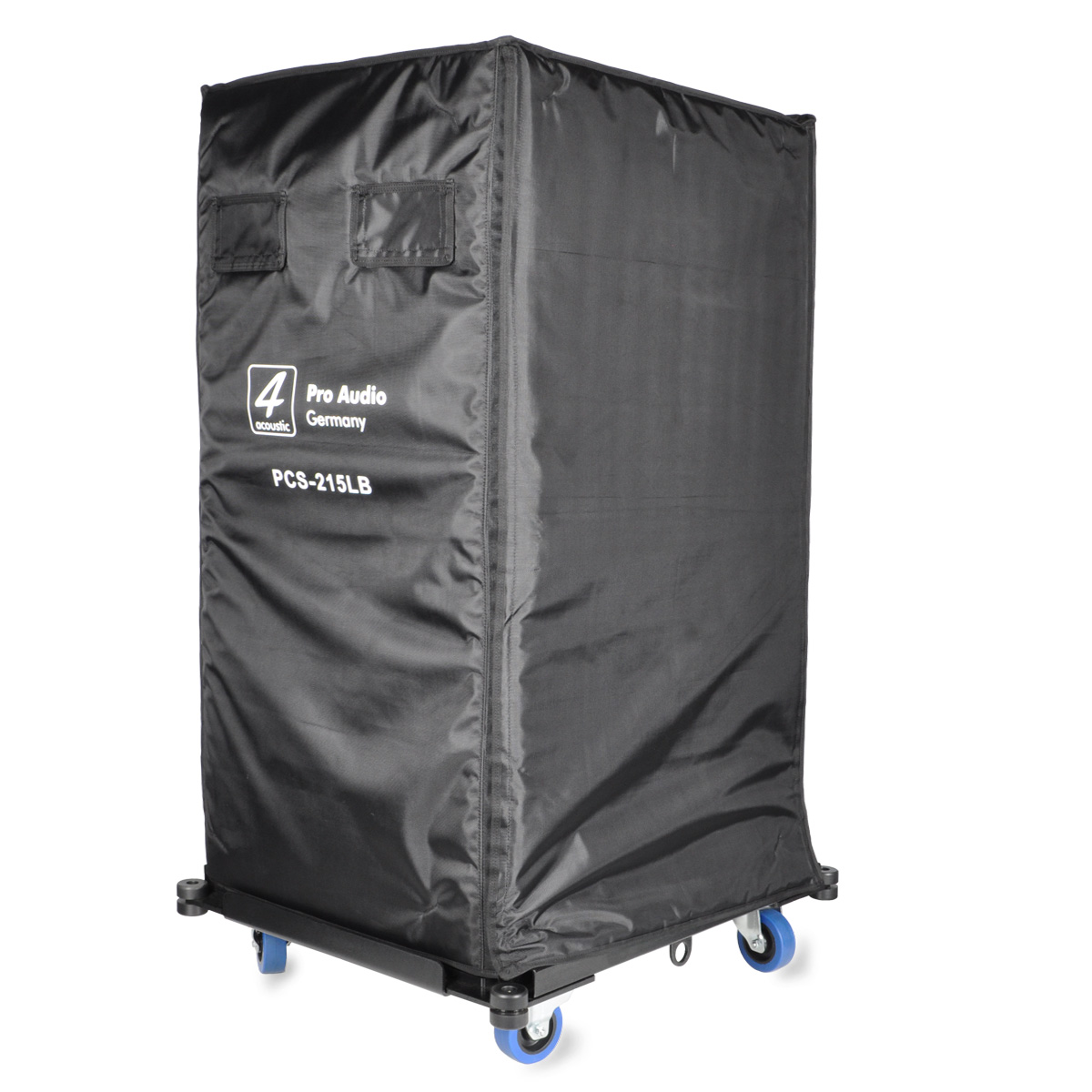

PCS-215LB-RP   Rain and transport protection cover for PCS-215LB
STG-M20T 4260318511049 Adjustable M20 threaded distance Tube 1,0 Meter to 1,5 Meter
KA-SP4-0.5 4260318511155 0,5 Meter speaker cable 4x2,5qmm
KA-SP4-05 4260318511193 5 Meter Speaker cable 4x2,5qmm
KA-SP4-10 4260318511209 10 Meter Speaker cable 4x2,5qmm
KA-SP4-15 4260318511216 15 Meter Speaker cable 4x2,5qmm
KA-SP4-20 4260318511223 20 Meter Speaker cable 4x2,5qmm
