NX-Amplifier



Massive | Reliable | Powerful

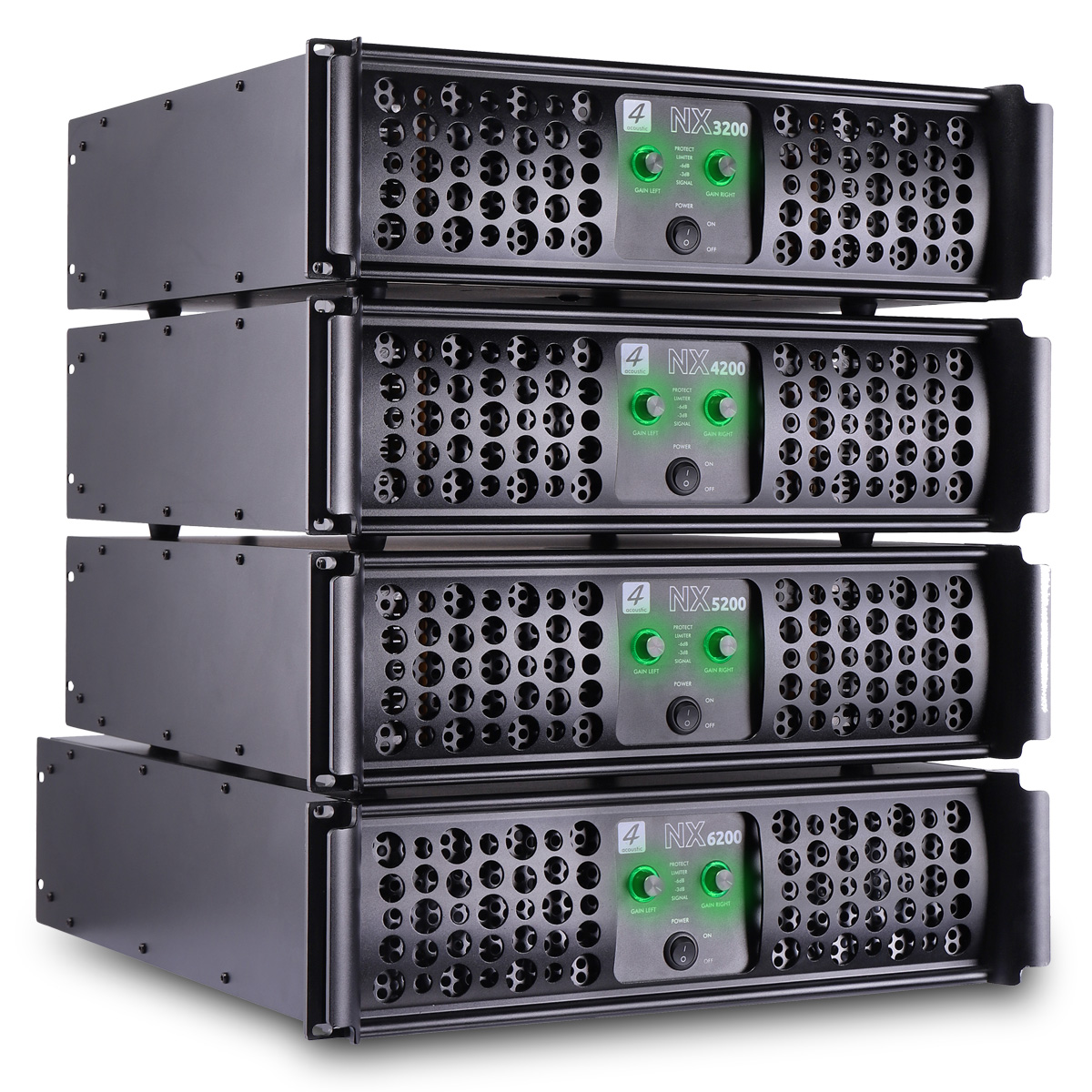

The New 3U NX-Amplifier Series

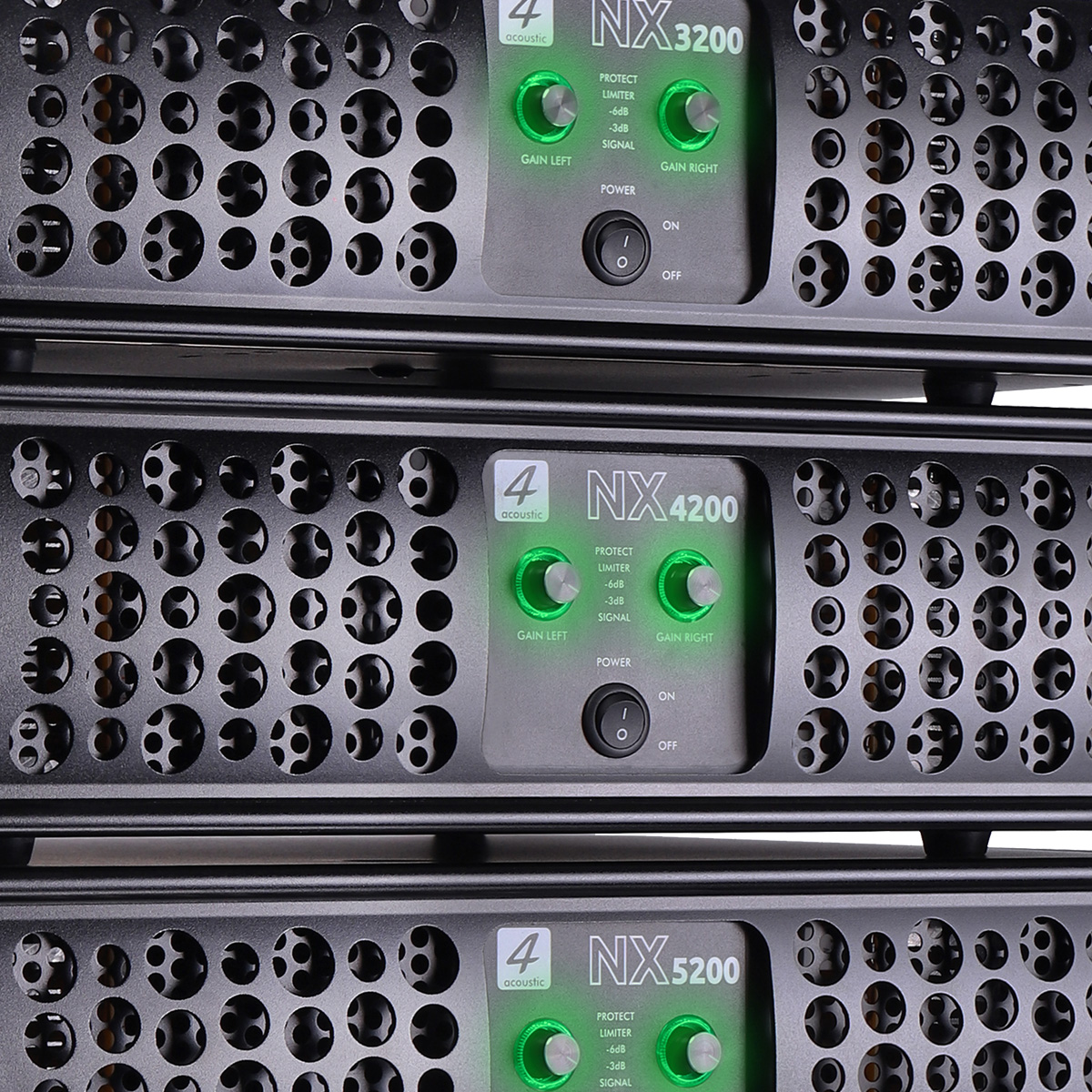

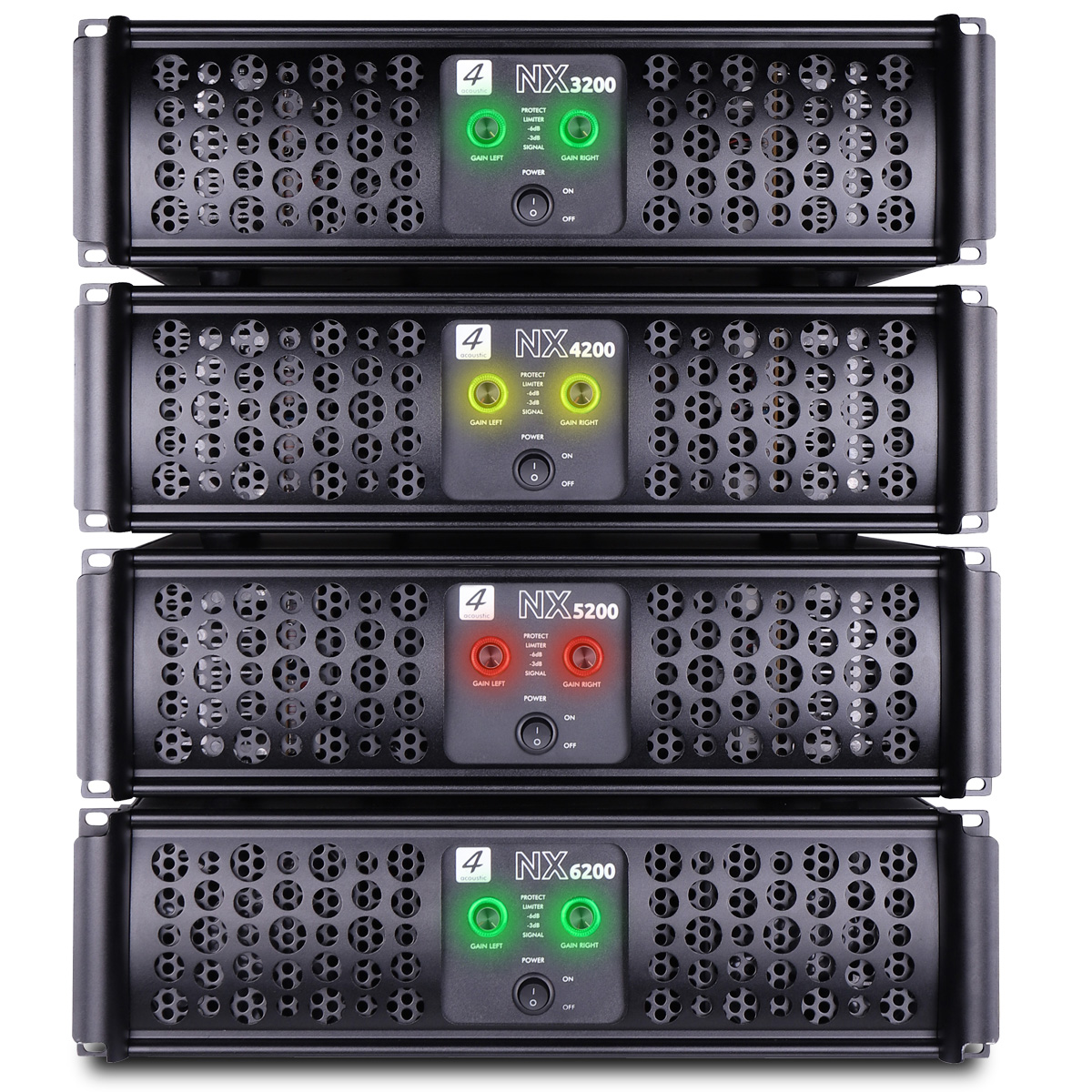

We designed the NX Series for our customers who still love traditional, massive Amplifiers with very big transformers. The 19” cases are 3U high to offer enough space for over dimensioned transformers and capacitors. The illuminated led rings around the potentiometer indicate the input level of the corresponding input channel. It will light green if an input signal is present. Yellow if the input level reaches the 0dB level and red to indicate clipping. This solid design is made without any compromises.


NX-3200 GS1 (EAN) CODE: 4260318511827
NX-4200 GS1 (EAN) CODE: 4260318511834
NX-5200 GS1 (EAN) CODE: 4260318511841
NX-6200 GS1 (EAN) CODE: 4260318512022


Technical Details

Model Name NX-3200 NX-4200 NX-5200 NX-6200
GS1 (EAN) CODE 4260318511827 4260318511834 4260318511841 4260318512022
System Type 2-Channel Class TD Amplifier 2-Channel Class TD Amplifier 2-Channel Class TD Amplifier 2-Channel Class TD Amplifier
Output Power
all channels driven
20Hz - 20 kHz, 0.1 % THD
2 x 3000W @ 2Ohm
2 x 2250W @ 4Ohm
2 x 1500W @ 8Ohm
2 x 4000W @ 2Ohm
2 x 3000W @ 4Ohm
2 x 2000W @ 8Ohm
2 x 5000W @ 2Ohm
2 x 3750W @ 4Ohm
2 x 2500W @ 8Ohm
2 x 5600W @ 2Ohm
2 x 4200W @ 4Ohm
2 x 2800W @ 8Ohm
Output Power
Bridge mode
1 x 6000W @ 4Ohm
1 x 4500W @ 8Ohm
1 x 3000W @ 16Ohm
1 x 8000W @ 4Ohm
1 x 6000W @ 8Ohm
1 x 4000W @ 16Ohm
1 x 10000W @ 4Ohm
1 x 7500W @ 8Ohm
1 x 5000W @ 16Ohm
1 x 11200W @ 4Ohm
1 x 8400W @ 8Ohm
1 x 5600W @ 16Ohm
THD+N @ 8Ω 1kHz ≤0.05% ≤0.05% ≤0.05% ≤0.05%
Slew Rate >35V/μs >35V/μs >35V/μs >35V/μs
Frequency Response
@1Watt, 8Ohm
10Hz -20kHz / ±0.5dB 10Hz -20kHz / ±0.5dB 10Hz -20kHz / ±0.5dB 10Hz -20kHz / ±0.5dB
Damping Factor
(@20Hz-100Hz)
>5000 >5000 >5000 >5000
Signal to Noise Ratio
20Hz -20 kHz
>100dB >100dB >100dB >100dB
Channel Separation
Crosstalk@1kHz
>70dB >70dB >70dB >70dB
Voltage Gain 43.0dB (0,775V:110V) 44,3dB (0,775V:127V) 45,2dB (0,775V:141,5V) 45,7dB (0,775V:150V)
Input Sensitivity 0.775V 0.775V 0.775V 0.775V
Input Impedance 20k Ohm Balanced
10k Ohm Unbalanced
20k Ohm Balanced
10k Ohm Unbalanced
20k Ohm Balanced
10k Ohm Unbalanced
20k Ohm Balanced
10k Ohm Unbalanced
Front Control Power switch, Gain control Power switch, Gain control Power switch, Gain control Power switch, Gain control
Rear Control Mode Switch Mode Switch Mode Switch Mode Switch
LED Indicators Signal Indicator,
Protect
Signal Indicator,
Protect
Signal Indicator,
Protect
Signal Indicator,
Protect

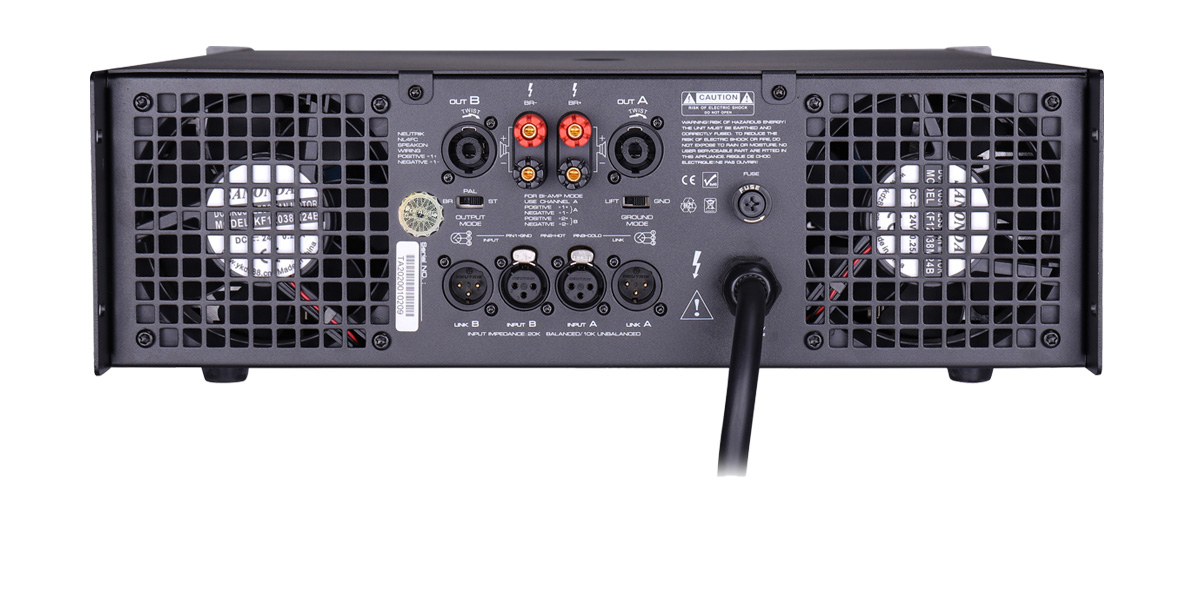

Input Connectors XLR Active balanced
pin1 gnd / pin 2+ / pin3-
XLR Active balanced
pin1 gnd / pin 2+ / pin3-
XLR Active balanced
pin1 gnd / pin 2+ / pin3-
XLR Active balanced
pin1 gnd / pin 2+ / pin3-
Output Connectors 2 Neutrik NL4 Sockets
2 Binding Posts
2 Neutrik NL4 Sockets
2 Binding Posts
2 Neutrik NL4 Sockets
2 Binding Posts
2 Neutrik NL4 Sockets
2 Binding Posts
Cooling Low Noise Continuously Variable
speed fan
Low Noise Continuously Variable
speed fan
Low Noise Continuously Variable
speed fan
Low Noise Continuously Variable
speed fan
Protection Full short circuit, Open circuit,
thermal, Ultrasonic, RF Protection.
Stable Into reactive or
Mismatched loads
Full short circuit, Open circuit,
thermal, Ultrasonic, RF Protection.
Stable Into reactive or
Mismatched loads
Full short circuit, Open circuit,
thermal, Ultrasonic, RF Protection.
Stable Into reactive or
Mismatched loads
Full short circuit, Open circuit,
thermal, Ultrasonic, RF Protection.
Stable Into reactive or
Mismatched loads
Load Protection On/Off muting
DC fault power
Supply shutdown
On/Off muting
DC fault power
Supply shutdown
On/Off muting
DC fault power
Supply shutdown
On/Off muting
DC fault power
Supply shutdown
Operating Voltage 230V (+/- 10%), 50-60Hz
USA Version
110V (+/- 10%), 50-60Hz
230V (+/- 10%), 50-60Hz
USA Version
110V (+/- 10%), 50-60Hz
230V (+/- 10%), 50-60Hz
USA Version
110V (+/- 10%), 50-60Hz
230V (+/- 10%), 50-60Hz
USA Version
110V (+/- 10%), 50-60Hz
Idle
Power Consumption
< 80W < 100W < 120W < 150W
Max.
Power Consumption
< 3500W < 5000W < 6000W < 7000W
Fuse T-25A T-30A T-35A T-35A
Dimensions (h/w/d) 19“/3U 483W x 485D x 132H 19“/3U 483W x 485D x 132H 19“/3U 483W x 485D x 132H 19“/3U 545W x 485D x 132H
Net weight 38 kg 39,5 kg 44,5 kg 50 kg
