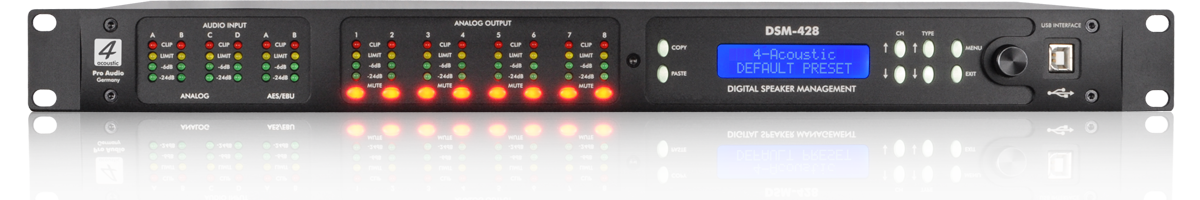

DSM-428

DSM-428 high performance digital speaker management

High performance DSP speaker management

The DSM components are powerful and state of art tools for professional speaker management. Our DSM-428 series contains 2 different devices which convince you with highest level of German DSP technology.

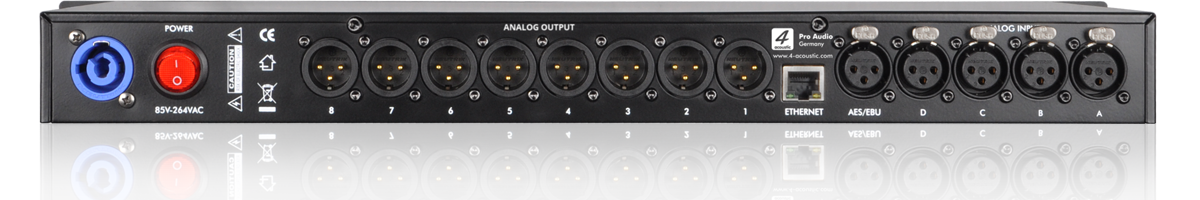

Features of the Input and output section:

Both models offer 4 electronically balanced analog inputs and 8 electronically balanced analog outputs. The rugged analog input stage accepts input voltages up to +24dBu with an excellent dynamic range of typically 135dB(A) in the Ultimate version. The max. output level is 12dBu, (18dBu Ultimate). An AES/EBU input connects with a two-channel digital input signal . To match the demand of Audio via IP there is the possibility to optional connect and use AES67 and AVB/Milan (Q1/2021) with these DSM processors.
(For Dante please check with our technical team.)

Features of the DSP section:

Up to 8 x 600 FIR taps in the Ultimate version, 10 PEQ for each in and output channel and crossover filter up to 48dB/Oct points out the high level of these DSM series. Permanent logging and monitoring of key parameters such as temperature, signal level and gain reduction. All functions controlled via the front panel or via the DSM network application. All the DSP settings and coefficients are calculated on-the-fly at the moment of changing the parameters. Frequencies can be set with 1Hz accuracy, delays with 15 microseconds accuracy, and gains with 0.01dB accuracy. When editing values via the front panel, some values are limited in granularity; e.g. gain is set via 0.25dB steps in this case.

Features of the DSM network software:

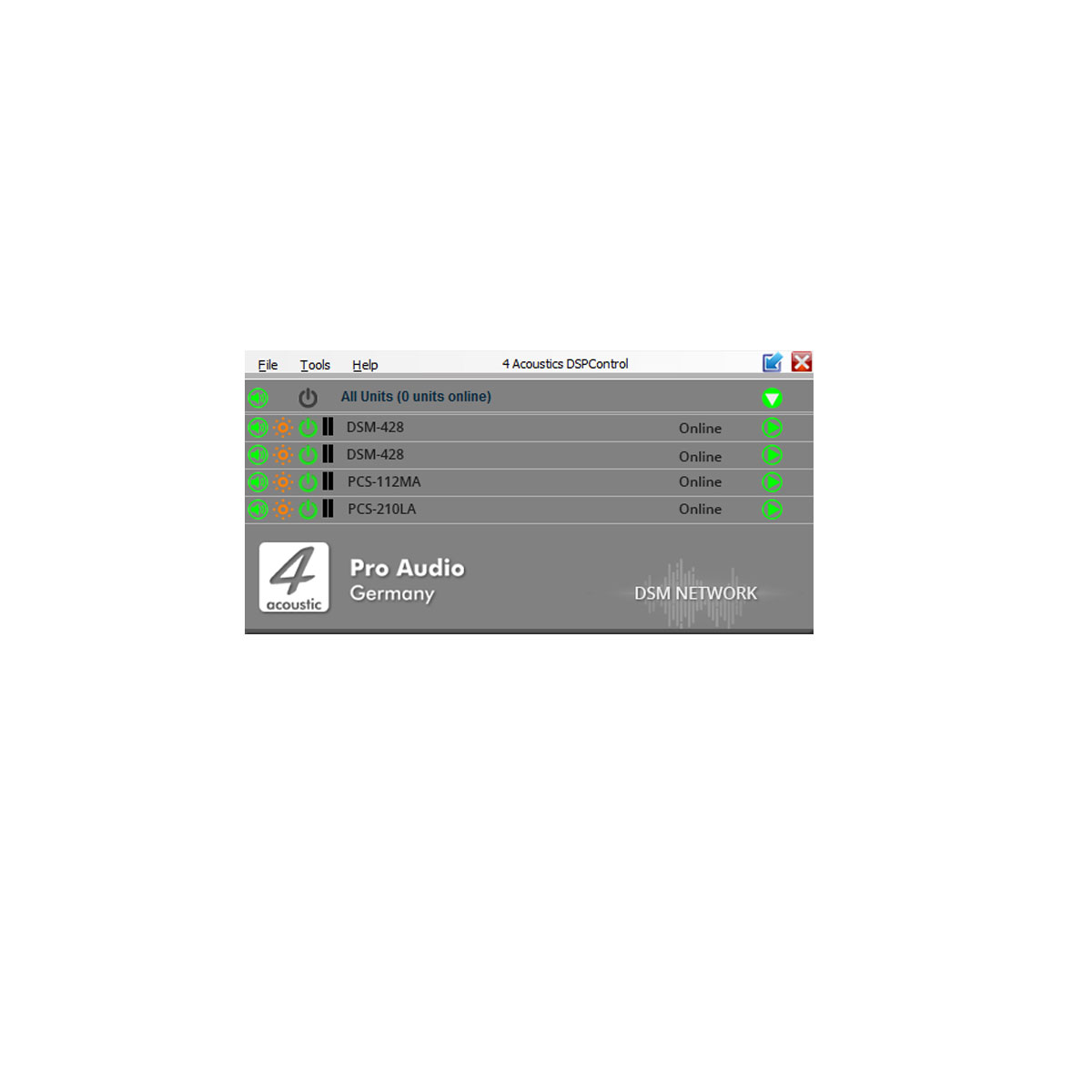

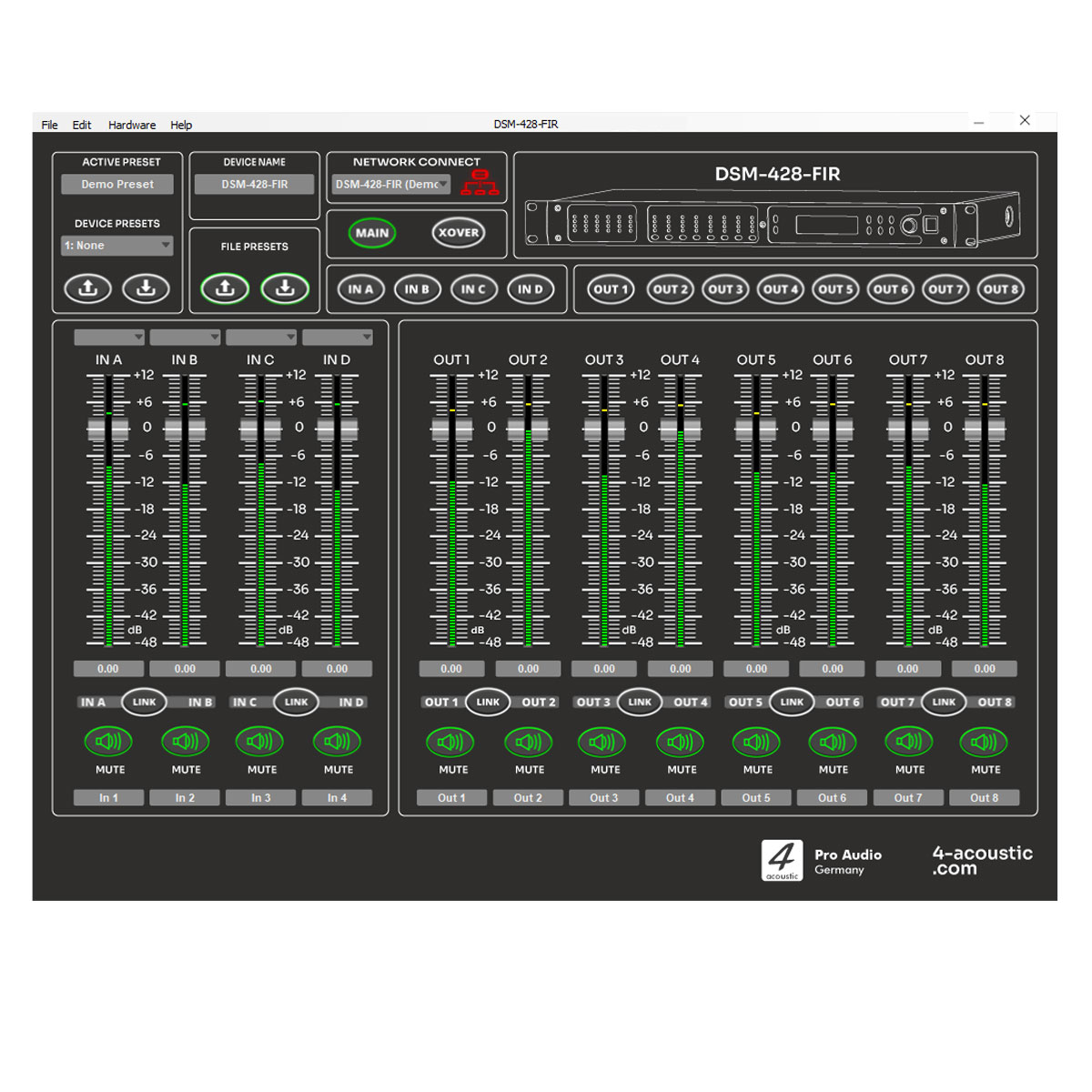

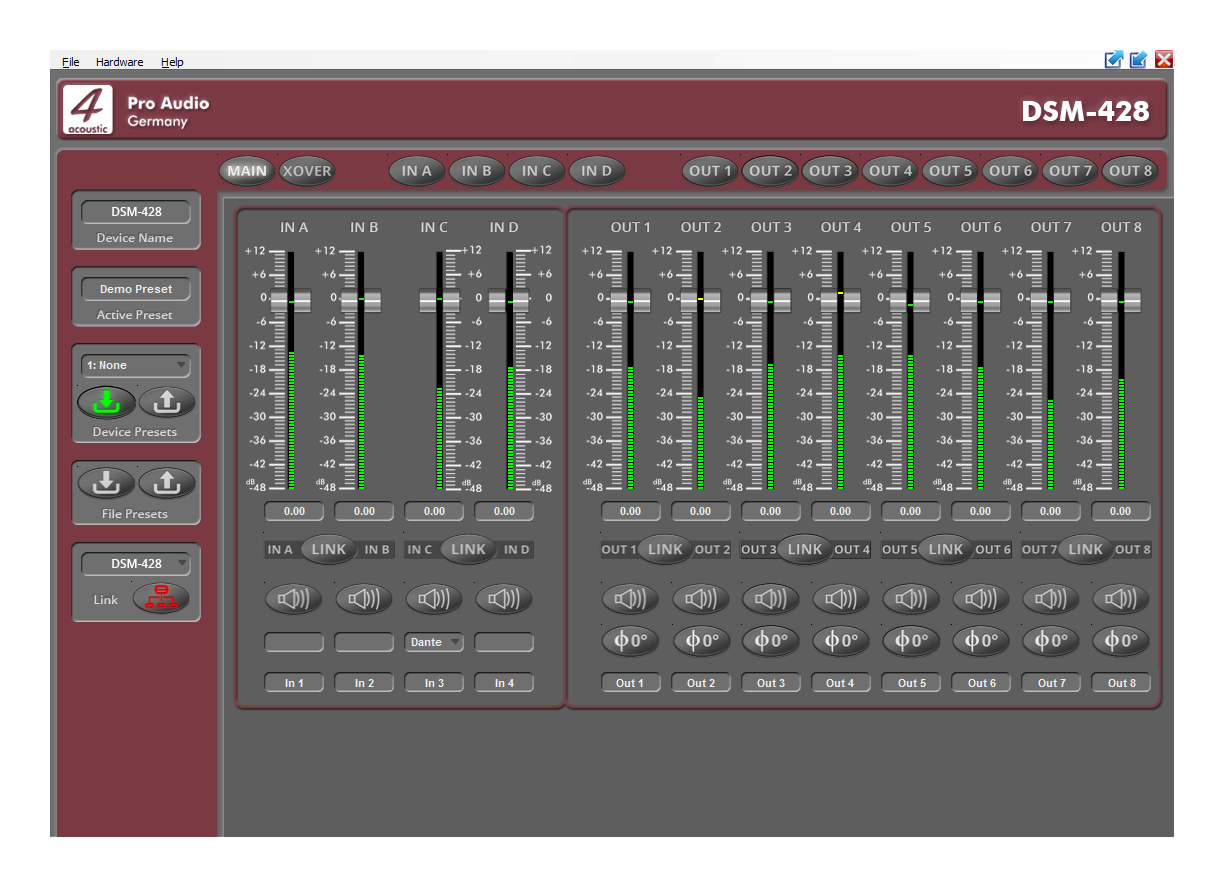

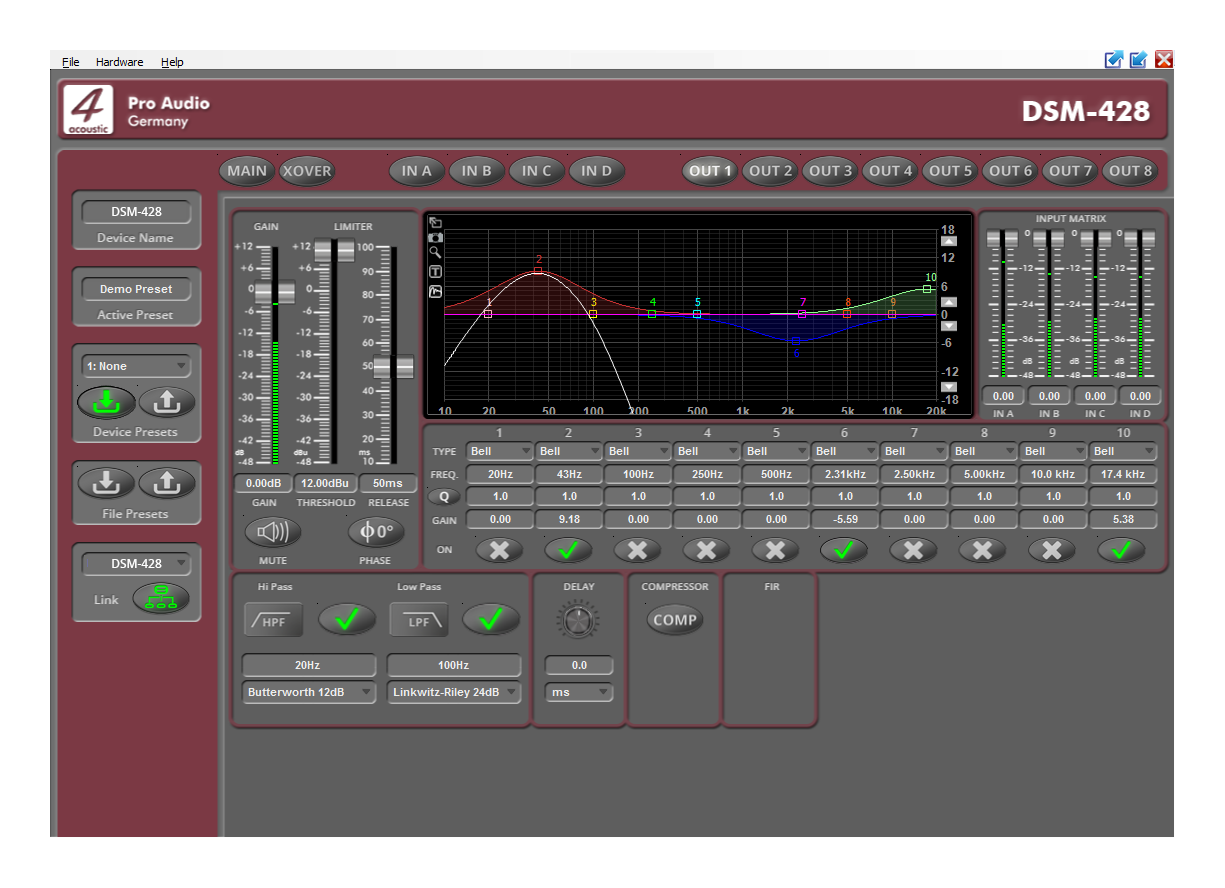

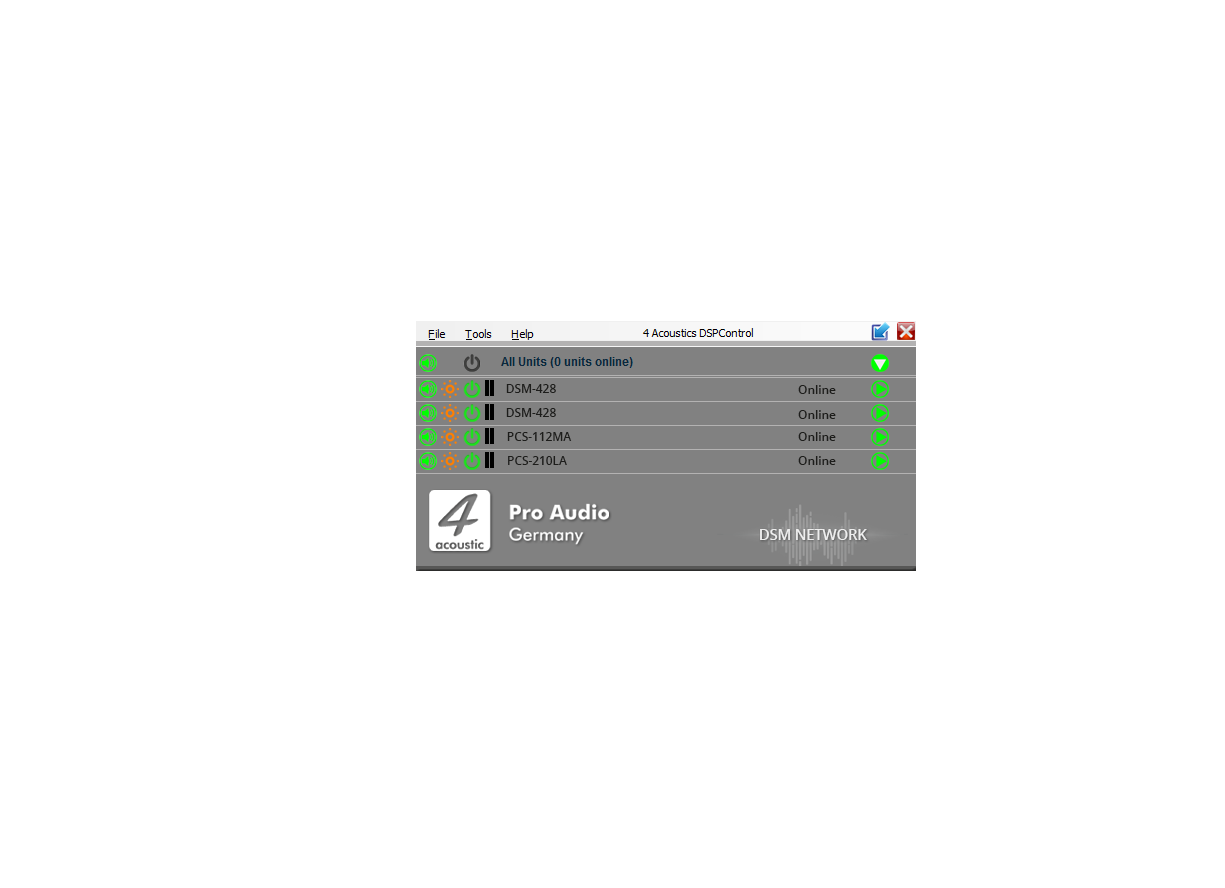

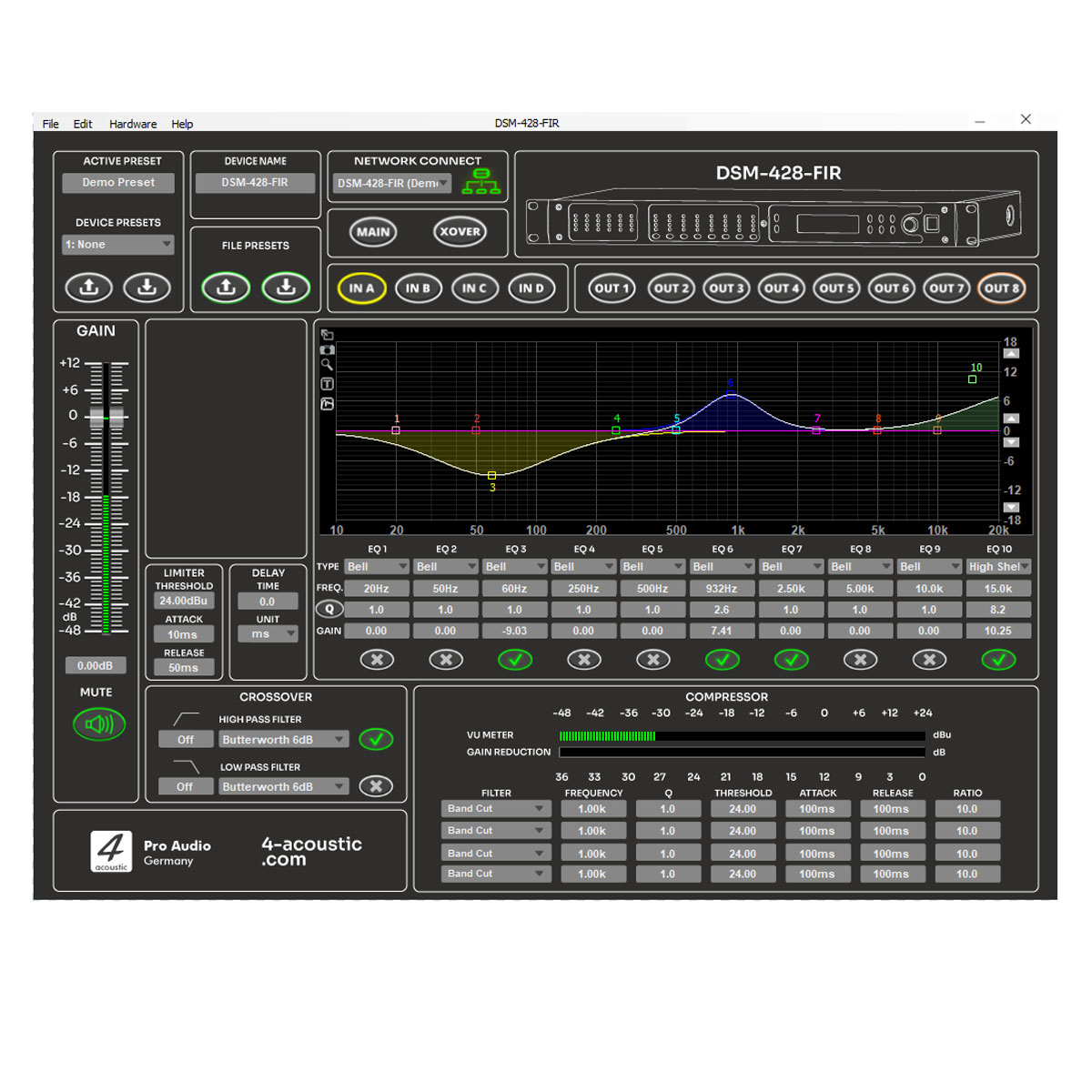

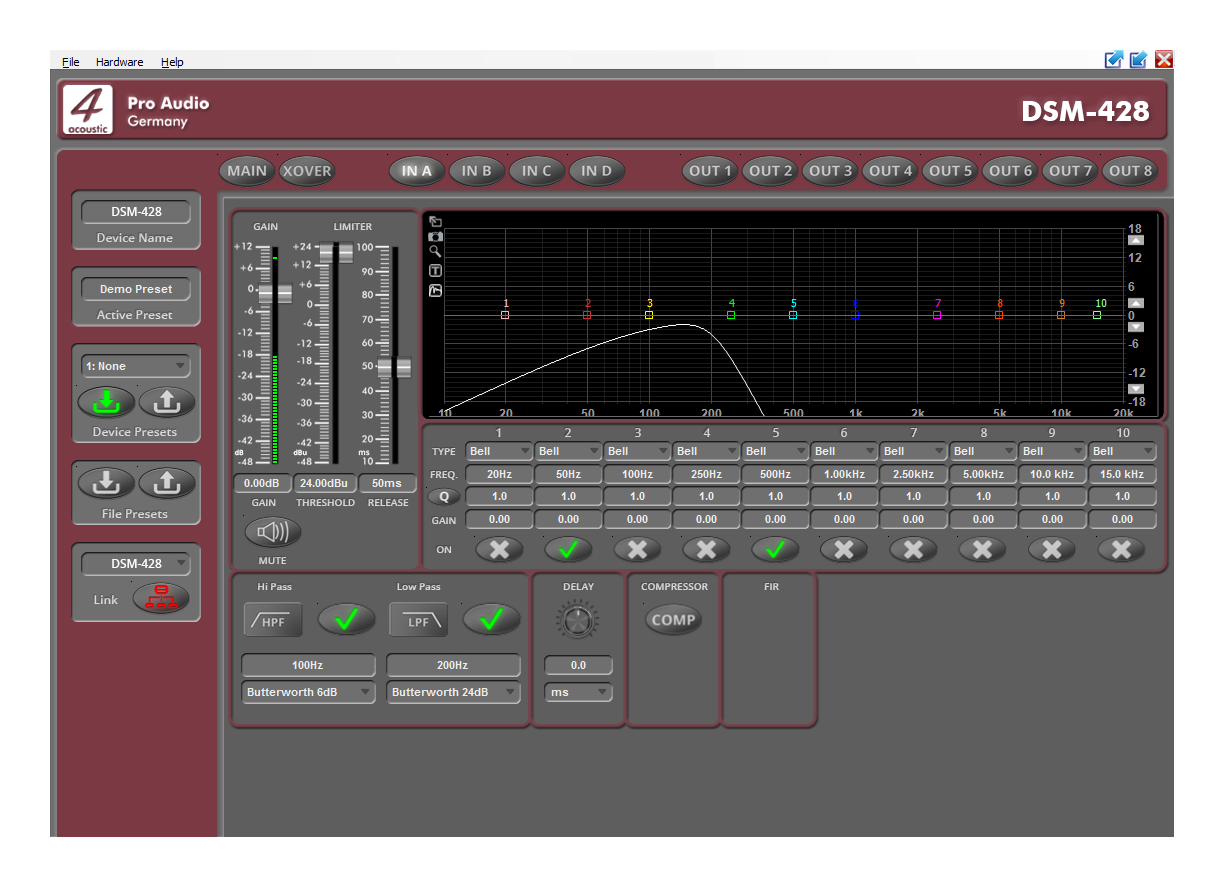

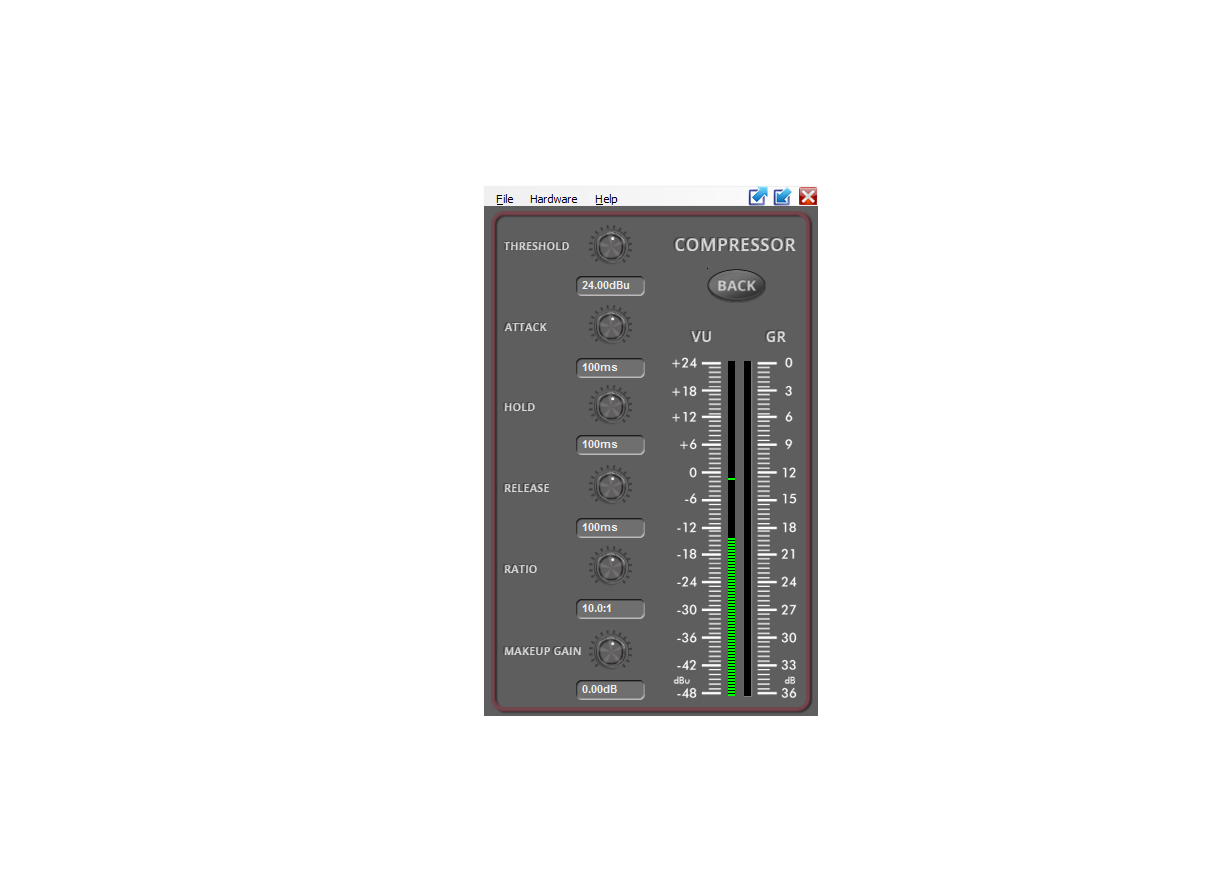

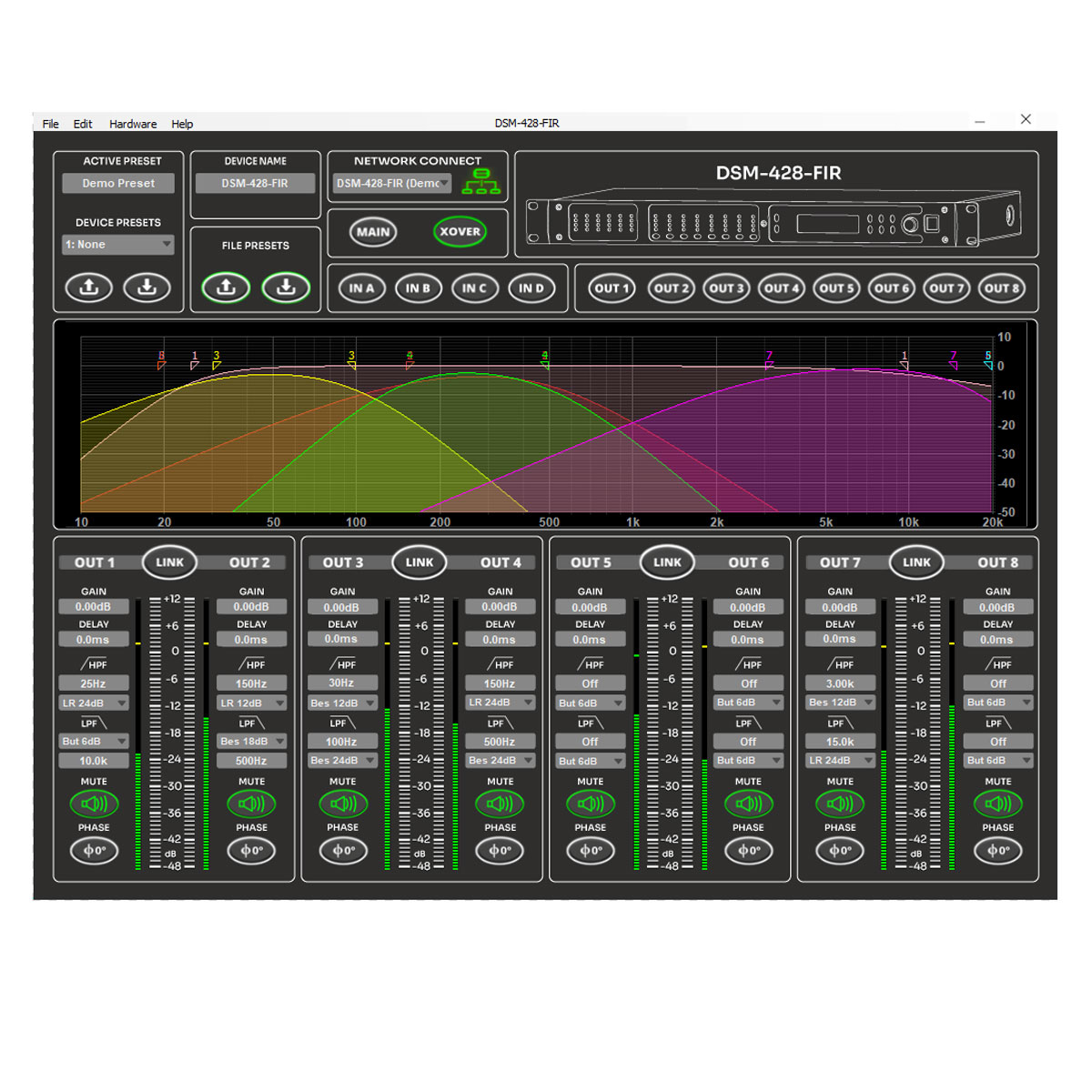

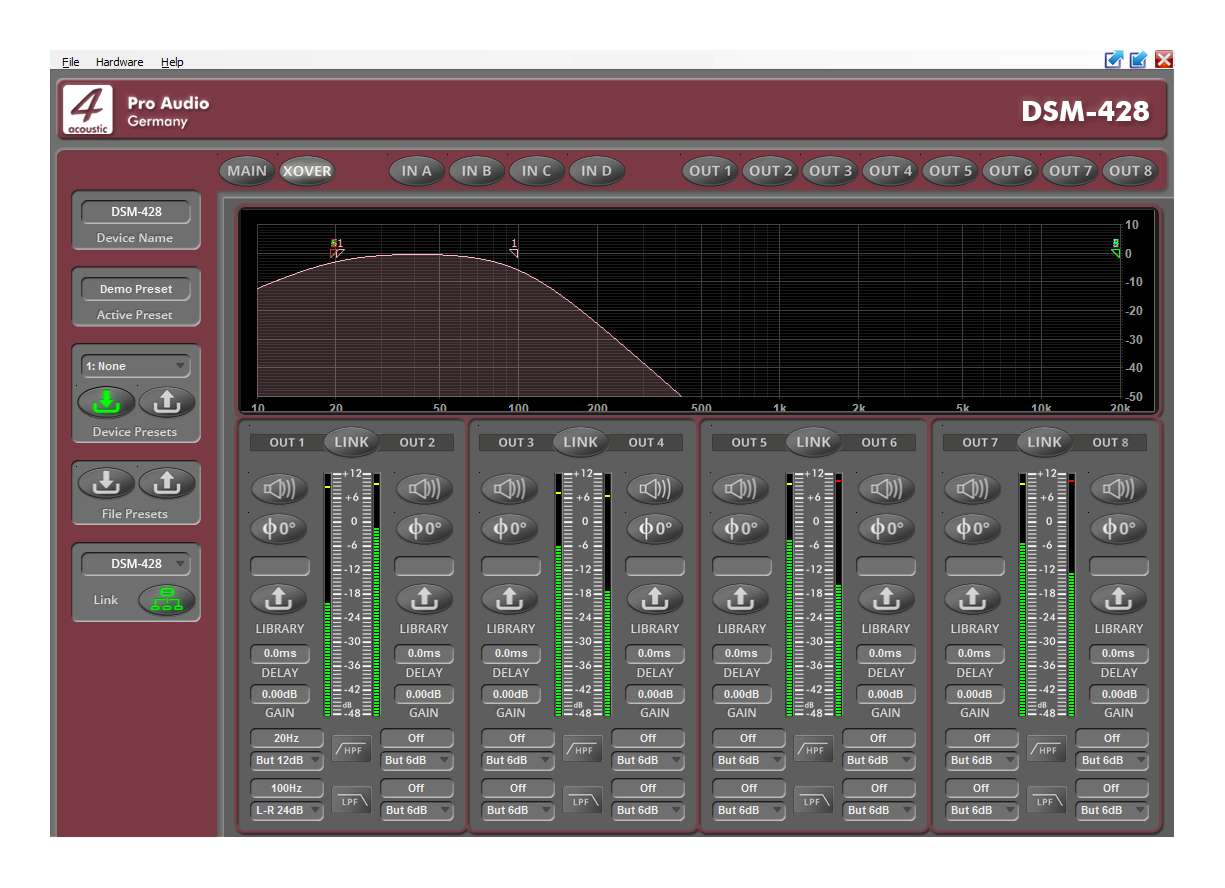

The DSM Network software will give you access to all DSM devices connected to the network. This could be speaker management processors, amplifiers or active speaker and active line arrays. It is possible to group and control several units under the DSM network for easy stress-free configuration of huge sound setups.

DSM-428-FIR GS1 (EAN) CODE: 4260318511681
DSM-428-ULTIMATE GS1 (EAN) CODE: 4260318510745


Technical Details

Model Name DSM-428-FIR DSM-428-ULTIMATE
GS1 (EAN) CODE 4260318511681 4260318510745
System Type 4 IN / 8 OUT Digital Speaker Management 4 IN / 8 OUT Digital Speaker Management
Inputs 4 analog Inputs with 125dB(A)
dynamic range
1 AES/EBU input (2 channels)
AES67 (Dante) optional
4 analog Inputs with 135dB(A)
dynamic range
1 AES/EBU input (2 channels)
AES67 (Dante) optional
Max. Input Level +24dBu +24dBu
Input Type Electronically balanced Electronically balanced
Input Impedance
(balanced)
21 KOhm 21 KOhm
Input Impedance
(single ended)
10,5 KOhm 10,5 KOhm
Outputs 8 analog Outputs with typ. 120dB(A)
dynamic range
8 analog Outputs with typ. 125dB(A)
dynamic range
Max. Output Level +12dBu Switchable With DSM Software
+6/+12/+18dBu
Output Type Electronically balanced matched-impedance Electronically balanced matched-impedance
DSP THD (@0 dBu, 1 kHz) <0,005 <0,003
DSP Frequency range 10Hz to 40kHz 10Hz to 40kHz
Gain 0 dB +/-0,5 dB 0 db +/-0,5 dB
Dynamic Range typ.120 dB(A) typ.120 dB(A)
Dynamic Range with 12dBu output level >116 dB(A) typ.120 dB(A)
EQ´s 10 parametric filters per input and output 10 parametric filters per input and output
EQ Type Bell, High Shelf, Low Shelf, Notch, Allpass,
Band Pass, High Pass, Low Pass
Bell, High Shelf, Low Shelf, Notch, Allpass,
Band Pass, High Pass, Low Pass
FIR 8 x 384 Taps 8 x 600 Taps
Delay Times 2000ms delay per input,
50ms delay per output
2000ms delay per input,
50ms delay per output
Crossover Butterworth, Bessel, Linkwitz-Riley
filters up to 48dB / oct.
Butterworth, Bessel, Linkwitz-Riley
filters up to 48dB / oct.
Compressor 3 Band each input and output 3 Band each input and output
Limiter Switchable Limiter
Zero Attack Peak
Limiter / True RMS Limiter
Switchable Limiter
Zero Attack Peak
Limiter / True RMS Limiter
Latency 350 microseconds 350 microseconds
Sample Rate 96 kHz 96 kHz
Remote Control Full configuration and real-time monitoring
via PC, MAC, iPad or iPhone
Full configuration and real-time monitoring
via PC, MAC, iPad or iPhone
Presets 250 storeable Presets 250 storeable Presets
Processing 64 bits multi-mode digital processing 64 bits multi-mode digital processing
Library 4-Acoustic Loudspeaker Library support 4-Acoustic Loudspeaker Library support
PC Remote USB and Ethernet PC connection USB and Ethernet PC connection
Operating Voltage 85 VAC to 264 VAC 85 VAC to 264 VAC
Dimensions (h/w/d) 19“/1U 483W x 190D x 44H 19“/1U 483W x 190D x 44H
Net weight 2,55 kg 2,55 kg
