PCS-212L

PCS-212L 3-Way Line Array Module

PCS-212L Line Array Module

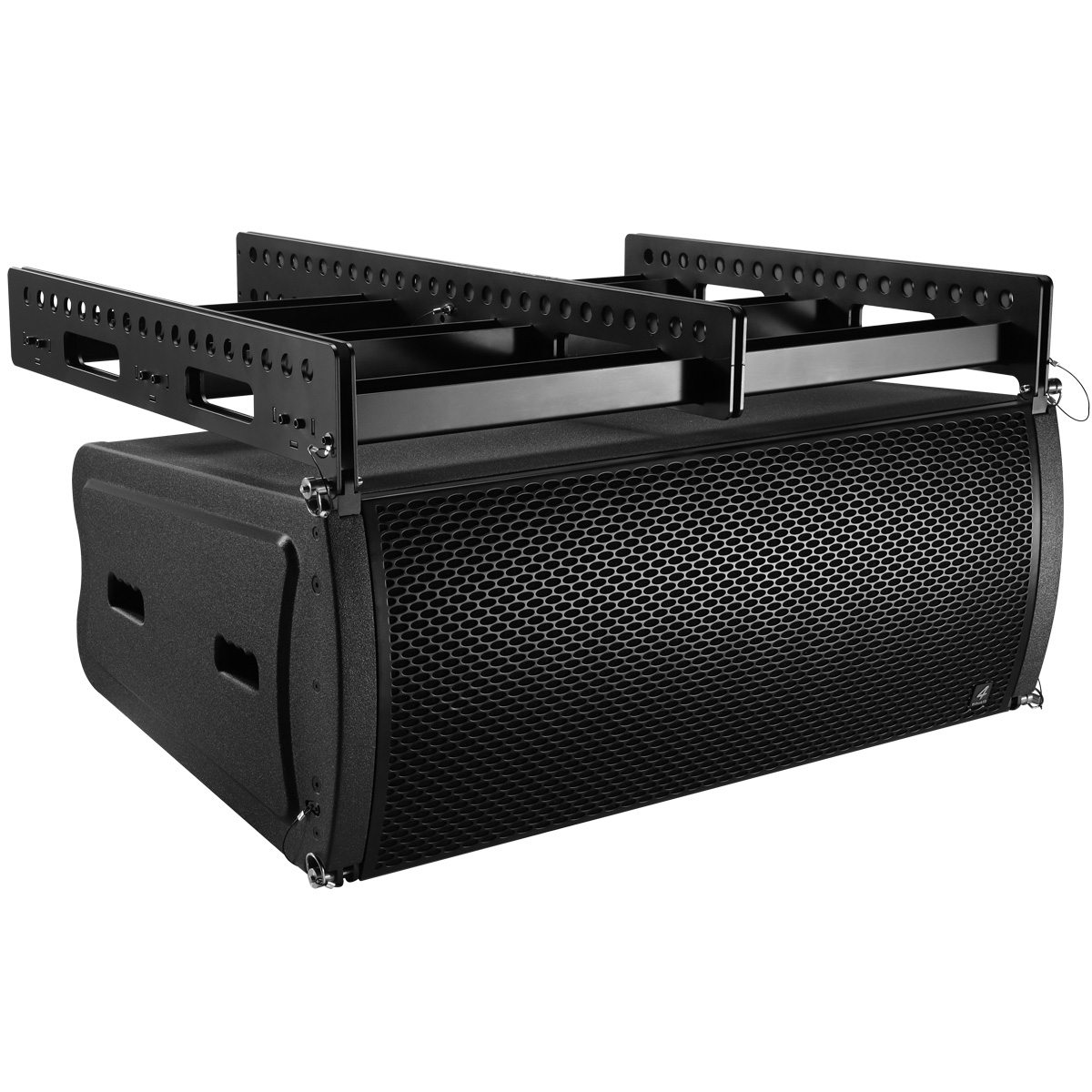

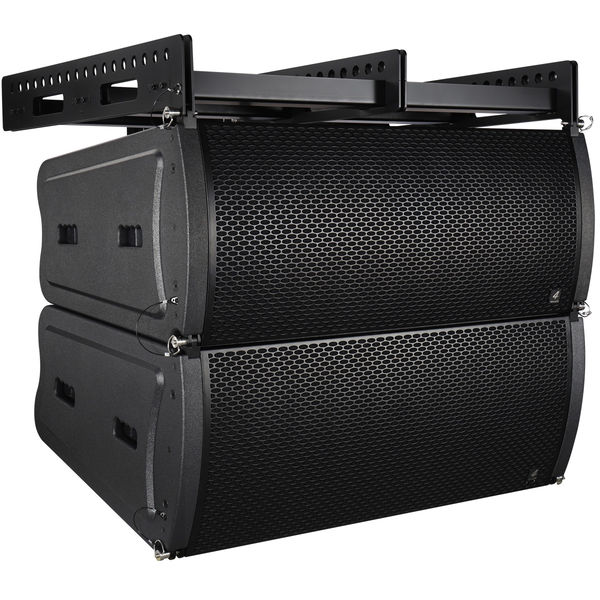

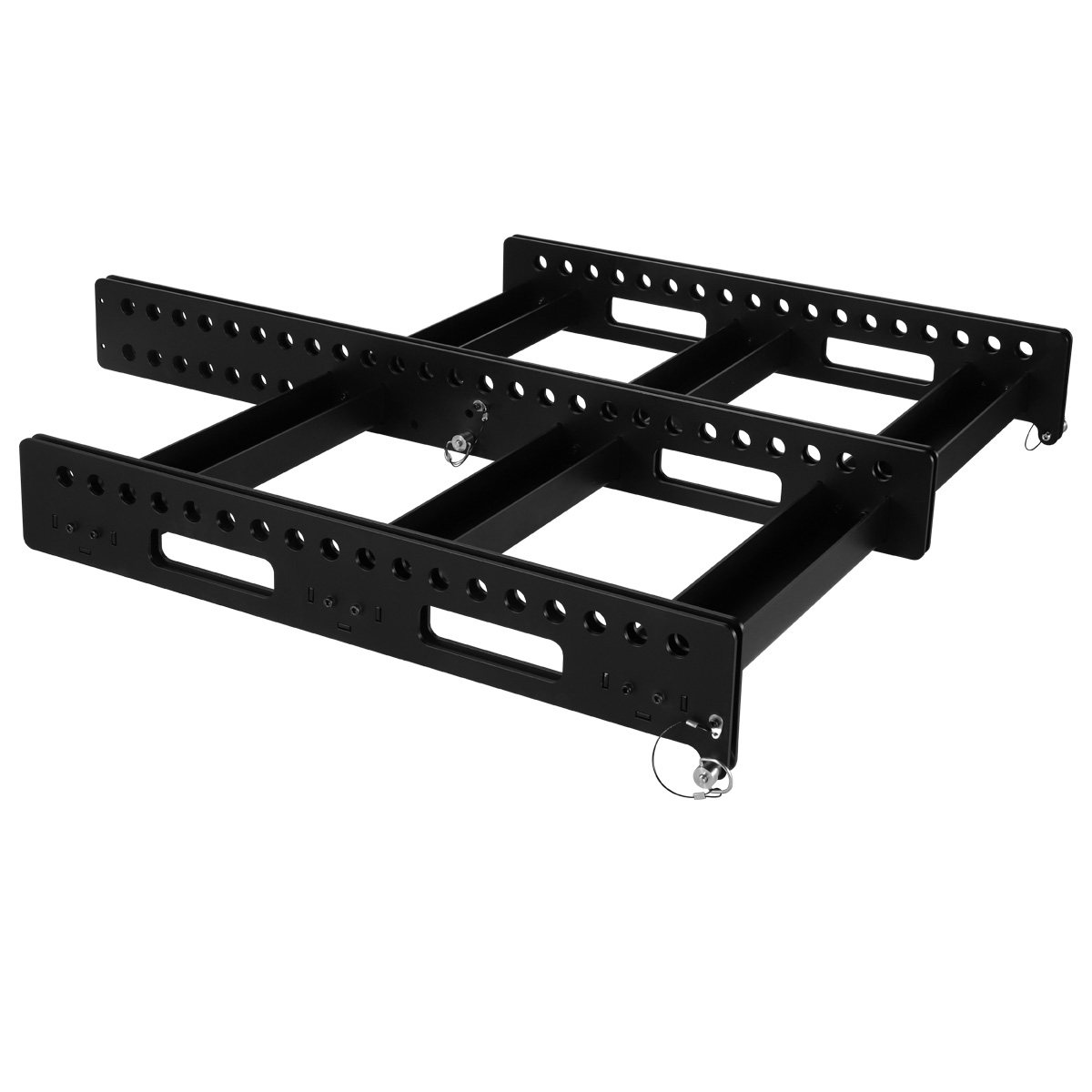

PCS-212L is a compact size, 3-way speaker to use in vertical line array columns up to 10 units per flight frame. The mechanical design offers a vertical adjustment from 0° to 10° with a resolution of 1,0° per step. The entire flyware is made of high quality, extreme resilient aluminum components. This 3-way system is comprised of two 12” neodymium woofers four 6,5” neodymium Low/Mid chassis and two centrally mounted 1,4” neodymium drivers with 2,5” voice coil. The drivers are connected to an accurate calculated horn. The maximum SPL of a single unit is 137dB. The coverage pattern is 10°x120° (v x h). The shock-proof and wheather-resistant housing is made of best quality Baltic multiplex wood and covered with a strong, black water-resistant Polyurea coating. Four integrated handles will support an easy transport and installation. The front side of the speaker is protected by a 1,5 mm strong, black metal grill covert with black color acoustic foam. The flight frame construction allows hanging and standing installation on PCS subwoofers. The 3-way module is operated as a 2-way bi-amp system and therefore requires only two amplifier channels. The compact size guarantees a maximum of flexibility.

PCS-210L GS1 (EAN) CODE: 4260318510691

Technical Details

Model Name PCS-212L
GS1 (EAN) CODE 4260318510691
System Type 2x12“/4x6,5"/2x1,4“ 3-Way Line Array Module
Power Rating Low/Mid
1000 W AES
2000 W program
4000 W peak
Mid/High
1200 W AES
2400 W program
4800 W peak
Frequency Range (+/- 3 dB) 50 Hz - 20 kHz
Coverage Pattern (hxv) 120°x10°
Sensitivity Low/Mid 101 dB 1w/1m
Mid/High 105 dB 1w/1m
Maximum SPL 137 dB
Woofer 2 x STG-12L-16, neodymium
Midrange 4 x STG-M65-8, neodymium
Driver 2 x STG-44NBL-8, neodymium
Nominal Impedance Low/Mid 8 Ohm
Mid/High 8 Ohm
Input Connectors 2 x Neutrik NL4 Socket
Mid/High 1+/1-
Low/Mid 2+/2-
Housing Birch Multiplex
Coating Water-resistant Polyurea coating
Dimensions (h/w/d) 385x1000x612 mm
Net weight 55,5 kg

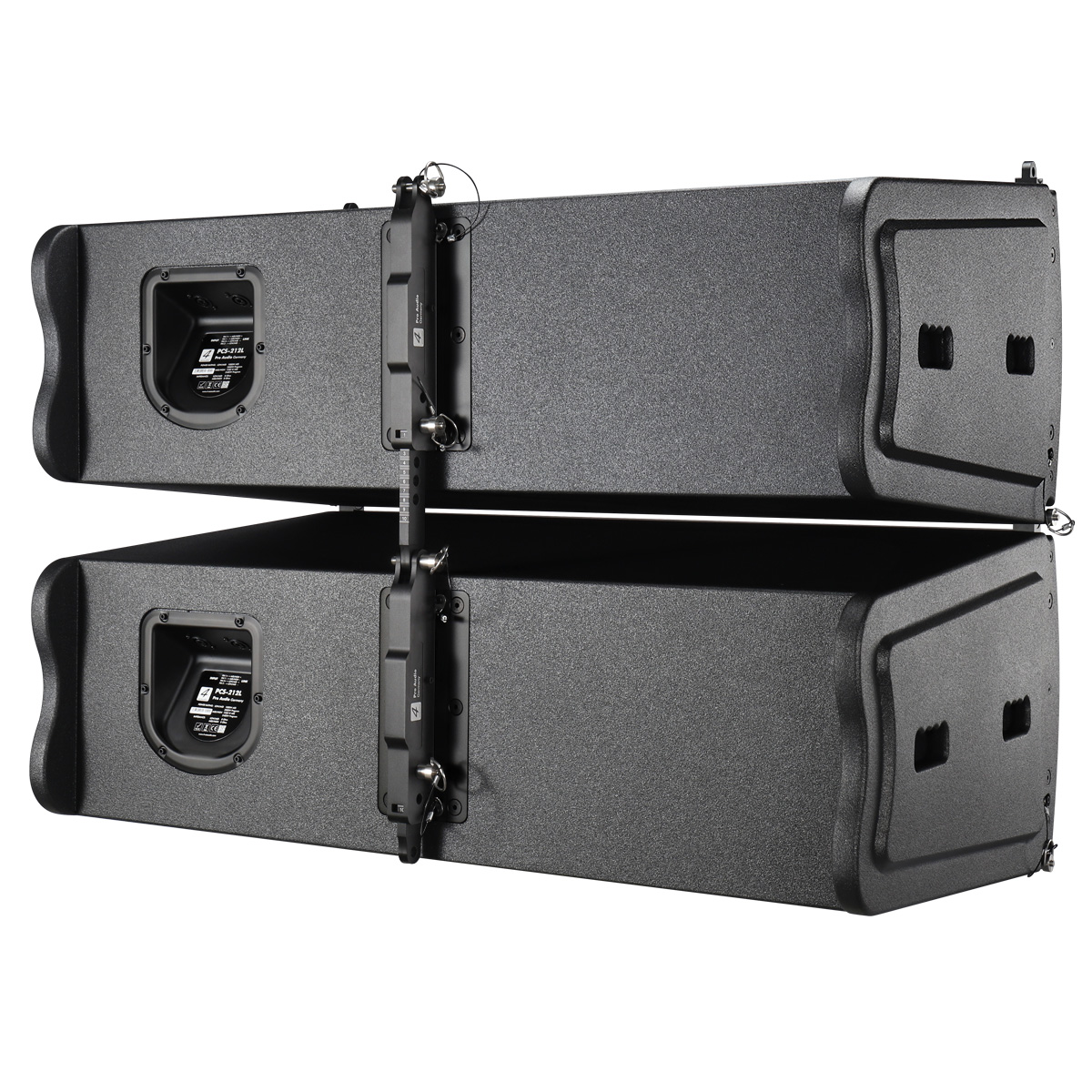

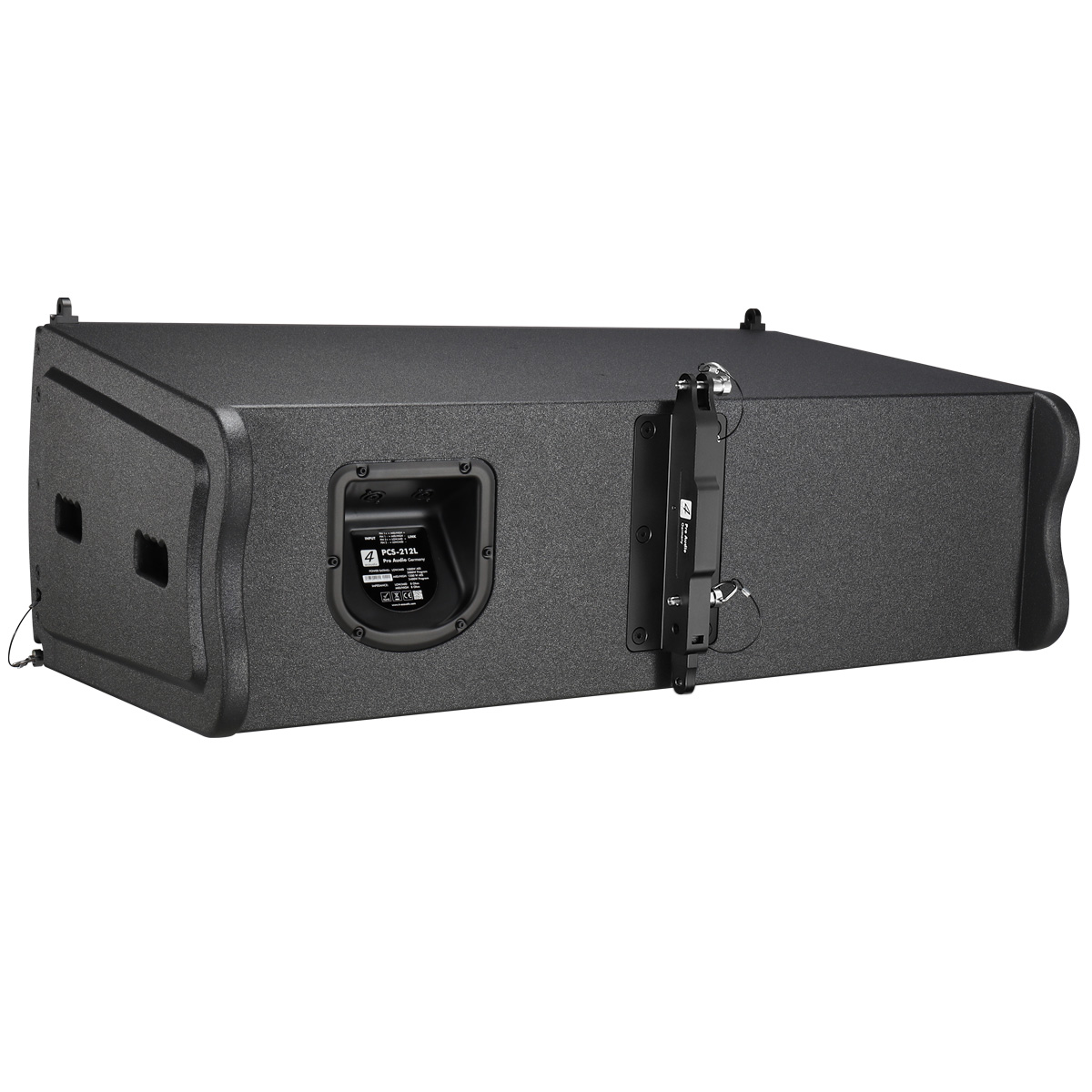

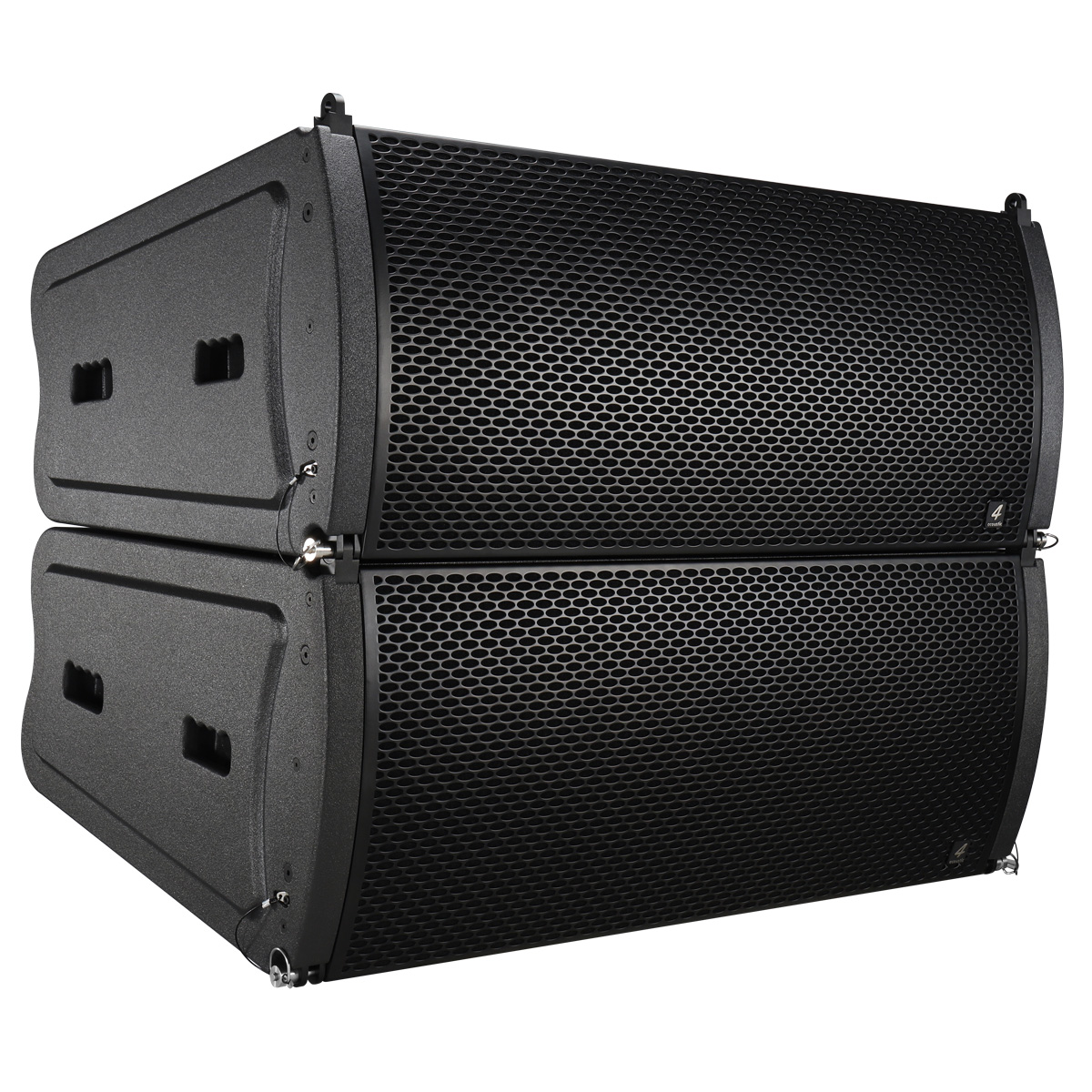

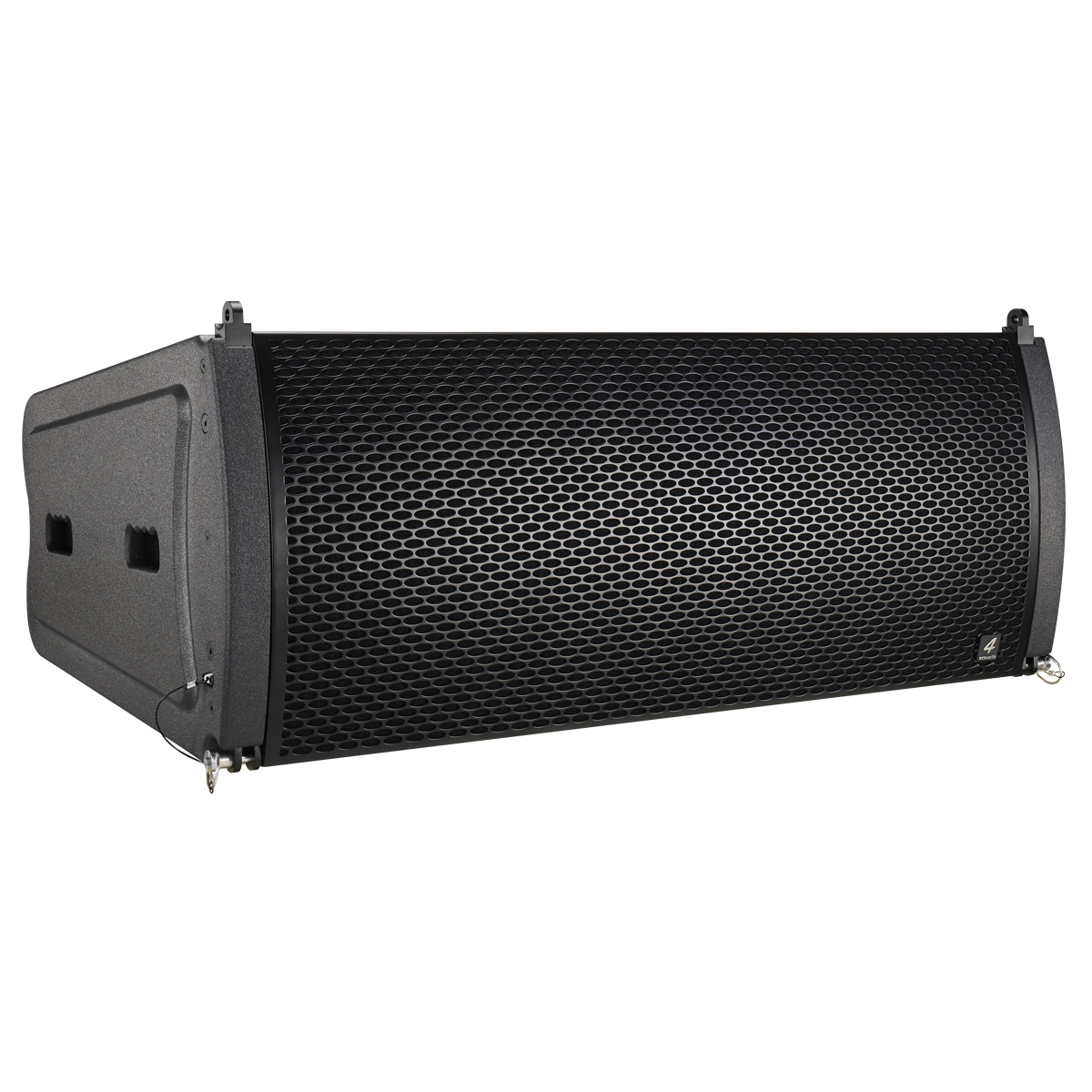

Picture Gallery
