PCS-118LB Multi function 18“ line array subwoofer

PCS-118LB Multi function 18“ line array subwoofer

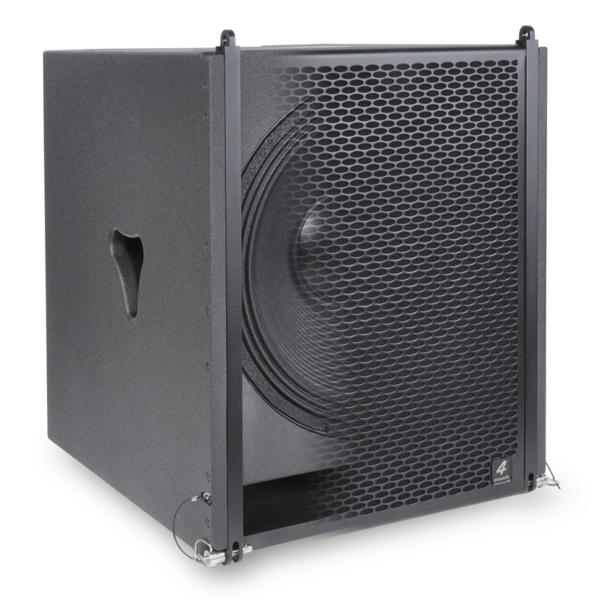

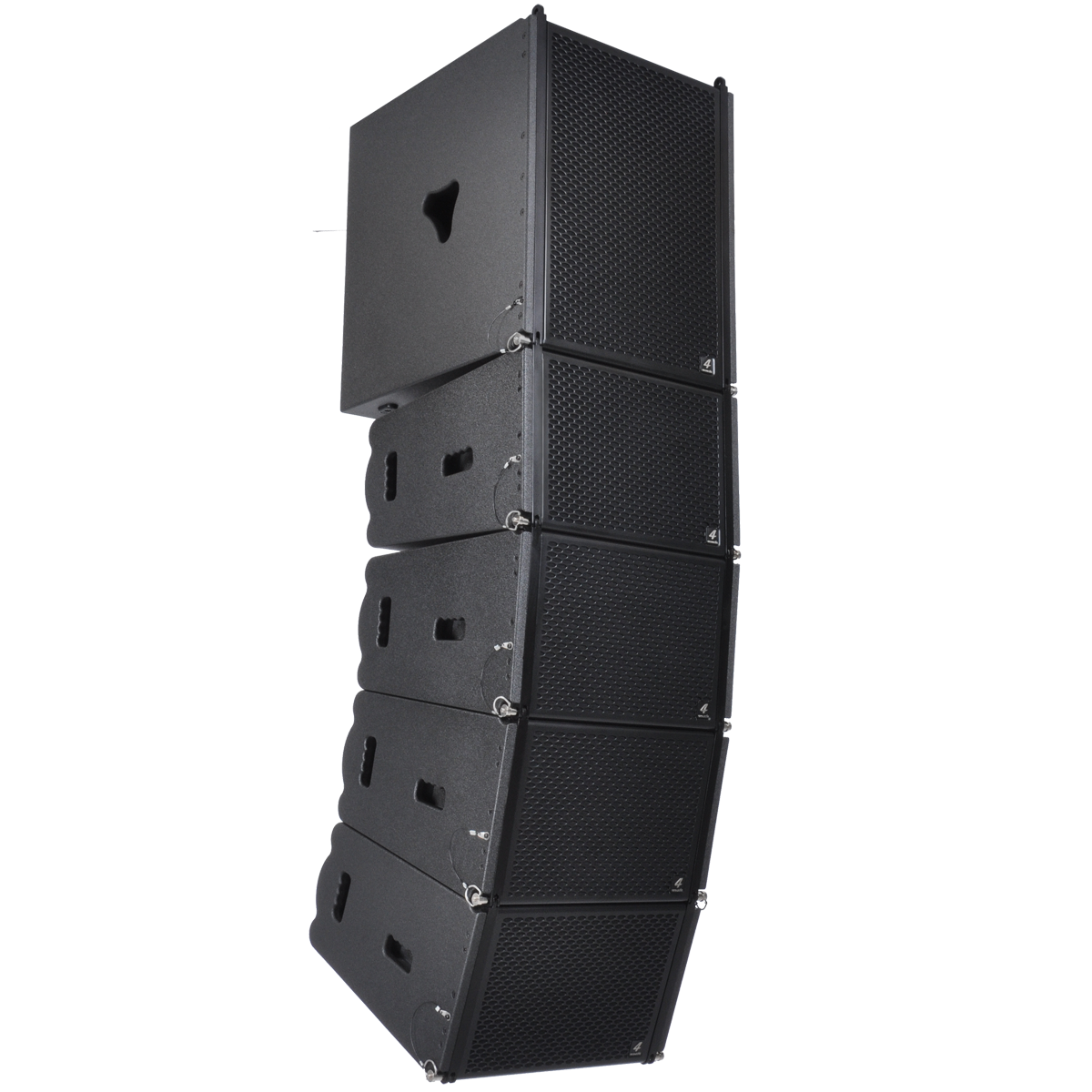

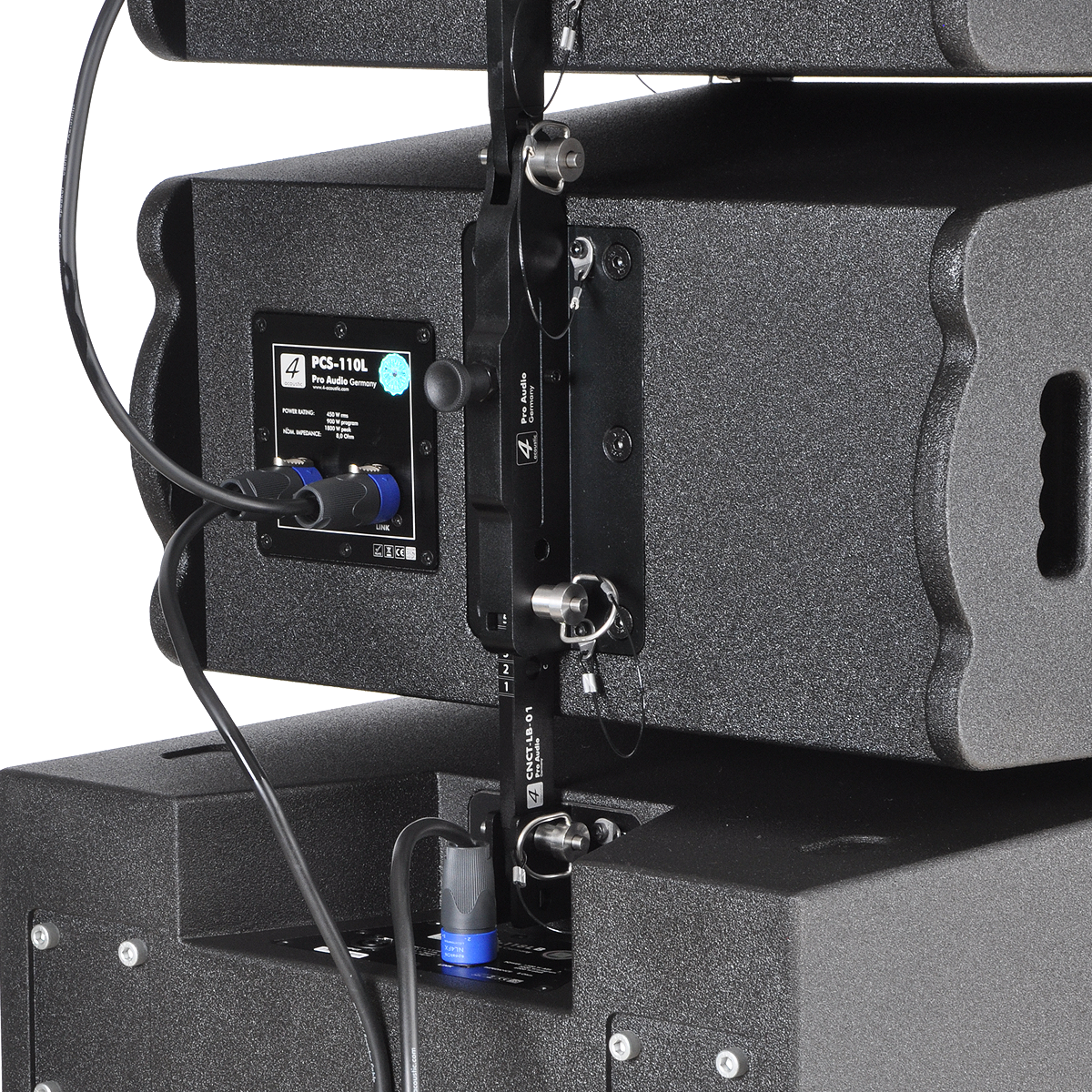

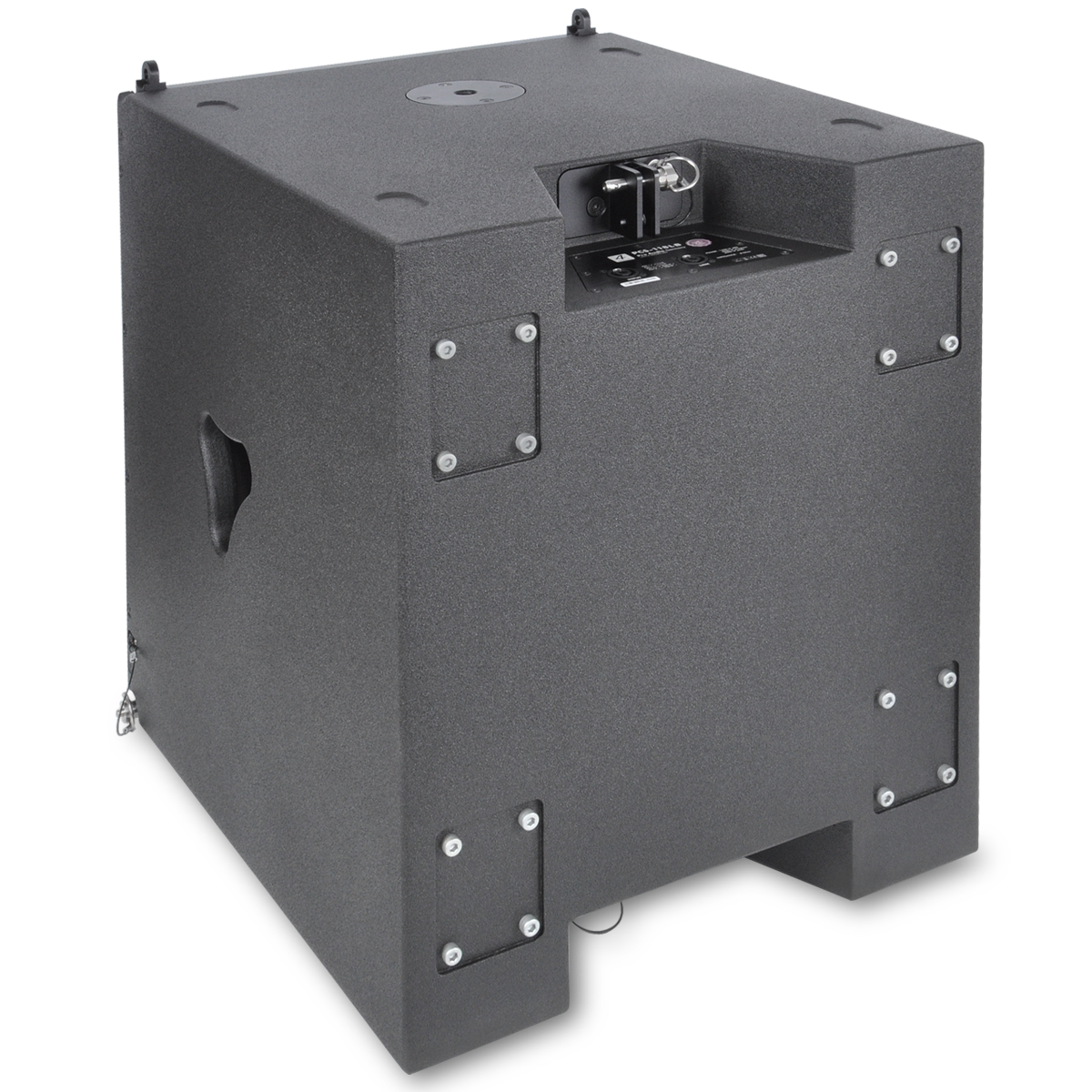

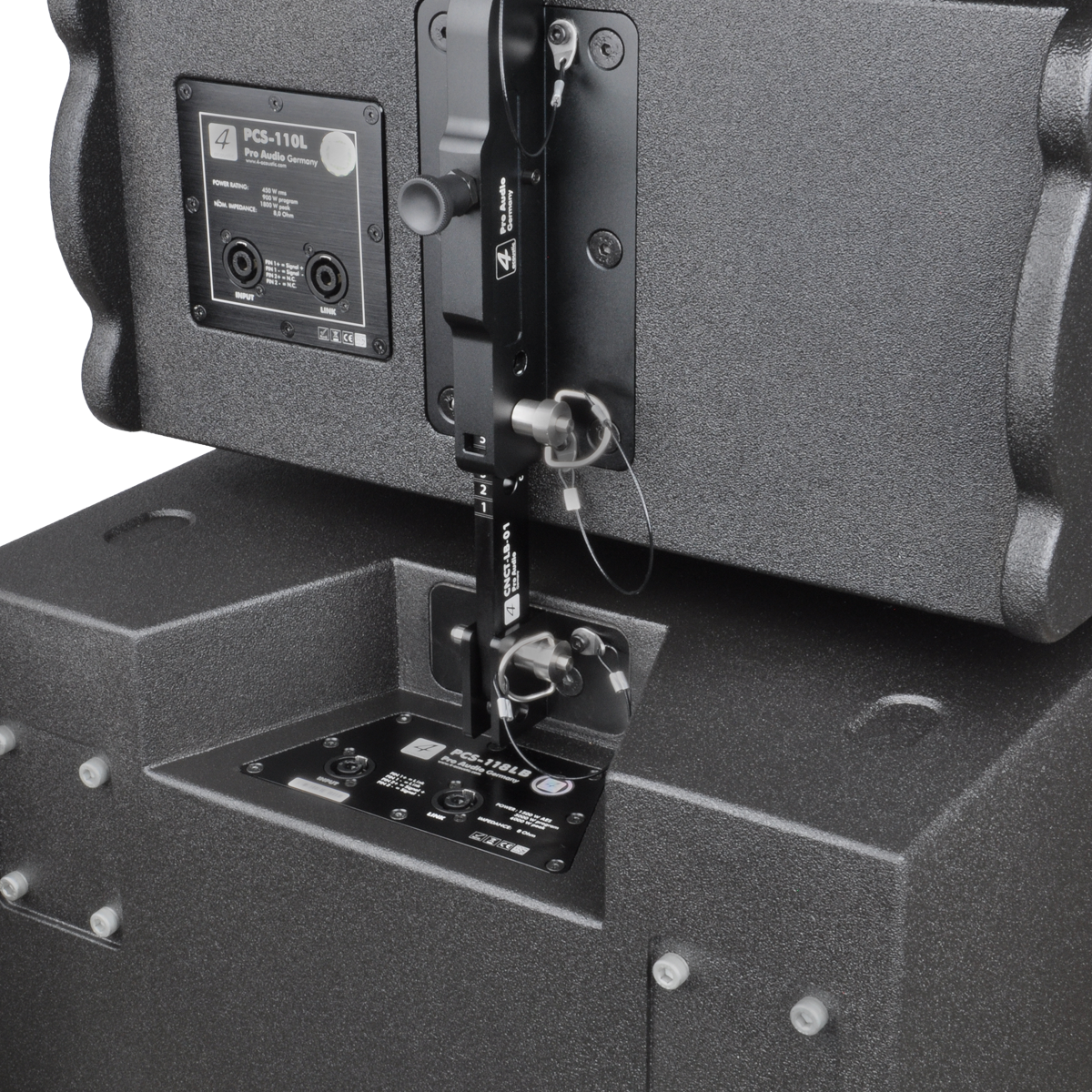

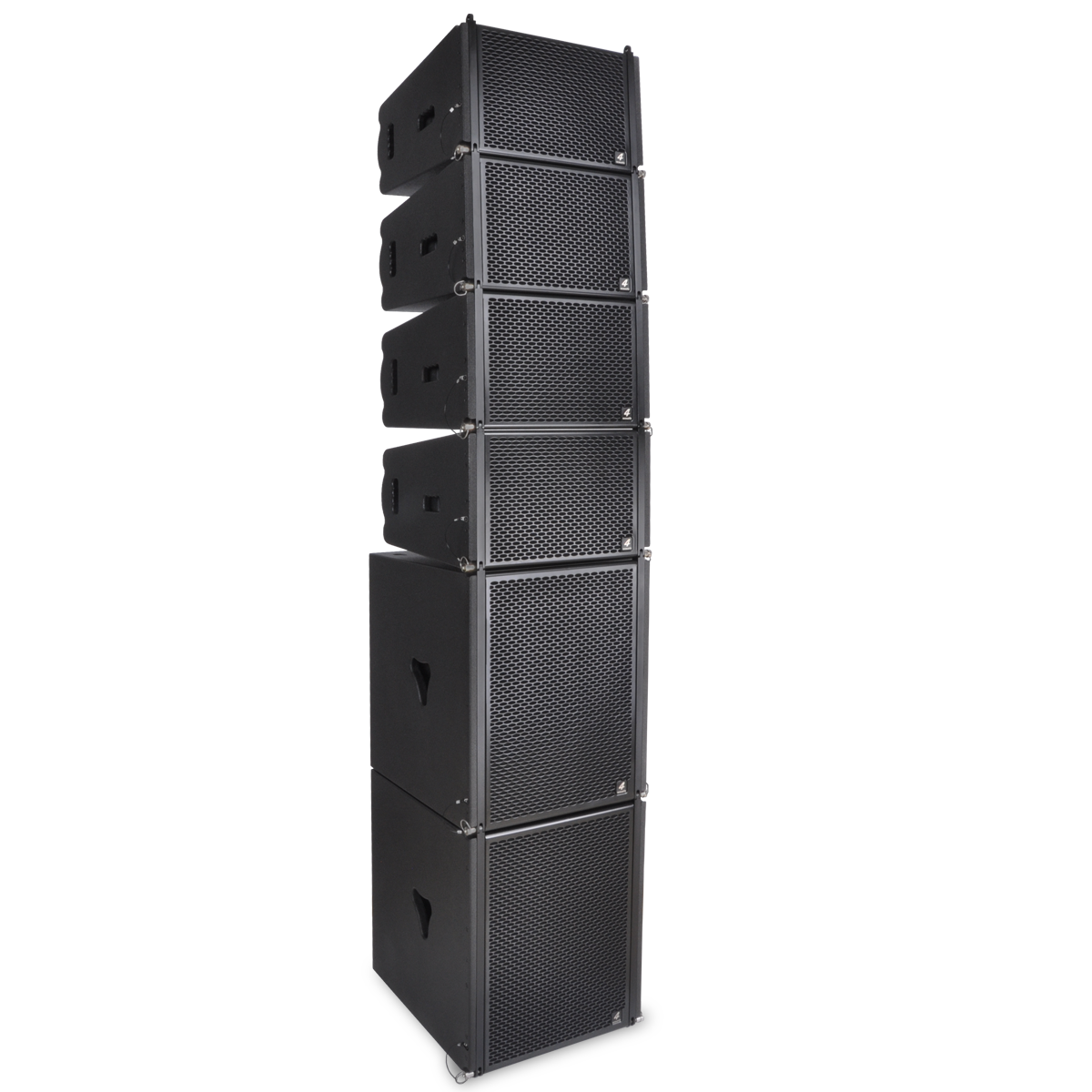

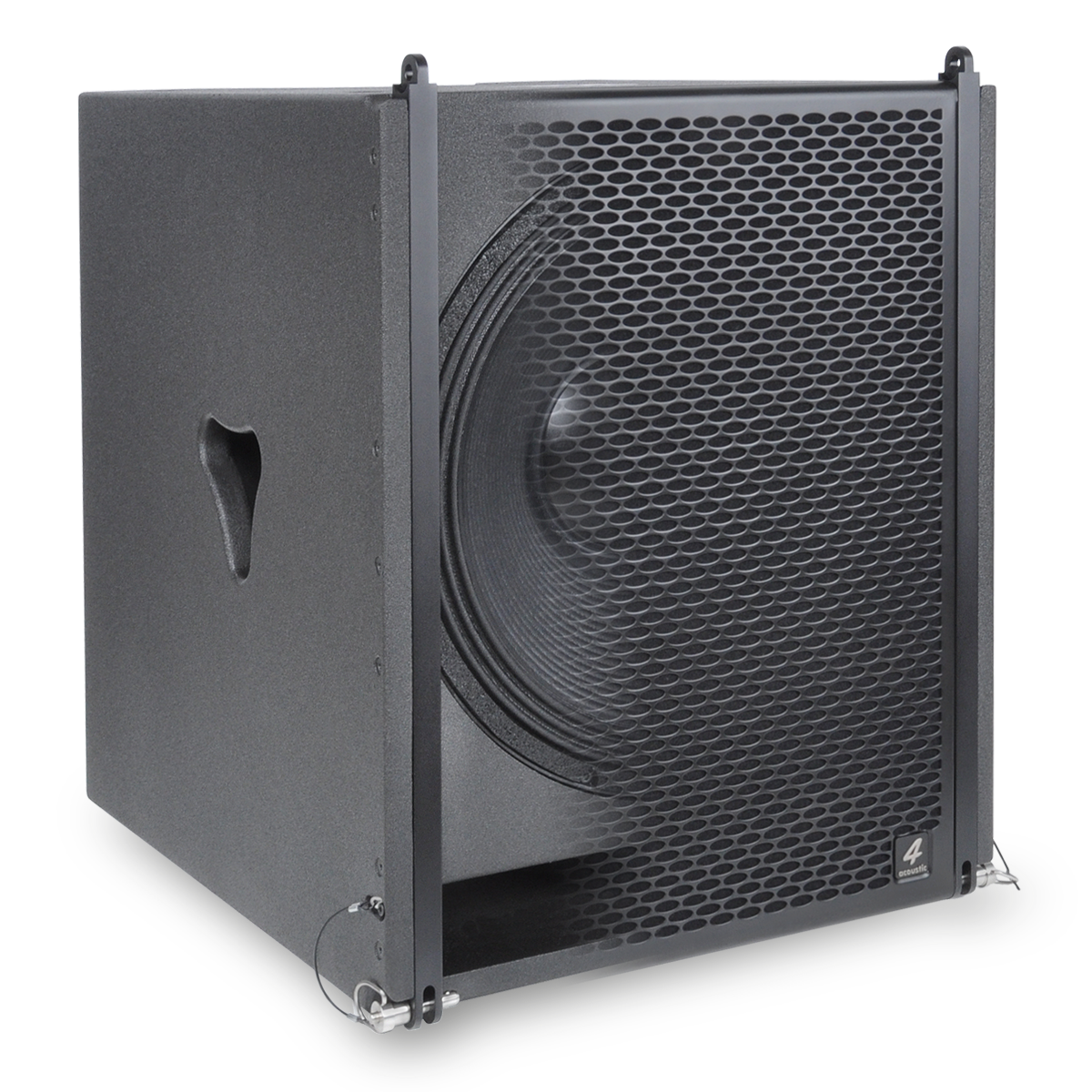

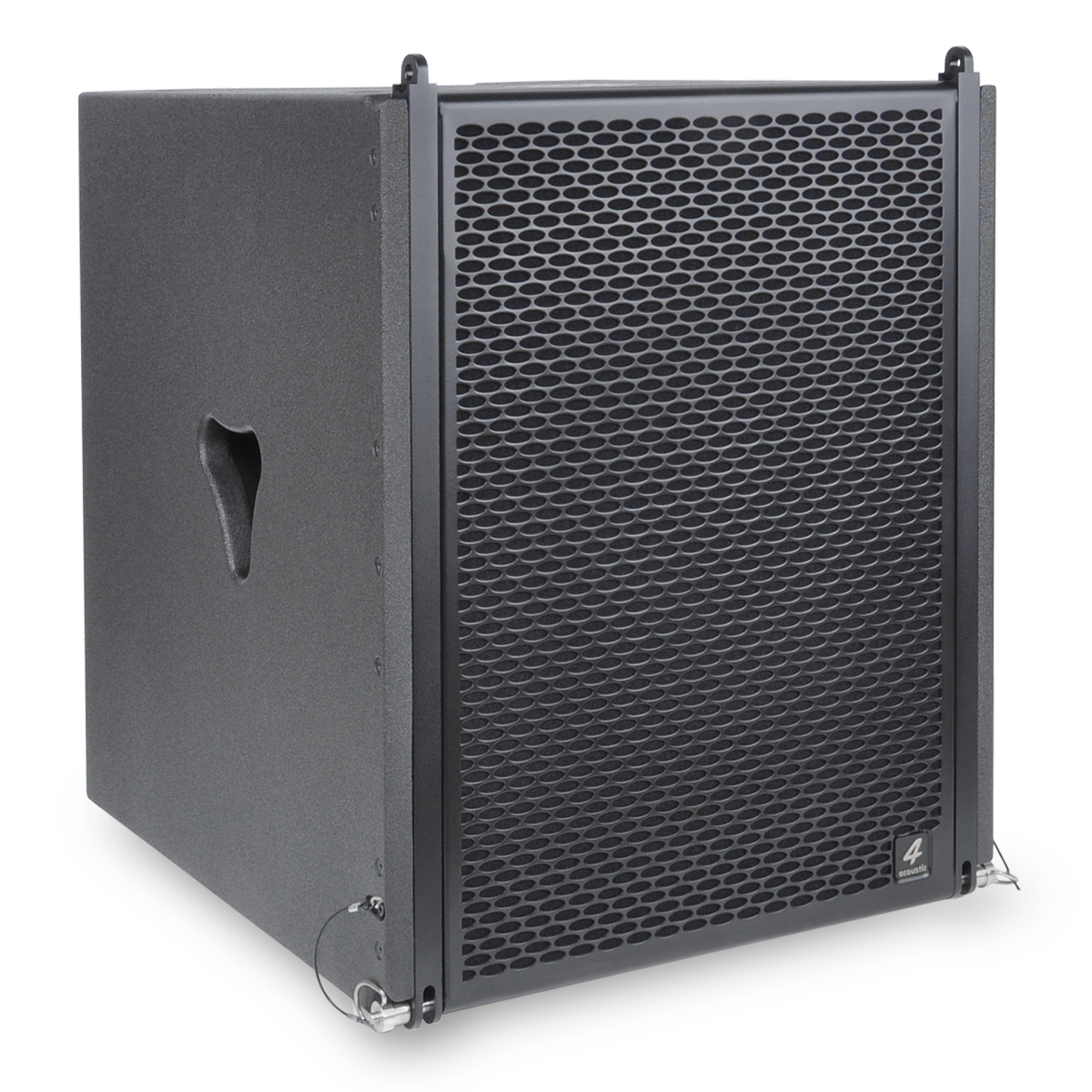

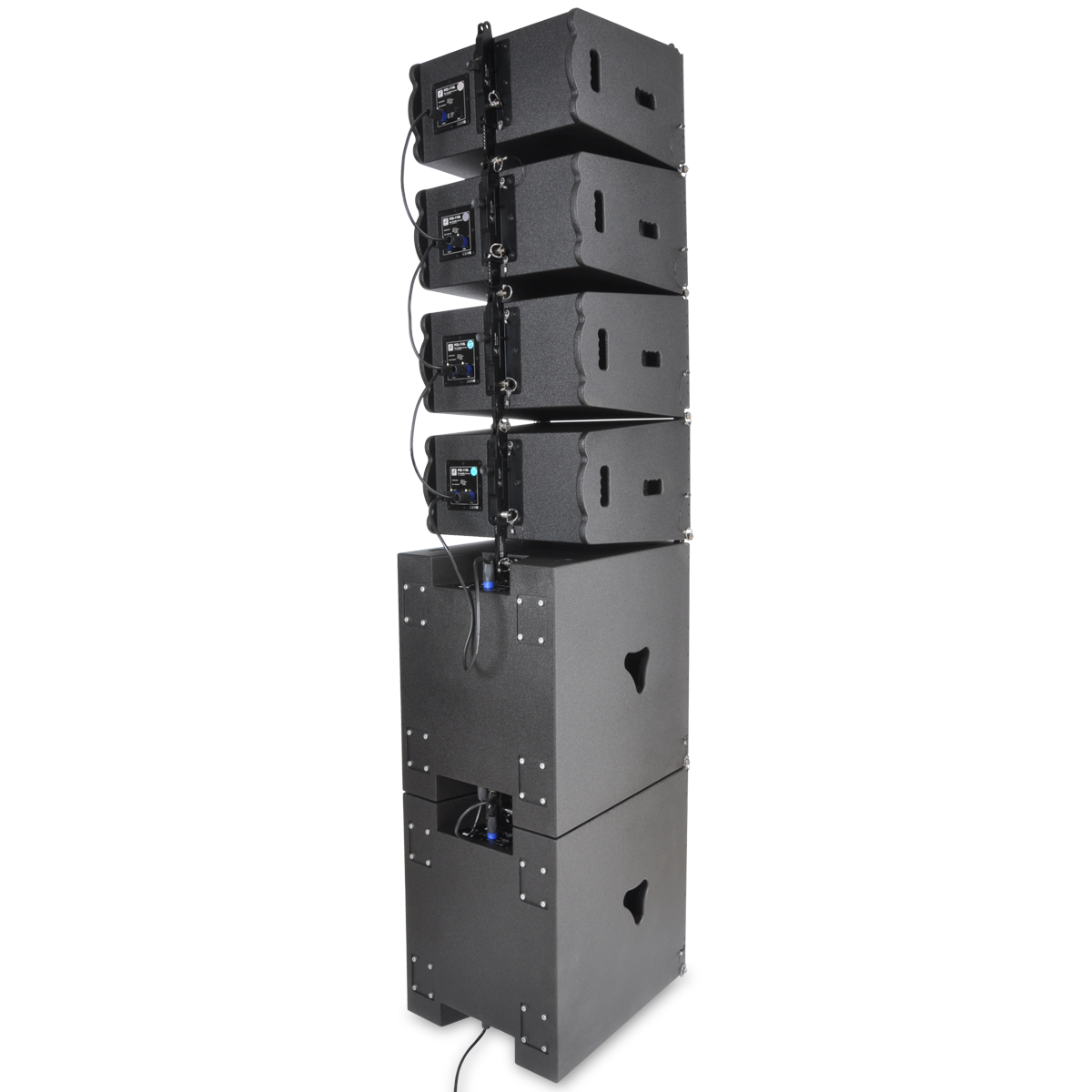

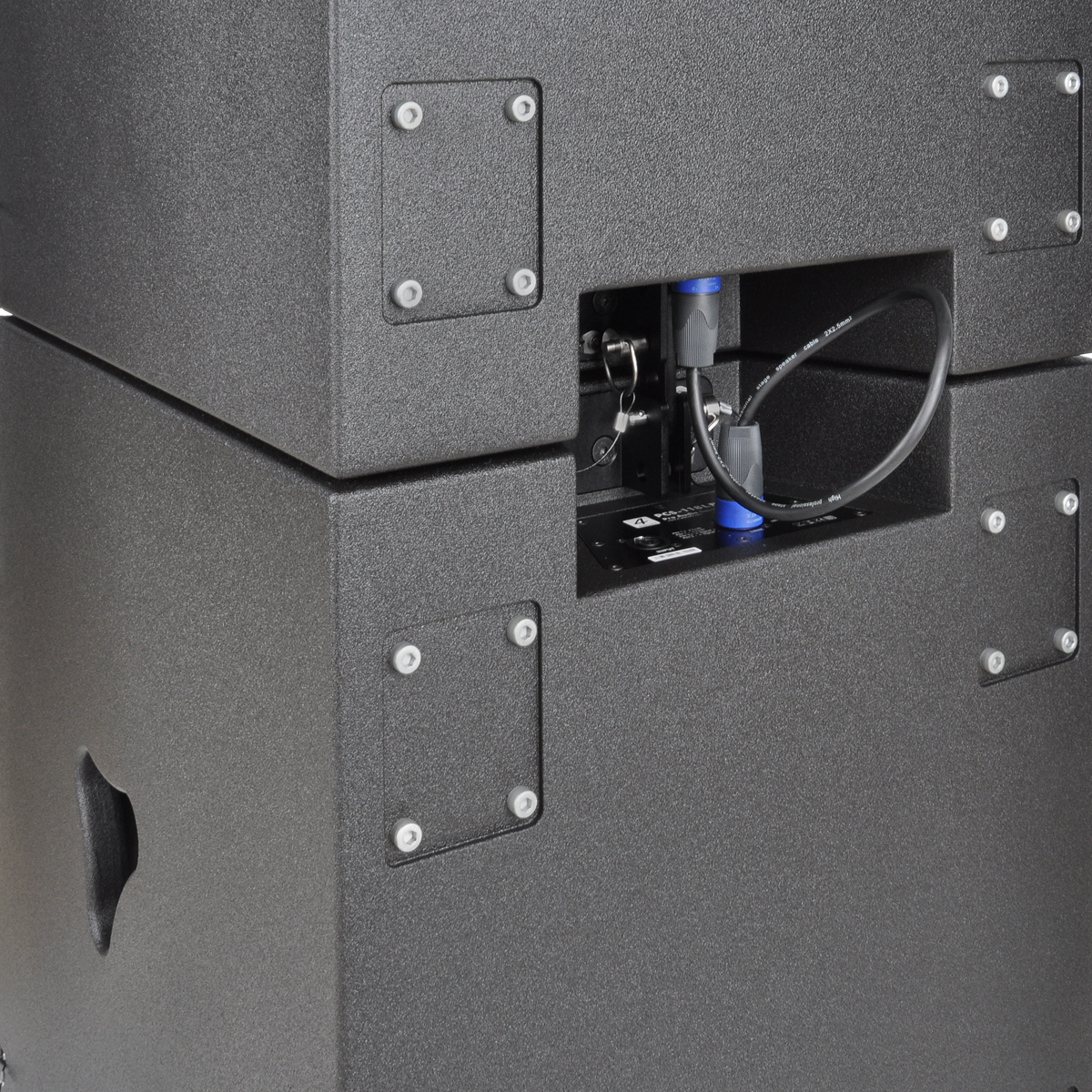

PCS-118LB is a very compact size, high power 18” subwoofer to use with our vertical line array speaker PCS-110L. With an upside and downside aluminum connecting panel the wiring can be done very easy. The connection of the four parallel NL4 sockets is 2+/2- for the sub and 1+/1- to link the line array. The mechanical design offers hanging and stacking installations with only one type of flight frame. Our flight frame PCS-110L-FFR can be used for PCS-110L and PCS-118LB. The entire flyware is made of high quality, extreme resilient aluminum components. PCS-118LB is equipped with one 18” premium neodymium woofer with 1500W AES power. The maximum SPL of a single unit is 132 dB. The shock-proof and water-resistant housing is made of best quality baltic multiplex wood and overed with a strong, black water-resistant Polyurea coating. Strong integrated handles will support an easy transport and installation. The backside is prepared to use with 100 mm blue wheels. The front side of the speaker is protected by a 1,5 mm strong, black metal grill covered with black color acoustic foam.

PCS-118LB GS1 (EAN) CODE: 4260318510622

Technical Details

Model Name PCS-118LB
GS1 (EAN) CODE 4260318510622
System Type 18“ line array subwoofer
Power Rating 1500 W AES
3000 W program
6000 W peak
Frequency Range (-10 dB) 30 Hz - 200 Hz
Sensitivity 98 dB 1w/1m
Maximum SPL 132 dB
Woofer 1 x STG-18NB 1500W AES, 4“ voice coil
Suspension/Mounting Line array fly ware for PCS-110L-FFR

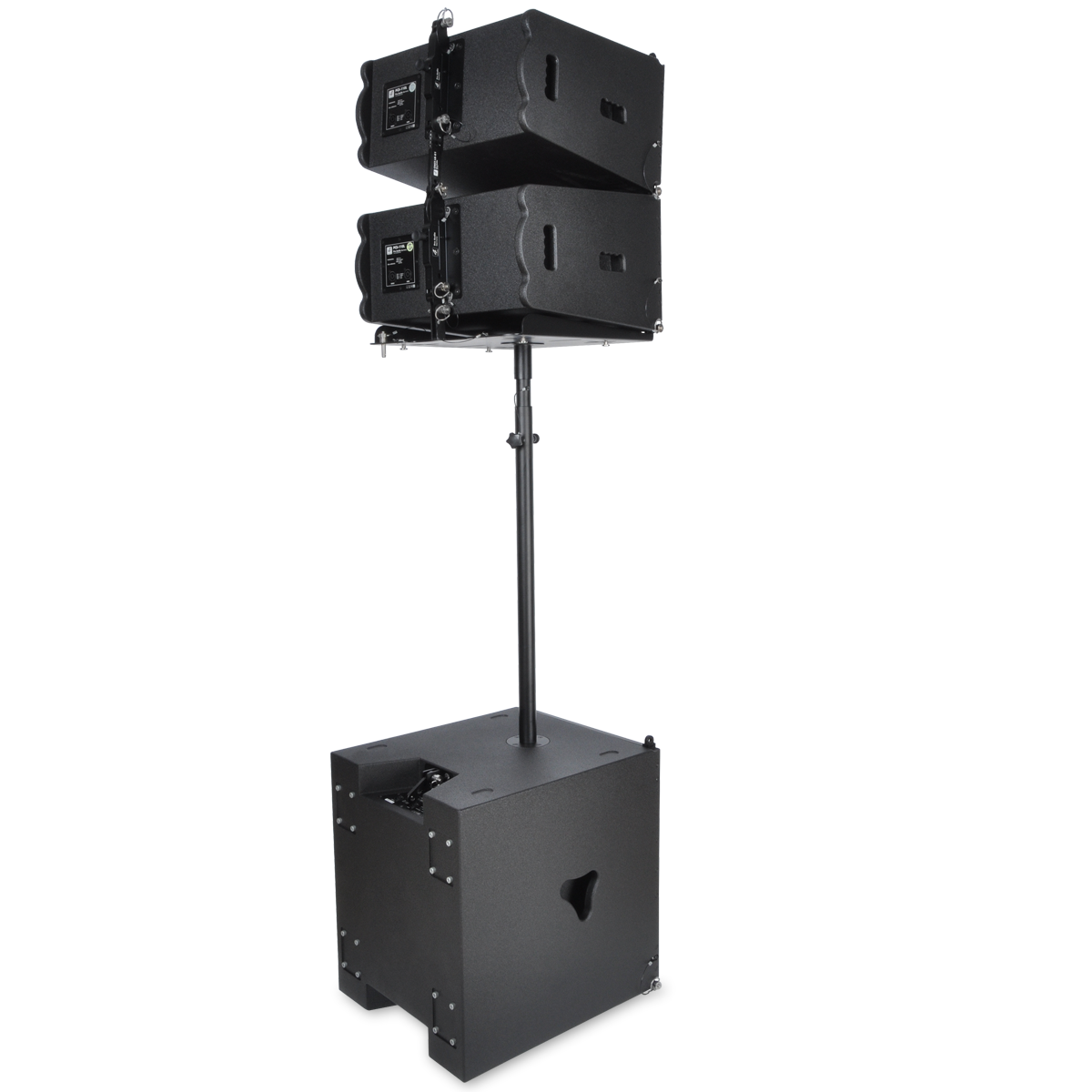

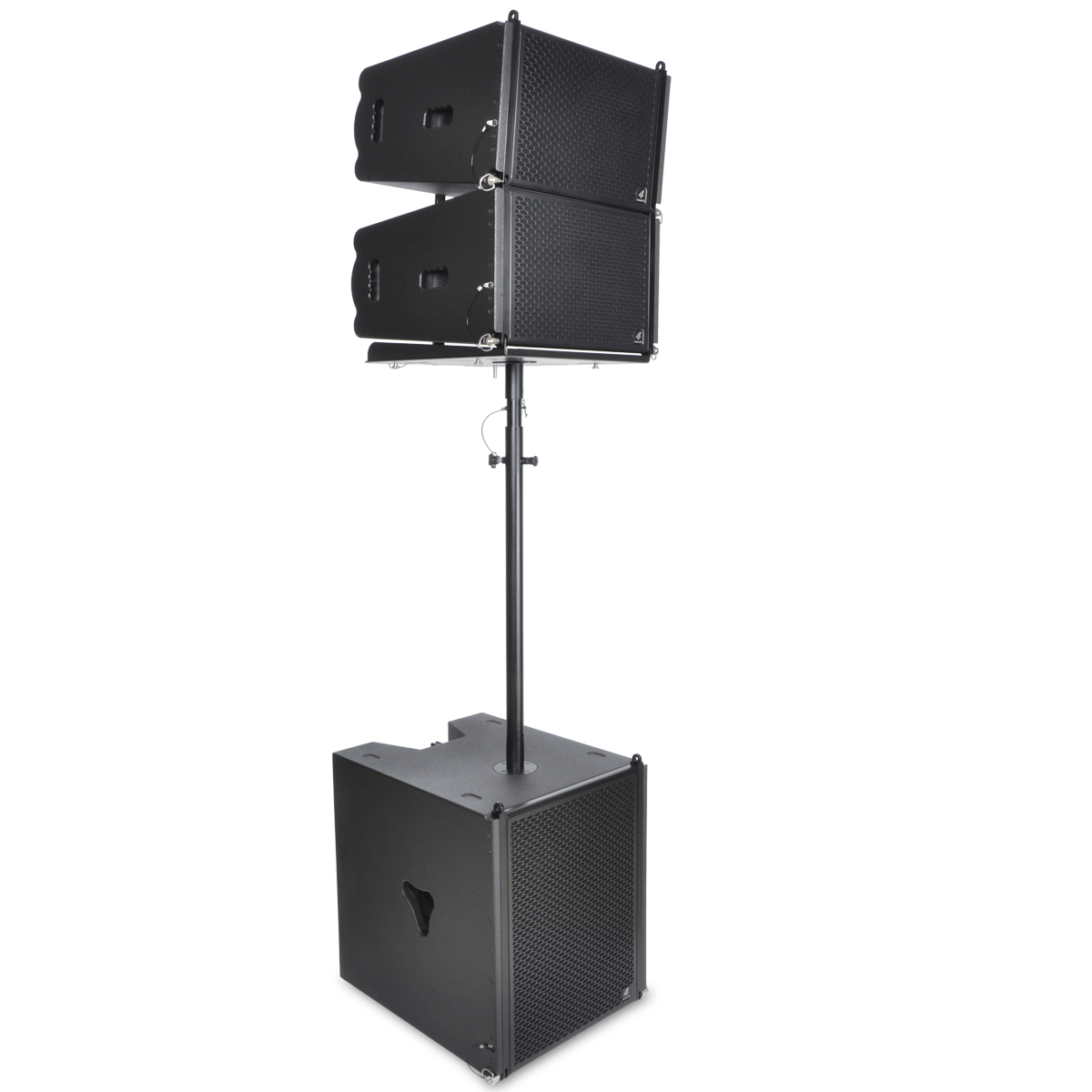

Top mounted M20 threaded top hat
to suit M20 tapped poles
Nominal Impedance 8 Ohm

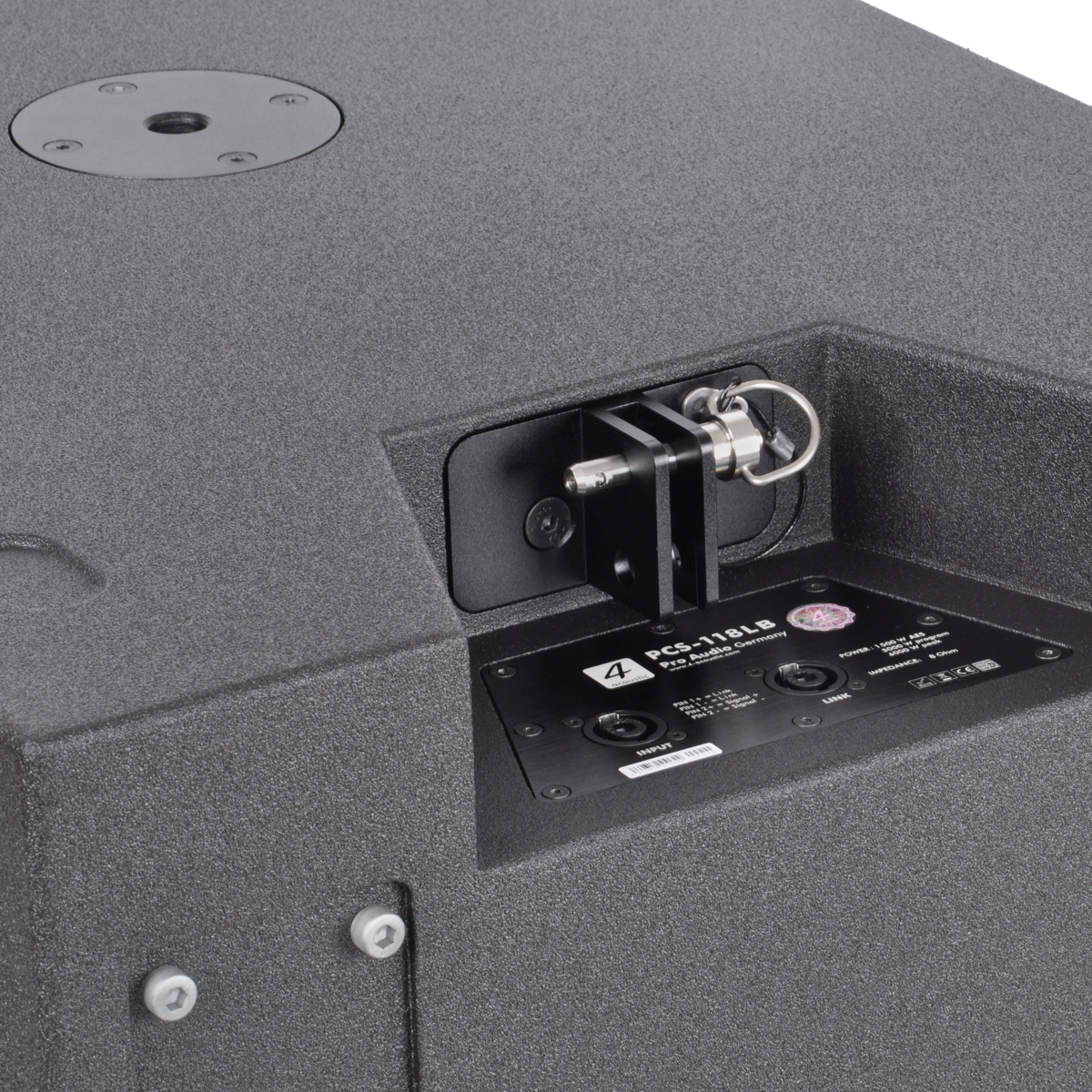

Input Connectors Upside and downside connection panel
4 x Neutrik NL4 Socket parallel 2+/2-
Housing Birch Multiplex
Coating Water-resistant Polyurea coating
Dimensions (h/w/d) 600x500x600 mm
Net weight 44,0 kg


Order Code GS1 (EAN) Code Description
STG-WH100 4260318511131 100mm blue wheel Set (two pcs. with brake)
PCS-118LB-TR 4260318510639 Trolly for PCS-118LB Subwoofer

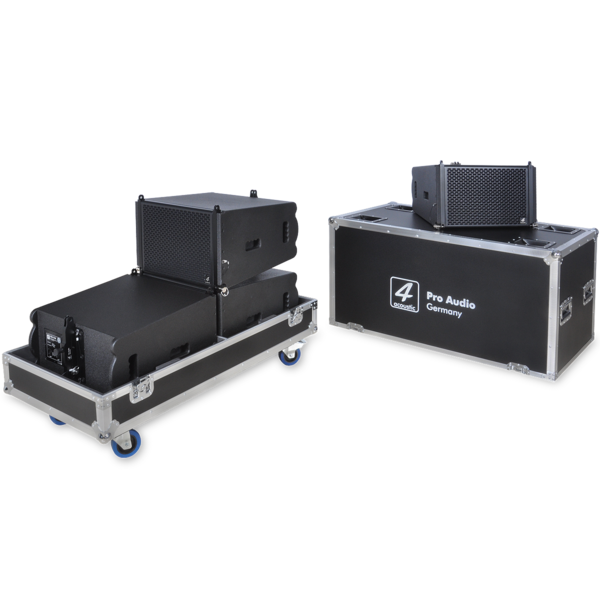

PCS-118LB-FC 4260318511247 Flight Case with wheels for PCS-118LB
STG-M20T 4260318511049 Adjustable M20 threaded distance Tube 1,0 Meter to 1,5 Meter
KA-SP4-0.5 4260318511155 0,5 Meter speaker cable 4x2,5qmm
KA-SP4-05 4260318511193 5 Meter Speaker cable 4x2,5qmm
KA-SP4-10 4260318511209 10 Meter Speaker cable 4x2,5qmm
KA-SP4-15 4260318511216 15 Meter Speaker cable 4x2,5qmm
KA-SP4-20 4260318511223 20 Meter Speaker cable 4x2,5qmm
