SQ-Series Powerful | Reliable | Affordable
Power Amplification in state of art Class H design!

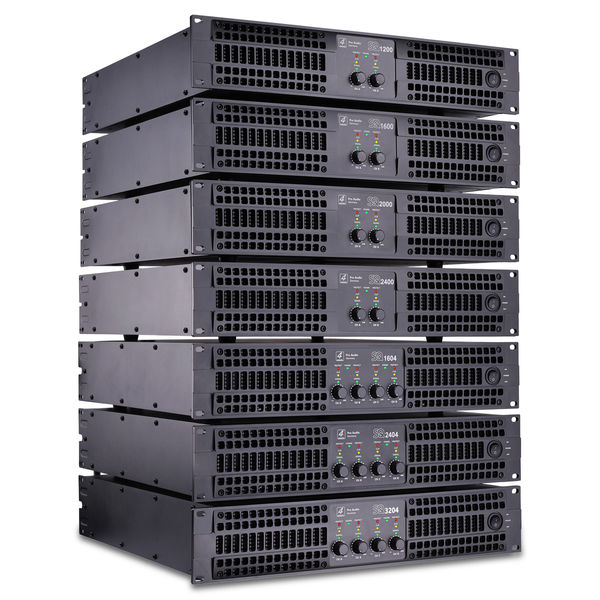

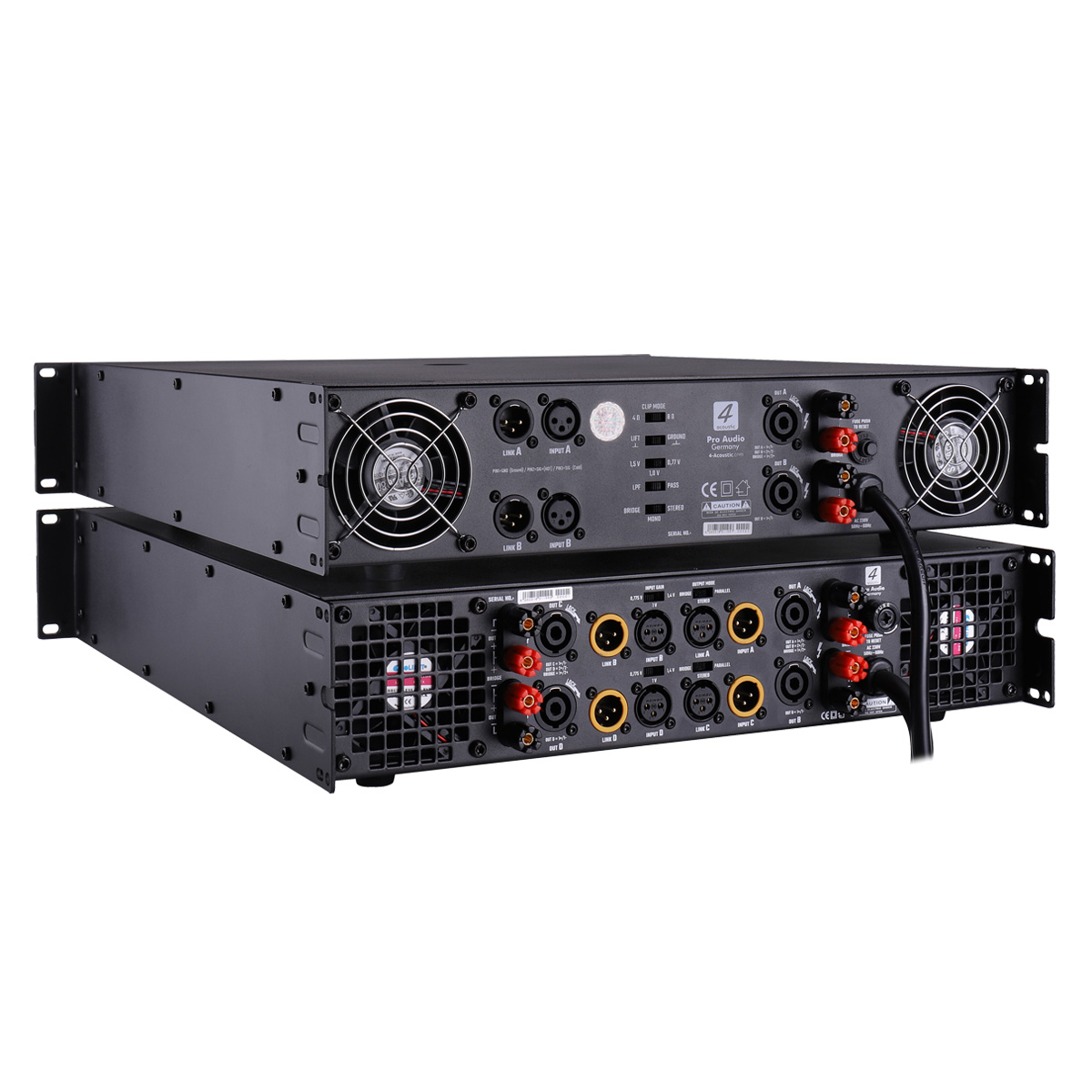

The new SQ-series offers a wide range of very cost efficient, flexible amplifier performance. From 2x900@4Ohm up to 4x1200@4Ohm 7 different models are available for your choice. The Class H output stage is powered by an oversized analog power supply with a strong toroidal transformer. The performance is stable even under weak or unstable mains supplies. The front panel is equipped with a power switch and several LED´s to display the working status.
SQ-1200 GS1 (EAN) CODE: 4260318511940
SQ-1600 GS1 (EAN) CODE: 4260318511957
SQ-2000 GS1 (EAN) CODE: 4260318511964
SQ-2400 GS1 (EAN) CODE: 4260318511971
SQ-1604 GS1 (EAN) CODE: 4260318511988
SQ-2404 GS1 (EAN) CODE: 4260318511995
SQ-3204 GS1 (EAN) CODE: 4260318512015

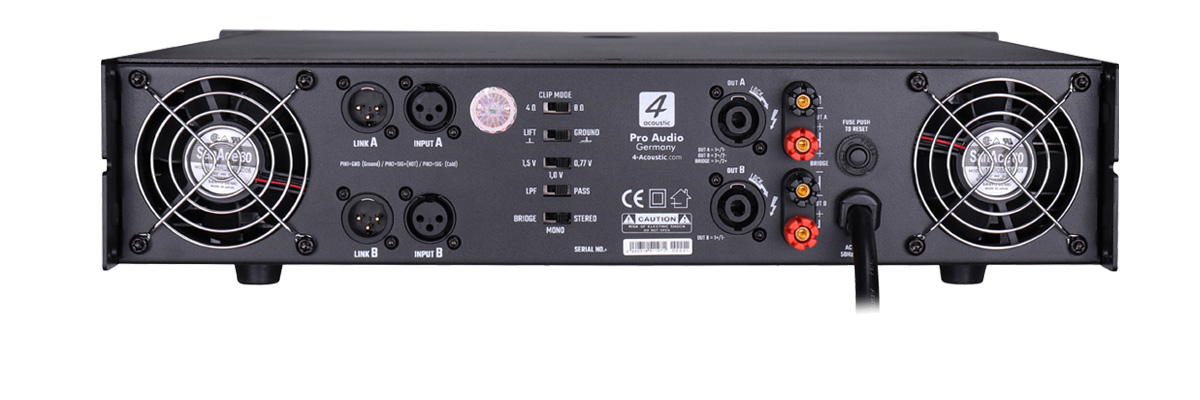

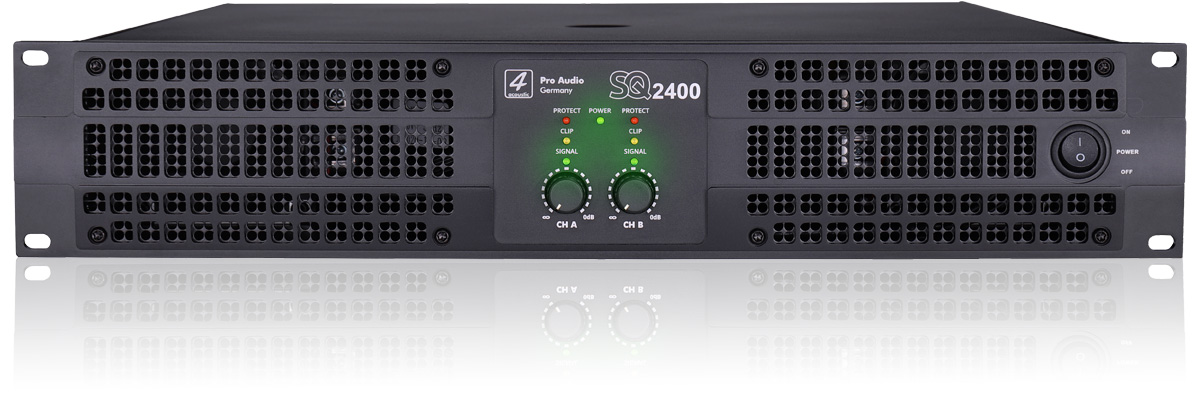

SQ | 1200 | 1600 | 2000 | 2400
Technical Details
| Model Name | SQ-1200 | SQ-1600 | SQ-2000 | SQ-2400 |
|---|---|---|---|---|
| GS1 (EAN) CODE | 4260318511940 | 4260318511957 | 4260318511964 | 4260318511971 |
| System Type | 2-Channel Class H | 2-Channel Class H | 2-Channel Class H | 2-Channel Class H |
| Output Power all channels driven 20Hz - 20 kHz, 0.1 % THD |
2 x 1200W @ 2Ohm 2 x 900W @ 4Ohm 2 x 600W @ 8Ohm |
2 x 1600W @ 2Ohm 2 x 1200W @ 4Ohm 2 x 800W @ 8Ohm |
2 x 2000W @ 2Ohm 2 x 1500W @ 4Ohm 2 x 1000W @ 8Ohm |
2 x 2400W @ 2Ohm 2 x 1800W @ 4Ohm 2 x 1200W @ 8Ohm |
| Output Power Bridge mode |
1 x 2400W @ 4Ohm 1 x 1800W @ 8Ohm 1 x 1200W @16Ohm |
1 x 3200W @ 4Ohm 1 x 2400W @ 8Ohm 1 x 1600W @16Ohm |
1 x 4000W @ 4Ohm 1 x 3000W @ 8Ohm 1 x 2000W @16Ohm |
1 x 4800W @ 4Ohm 1 x 3600W @ 8Ohm 1 x 2400W @16Ohm |
| THD+N | ≤0.5% @ 8Ω 1kHz | ≤0.5% @ 8Ω 1kHz | ≤0.5% @ 8Ω 1kHz | ≤0.5% @ 8Ω 1kHz |
| Slew Rate | >26V/μs | >26V/μs | >26V/μs | >26V/μs |
| Frequency Response @1Watt, 8Ohm |
10Hz - 20KHz / ±0.3dB | 10Hz - 20KHz / ±0.3dB | 10Hz - 20KHz / ±0.3dB | 10Hz - 20KHz / ±0.3dB |
| Damping Factor (1kHz and below) |
>3000 @100Hz | >3000 @100Hz | >3000 @100Hz | >3000 @100Hz |
| Signal to Noise Ratio 20Hz -20 kHz |
>100dB | >100dBA | >100dBA | >100dBA |
| Channel Separation Crosstalk@1kHz |
>70dB | >70dB | >70dB | >70dB |
| Voltage Gain | 39dB (0,775V:69.5V) | 40.3dB (0,775V:80.5V) | 41.3dB (0,775V:89.5V) | 42dB (0,775V:98V) |
| Input Sensitivity | selectable 0.775V/1V/1.4V | selectable 0.775V/1V/1.4V | selectable 0.775V/1V/1.4V | selectable 0.775V/1V/1.4V |
| Input Impedance | 20k Ohm Balanced, 10k Ohm Unbalanced |
20k Ohm Balanced, 10k Ohm Unbalanced |
20k Ohm Balanced, 10k Ohm Unbalanced |
20k Ohm Balanced, 10k Ohm Unbalanced |
| Front Control | Power switch, Gain control | Power switch, Gain control | Power switch, Gain control | Power switch, Gain control |
| Rear Control | Sensitivity Switch, Mode Switch |
Sensitivity Switch, Mode Switch |
Sensitivity Switch, Mode Switch |
Sensitivity Switch, Mode Switch |
| LED Indicators | Signal, Clip, Protect, Power, Bridge |
Signal, Clip, Protect, Power, Bridge |
Signal, Clip, Protect, Power, Bridge |
Signal, Clip, Protect, Power, Bridge |
| Input Connectors | XLR Active balanced pin1 gnd / pin 2+ / pin3- |
XLR Active balanced pin1 gnd / pin 2+ / pin3- |
XLR Active balanced pin1 gnd / pin 2+ / pin3- |
XLR Active balanced pin1 gnd / pin 2+ / pin3- |
| Output Connectors | 2 NL4 Sockets, 2xBinding Posts | 2 NL4 Sockets, 2xBinding Posts | 2 NL4 Sockets, 2xBinding Posts | 2 NL4 Sockets, 2xBinding Posts |
| Cooling | Low Noise Continuously Variable speed fan |
Low Noise Continuously Variable speed fan |
Low Noise Continuously Variable speed fan |
Low Noise Continuously Variable speed fan |
| Protection | Full short circuit, Open circuit, thermal, Ultrasonic, RF Protection. Stable Into reactive or Mismatched loads |
Full short circuit, Open circuit, thermal, Ultrasonic, RF Protection. Stable Into reactive or Mismatched loads |
Full short circuit, Open circuit, thermal, Ultrasonic, RF Protection. Stable Into reactive or Mismatched loads |
Full short circuit, Open circuit, thermal, Ultrasonic, RF Protection. Stable Into reactive or Mismatched loads |
| Load Protection | On/Off muting, DC fault power Supply shutdown |
On/Off muting, DC fault power Supply shutdown |
On/Off muting, DC fault power Supply shutdown |
On/Off muting, DC fault power Supply shutdown |
| Operating Voltage | 230V (+/- 10%), 50-60Hz USA Version 110V (+/- 10%), 50-60Hz |
230V (+/- 10%), 50-60Hz USA Version 110V (+/- 10%), 50-60Hz |
230V (+/- 10%), 50-60Hz USA Version 110V (+/- 10%), 50-60Hz |
230V (+/- 10%), 50-60Hz USA Version 110V (+/- 10%), 50-60Hz |

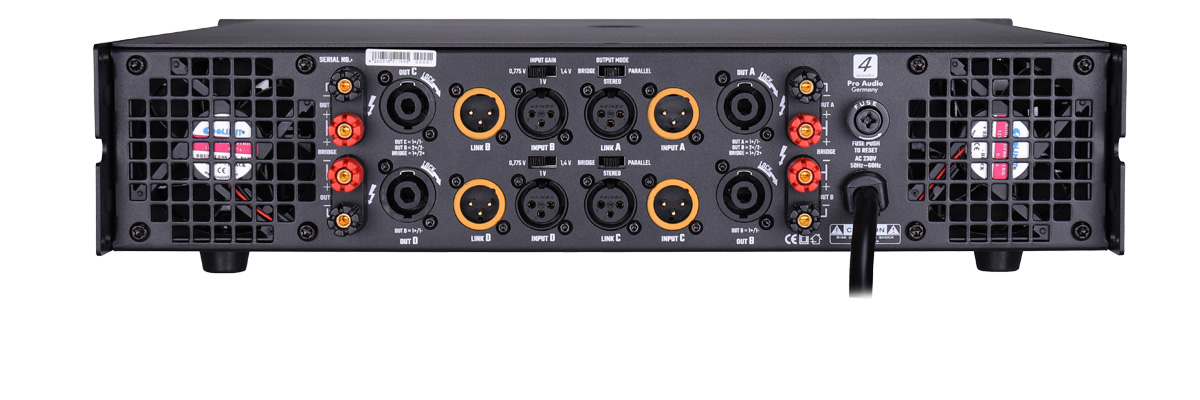

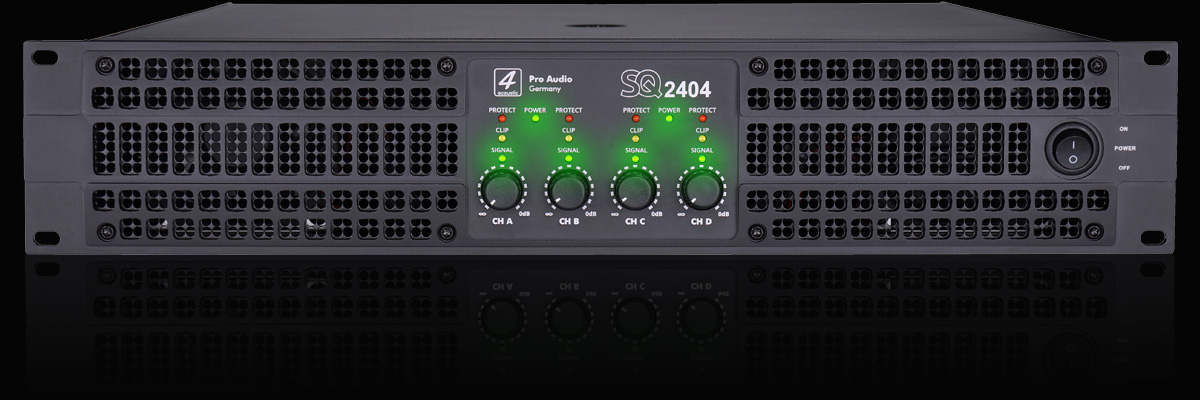

| Fuse | T-15A | T-20A | T-20A | T-25A |
| Idle Power Consumption |
< 38W | < 38W | < 40W | < 42W |
| Max. Power Consumption |
< 980W | < 1400W | < 2100W | <3000W |
| Dimensions (h/w/d) | 19“/2U 483mm×486mm×90mm | 19“/2U 483mm×486mm×90mm | 19“/2U 483mm×486mm×90mm | 19“/2U 483mm×486mm×90mm |
| Net weight | 24,5 kg | 25,5 kg | 26,5 kg | 27,5 kg |
SQ | 1604 | 2404 | 3204
Technical Details
| Model Name | SQ-1604 | SQ-2404 | SQ-3204 |
|---|---|---|---|
| GS1 (EAN) CODE | 4260318511988 | 4260318511995 | 4260318512015 |
| System Type | 4-Channel Class H | 4-Channel Class H | 4-Channel Class H |
| Output Power all channels driven 20Hz - 20 kHz, 0.1 % THD |
4 x 600W @ 4Ohm 4 x 400W @ 8Ohm |
4 x 900W @ 4Ohm 4 x 600W @ 8Ohm |
4 x 1200W @ 4Ohm 4 x 800W @ 8Ohm |
| Output Power Bridge mode |
2 x 1600W @ 4Ohm 2 x 1200W @ 8Ohm 2 x 800W @16Ohm |
2 x 2400W @ 4Ohm 2 x 1800W @ 8Ohm 2 x 1200W @16Ohm |
2 x 3200W @ 4Ohm 2 x 2400W @ 8Ohm 2 x 1600W @16Ohm |
| THD+N | ≤0.5% @ 8Ω 1kHz | ≤0.5% @ 8Ω 1kHz | ≤0.5% @ 8Ω 1kHz |
| Slew Rate | >28V/μs | >28V/μs | >28V/μs |
| Frequency Response @1Watt, 8Ohm |
10Hz - 20KHz / ±0.4dB | 10Hz - 20KHz / ±0.4dB | 10Hz - 20KHz / ±0.4dB |
| Damping Factor (1kHz and below) |
>3000 @100Hz | >3000 @100Hz | >3000 @100Hz |
| Signal to Noise Ratio 20Hz -20 kHz |
>100dB | >100dB | >100dB |
| Channel Separation Crosstalk@1kHz |
>70dB | >70dB | >70dB |
| Voltage Gain | 36dB (0,775V:49V) | 39dB (0,775V:69.5V) | 40.3dB (0,775V:80.5V)) |
| Input Sensitivity | selectable 0.775V/1V/1.4V | selectable 0.775V/1V/1.4V | selectable 0.775V/1V/1.4V |
| Input Impedance | 20k Ohm Balanced, 10k Ohm Unbalanced |
20k Ohm Balanced, 10k Ohm Unbalanced |
20k Ohm Balanced, 10k Ohm Unbalanced |
| Front Control | Power switch, Gain control | Power switch, Gain control | Power switch, Gain control |
| Rear Control | Sensitivity Switch, Mode Switch |
Sensitivity Switch, Mode Switch |
Sensitivity Switch, Mode Switch |
| LED Indicators | Signal, Clip, Protect, Power, Bridge |
Signal, Clip, Protect, Power, Bridge |
Signal, Clip, Protect, Power, Bridge |
| Input Connectors | XLR Active balanced pin1 gnd / pin 2+ / pin3- |
XLR Active balanced pin1 gnd / pin 2+ / pin3- |
XLR Active balanced pin1 gnd / pin 2+ / pin3- |
| Output Connectors | 4 NL4 Sockets, 4xBinding Posts | 4 NL4 Sockets, 4xBinding Posts | 4 NL4 Sockets, 4xBinding Posts |
| Cooling | Low Noise Continuously Variable speed fan |
Low Noise Continuously Variable speed fan |
Low Noise Continuously Variable speed fan |
| Protection | Full short circuit, Open circuit, thermal, Ultrasonic, RF Protection. Stable Into reactive or Mismatched loads |
Full short circuit, Open circuit, thermal, Ultrasonic, RF Protection. Stable Into reactive or Mismatched loads |
Full short circuit, Open circuit, thermal, Ultrasonic, RF Protection. Stable Into reactive or Mismatched loads |
| Load Protection | On/Off muting, DC fault power Supply shutdown |
On/Off muting, DC fault power Supply shutdown |
On/Off muting, DC fault power Supply shutdown |
| Operating Voltage | 230V (+/- 10%), 50-60Hz USA Version 110V (+/- 10%), 50-60Hz |
230V (+/- 10%), 50-60Hz USA Version 110V (+/- 10%), 50-60Hz |
230V (+/- 10%), 50-60Hz USA Version 110V (+/- 10%), 50-60Hz |
| Fuse | T-15A | T-20A | T-25A |
| Idle Power Consumption |
< 30W | < 30W | < 40W |
| Max. Power Consumption |
< 1200W | < 2000W | < 3000W |
| Dimensions (h/w/d) | 19“/2U 483mm×492mm×90mm | 19“/2U 483mm×492mm×90mm | 19“/2U 483mm×492mm×90mm |
| Net weight | 22 kg | 25 kg | 27 kg |
Accessories
| Order Code | GS1 (EAN) Code | Description |
|---|---|---|
| KA-SP4-0.5 | 4260318511155 | 0,5 Meter speaker cable 4x2,5qmm |
| KA-SP4-05 | 4260318511193 | 5 Meter Speaker cable 4x2,5qmm |
| KA-SP4-10 | 4260318511209 | 10 Meter Speaker cable 4x2,5qmm |
| KA-SP4-15 | 4260318511216 | 15 Meter Speaker cable 4x2,5qmm |
| KA-SP4-20 | 4260318511223 | 20 Meter Speaker cable 4x2,5qmm |
Downloads
Documents
SQ-Series Amplifier Catalogue
