PCS-115LB

PCS-115LB Multi function 15“ line array subwoofer

PCS-115LB Multi function 15“ line array subwoofer

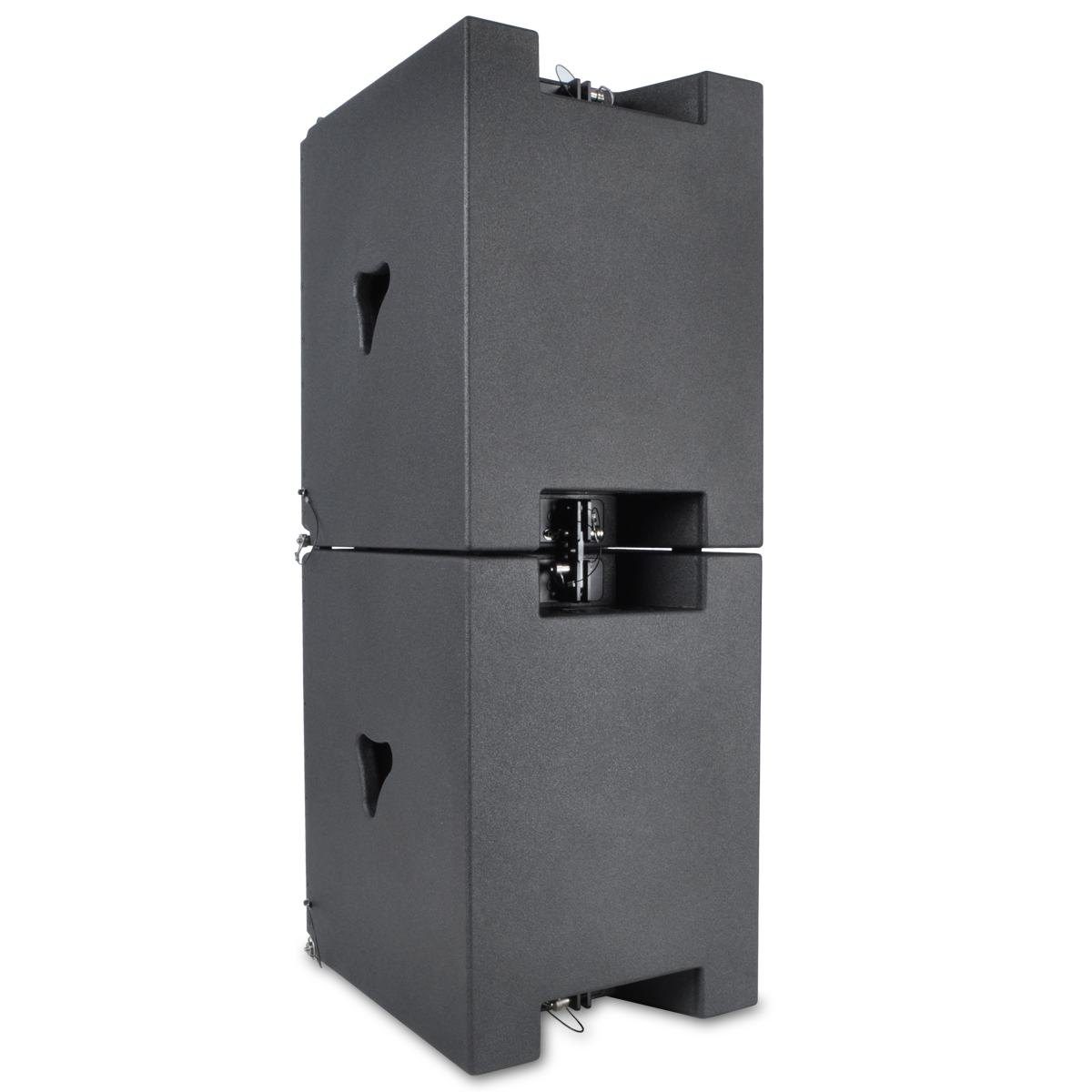

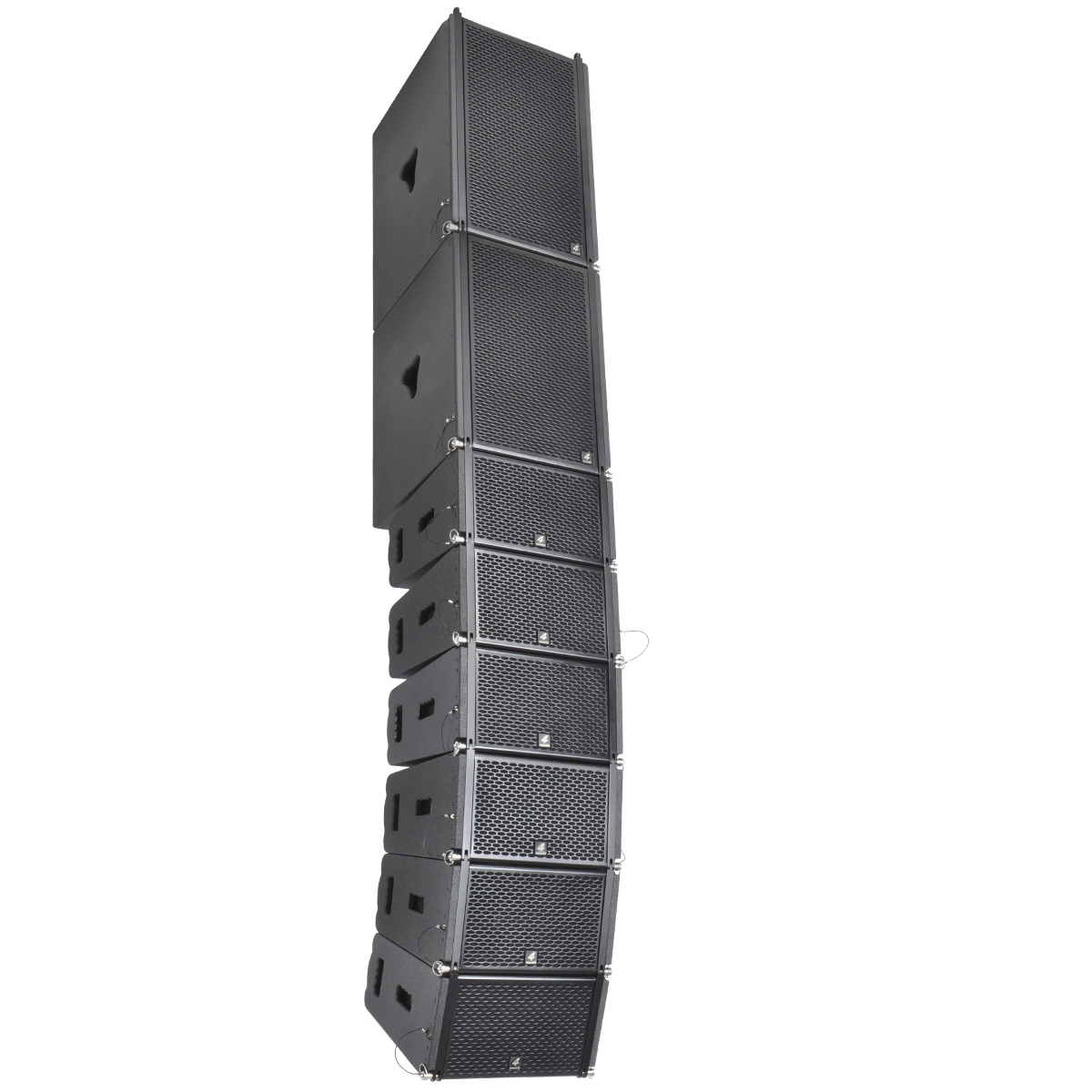

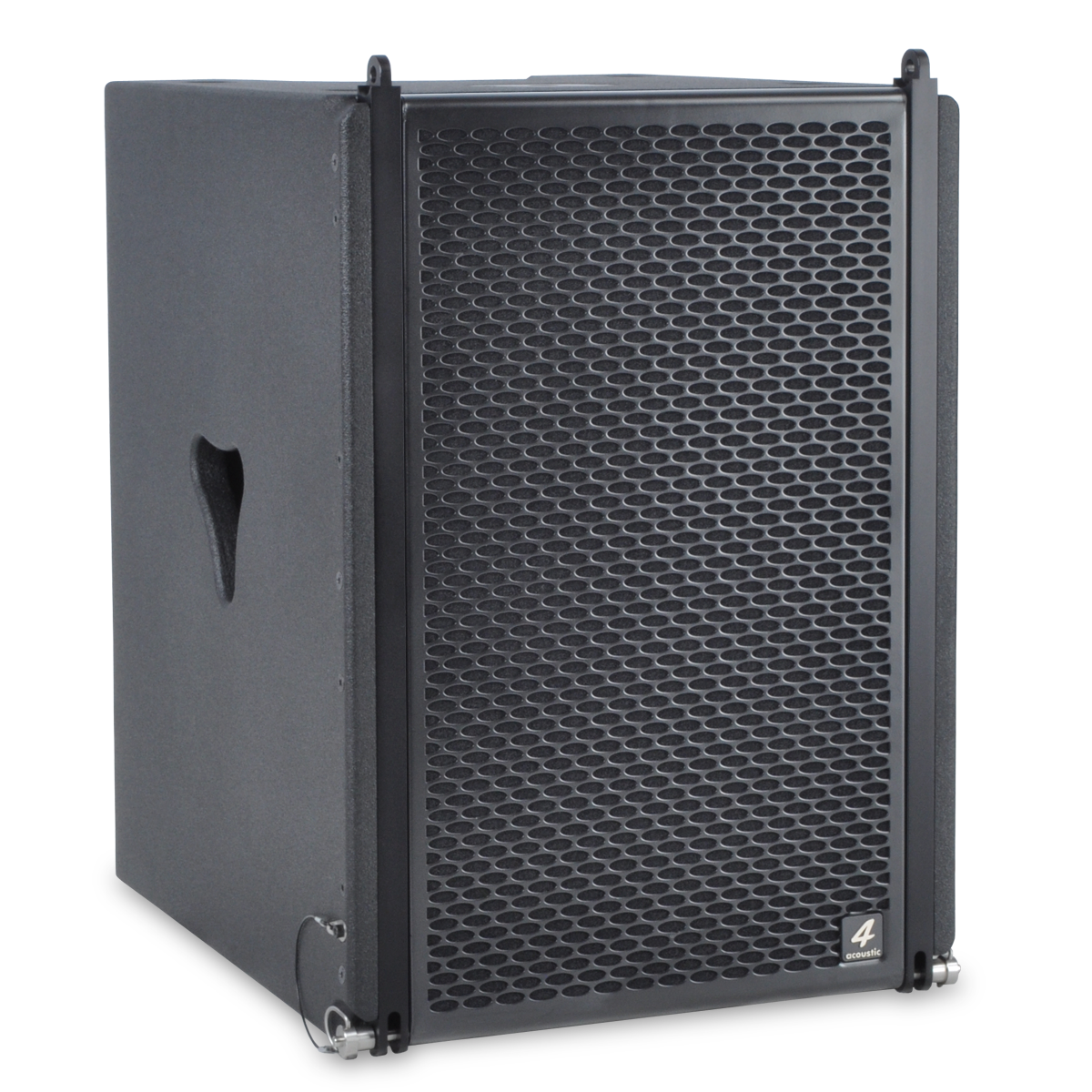

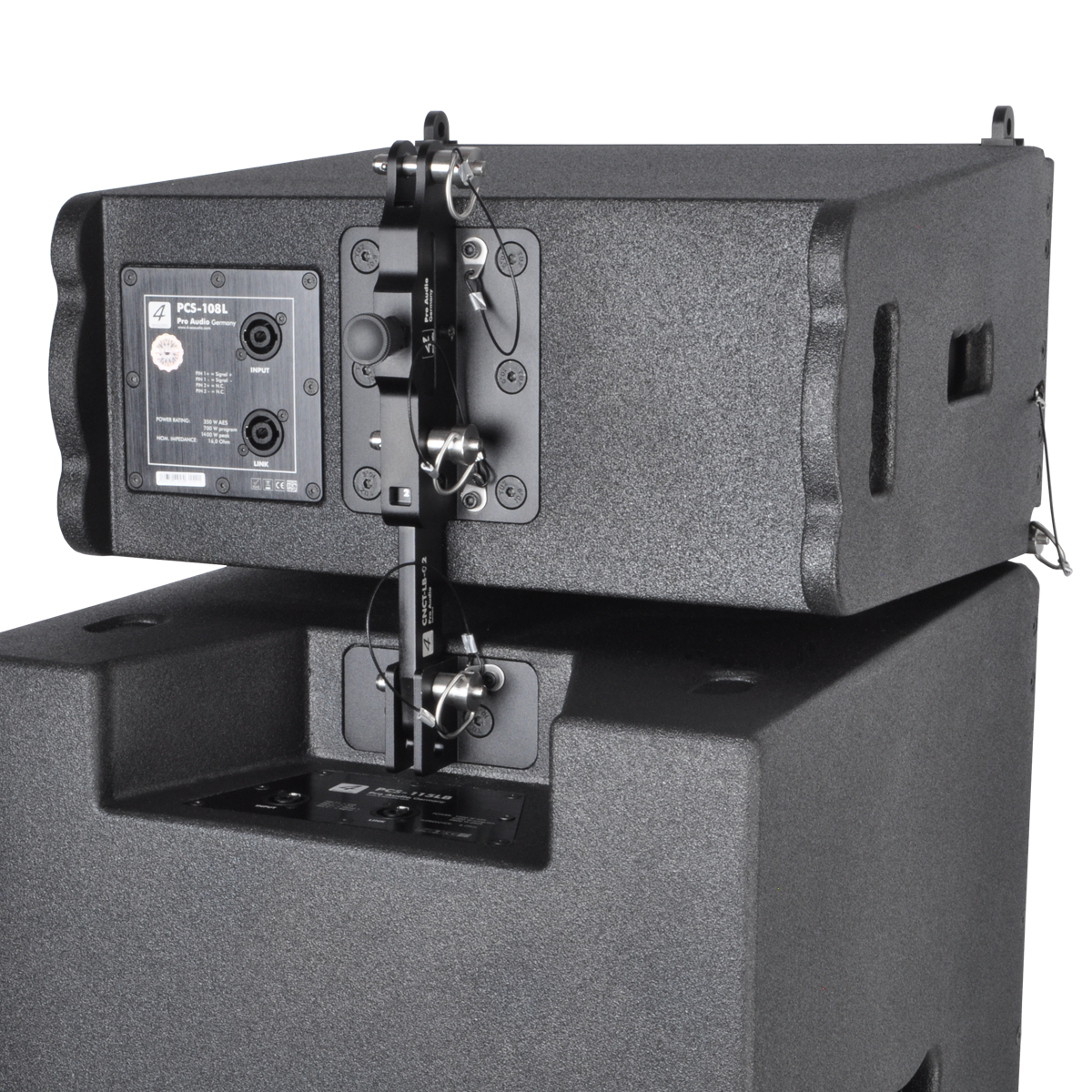

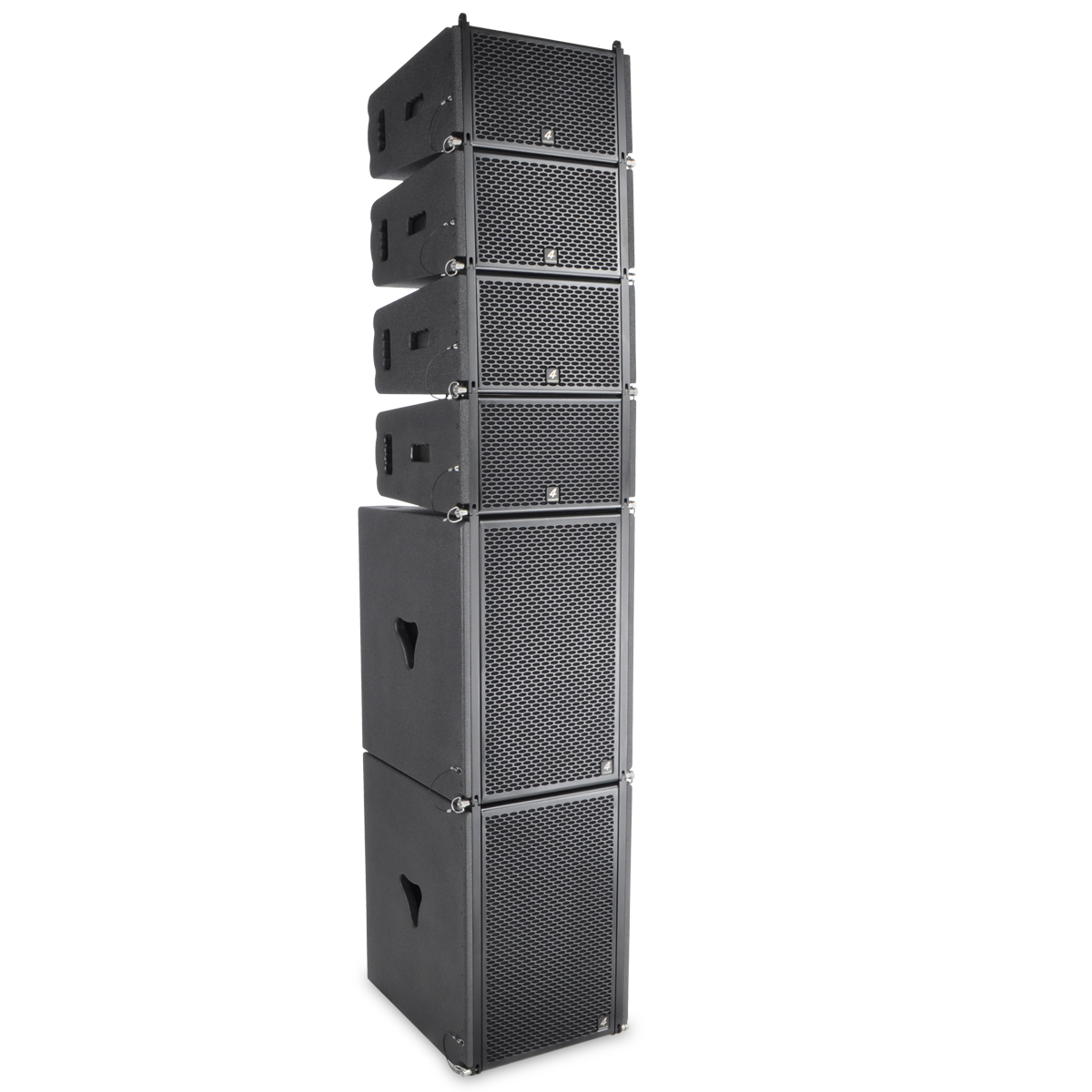

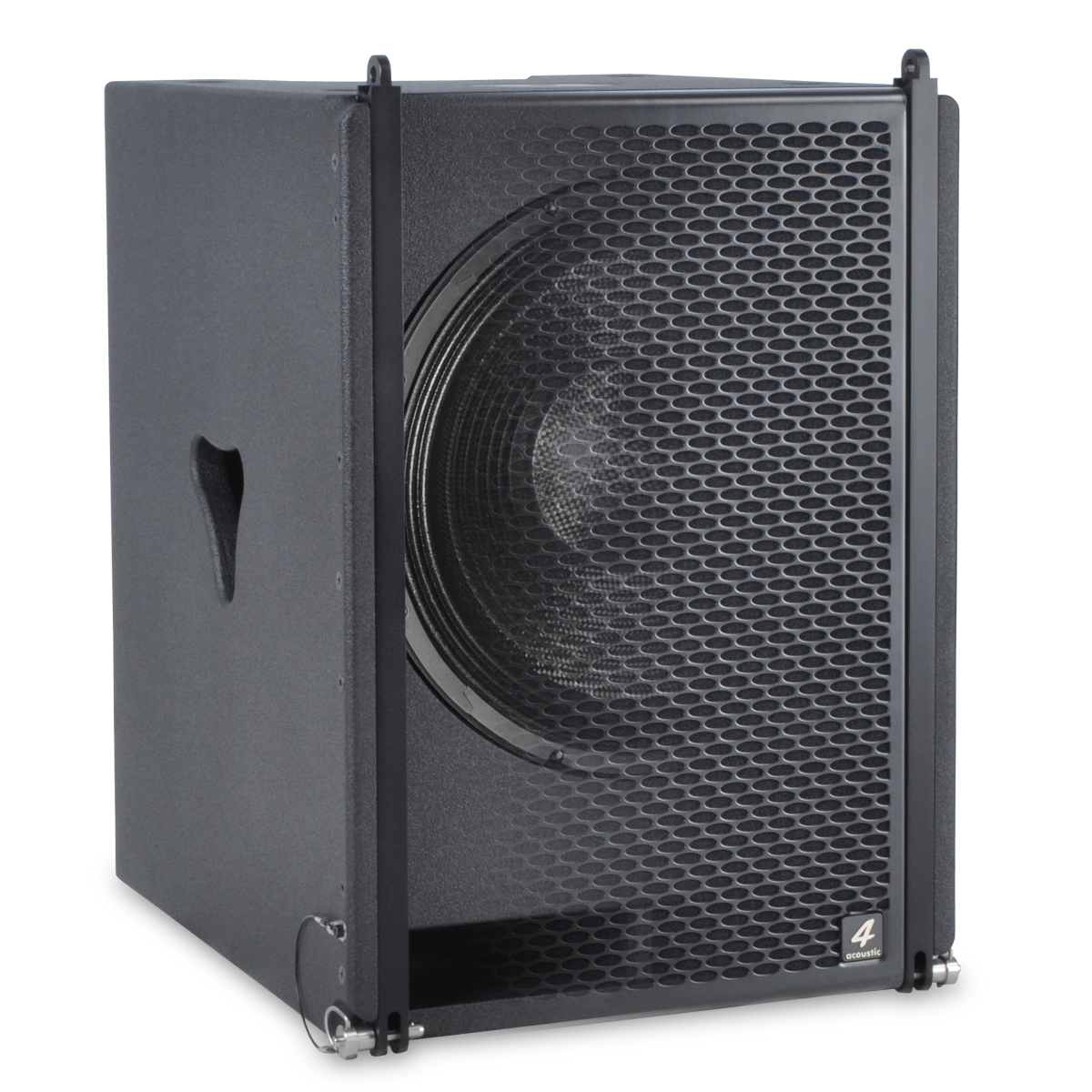

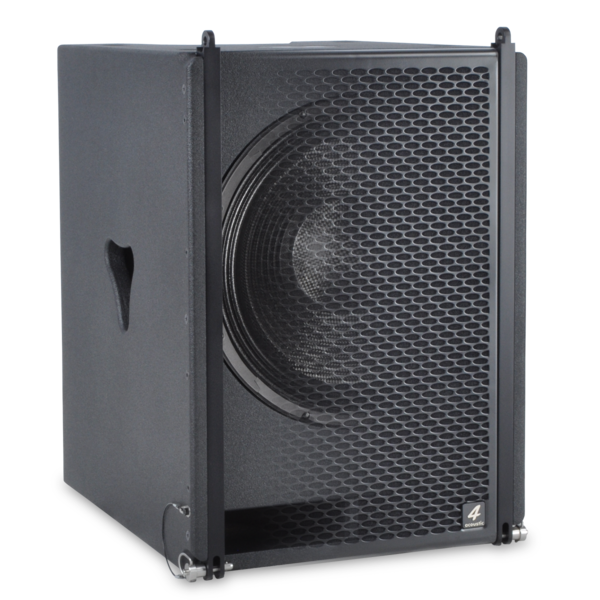

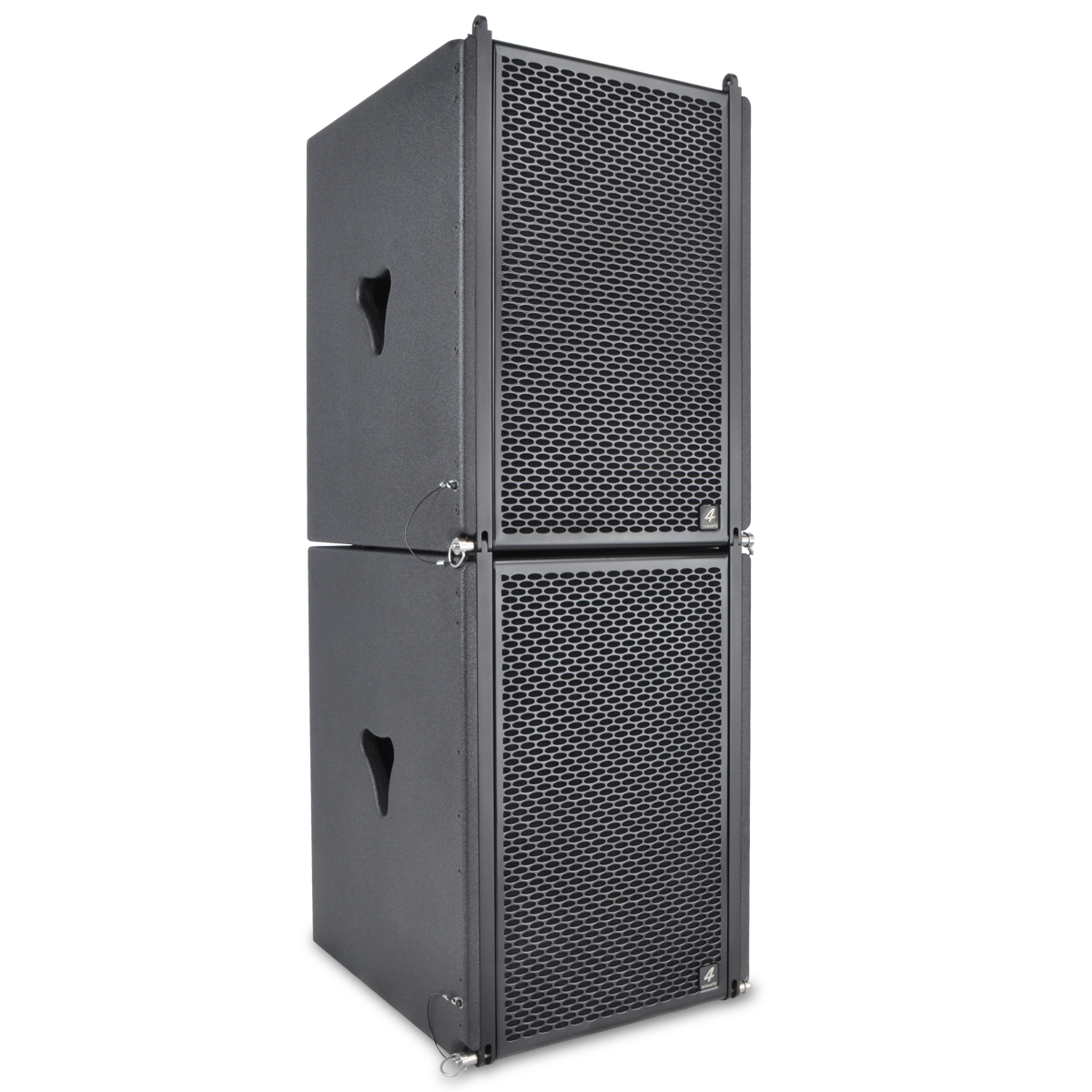

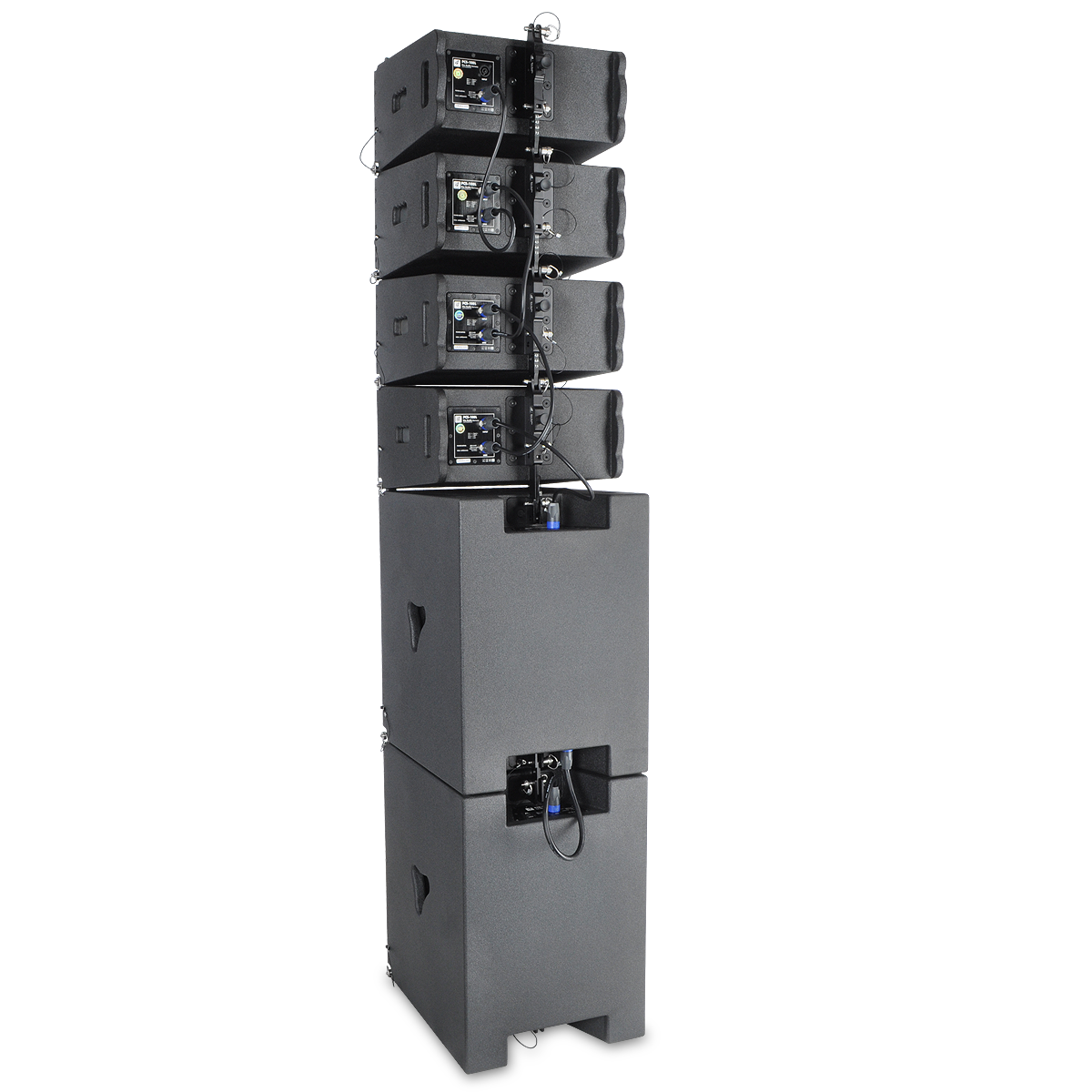

PCS-115LB is a very compact size, high power 15” subwoofer to use with our vertical line array speaker PCS-108L. With an upside and downside aluminum connecting panel the wiring can be done very easy. The connection of the four parallel NL4 sockets is 2+/2- for the sub and 1+/1- to link the line array. The mechanical design offers hanging and stacking installations with only one type of flight frame. Our flight frame PCS-108L-FFR can be used for PCS-108L and PCS-115LB. The entire flyware is made of high quality, extreme resilient aluminum components. PCS-115LB is equipped with one 15” premium neodymium woofer with 1200W AES power. The maximum SPL of a single unit is 130 dB. The shock-proof and water-resistant housing is made of best quality baltic multiplex wood and covered with a strong, black water-resistant Polyurea coating. Strong integrated handles will support an easy transport and installation.  The front side of the speaker is protected by a 1,5 mm strong, black metal grill covered with black color acoustic foam.

PCS-115LB GS1 (EAN) CODE: 4260318511131

Technical Details

Model Name PCS-115LB
GS1 (EAN) CODE 4260318511131
System Type 15“ line array subwoofer
Power Rating 1200 W AES
2400 W program
4800 W peak
Frequency Range (-10 dB) 40 Hz - 200 Hz
Sensitivity 99 dB 1w/1m
Maximum SPL 130 dB
Woofer 1 x STG-15NB 1200W AES, 4“ voice coil
Suspension/Mounting Line array fly ware for PCS-1108L-FFR

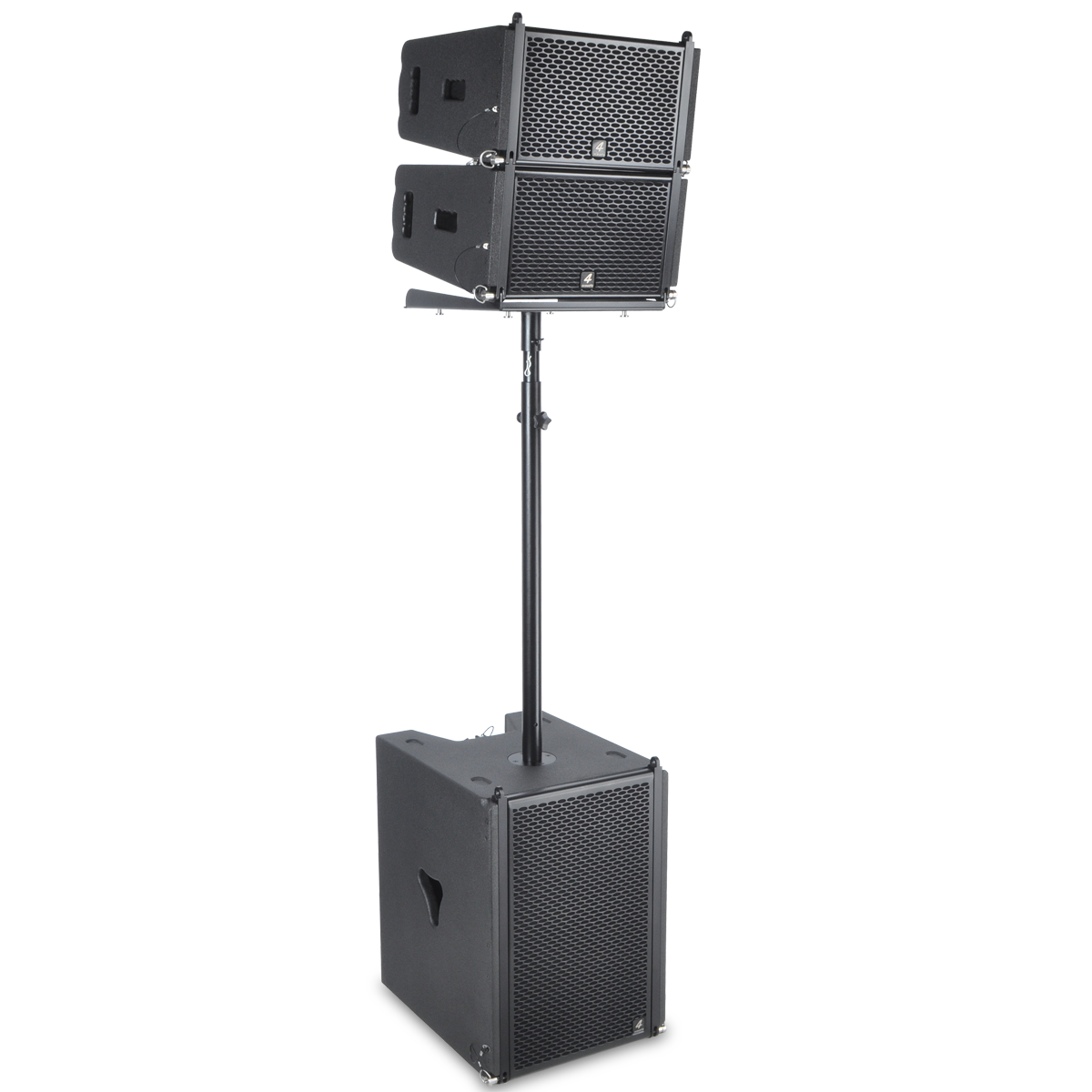

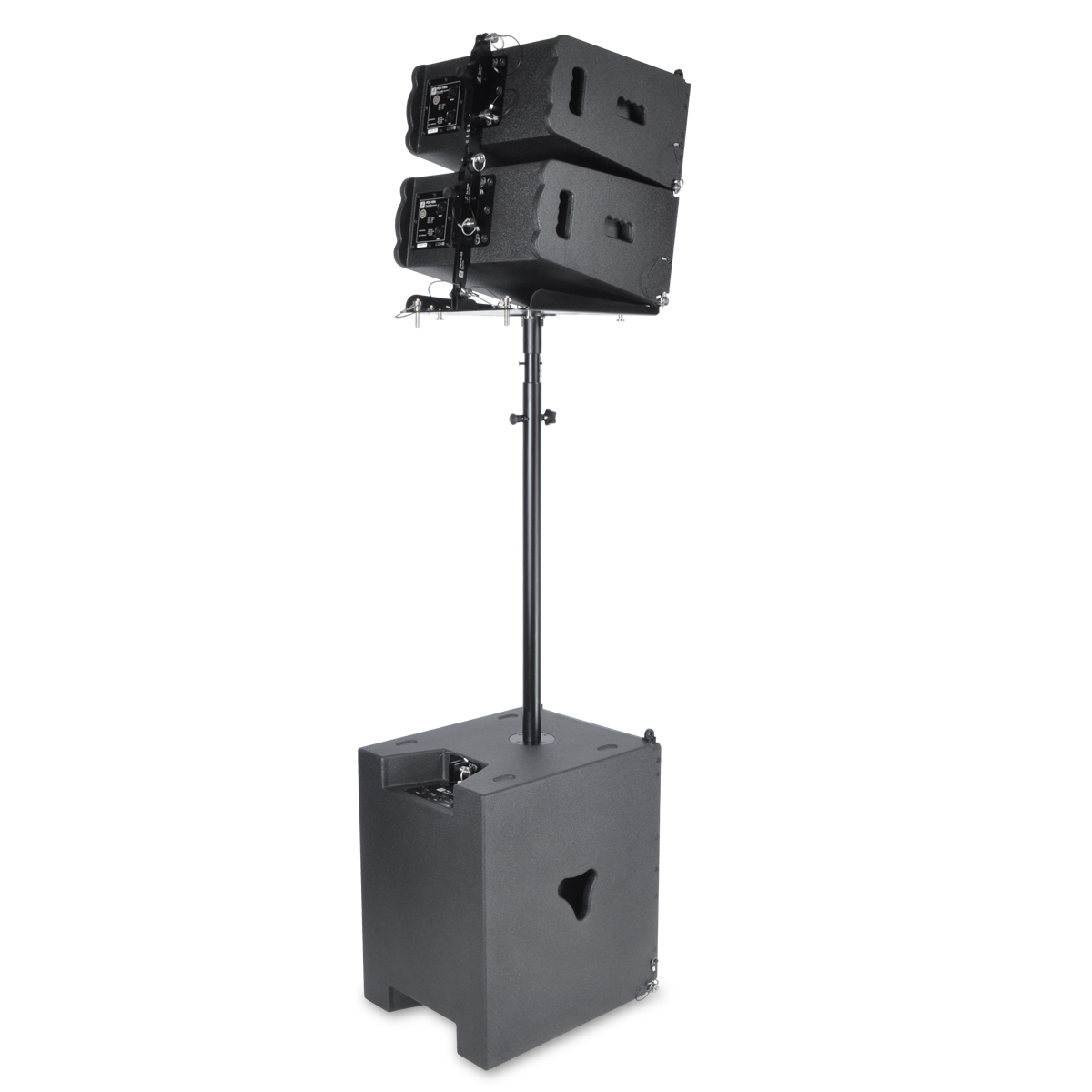

Top mounted M20 threaded top hat
to suit M20 tapped poles
Nominal Impedance 8 Ohm

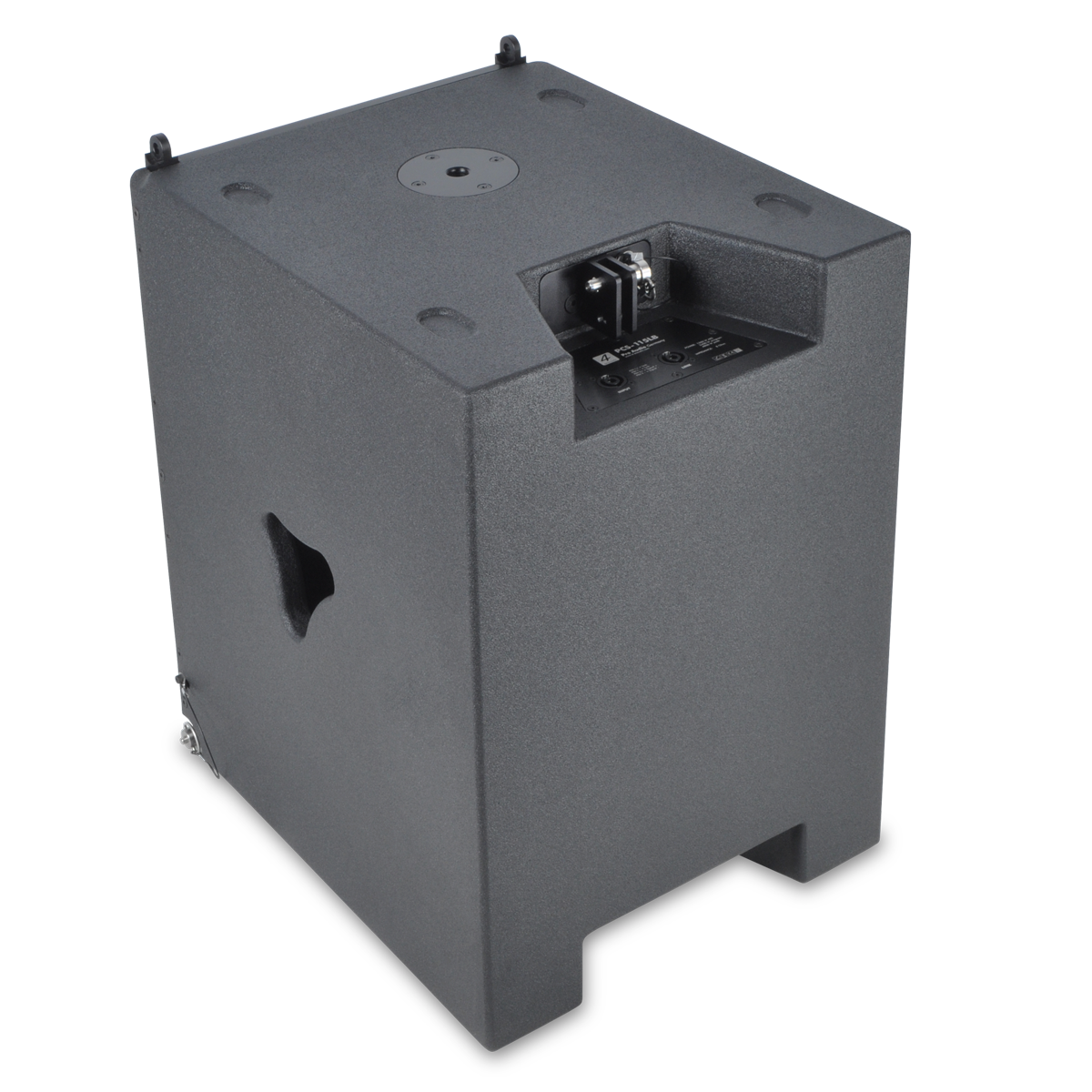

Input Connectors Upside and downside connection panel
4 x Neutrik NL4 Socket parallel 2+/2-
Housing Birch Multiplex
Coating Water-resistant Polyurea coating
Dimensions (h/w/d) 600x430x530 mm
Net weight 39,0 kg

Accessories

Order Code GS1 (EAN) Code Description
PCS-115LB-FC 4260318511551 Flight Case with wheels for PCS-115LB
STG-M20T 4260318511049 Adjustable M20 threaded distance Tube 1,0 Meter to 1,5 Meter
KA-SP4-0.5 4260318511155 0,5 Meter speaker cable 4x2,5qmm
KA-SP4-05 4260318511193 5 Meter Speaker cable 4x2,5qmm
KA-SP4-10 4260318511209 10 Meter Speaker cable 4x2,5qmm
KA-SP4-15 4260318511216 15 Meter Speaker cable 4x2,5qmm
KA-SP4-20 4260318511223 20 Meter Speaker cable 4x2,5qmm
