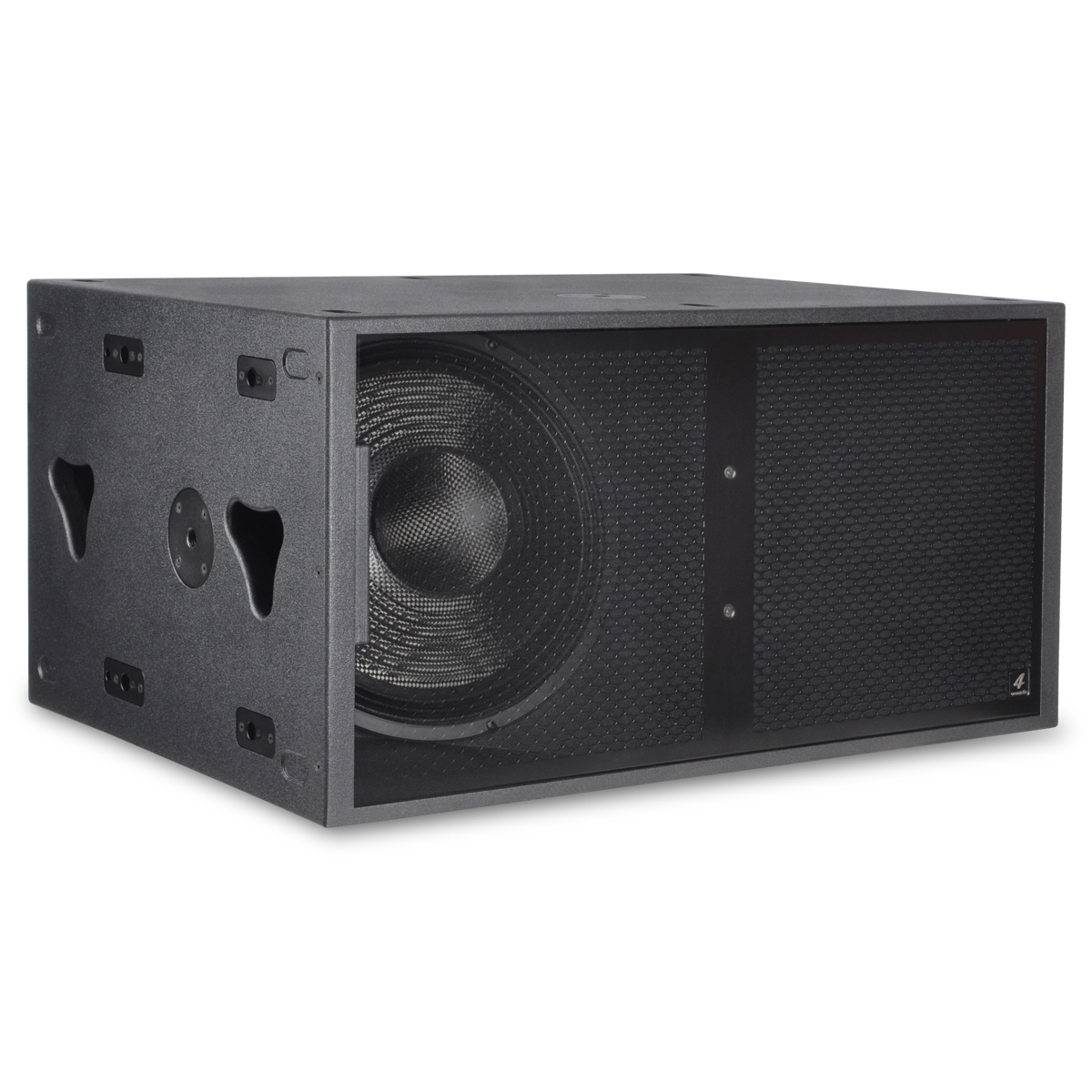

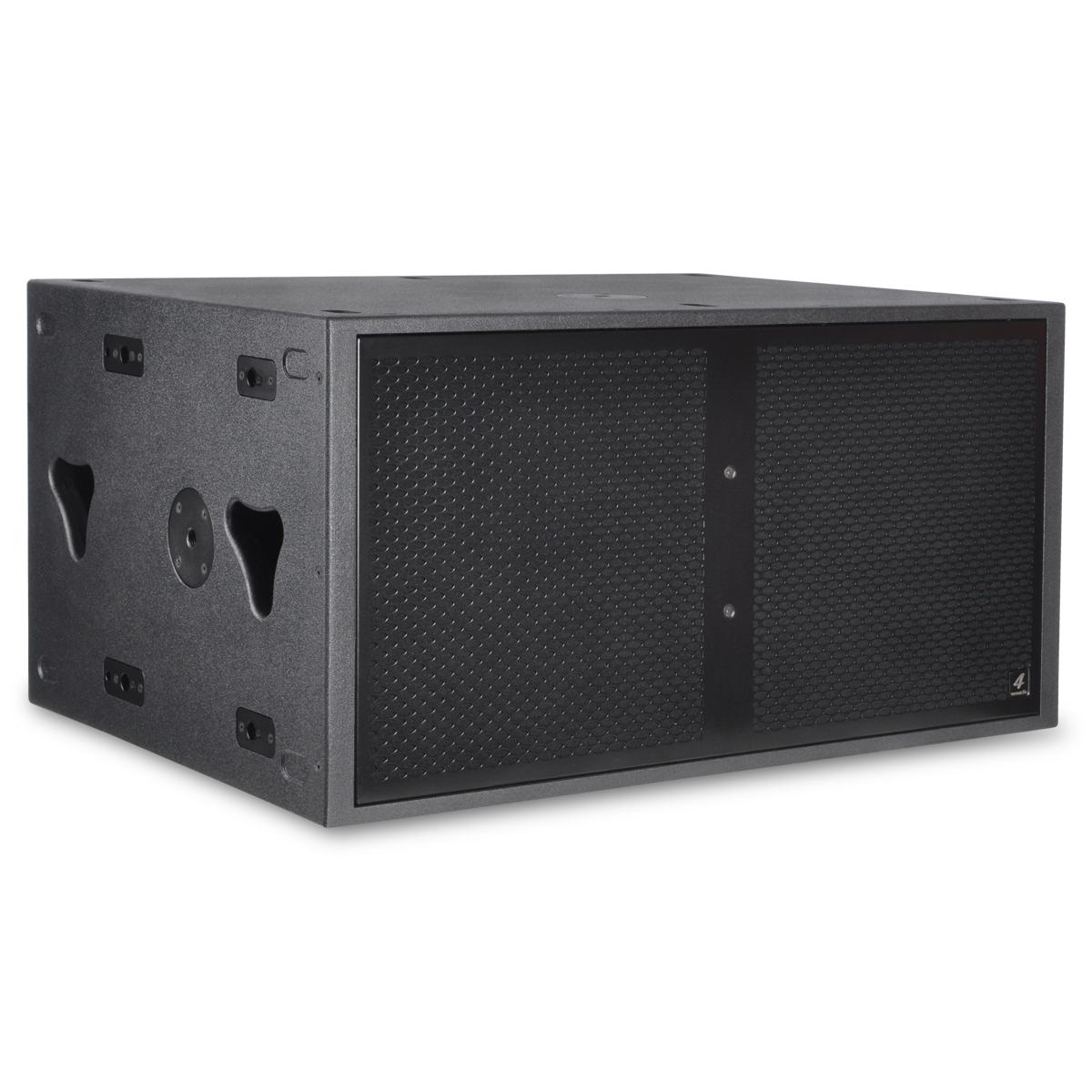

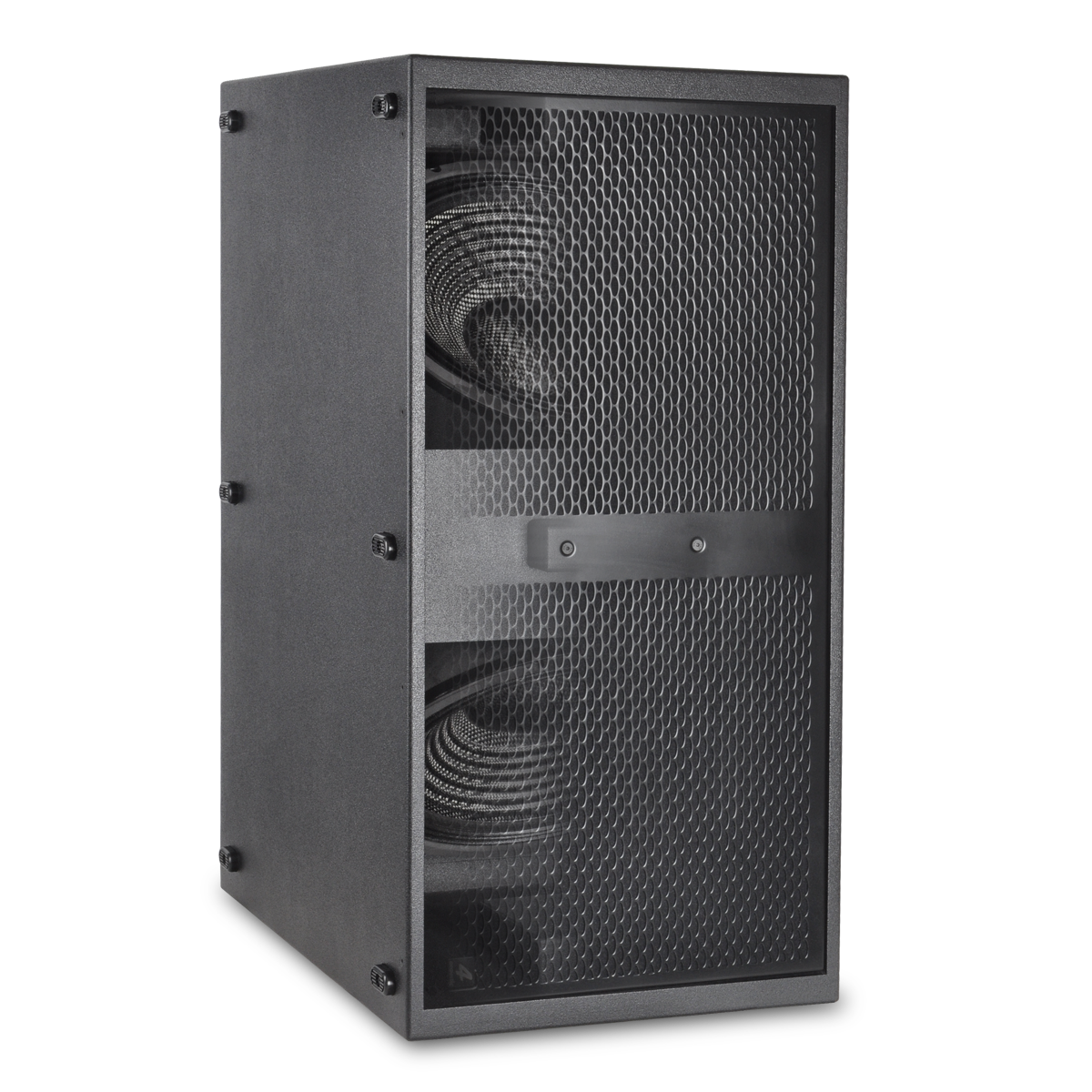

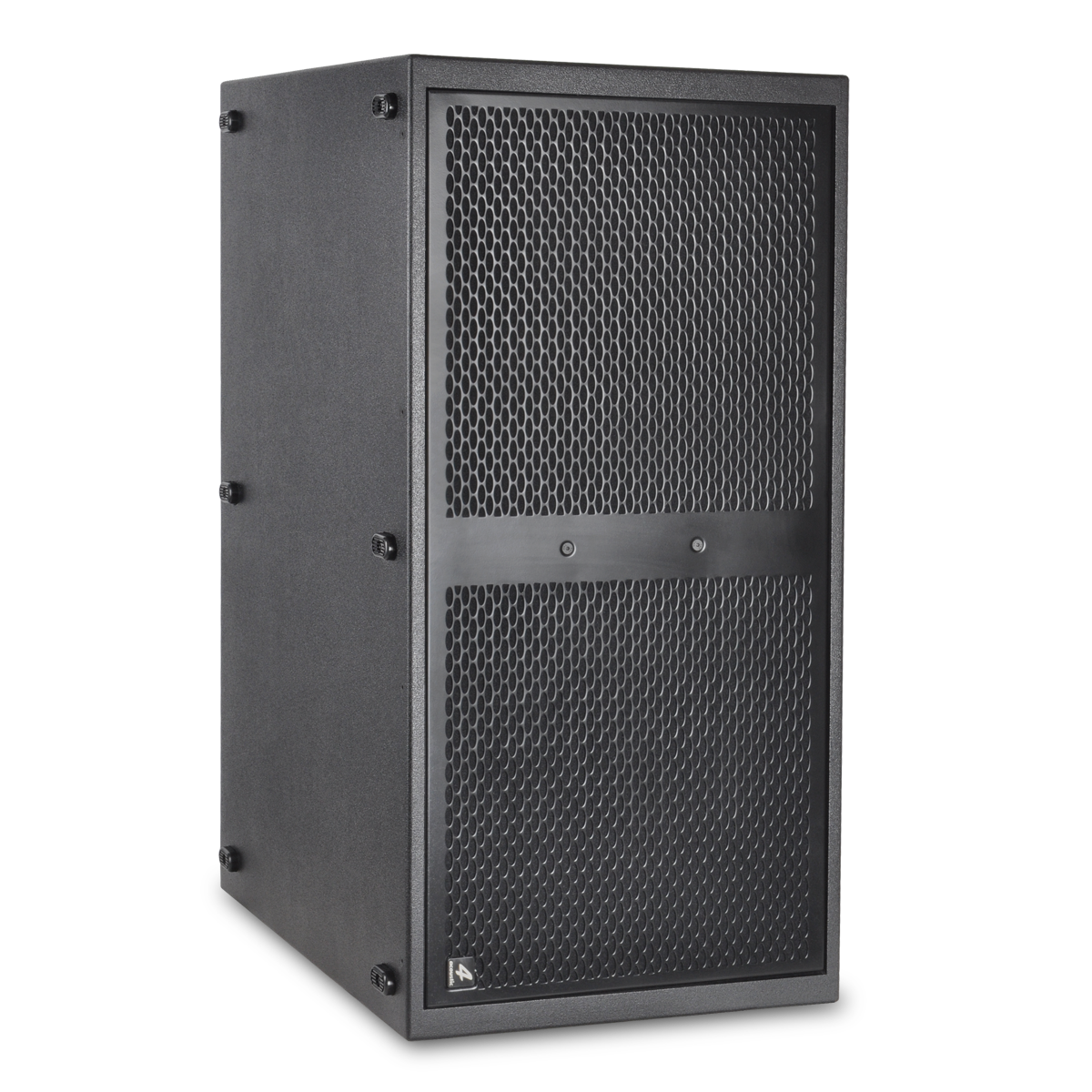

PCS-218NB Double 18“ ground stack subwoofer
PCS-218NB Double 18“ ground stack subwoofer
Amazing 6000 W program power!

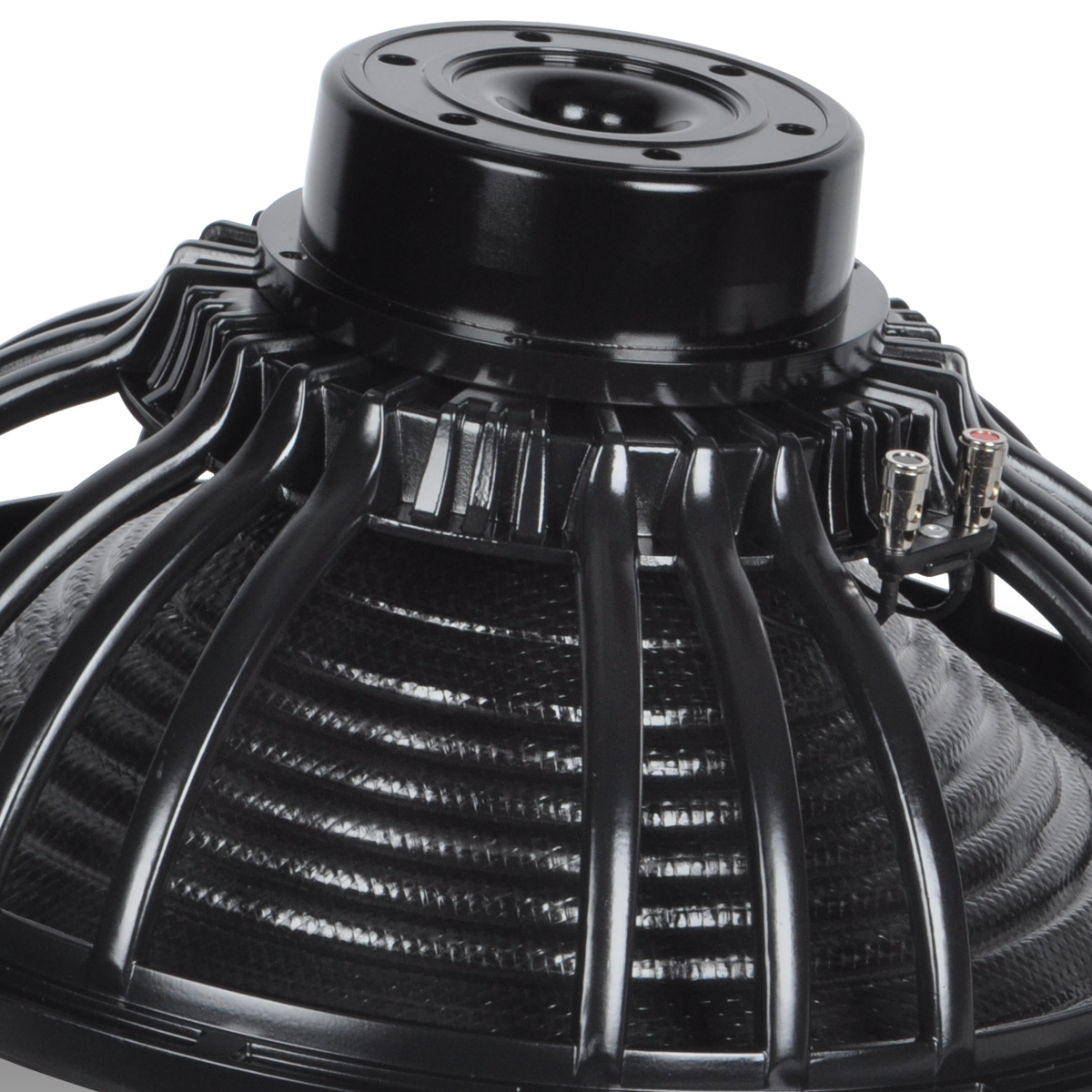

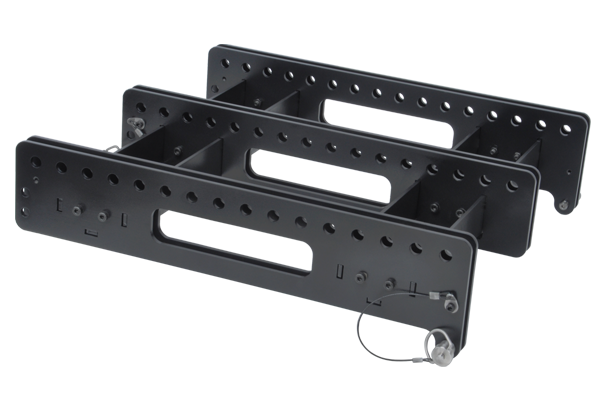

PCS-218NB is our latest double 18“ subwoofer design. It is equipped with two premium carbon fiber neodymium woofers type Stagetone STG-18NB-S. Each woofer can handle 1500W AES or 3000W programm power. PCS-218NB is designed for a maximum flexibility and can be used in several different applications. For example as ground stack subwoofer for line array setups or with M20 threaded tubes and full range speaker. It belongs to the “Max Flex” family which means PCS-110L Line Array modules can be connected to the housing by using PCS-110-FFR-L frame. PCS-218NB is suitable for renting, touring and fixed installation.
PCS-218NB GS1 (EAN) CODE: 4260318511117
Technical Details
| Model Name | PCS-218NB |
|---|---|
| GS1 (EAN) CODE | 4260318511117 |
| System Type | double 18“ ground stack subwoofer |
| Power Rating | 3000 W AES 6000 W program 12000 W peak |
| Frequency Range (-10 dB) | 30 Hz - 200 Hz |
| Sensitivity | 101 dB 1w/1m |
| Maximum SPL | 138 dB |
| Woofer | 2 x STG-18NB-S 1500W AES, 4“ voice coil |

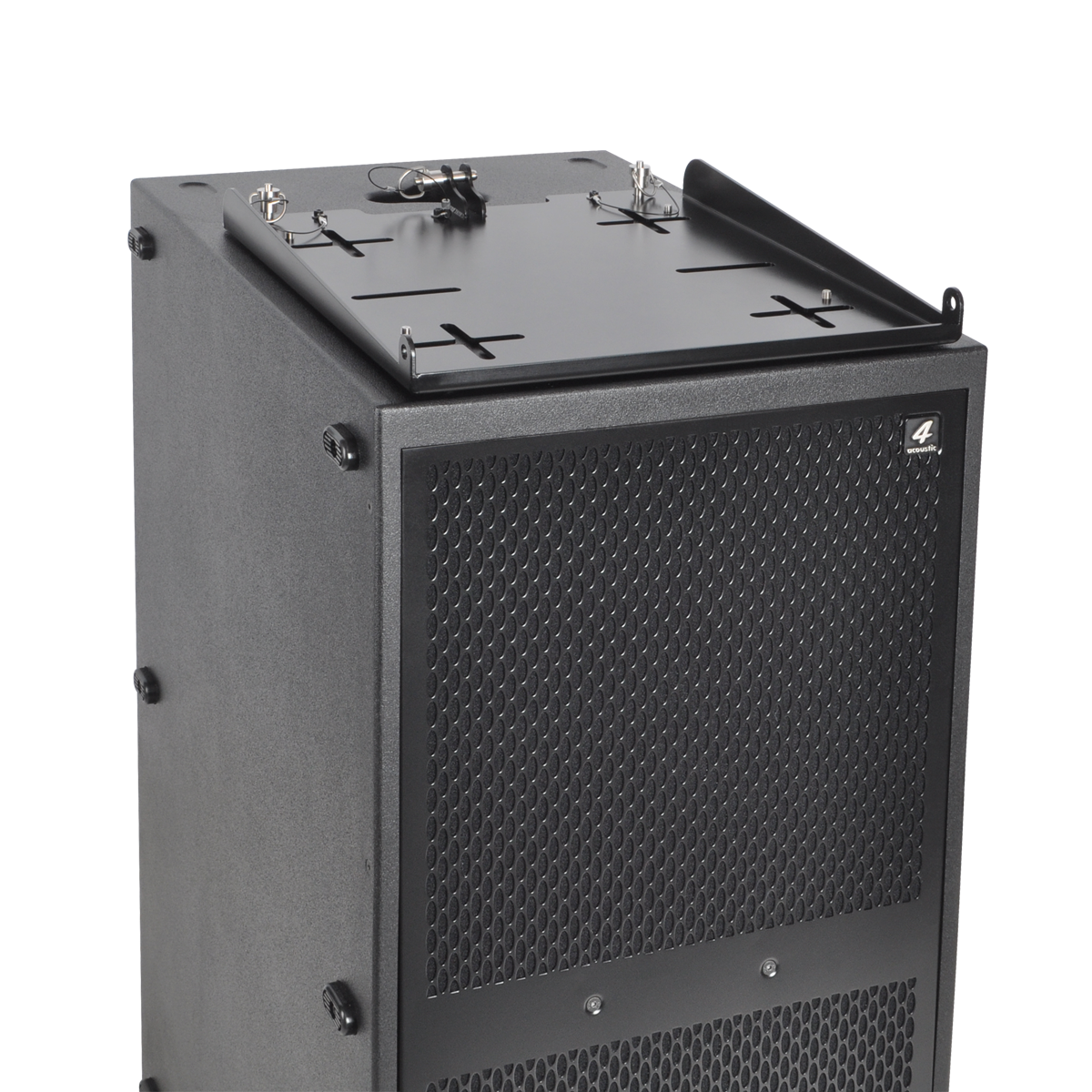

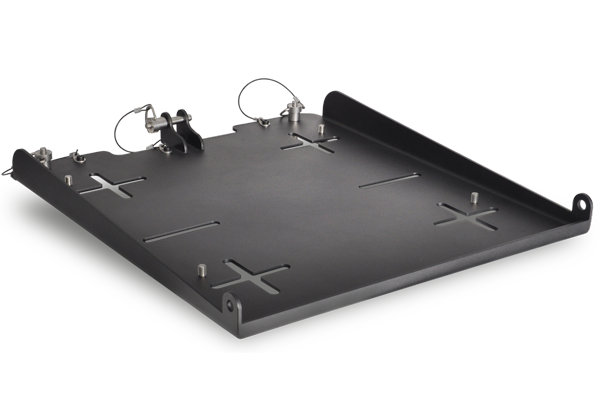

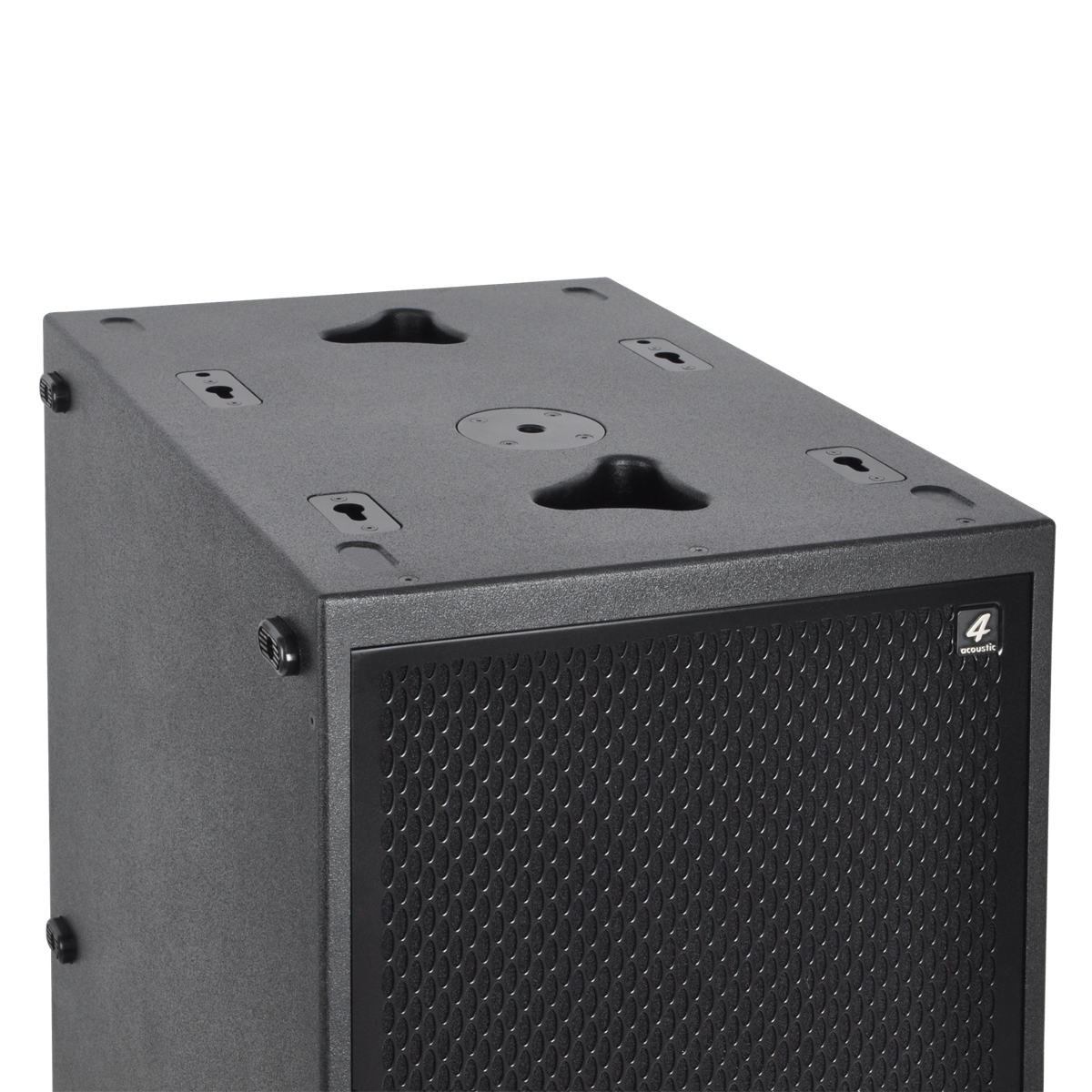

| Suspension/Mounting | Snap In function for PCS-110L flight frame |
| Nominal Impedance | 4 Ohm |
| Input Connectors | 2 x Neutrik NL4 Socket parallel 1+/1- |
| Housing | Birch Multiplex |
| Coating | Water-resistant Polyurea coating |
| Dimensions (h/w/d) | 1000x500x700 mm |
| Net weight | 73,5 kg |
Accessories
| Order Code | GS1 (EAN) Code | Description |
|---|---|---|
| STG-WH100 | 4260318511131 | 100mm blue wheel Set (two pcs. with brake) |
| PCS-218NB-BAG | 4260318511254 | Nylon protection transport cover bag for PCS-218NB |
| KA-SP4-0.5 | 4260318511155 | 0,5 Meter speaker cable 4x2,5qmm |
| KA-SP4-05 | 4260318511193 | 5 Meter Speaker cable 4x2,5qmm |
| KA-SP4-10 | 4260318511209 | 10 Meter Speaker cable 4x2,5qmm |
| KA-SP4-15 | 4260318511216 | 15 Meter Speaker cable 4x2,5qmm |
| KA-SP4-20 | 4260318511223 | 20 Meter Speaker cable 4x2,5qmm |
