PCS-X05

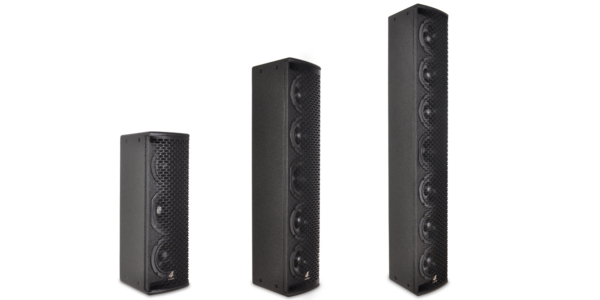

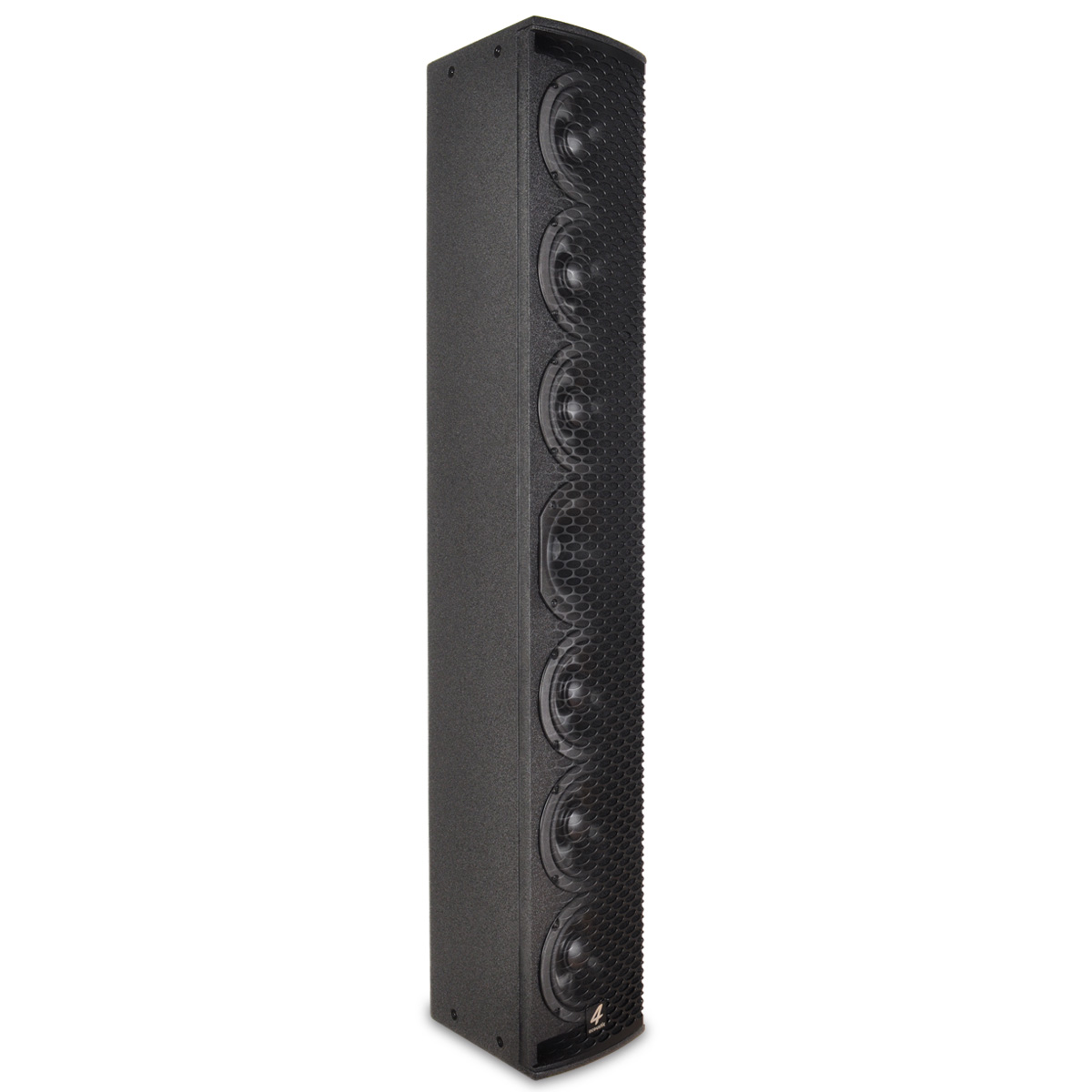

PCS-X05 Series vertical array column speaker

PCS-X05 vertical array column speaker

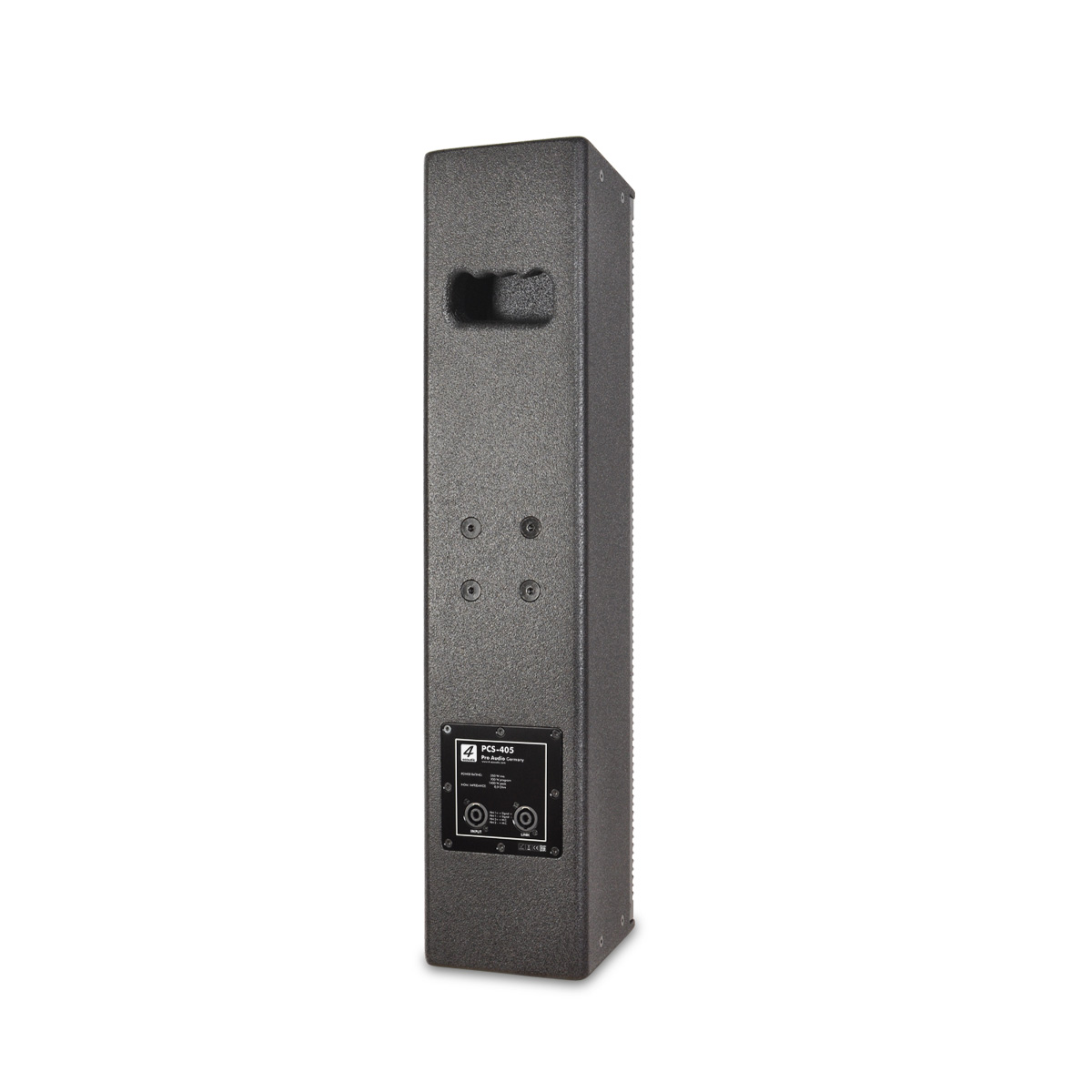

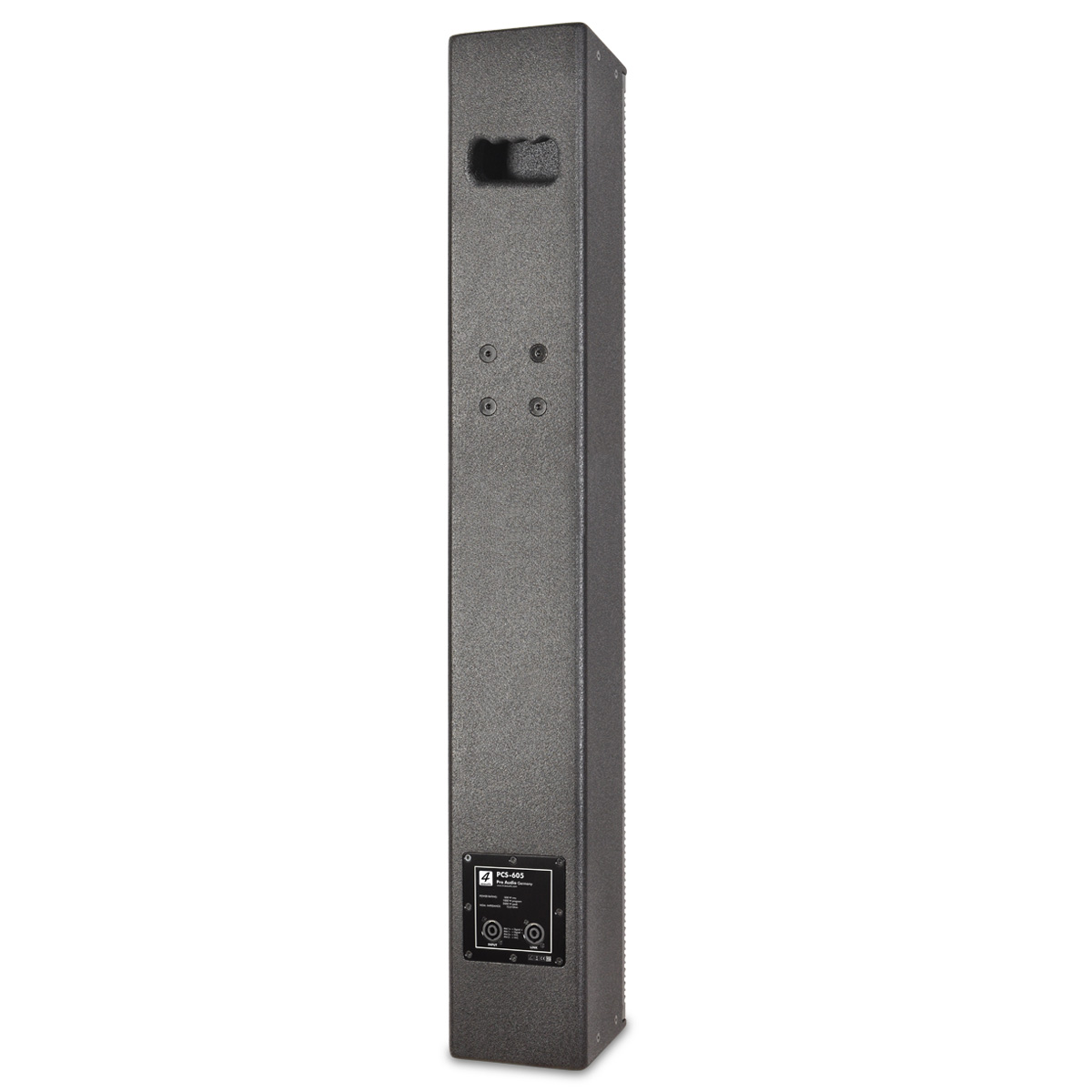

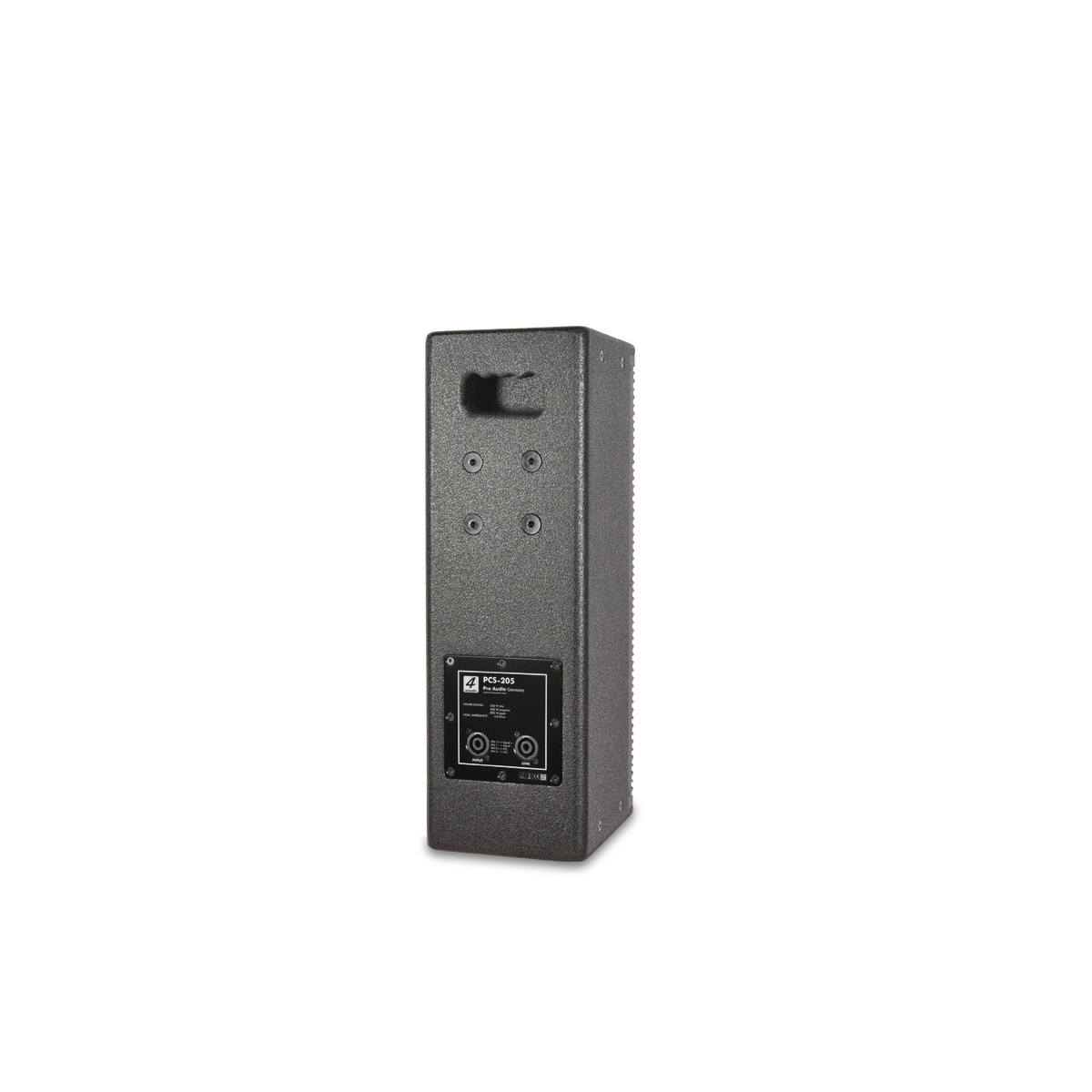

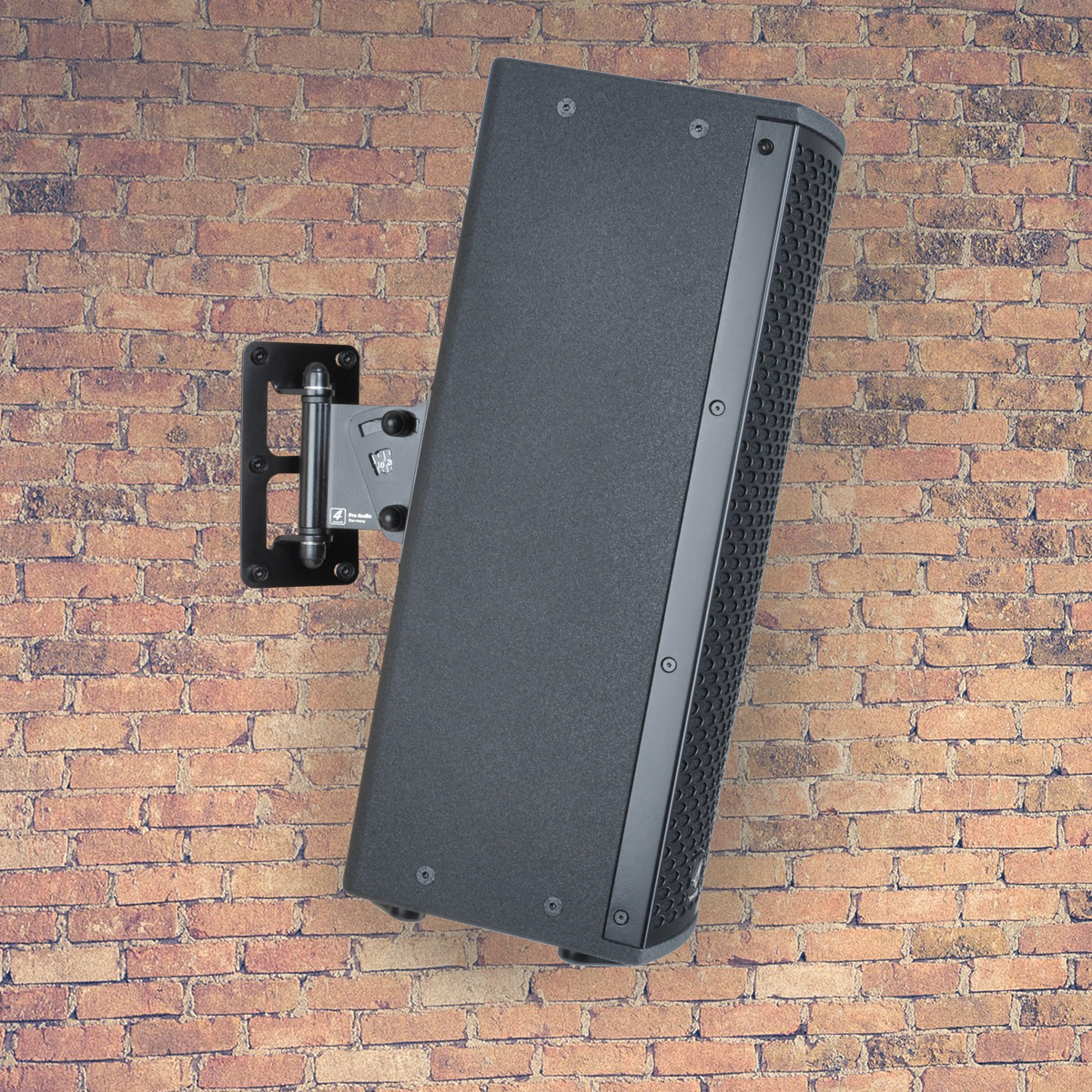

PCS-205/405/605 are modern 5“ vertical array speakers for high speech intelligibility and sound quality even in acoustically difficult environments. They deliver a high sound pressure with an optimum operating distance. Precisely calculated protective circuits protect the built-in speaker components against thermal overload and guarantee a safe, long-life operation. The positioning of the 5“ woofers as an array produced a balanced coverage pattern over the entire operating range. The horn for mid high frequency is located centrally offering a smooth transition and optimal dispersion. The high resolution 1“ driver is mounted on a constant angle of 100°x40°. The Housing is made of high quality birch multiplex-wood and coated with extremely strong black color sand paint or all different RAL colors with different surface structures on request. For fixed installation, the housing has different mounting options. You can fix a VESA 75 bracket on the backside or our high-quality VLS installation accessories for roof, wall and truss mounting with totally 12 PCS M8 suspensions point. A shell type handle in the rear is designed for easy transportation and installation.

PCS-205 GS1 (EAN) CODE: 4260318510332

PCS-405 GS1 (EAN) CODE: 4260318510349

PCS-605 GS1 (EAN) CODE: 4260318510356

Technical Details

Model Name PCS-205 PCS-405 PCS-605
GS1 (EAN) CODE 4260318510332 4260318510349 4260318510356
System Type 2x5“+1“ Vertikal Array 4x5“+1“ Vertikal Array 6x5“+1“ Vertikal Array
Power Rating 200 W AES
400 W program
800 W peak
350 W AES
700 W program
1400 W peak
500 W AES
1000 W program
2000 W peak
Frequency Range (+/- 3 dB) 80 Hz - 20 kHzz 77 Hz - 20 kHz 75 Hz - 20 kHz
Coverage Pattern (hxv) 100°x40° 100°x40° 100°x40°
Sensitivity 95 dB 1w/1m 97 dB 1w/1m 99 dB 1w/1m
Maximum SPL 123 dB 127 dB 132 dB
Woofer 2 x STG-X05 4 x STG-X05 6 x STG-X05
Driver 1 x STG-44S 1 x STG-44S 1 x STG-44S
Nominal Impedance 4 Ohm 8 Ohm 12 Ohm
Input Connectors 2 x Neutrik NL4 Socket parallel 1+/1- 2 x Neutrik NL4 Socket parallel 1+/1- 2 x Neutrik NL4 Socket parallel 1+/1-
Housing Birch Multiplex Birch Multiplex Birch Multiplex
Suspension/Mounting VESA 75 (Rückseite)
35 mm Stativhülse
12 x M8 Anschlagpunkte
VLS-Aufnahme
VESA 75 (Rückseite)
35 mm Stativhülse
12 x M8 Anschlagpunkte
VLS-Aufnahme
VESA 75 (Rückseite)
35 mm pole socket
12 x M8 suspension points
VSL mounting base
Coating Anti-scratch Polyurethane coating Anti-scratch Polyurethane coating Anti-scratch Polyurethane coatingg
Dimensions (h/w/d) 515x205x168 mm 795x205x168 mm 1075x205x168 mm
Net weight 9,5 Kg 15,5 Kg 20,0 Kg

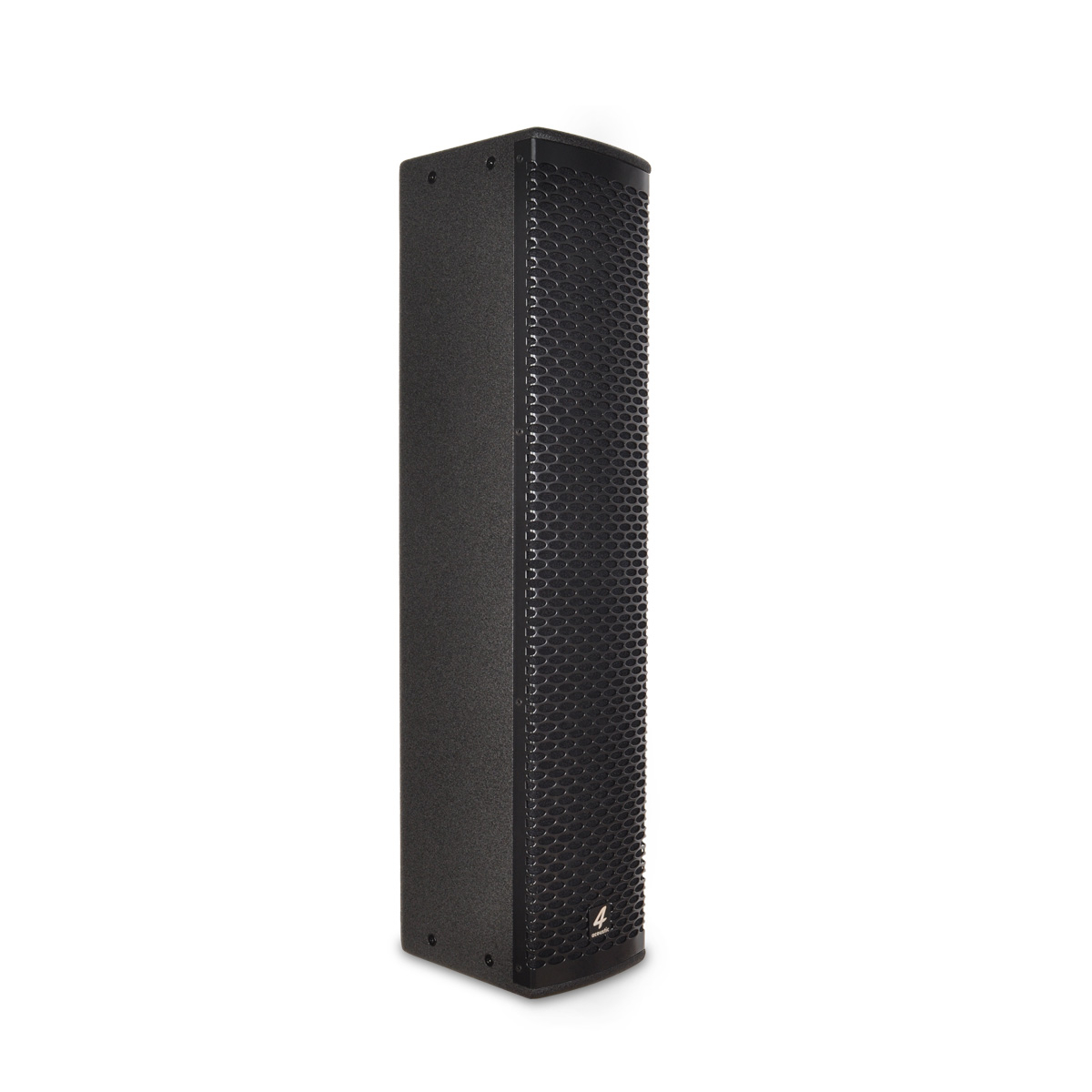

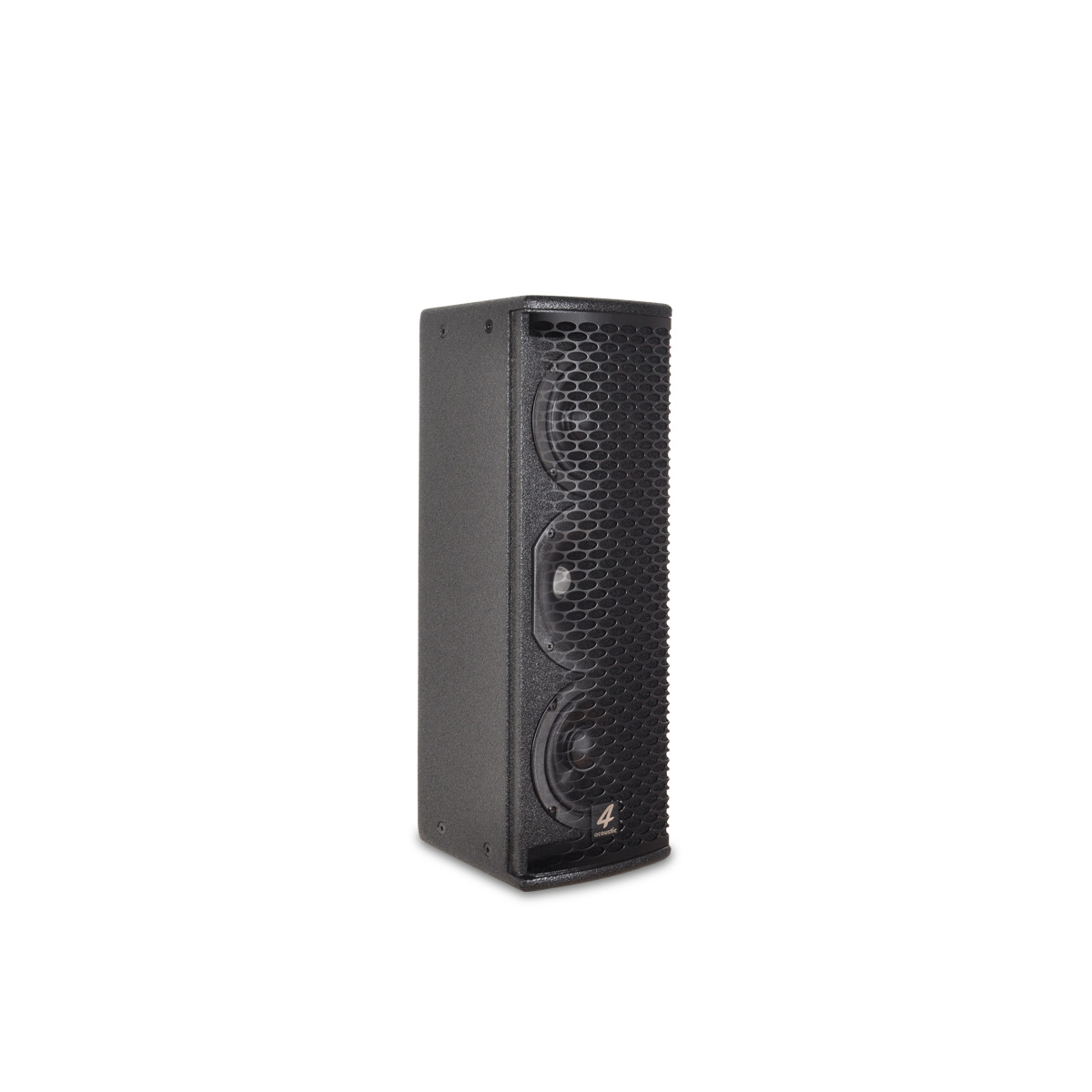

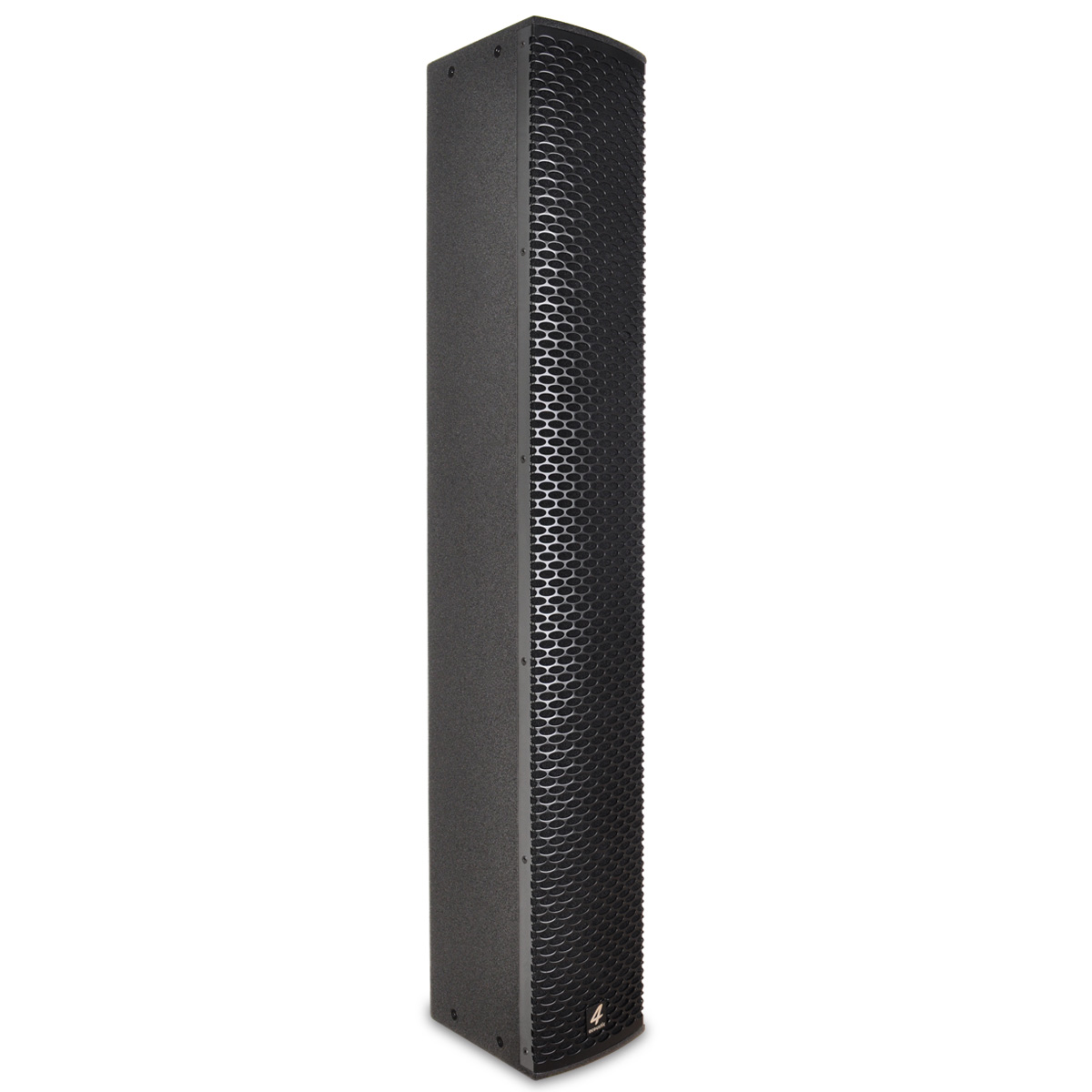

Picture Gallery

Accessories

Order Code GS1 (EAN) Code Description
WH-X05 4260318511407 Wall mounting kit for PCS-X05
STG-STD 4260318511032 Tripot Speaker Stand
PCS-205-BAG 4260318511377 Nylon transport bag for two PCS-205
PCS-405-BAG 4260318511384 Nylon transport bag for two PCS-405
PCS-605-BAG 4260318511391 Nylon transport bag for two PCS-605
KA-SP2-05 4260318510967 5 Meter Speaker cable 2x2,5qmm
KA-SP2-10 4260318510974 10 Meter Speaker cable 2x2,5qmm
KA-SP2-15 4260318510981 15 Meter Speaker cable 2x2,5qmm
KA-SP2-20 4260318510998 20 Meter Speaker cable 2x2,5qmm
KA-SP1-50 4260318511339 50 Meter Speaker cable 2x1,5qmm
KA-SP1-100 4260318511346 100 Meter Speaker cable 2x1,5qmm
SA-2080 4260318510820 2 Channel Class H Amplifier 2 x 800 Watt @ 8 ohm
