SA-Amplifier

SA-Series High stability Class H amplifier

High stability Class H amplifier

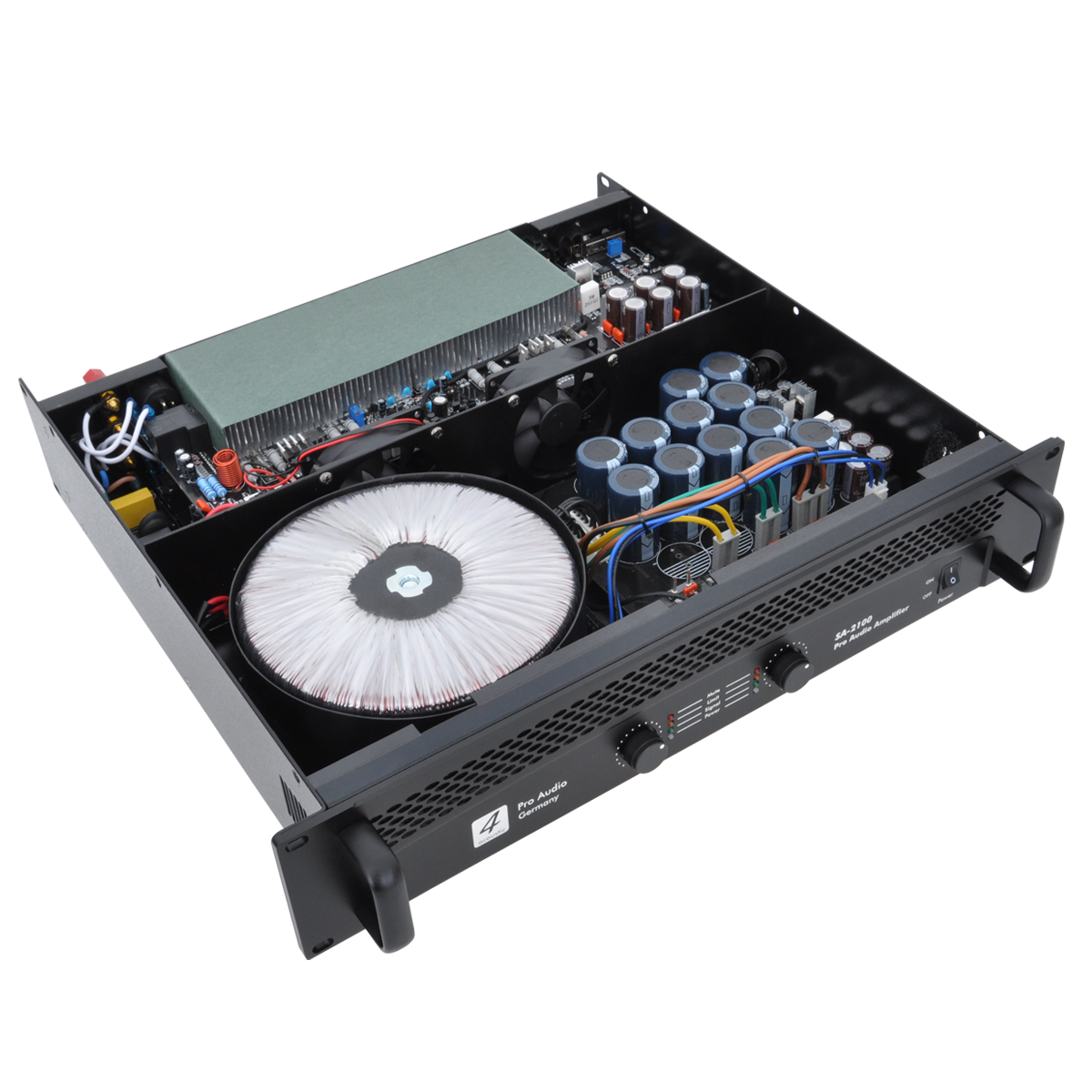

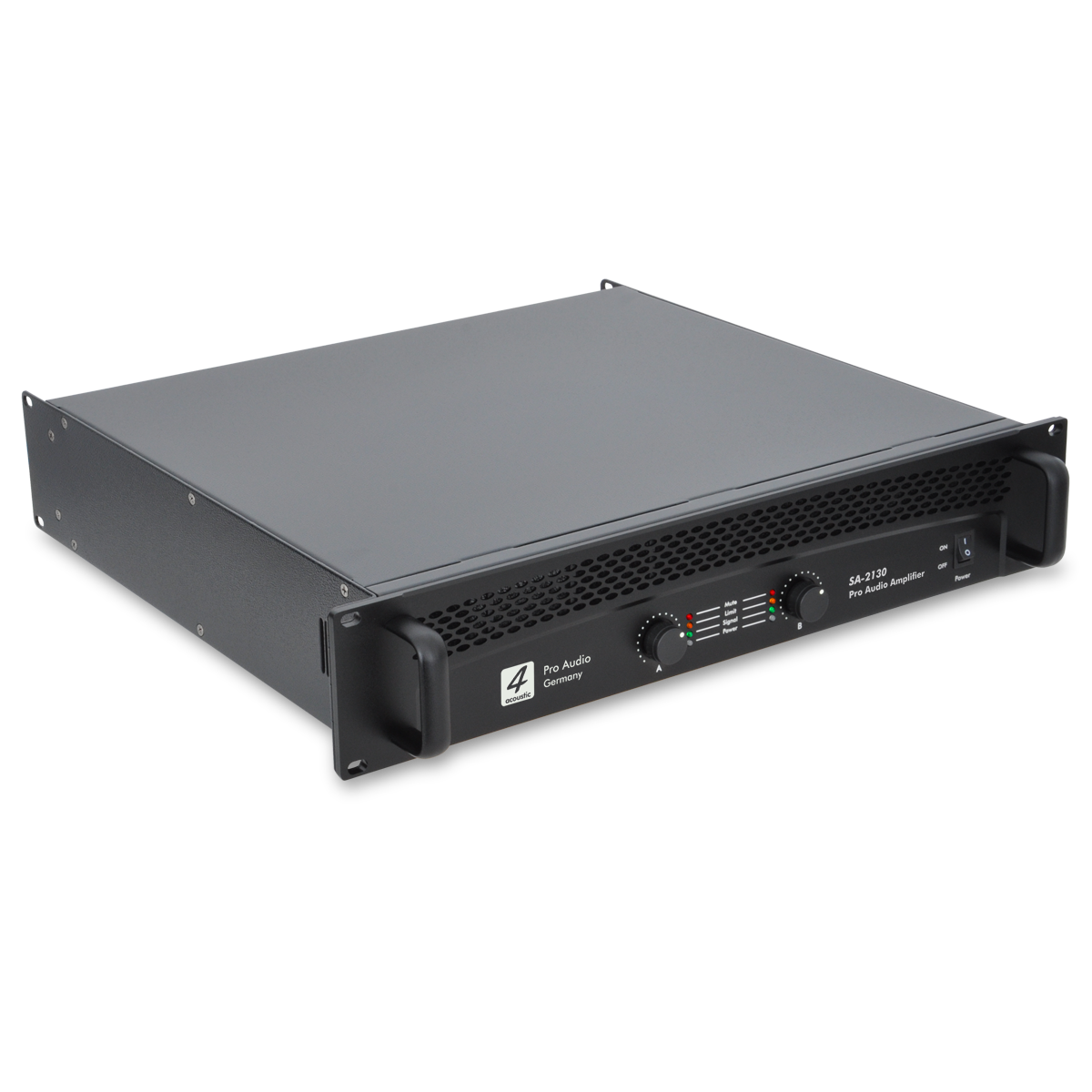

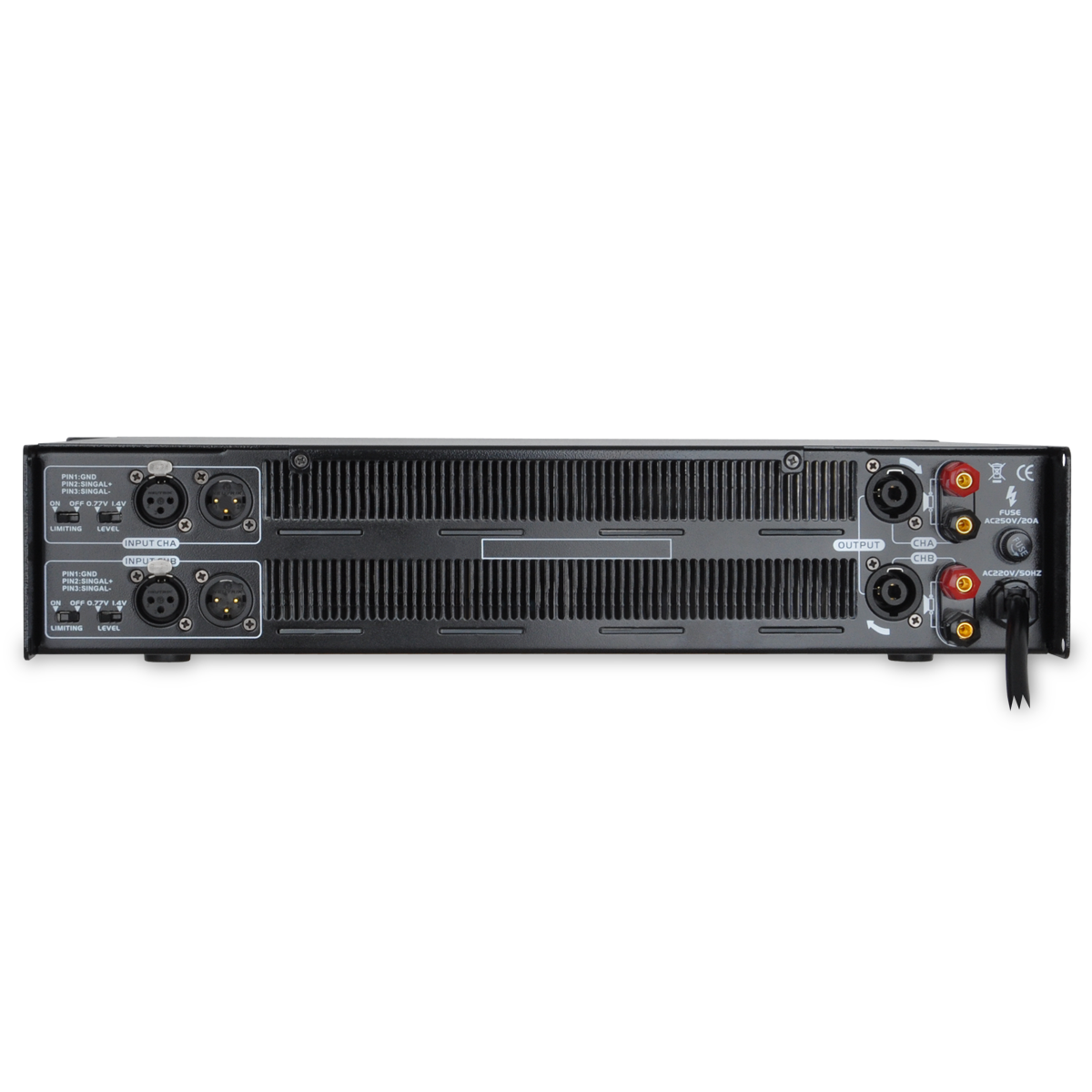

The SA series is our state of art Class H amplifier series which offers a very efficient and stable operation. With its transparent sound, a high dynamic range and low distortion, it is suitable for subwoofers and full range speakers. The housing is a 19“ metal case which is 2U high. An innovative cooling system with automatic speed control, low noise fans, it offers a perfect cooling of all components. An integrated VCA Clip Limiter (2CH Models) protects the amplifier to clip and can be switched off at the rear panel. Female input XLR sockets are active balanced and have a link throu to a male socket (2CH Models). The output section contains SPKN sockets and binding posts (2CH Models).

SA-2080 GS1 (EAN) CODE: 4260318510820

SA-2100 GS1 (EAN) CODE: 4260318510837

SA-2130 GS1 (EAN) CODE: 4260318510844

SA-4300 GS1 (EAN) CODE: 4260318511056

SA-4600 GS1 (EAN) CODE: 4260318511063

SA-4800 GS1 (EAN) CODE: 4260318510844

Technical Details



2 Channel SA-Amplifiers

Model Name SA-2080 SA-2100 SA-2130
GS1 (EAN) CODE 4260318510820 4260318510837 4260318510844
System Type 2-Channel Class H Amplifier 2-Channel Class H Amplifier 2-Channel Class H Amplifier
Output Power
all channels driven
20Hz - 20 kHz, 0.1 % THD
2 x 1050W @ 4Ohm
2 x 800W @ 8Ohm
2 x 1350W @ 4Ohm
2 x 1000W @ 8Ohm
2 x 1600W @ 4Ohm
2 x 1300W @ 8Ohm
Distortion < 0,01% < 0,01% < 0,01%
Frequency Response
@1Watt, 8Ohm
20 Hz - 20 KHz +0.1/-0.3db
5Hz-30KHz @ -2.3db points
20 Hz - 20 KHz +0.1/-0.3db
5Hz-30KHz @ -2.3db points
20 Hz - 20 KHz +0.1/-0.3db
5Hz-30KHz @ -2.3db points
Damping Factor
(1kHz and below)
>310@8Ω >310@8Ω >310@8Ω
Signal to Noise Ratio
20Hz -20 kHz
>102db >102db >102db
Input Sensitivity selectable 0,775V/1,4V selectable 0,775V/1,4V selectable 0,775V/1,4V
Front Control Power switch, Gain control Power switch, Gain control Power switch, Gain control
Rear Control Sensitivity 0.775V/1.4V
Switch VCA CLIP Limiter
Sensitivity 0.775V/1.4V
Switch VCA CLIP Limiter
Sensitivity 0.775V/1.4V
Switch VCA CLIP Limiter
LED Indicators Power, blue
Mute, red
Signal, green
Clip, orange
Power, blue
Mute, red
Signal, green
Clip, orange
Power, blue
Mute, red
Signal, green
Clip, orange
Input Connectors XLR Active balanced
pin1 gnd / pin 2+ / pin3-
XLR Active balanced
pin1 gnd / pin 2+ / pin3-
XLR Active balanced
pin1 gnd / pin 2+ / pin3-
Output Connectors 4 pol SPKN, Binding posts 4 pol SPKN, Binding posts 4 pol SPKN, Binding posts
Cooling Continuously Variable
speed fan
Continuously Variable
speed fan
Continuously Variable
speed fan
Protection Full short circuit, Open circuit,
thermal, Ultrasonic, RF Protection.
Stable Into reactive or
Mismatched loads
Full short circuit, Open circuit,
thermal, Ultrasonic, RF Protection.
Stable Into reactive or
Mismatched loads
Full short circuit, Open circuit,
thermal, Ultrasonic, RF Protection.
Stable Into reactive or
Mismatched loads
Load Protection On/Off muting
DC fault power
Supply shutdown
On/Off muting
DC fault power
Supply shutdown
On/Off muting
DC fault power
Supply shutdown
Operating Voltage 190V-240V 50-60Hz 190V-240V 50-60Hz 190V-240V 50-60Hz
Power Consumption
1/8 power pink noise
stereo @ 4 ohm
5A @ 230V 6A @ 230V 7A @ 230V
Dimensions (h/w/d) 19“/2U 483x417.5x88mm 19“/2U 483x417.5x88mm 19“/2U 483x417.5x88mm
Net weight 21,0 kg 21,3 kg 22,5 kg



4 Channel SA-Amplifiers

Model Name SA-4300 SA-4600 SA-4800
GS1 (EAN) CODE 4260318511056 4260318511063 4260318510844
System Type 4-Channel Class H Amplifier 4-Channel Class H Amplifier 4-Channel Class H Amplifier
Output Power
all channels driven
20Hz - 20 kHz, 0.1 % THD
4 x 450W @ 4Ohm
4 x 300W @ 8Ohm
4 x 700W @ 4Ohm
4 x 600W @ 8Ohm
4 x 900W @ 4Ohm
4 x 800W @ 8Ohm
Distortion < 0,01% < 0,01% < 0,01%
Frequency Response
@1Watt, 8Ohm
20 Hz - 20 KHz +0.1/-0.3db
5Hz-30KHz @ -2.3db points
20 Hz - 20 KHz +0.1/-0.3db
5Hz-30KHz @ -2.3db points
20 Hz - 20 KHz +0.1/-0.3db
5Hz-30KHz @ -2.3db points
Damping Factor
(1kHz and below)
>310@8Ω >310@8Ω >310@8Ω
Signal to Noise Ratio
20Hz -20 kHz
>102db >102db >102db
Input Sensitivity 0,775V 0,775V 0,775V
Front Control Power switch, Gain control Power switch, Gain control Power switch, Gain control
Rear Control Link Switch Link Switch Link Switch
LED Indicators Power, blue
Mute, red
Signal, green
Clip, orange
Power, blue
Mute, red
Signal, green
Clip, orange
Power, blue
Mute, red
Signal, green
Clip, orange
Input Connectors XLR Active balanced
pin1 gnd / pin 2+ / pin3-
XLR Active balanced
pin1 gnd / pin 2+ / pin3-
XLR Active balanced
pin1 gnd / pin 2+ / pin3-
Output Connectors 4 pol SPKN 4 pol SPKN 4 pol SPKN
Cooling Continuously Variable
speed fan
Continuously Variable
speed fan
Continuously Variable
speed fan
Protection Full short circuit, Open circuit,
thermal, Ultrasonic, RF Protection.
Stable Into reactive or
Mismatched loads
Full short circuit, Open circuit,
thermal, Ultrasonic, RF Protection.
Stable Into reactive or
Mismatched loads
Full short circuit, Open circuit,
thermal, Ultrasonic, RF Protection.
Stable Into reactive or
Mismatched loads
Load Protection On/Off muting
DC fault power
Supply shutdown
On/Off muting
DC fault power
Supply shutdown
On/Off muting
DC fault power
Supply shutdown
Operating Voltage 190V-240V 50-60Hz 190V-240V 50-60Hz 190V-240V 50-60Hz
Power Consumption
1/8 power pink noise
stereo @ 4 ohm
6A @ 230V 7A @ 230V 8A @ 230V
Dimensions (h/w/d) 19“/2U 483x417.5x88mm 19“/2U 483x417.5x88mm 19“/2U 483x417.5x88mm
Net weight 22,0 kg 22,3 kg 22,4 kg

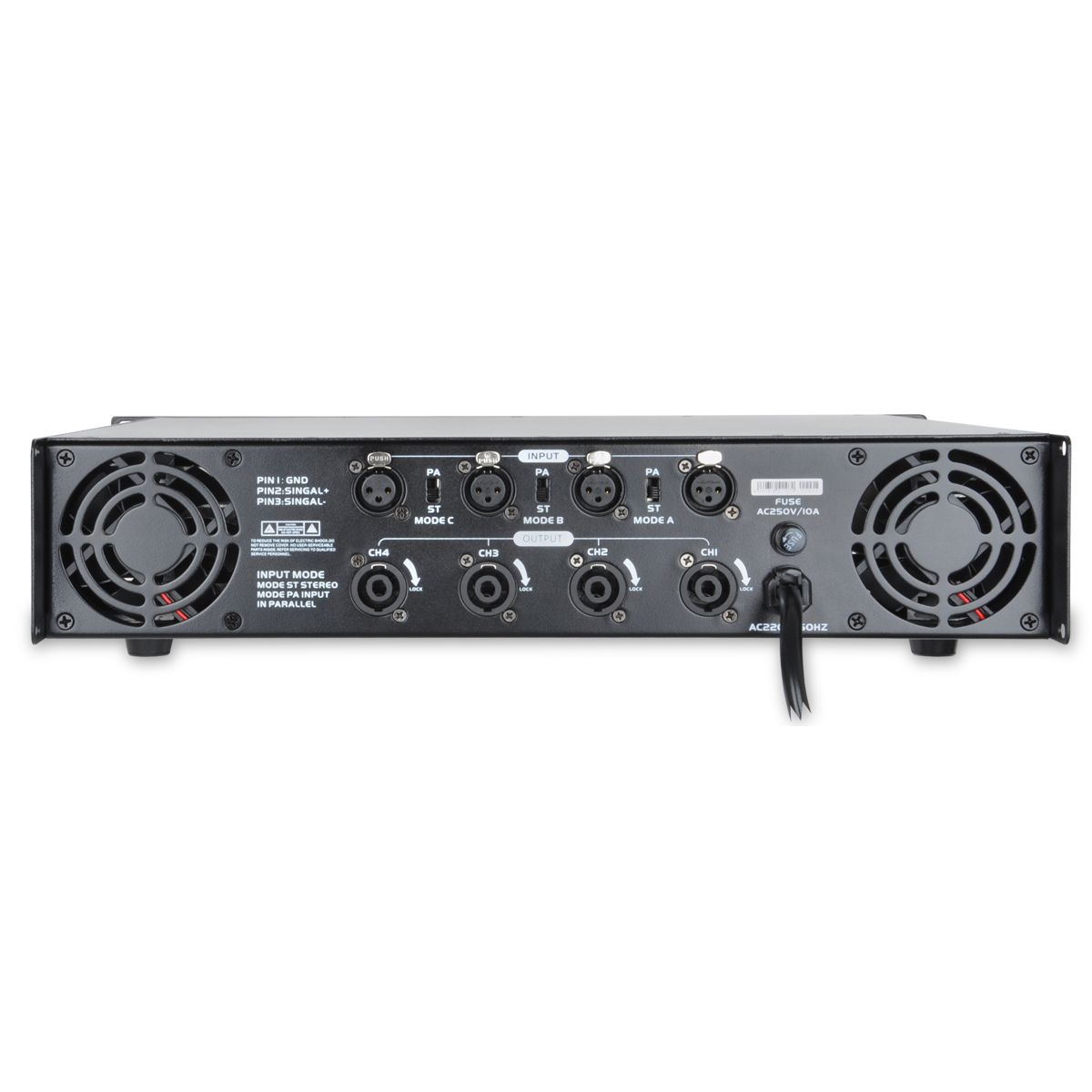

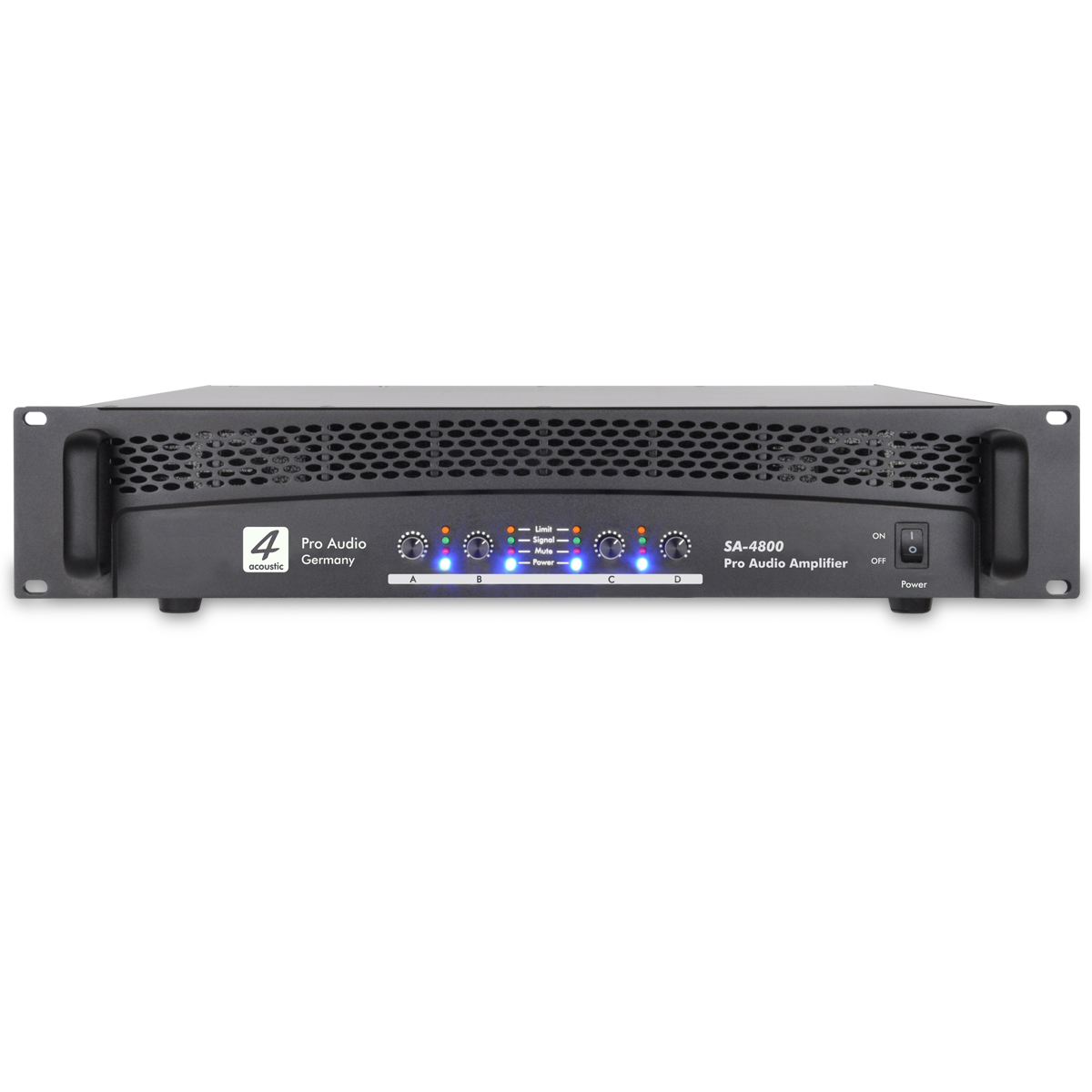

Picture Gallery

Accessories

Order Code GS1 (EAN) Code Description
KA-SP2-05 4260318510967 5 Meter Speaker cable 2x2,5qmm
KA-SP2-10 4260318510974 10 Meter Speaker cable 2x2,5qmm
KA-SP2-15 4260318510981 15 Meter Speaker cable 2x2,5qmm
KA-SP2-20 4260318510998 20 Meter Speaker cable 2x2,5qmm
