PCS-11X Subwoofer Series
PCS-11X Subwoofer Series

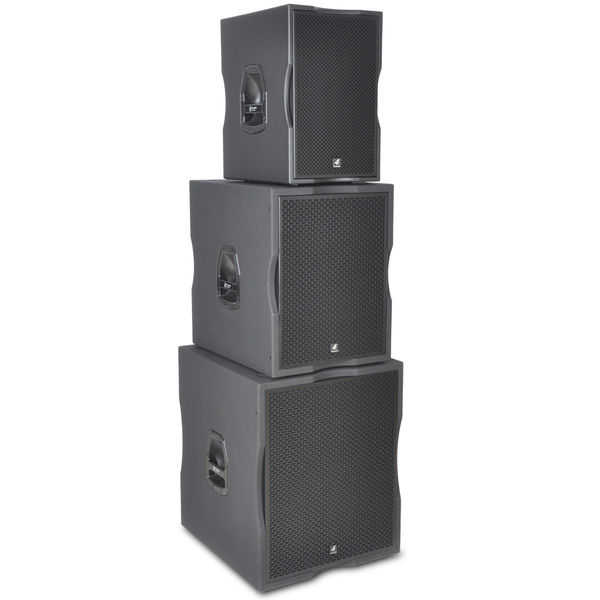

The PCS-11XB Subwoofer range enriches our series of premium subwoofer systems with two different versions of 12”, 15” and 18” models. The BQ models are designed for fixed installation while the B models are ready made for touring. In combination with our new developed SQ series Amplifier these subwoofers offer you high performance, low distortions and the right punch for all your audio performances.
PCS-112B GS1 (EAN) CODE: 4260318510387
PCS-112BQ GS1 (EAN) CODE: 4260318512060
PCS-115B GS1 (EAN) CODE: 4260318510394
PCS-115BQ GS1 (EAN) CODE: 4260318512077
PCS-118B GS1 (EAN) CODE: 4260318510400
PCS-118BQ GS1 (EAN) CODE: 4260318511087
| Model Name | PCS-112B | PCS-112BQ | PCS-115B | PCS-115BQ | PCS-118B | PCS-118BQ |
|---|---|---|---|---|---|---|
| GS1 (EAN) CODE | 4260318510387 | 4260318512060 | 4260318510394 | 4260318512077 | 4260318510400 | 4260318511087 |
| System Type | 12“ Subwoofer | 12“ Subwoofer | 15“ Subwoofer | 15“ Subwoofer | 18“ Subwoofer | 18“ Subwoofer |
| Power Rating | 650 W AES 1300 W program 2600 W peak |
650 W AES 1300 W program 2600 W peak |
800 W AES 1600 W program 3200 W peak |
800 W AES 1600 W program 3200 W peak |
1500 W AES 3000 W program 6000 W peak |
1500 W AES 3000 W program 6000 W peak |
| Frequency Range (+/- 3 dB) | 42Hz - 180 Hz | 42Hz - 180 Hz | 39 Hz - 150 Hz | 39 Hz - 150 Hz | 38 Hz - 120 Hz | 38 Hz - 120 Hz |
| Sensitivity | 95 dB 1w/1m | 95 dB 1w/1m | 97 dB 1w/1m | 97 dB 1w/1m | 100 dB 1w/1m | 100 dB 1w/1m |
| Maximum SPL | 127 dB | 127 dB | 131 dB | 131 dB | 136 dB | 136 dB |
| Chassis | STG-12NB-A 650W AES 4“ voice coil |
STG-12NB-A 650W AES 4“ voice coil |
STG-15NB-A 800W AES 4“ voice coil |
STG-15FB-S 800W AES 4“ voice coil |
STG-18NB-L 1500W AES 4“ voice coil |
STG-18NB-L 1500W AES 4“ voice coil |
| Nominal Impedance | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm |
| Input Connectors | 2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
| Housing | Birch Multiplex | Birch Multiplex | Birch Multiplex | Birch Multiplex | Birch Multiplex | Birch Multiplex |
| Suspension/Mounting | Top mounted M20 threaded top hat |
Top mounted M20 threaded top hat |
Top mounted M20 threaded top hat |
Top mounted M20 threaded top hat |
Top mounted M20 threaded top hat |
Top mounted M20 threaded top hat |
| Coating | anti-scratch Polyurethane coating |
anti-scratch Polyurethane coating |
anti-scratch Polyurethane coating |
anti-scratch Polyurethane coating |
anti-scratch Polyurethane coating |
anti-scratch Polyurethane coating |
| Dimensions (h/w/d) | 530x350x450 mm | 600x470x600 mm | 695x570x628 mm | 695x570x600 mm | 600x470x600 mm | 695x570x628 mm |
| Net weight | 24,0 Kg | 25,0 Kg | 36,0 Kg | 36,5 Kg | 44,0 Kg | 42,0 Kg |
