PCS-110L

PCS-110L  1x10“/2x1“ 2-Way Line Array Module

PCS-110L 1x10“/2x1“ Line Array Module

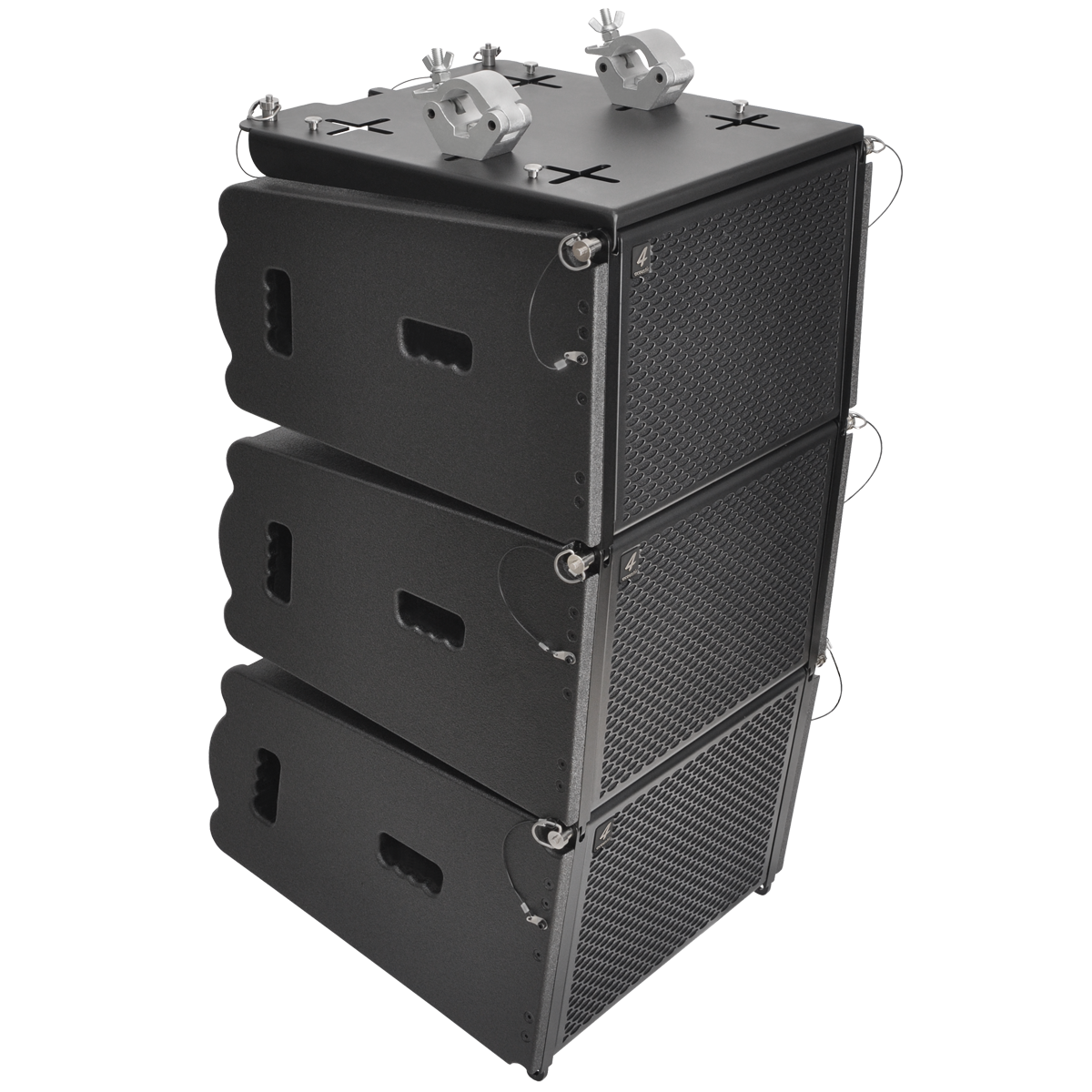

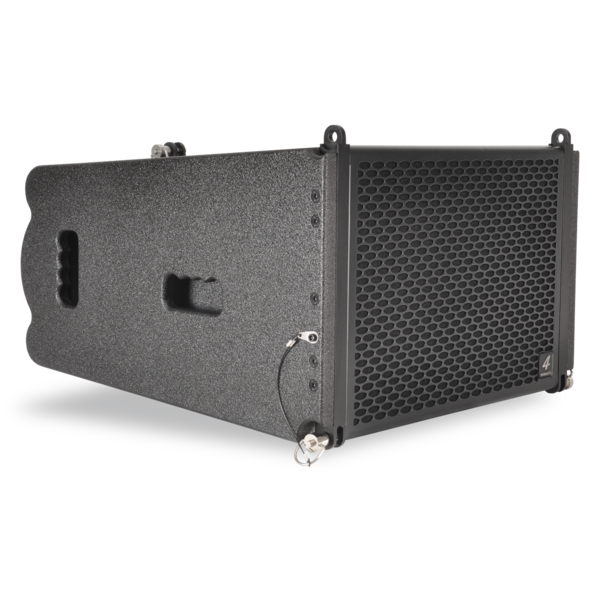

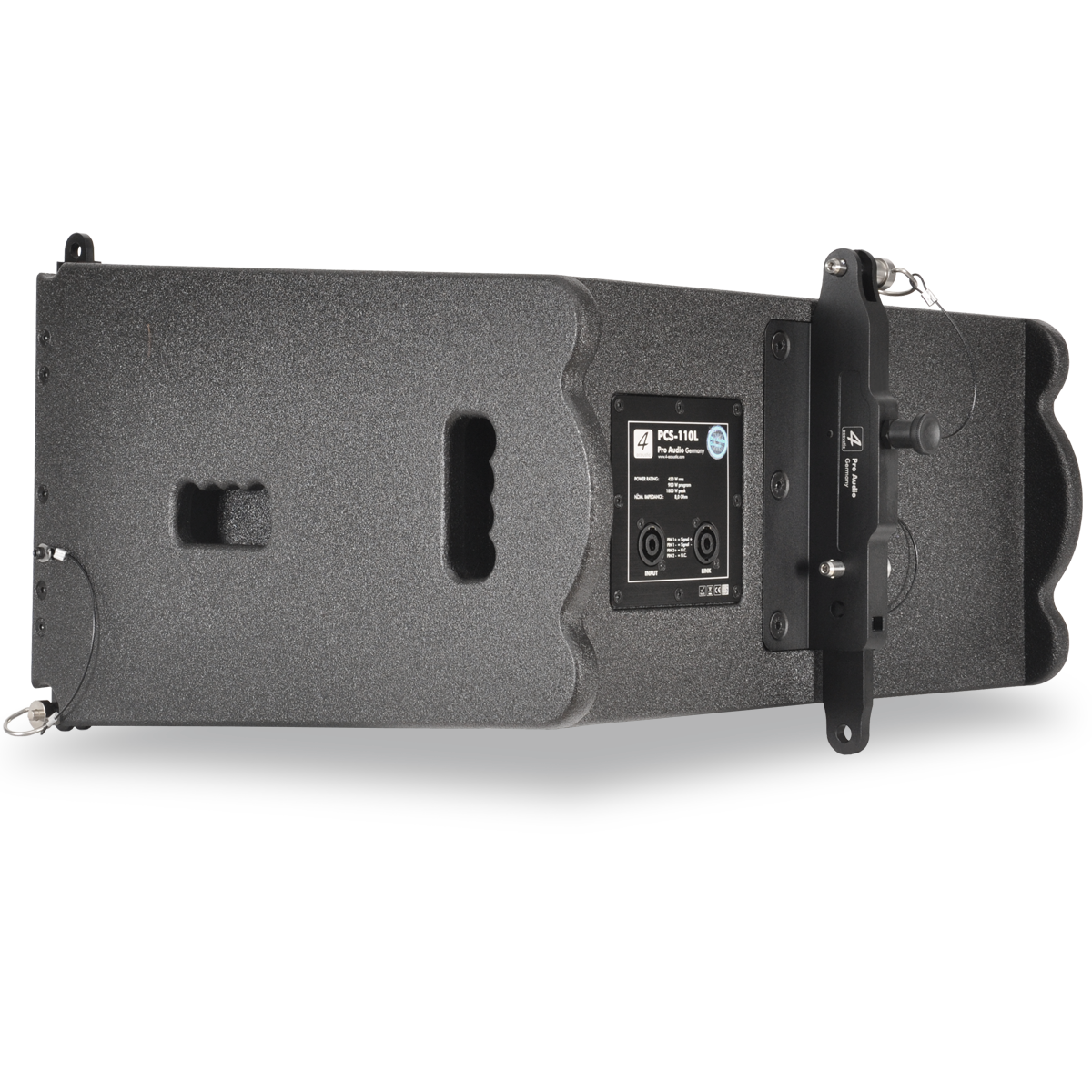

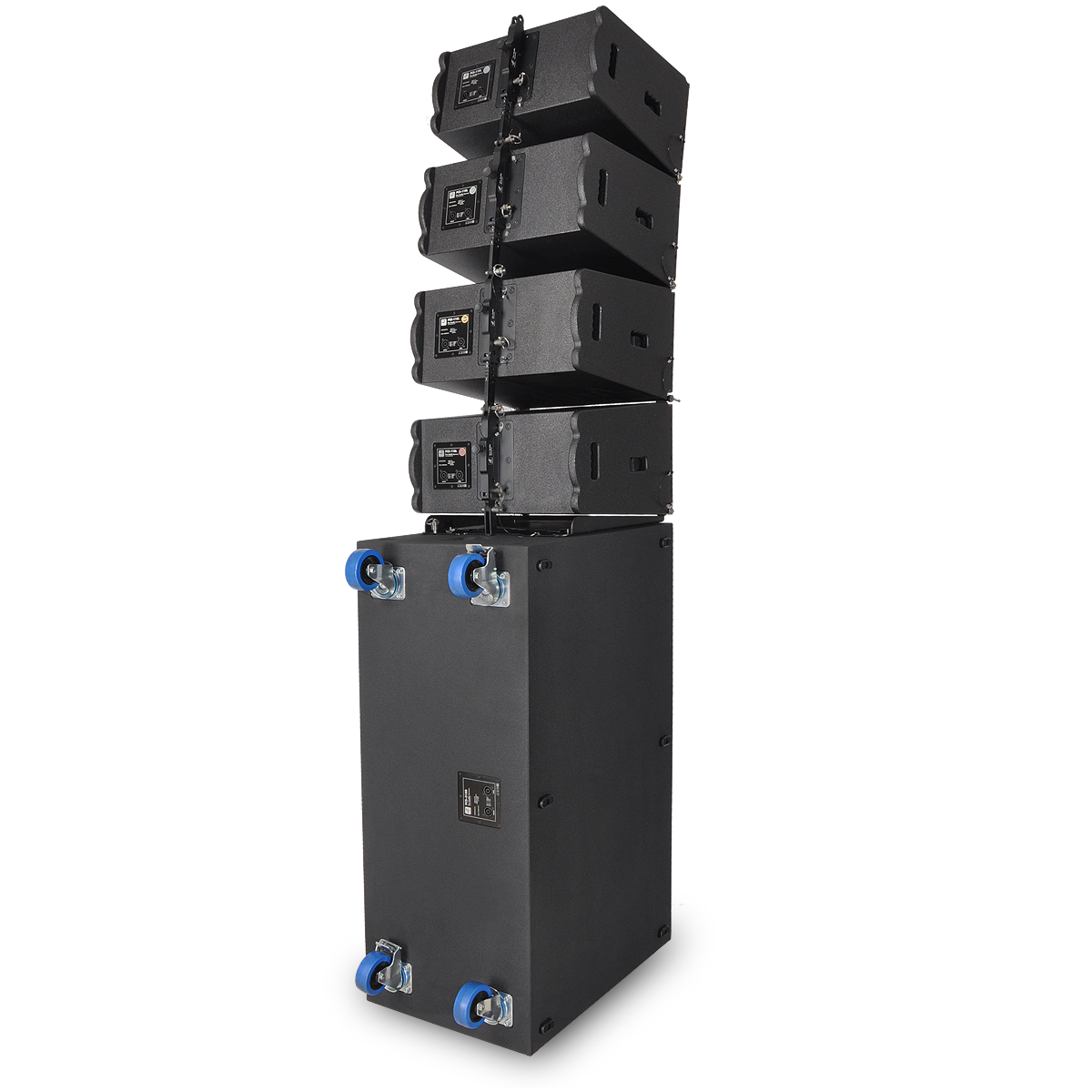

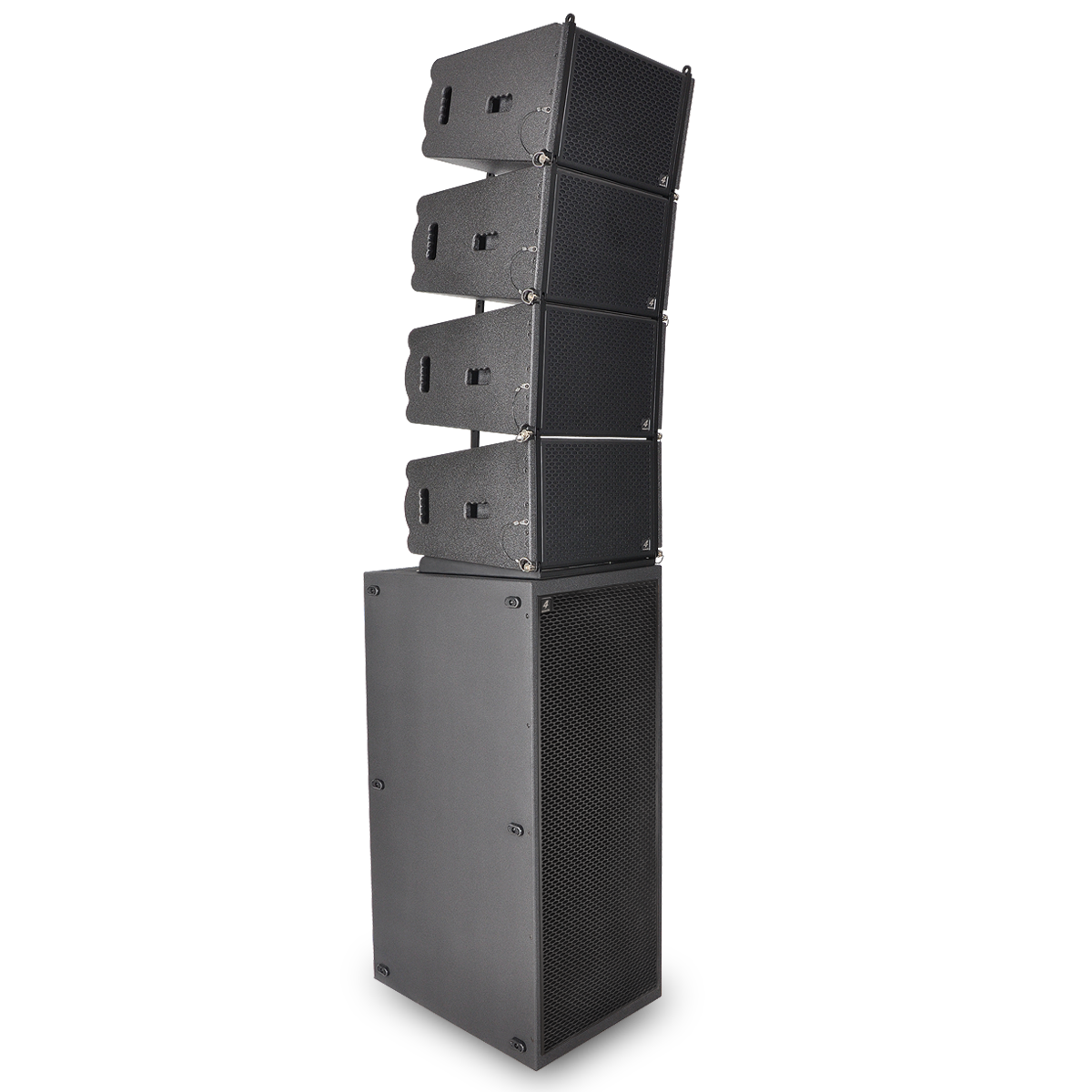

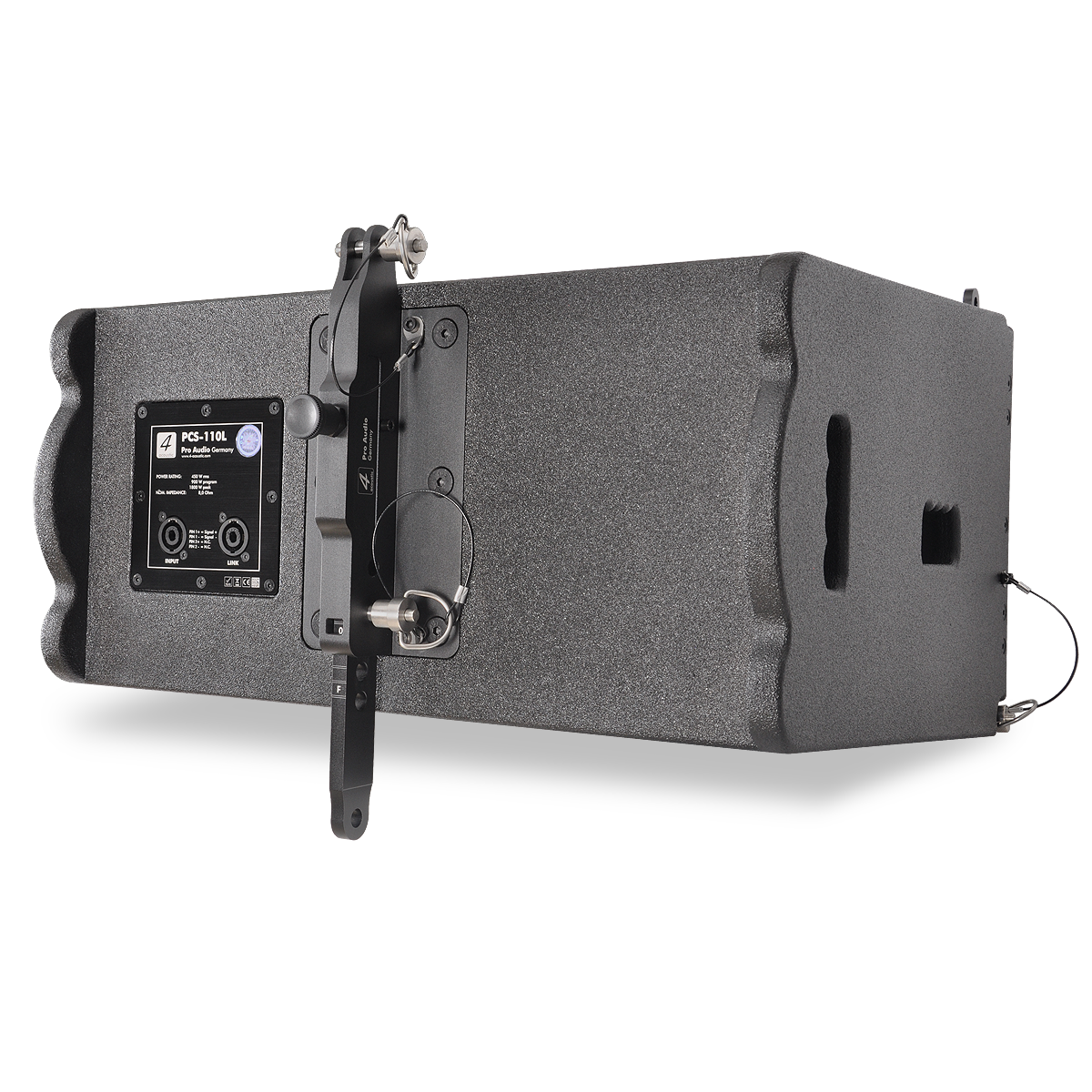

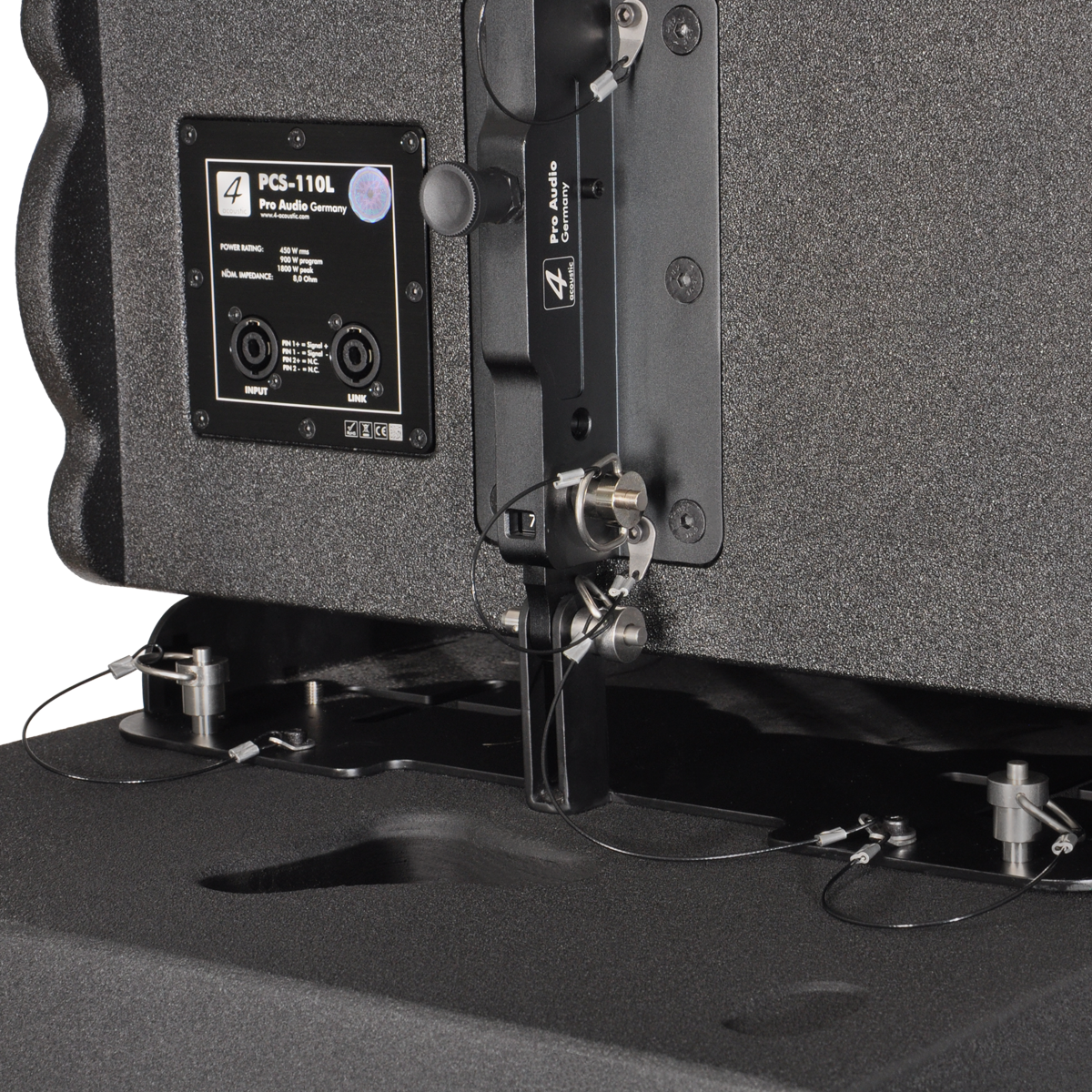

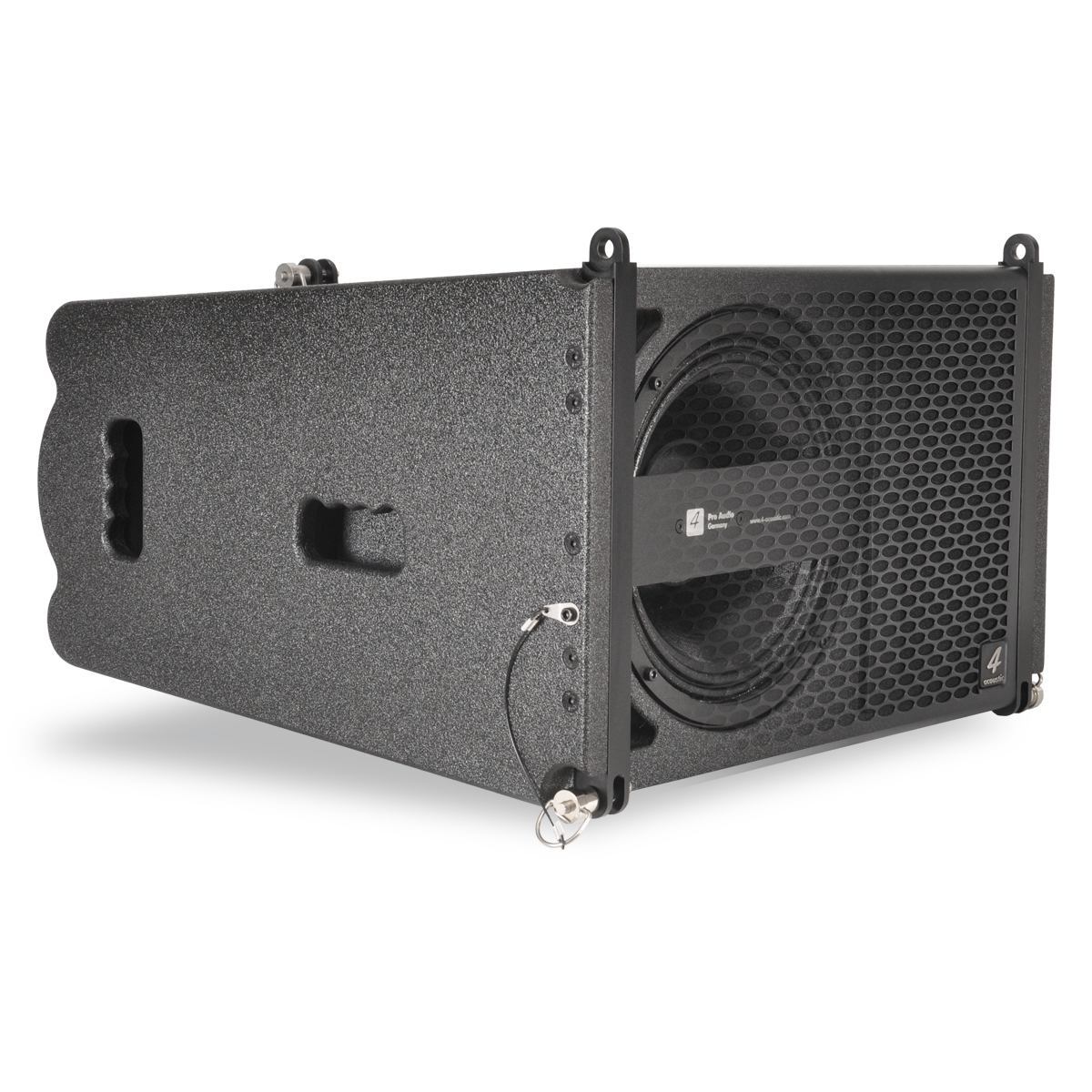

PCS-110L is a compact size, high power speaker to use in vertical line array columns up to 24 units per flight frame. The mechanical design offers a vertical adjustment from 0° to 10° with a resolution of 1,0° per step. For an easy setup of the vertical angel PCS-110L is equipped with a simple but clever mechanical brake. The entire flyware is made of high quality, extreme resilient aluminum components. This two way passive system is comprised of one 10” Neodymium woofer and two right mounted 1” drivers connected to an accurate calculated wave guide. The maximum SPL of a single unit is 133 dB. The coverage pattern is 10°x120° (v x h). The shock-proof and wheather-resistant housing is made of best quality Baltic multiplex wood and covered with a strong, black water-resistant Polyurea coating. Four integrated handles will support an easy transport and installation. The front side of the speaker is protected by a 1,5 mm strong, black metal grill covered with black color acoustic foam. The construction of the two different available flight frames allows multi-functional hanging and standing installation.

PCS-110L GS1 (EAN) CODE: 4260318510592

Technical Details

Model Name PCS-110L
GS1 (EAN) CODE 4260318510592
System Type 1x10“/2x1“ 2_Way Line Array Module
Power Rating 450 W AES
900 W program
1800 W peak
Frequency Range (+/- 3 dB) 75 Hz - 20 kHz
Coverage Pattern (hxv) 120°x10°
Sensitivity 103 dB 1w/1m
Maximum SPL 133 dB
Woofer 1 x STG-10L 350W AES, 3“ voice coil, neodymium
Driver 2 x STG-45NB 50W AES, 1,75“ voice coil, neodymium
Nominal Impedance 16 Ohm
Input Connectors 2 x Neutrik NL4 Socket
parallel 1+/1-
Housing Birch Multiplex
Coating Water-resistant Polyurea coating
Dimensions (h/w/d) 319x500x515 mm
Net weight 21,5 kg

Accessories

Order Code GS1 (EAN) Code Description

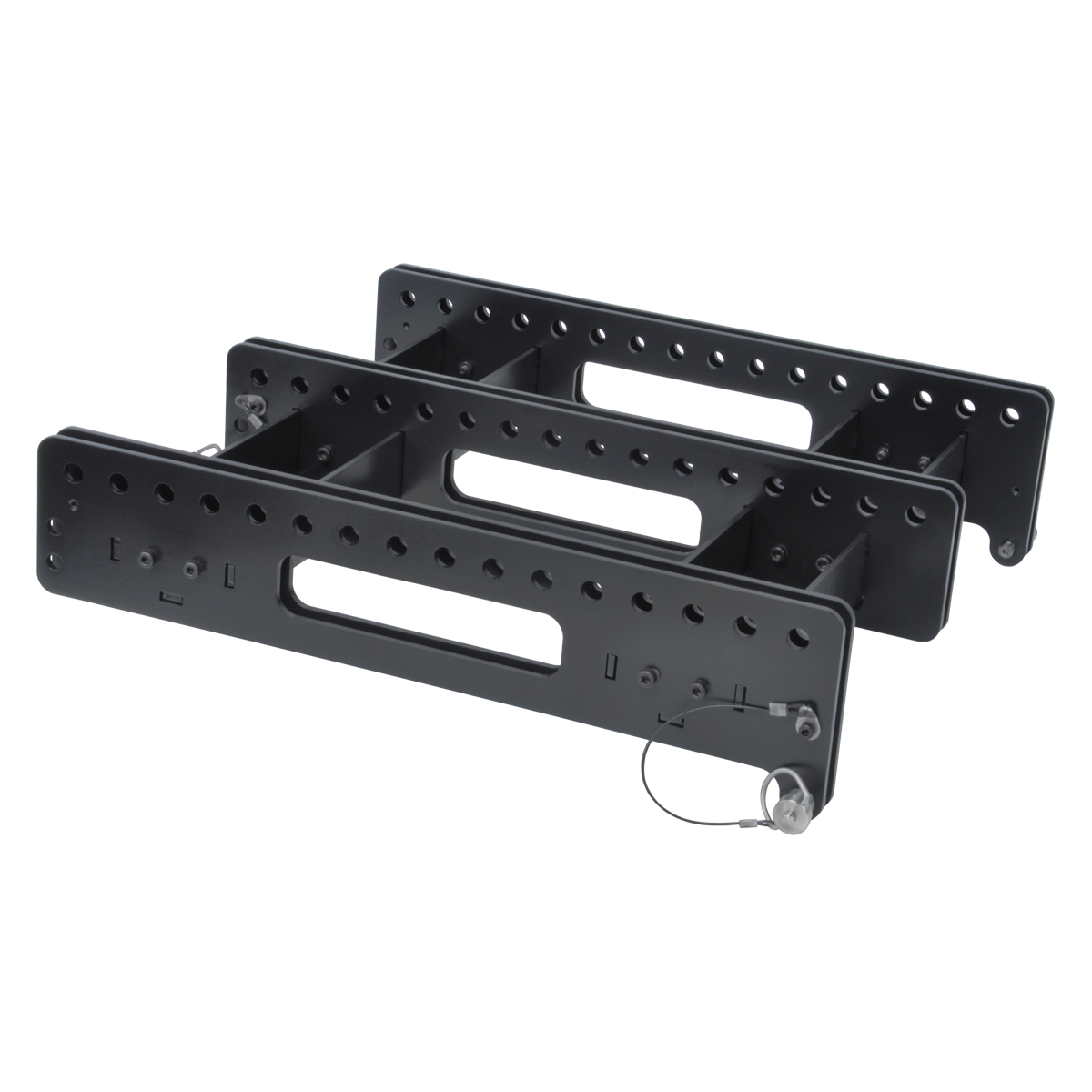

PCS-110L-FFR 4260318510608 Flight Frame for PCS-110L or PCS-118LB
PCS-110L-FFR-L 4260318510615 Flight Frame Light for PCS-110L

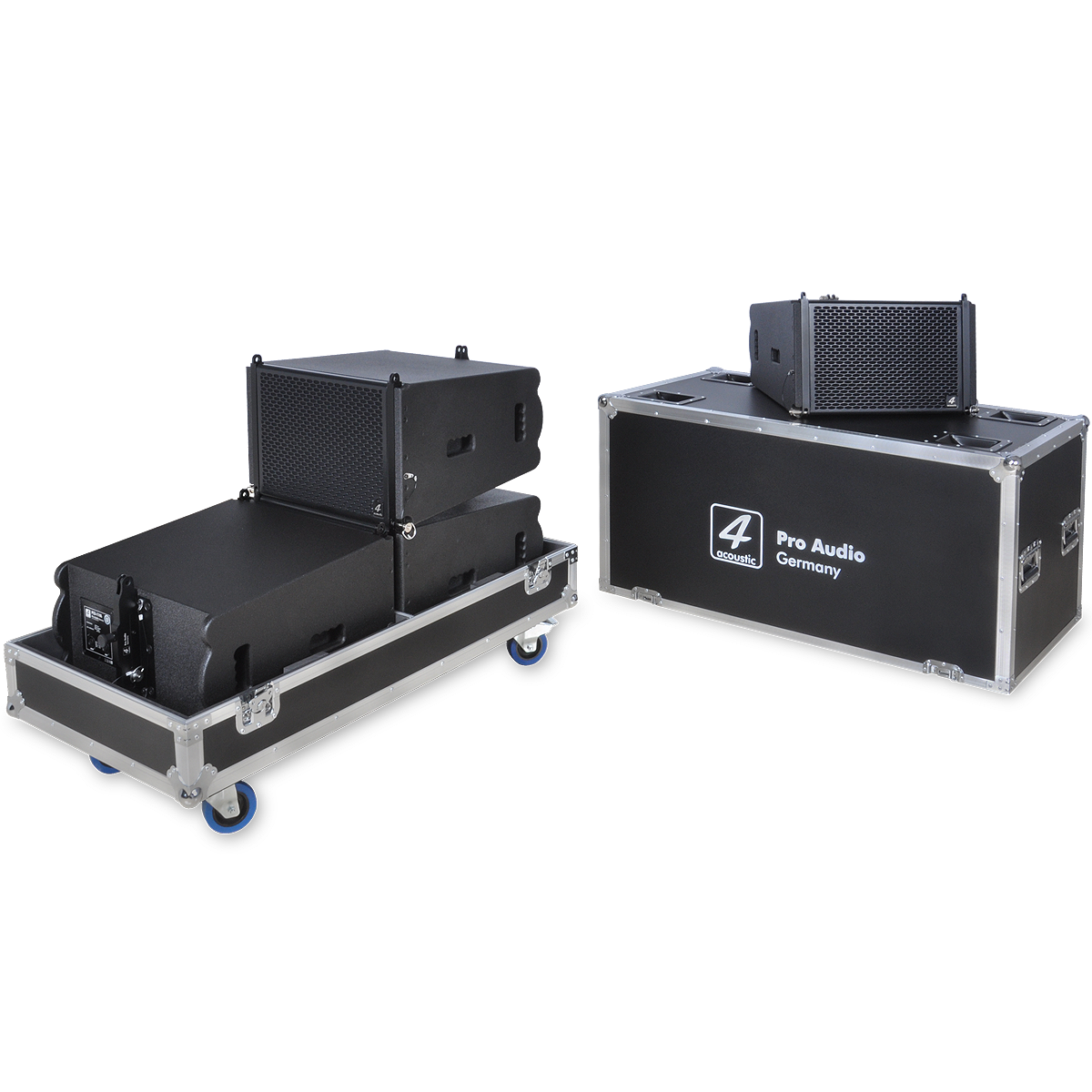

PCS-110L-FC 4260318511230 Flight Case with wheels for 4 pcs. PCS-110L modules
KA-SP2-0.5 4260318510929 0,5 Meter speaker cable 2x2,5qmm
KA-SP2-05 4260318510967 5 Meter Speaker cable 2x2,5qmm
KA-SP2-10 4260318510974 10 Meter Speaker cable 2x2,5qmm
KA-SP2-15 4260318510981 15 Meter Speaker cable 2x2,5qmm
KA-SP2-20 4260318510998 20 Meter Speaker cable 2x2,5qmm
