HCS-112CM Professional vocal stage monitor
HCS-112CM Professional vocal stage monitor

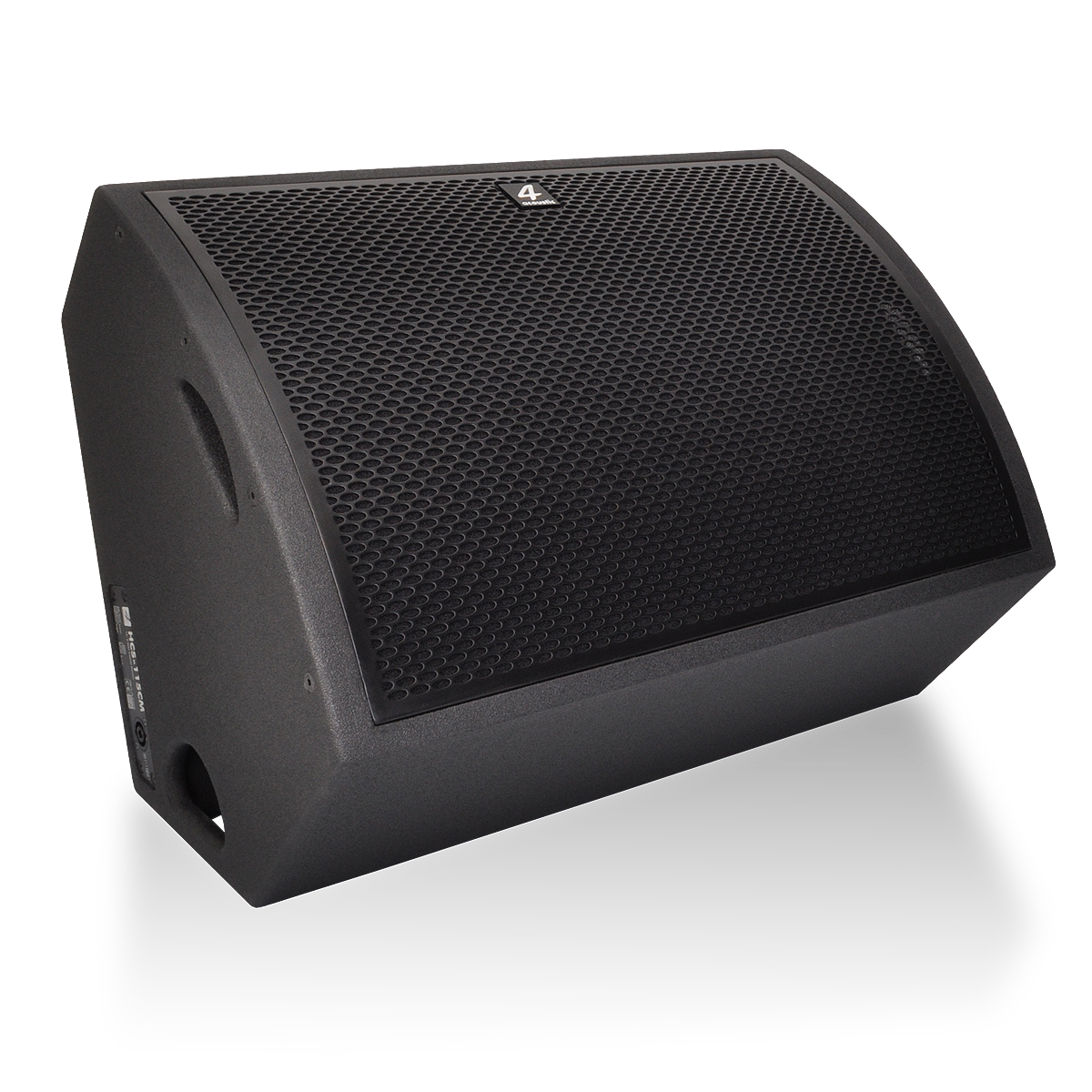

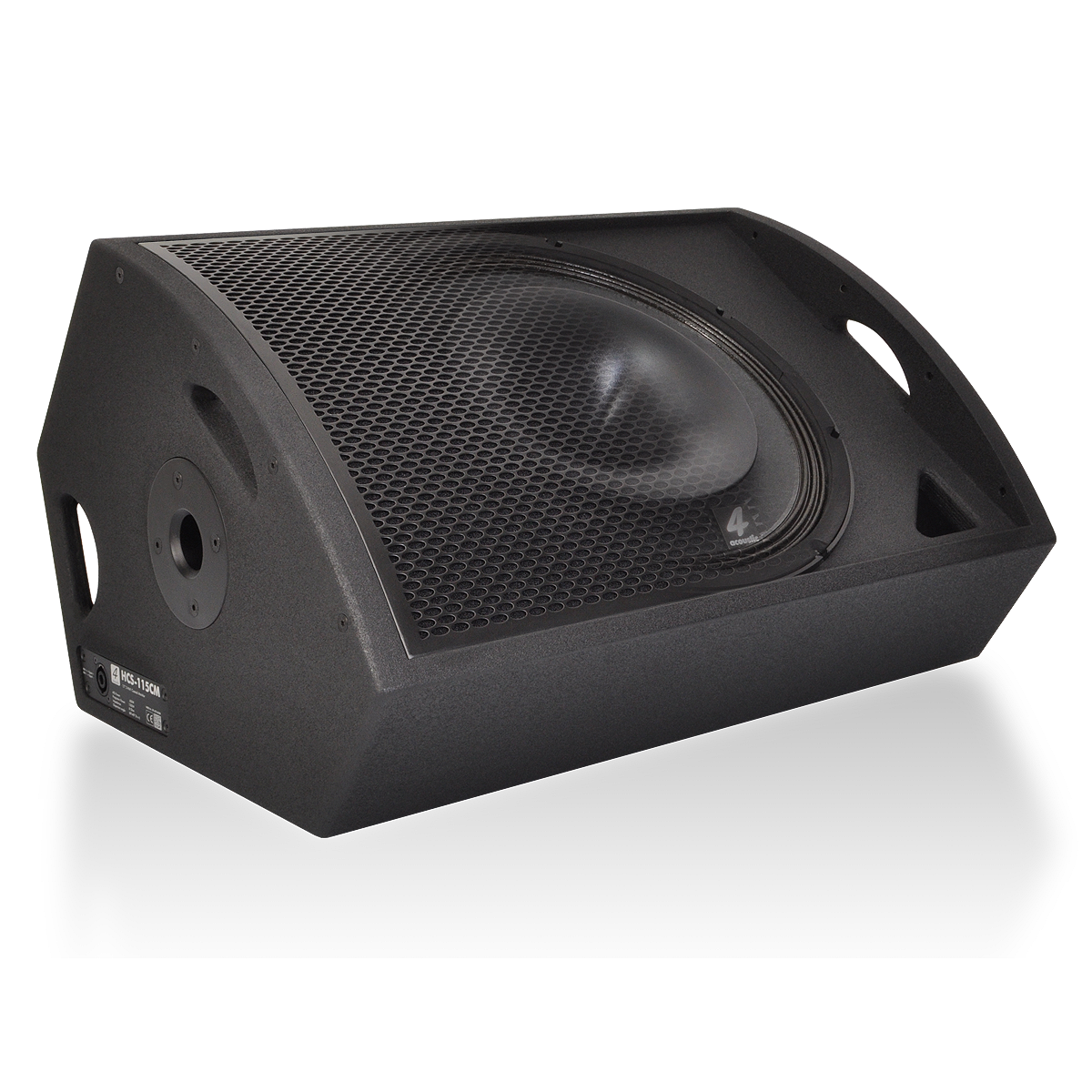

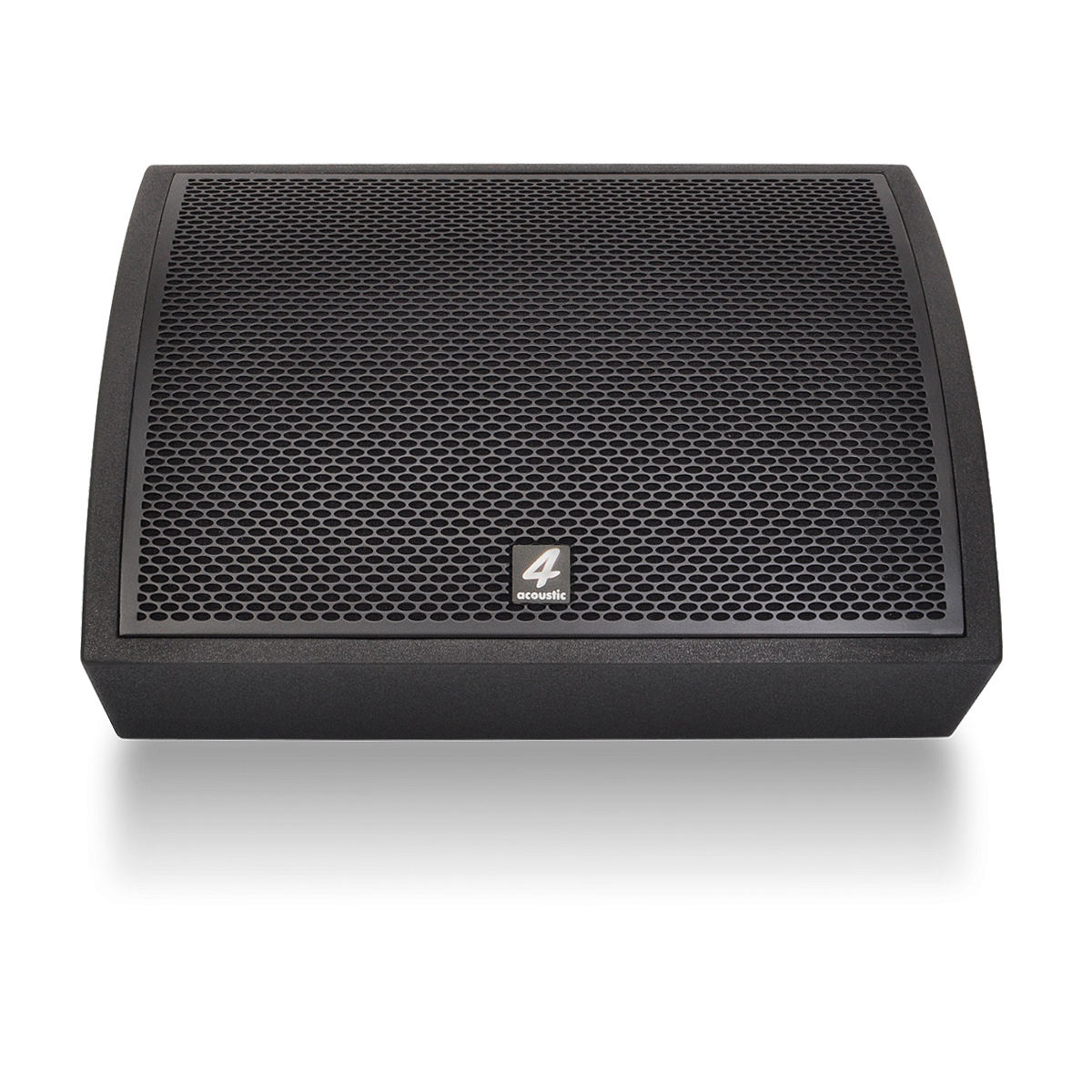

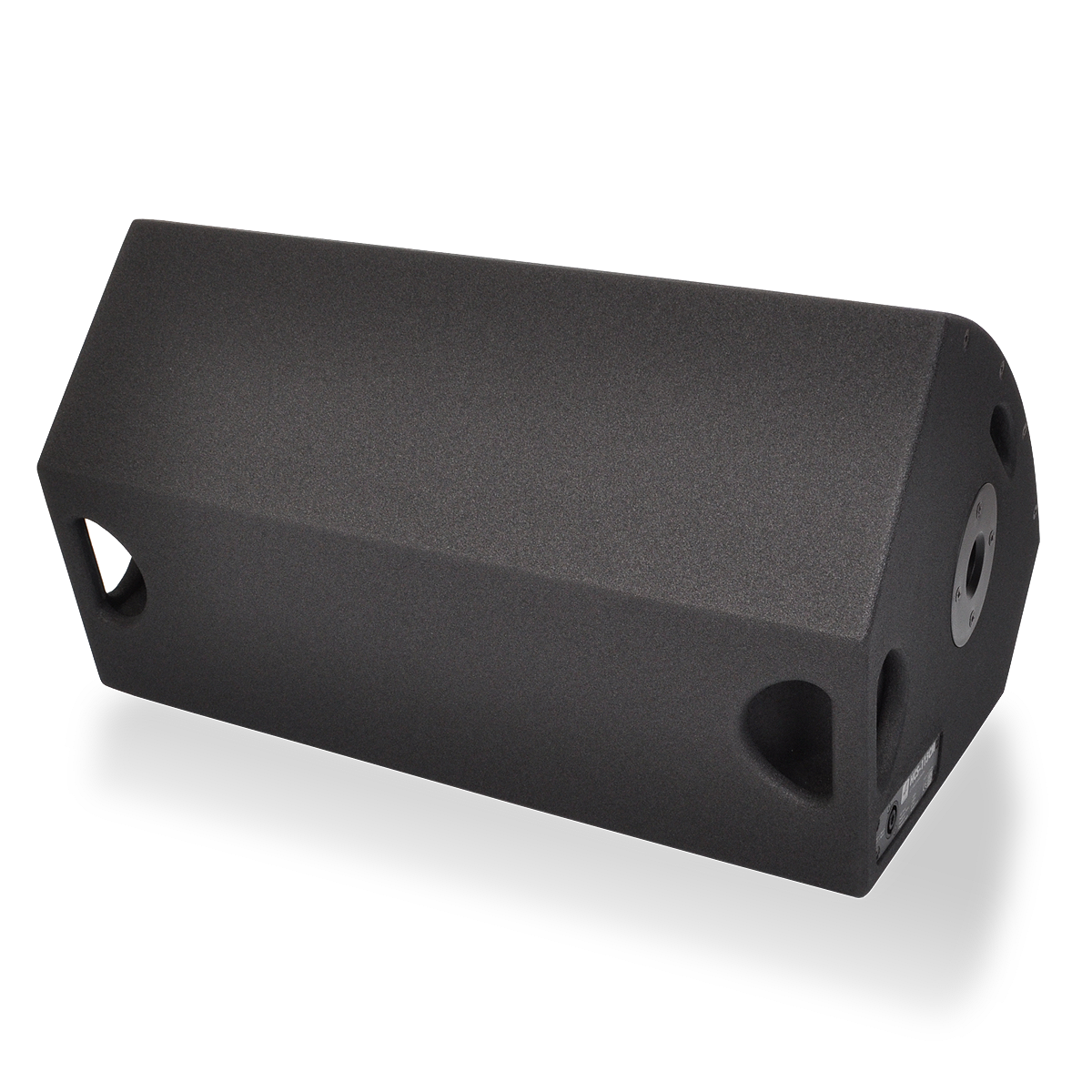

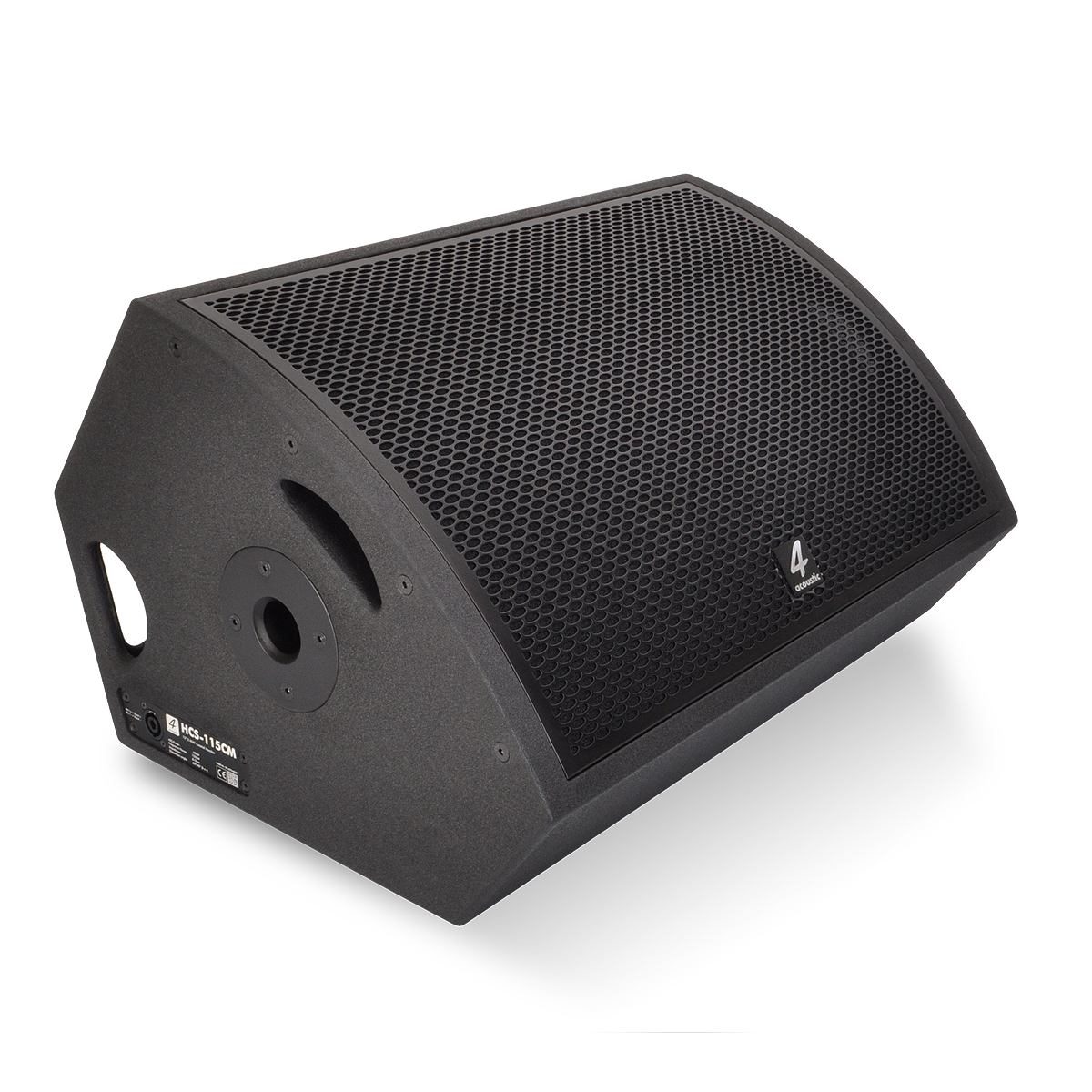

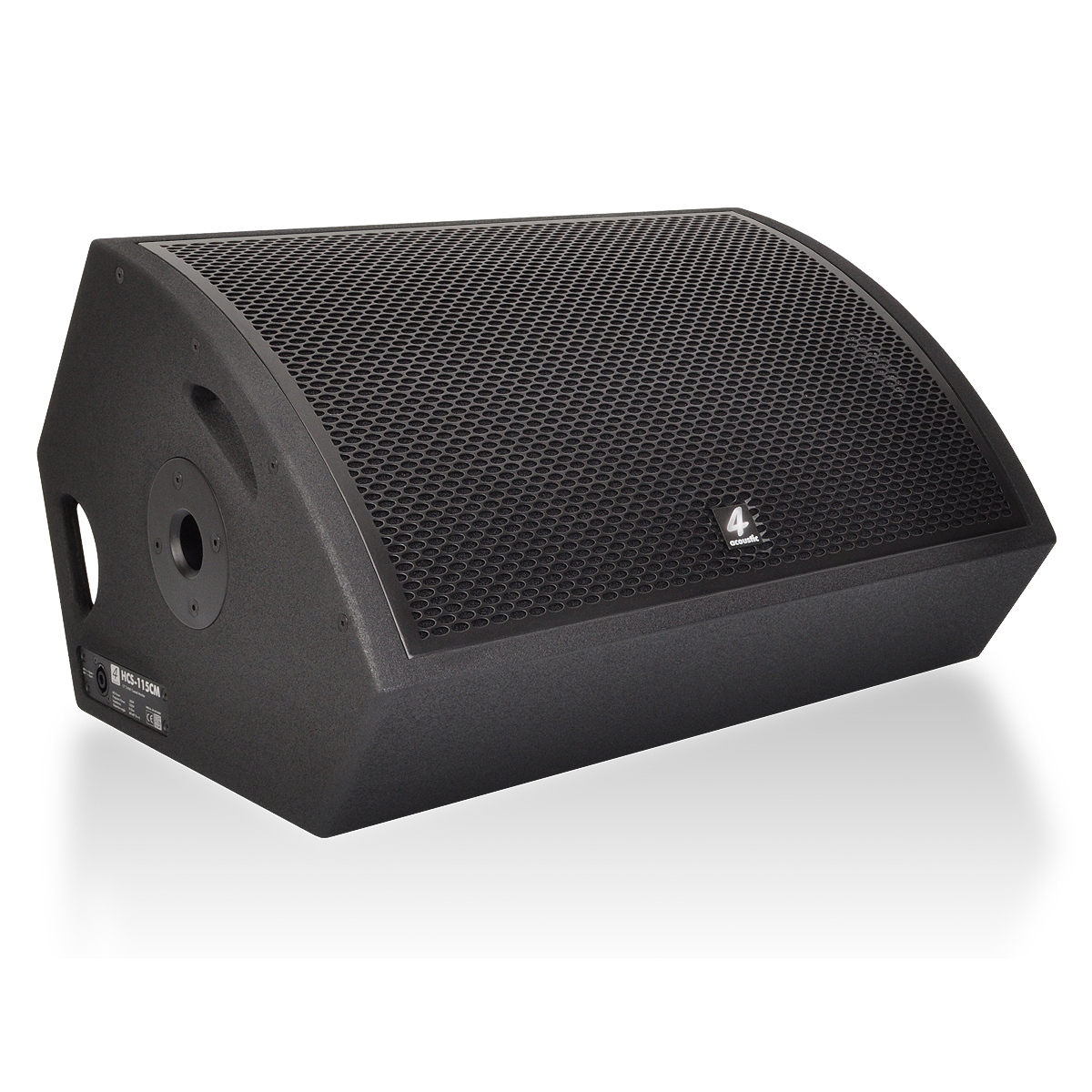

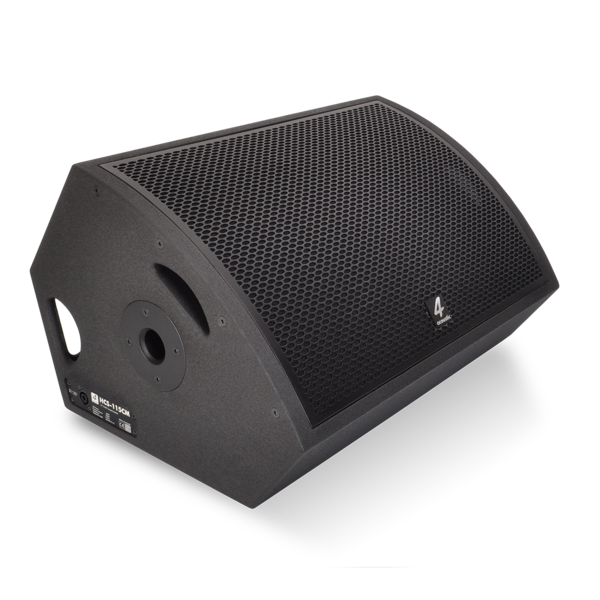

HCS-112CM is a professional stage monitor equipped with high performance source point coaxial speakers. The coverage pattern of the integrated horn is 60° x 40°. The crossover design is adjusted as stage monitor and provides strong and clear vocals. The neodymium compression driver is protected by well calculated driver protection. The housing construction supports the usage on stage and offers handles at the back and front side. A speaker NL4 socket is installed at the left and right side of the housing so the wiring or connecting of a second monitor can be done from any side.
HCS-112CM GS1 (EAN) CODE: 4260318510134
Technical Details
| Model Name | HCS-112CM |
|---|---|
| GS1 (EAN) CODE | 4260318510134 |
| System Type | 12“ source point coaxial monitor |
| Power Rating | 500 W AES 1000 W program 2000 W peak |
| Frequency Range (+/- 3 dB) | 49 Hz - 20 kHz |
| Coverage Pattern (hxv) | 60°x40° |
| Sensitivity | 100 dB 1w/1m |
| Maximum SPL | 130 dB |

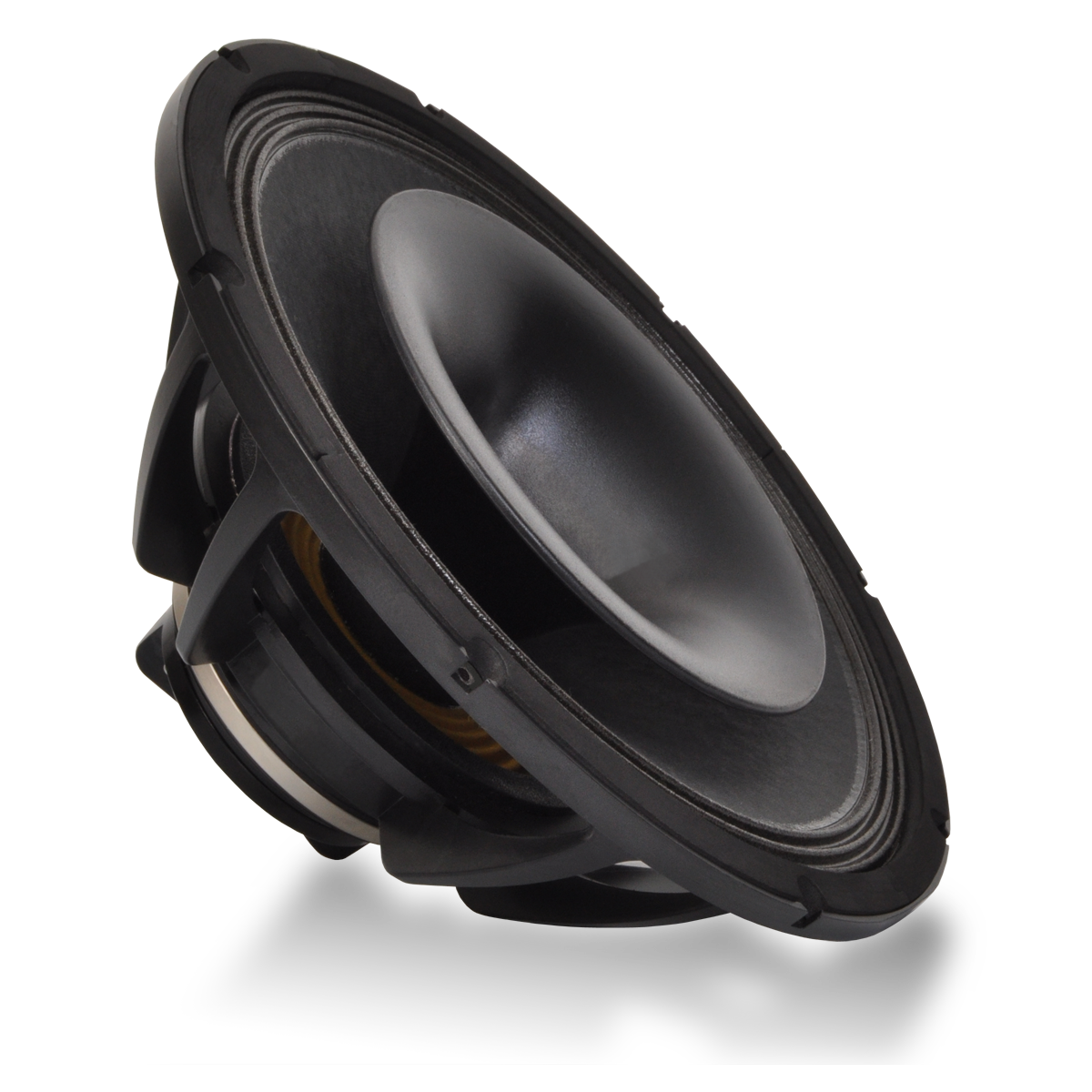

| Chassis | STG-12CM coaxial, neodymium |
| Nominal Impedance | 8 Ohm |
| Input Connectors | 2 x Neutrik NL4 Socket parallel 1+/1- |
| Housing | Birch Multiplex |
| Suspension/Mounting | 35 mm pole socket |
| Coating | anti-scratch Polyurethane coating |
| Dimensions (h/w/d) | 310x500x399 mm |
| Net weight | 15,0 Kg |
Accessories
| Order Code | GS1 (EAN) Code | Description |
|---|---|---|
| HCS-112CM-FC | 4260318511292 | Flight Case with wheels for 2 pcs. HCS-112CM |
| STG-SPST | 4260318511032 | Tripot Speaker Stand |
| KA-SP2-05 | 4260318510967 | 5 Meter Speaker cable 2x2,5qmm |
| KA-SP2-10 | 4260318510974 | 10 Meter Speaker cable 2x2,5qmm |
| KA-SP2-15 | 4260318510981 | 15 Meter Speaker cable 2x2,5qmm |
| KA-SP2-20 | 4260318510998 | 20 Meter Speaker cable 2x2,5qmm |
| SA-2100 | 4260318510837 | 2 Channel Class H Amplifier 2 x 1000 W @ 8 ohm |
