HCS-105C

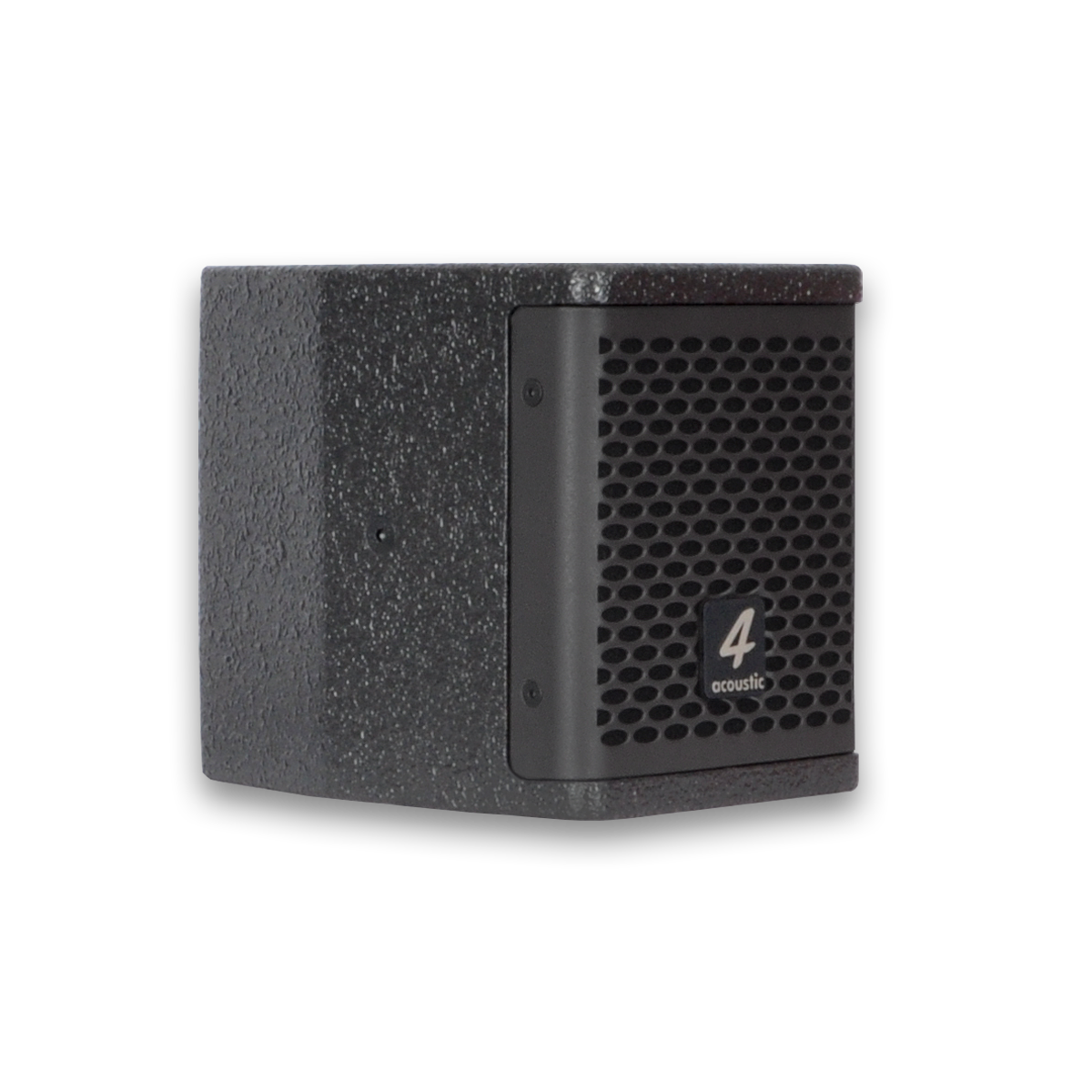

HCS-105C Coaxial Source Point Speaker

HCS-105C Coaxial Source Point Speaker

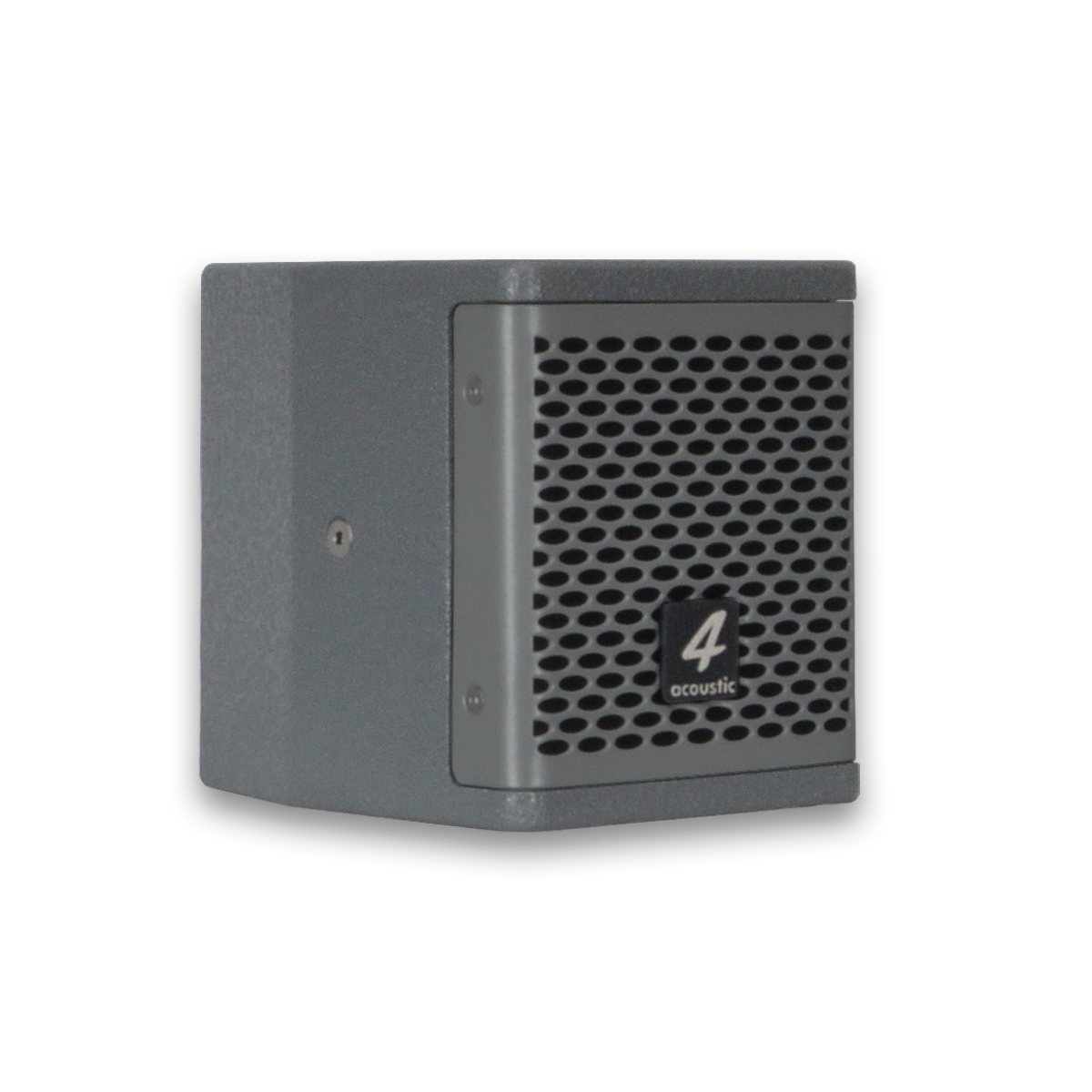

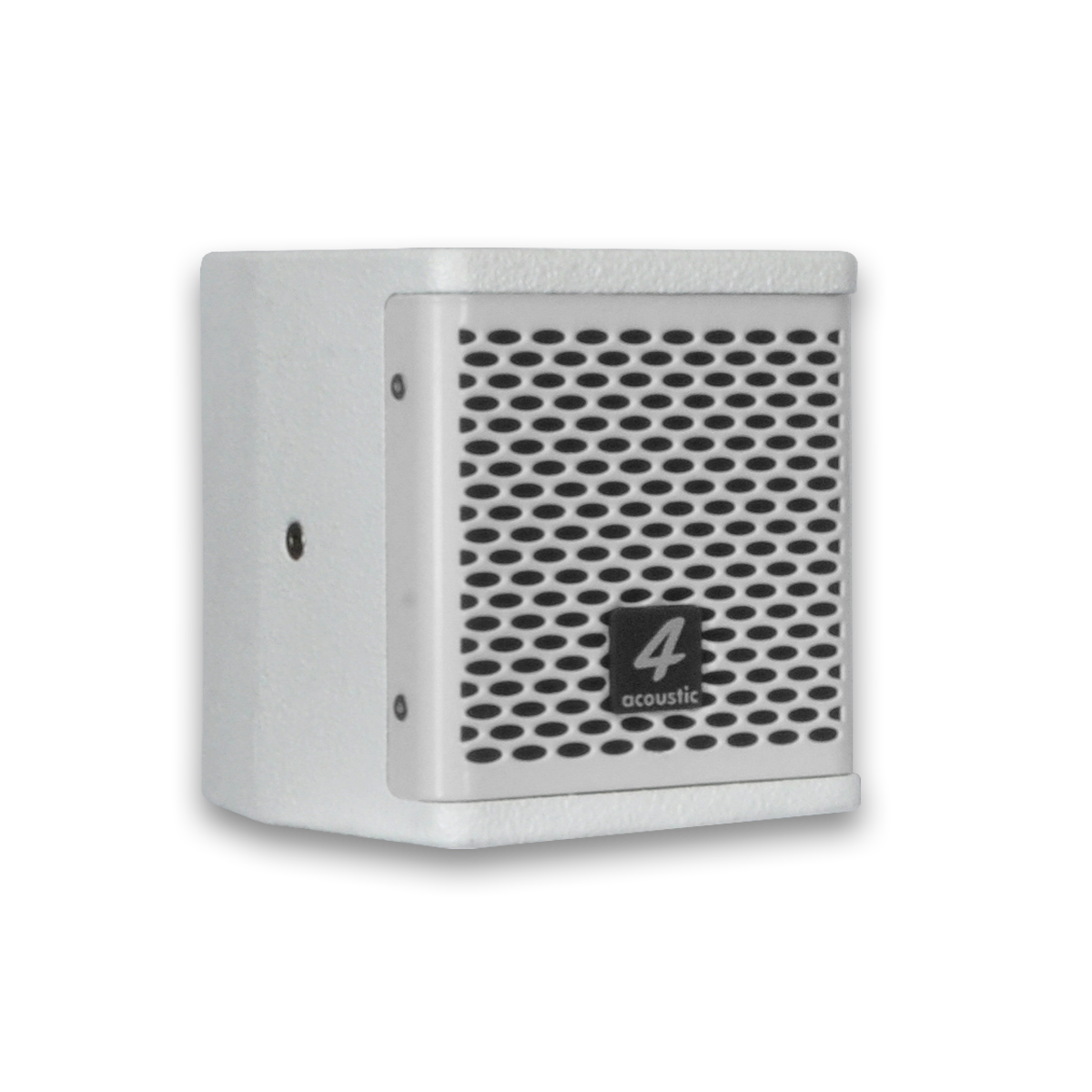

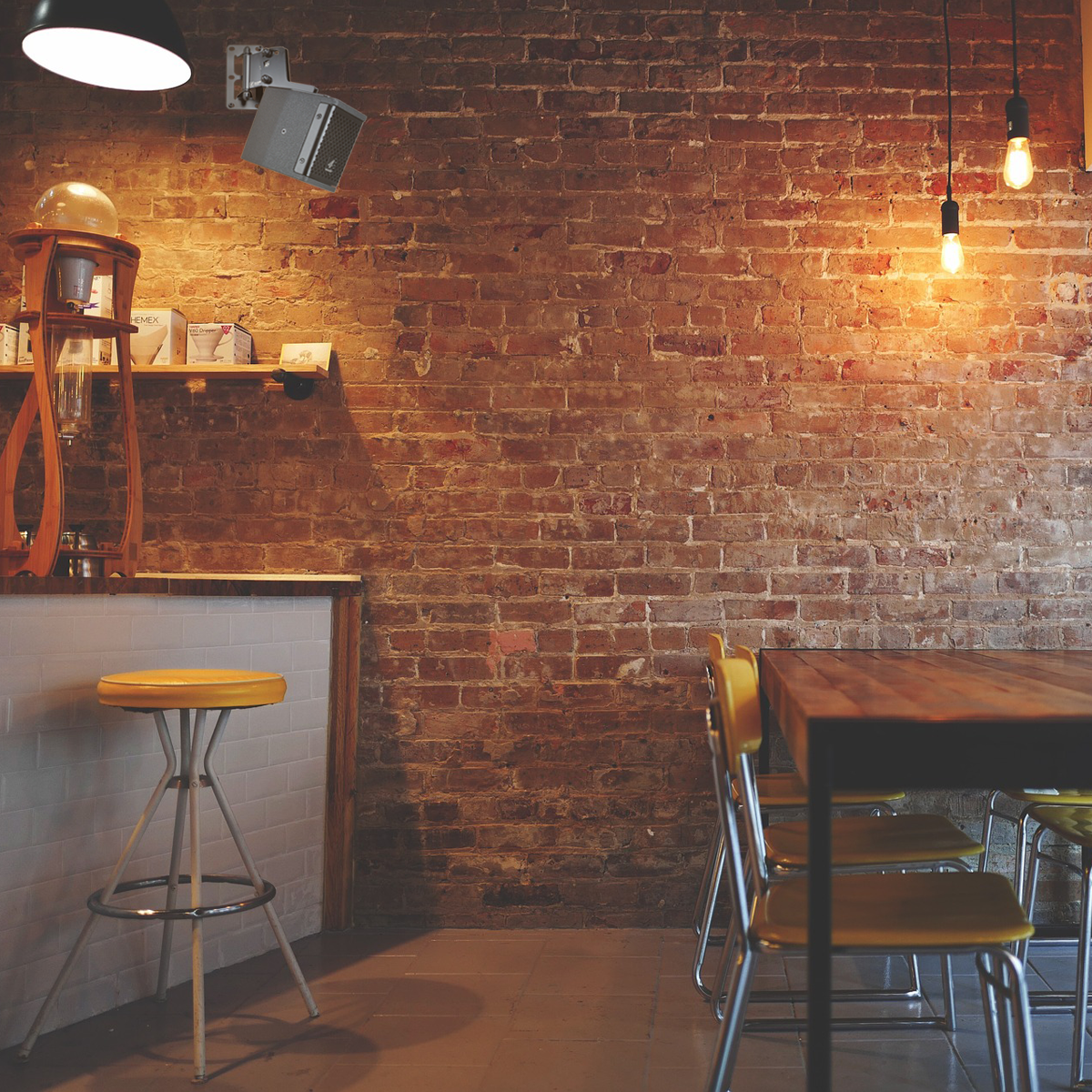

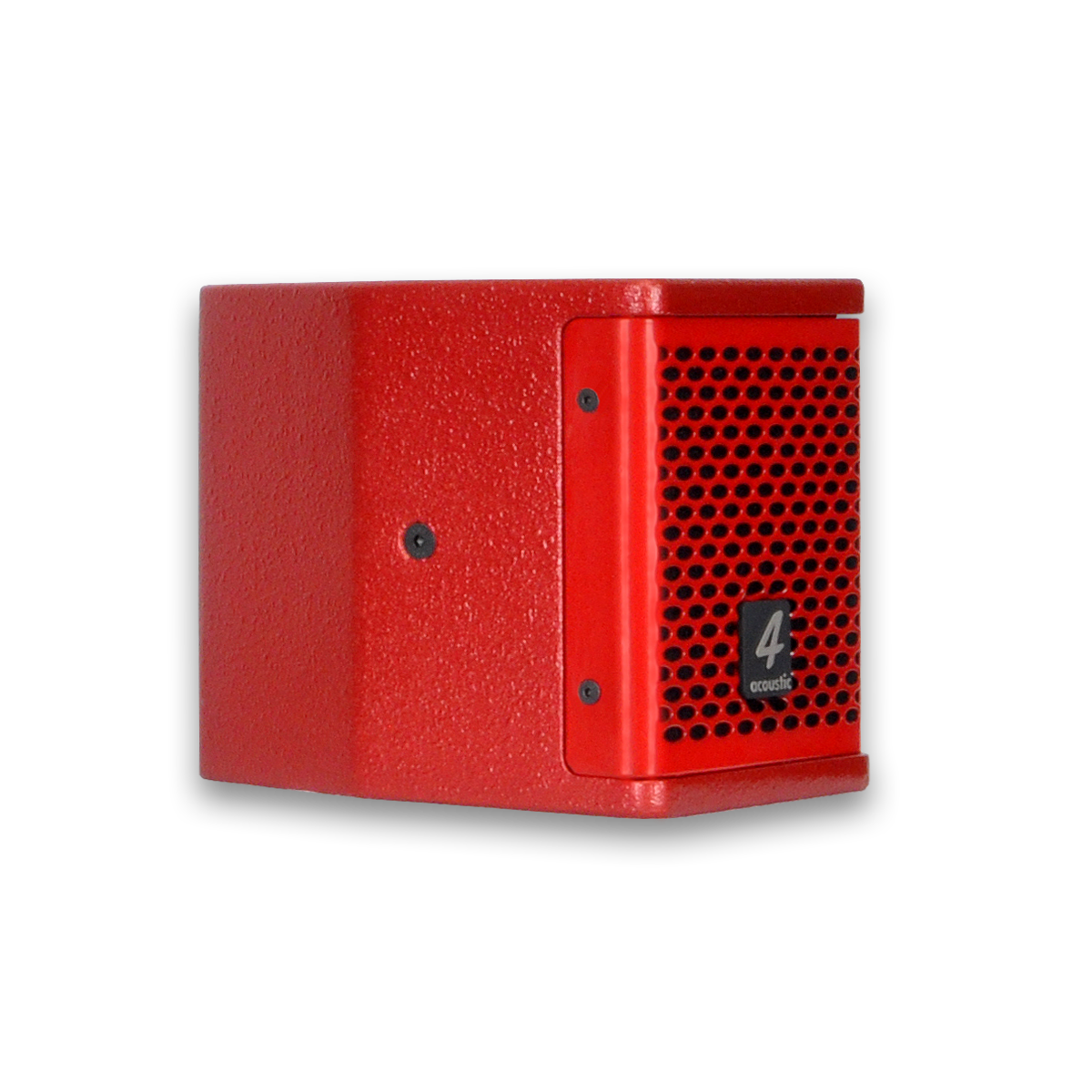

HCS-105C is designed for background sound installations, monitor applications and all kind of near fill supports. Equipped with state of art neodymium coaxial speaker this source point series offer a wide range sphere of action. The housings are prepared with several suspensions points for hanging brackets and wall mounting kits. To complete this unbelievable flexible speaker series we offer different color housings and different kind of mounting plates to hang group of speakers in fixed installations.

HCS-105C GS1 (EAN) CODE: 4260318510110

Technical Details

Model Name HCS-105C
GS1 (EAN) CODE 4260318510110
System Type 1x5"+1" Coaxial Source Point Speaker
Power Rating 180 W AES
360 W program
720 W peak
Frequency Range (+/- 3 dB) 65 Hz - 20 kHz
Coverage Pattern (hxv) 70°
Sensitivity 93 dB 1w/1m
Maximum SPL 117 dB

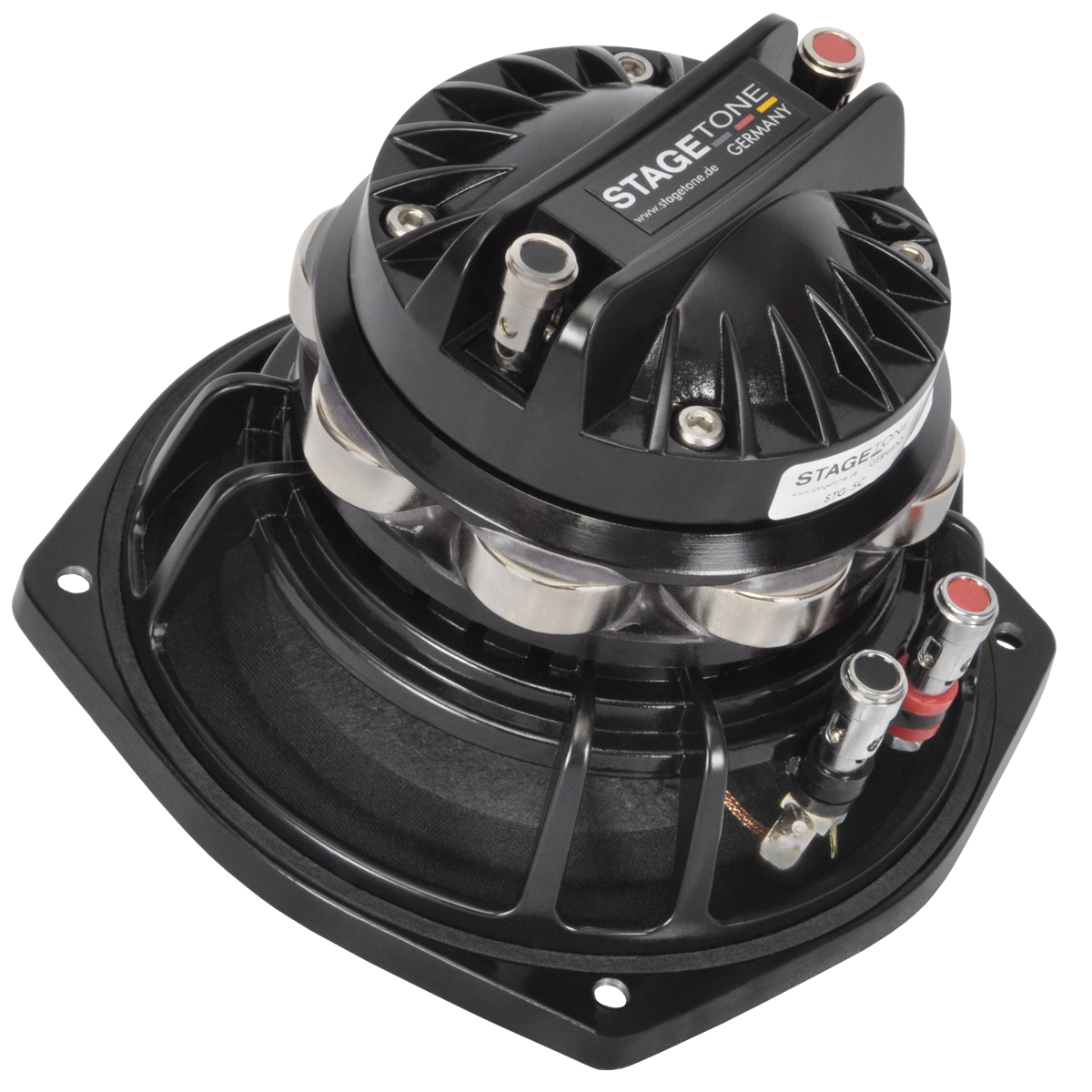

Chassis 1 x STG-5C 150W AES + 30W AES
coaxial neodymium
Nominal Impedance 8 Ohm

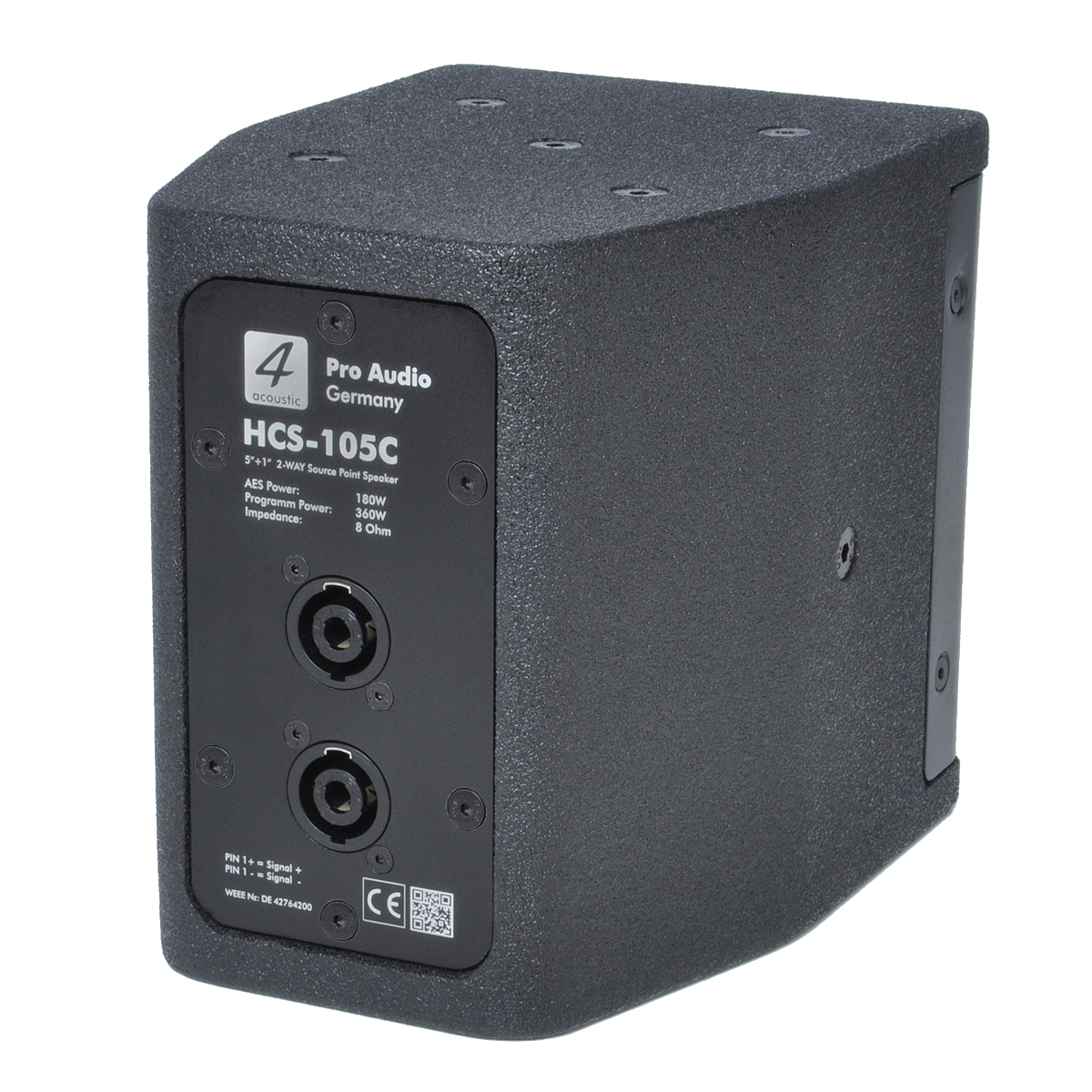

Input Connectors 2 x Neutrik NL4 Socket parallel 1+/1-
Housing Birch Multiplex

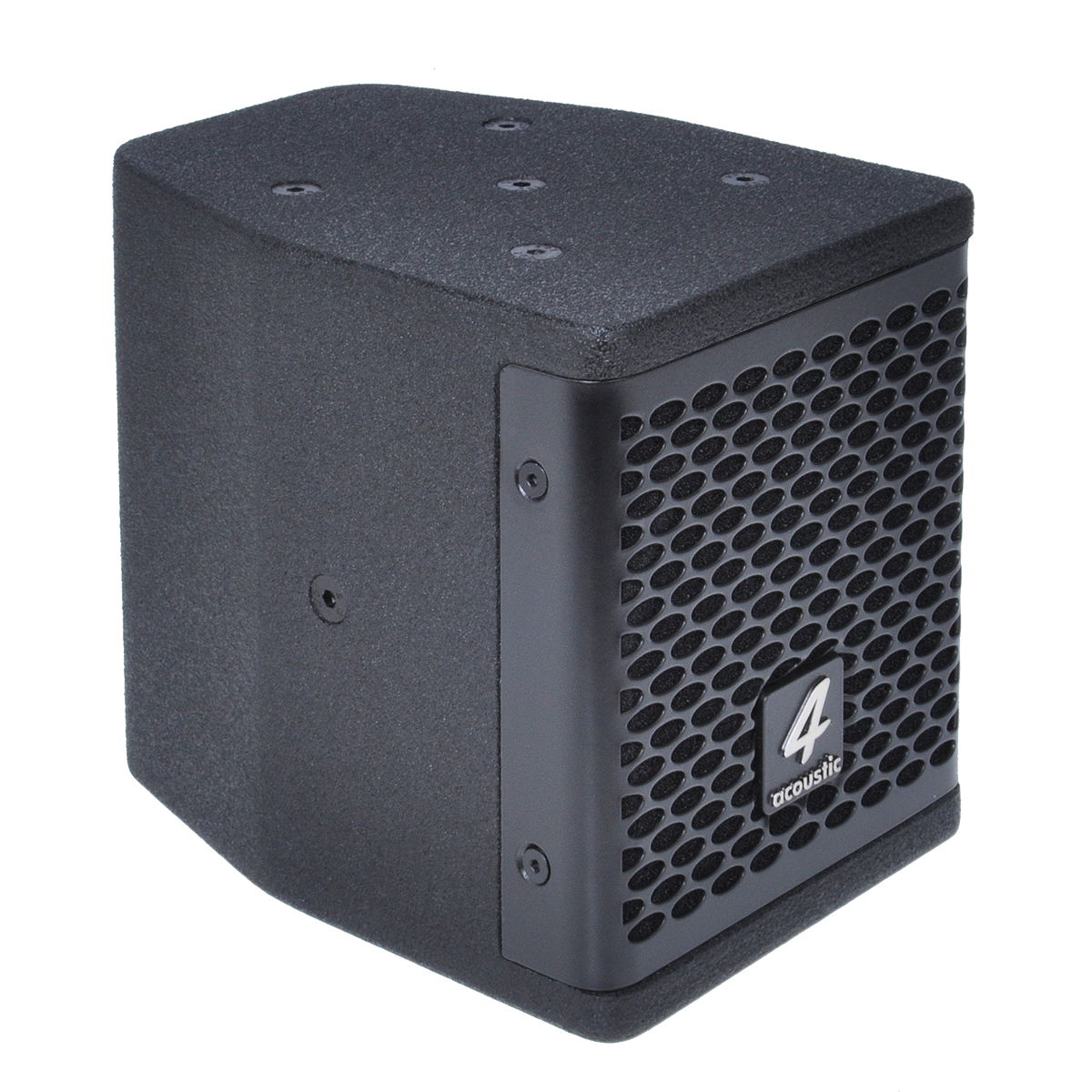

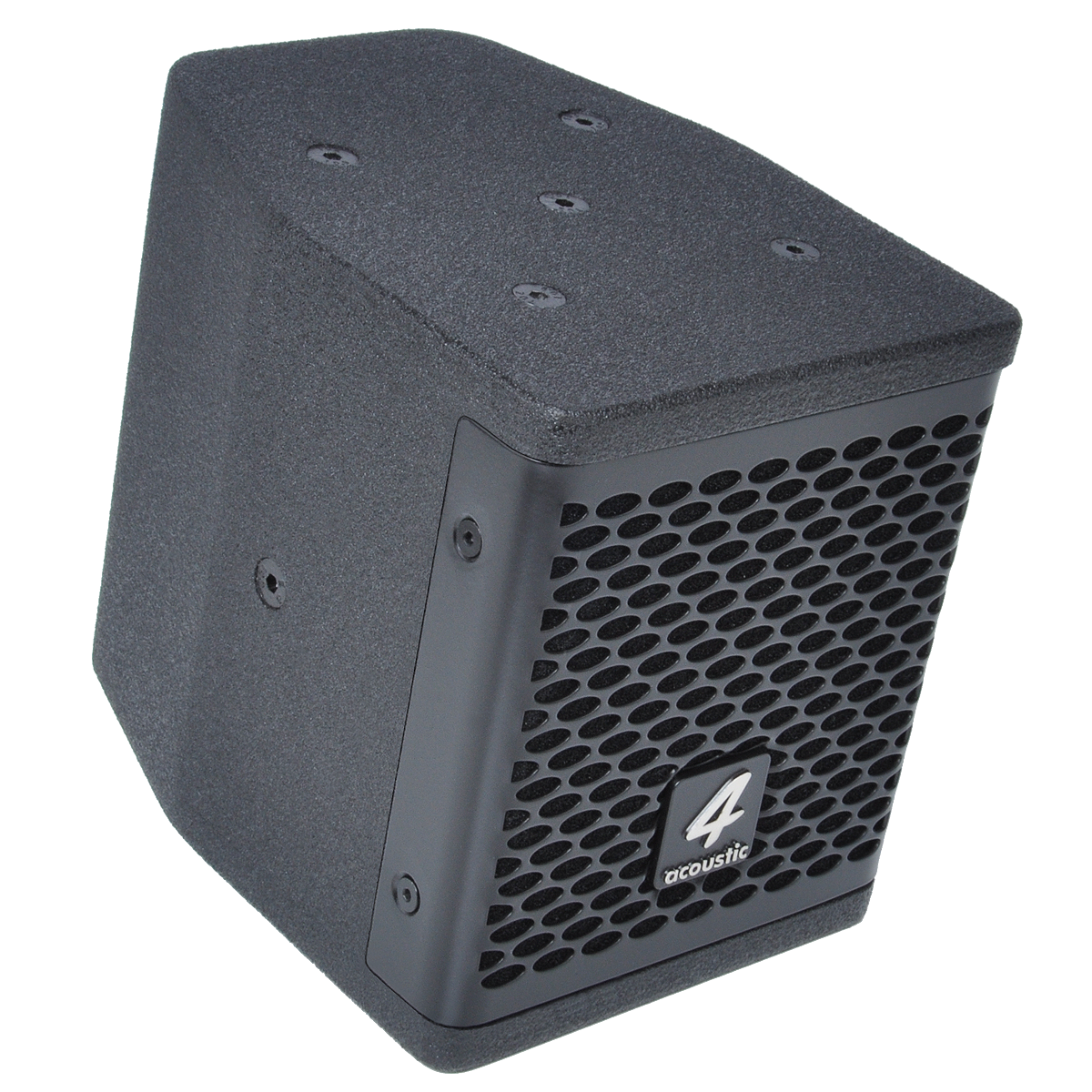

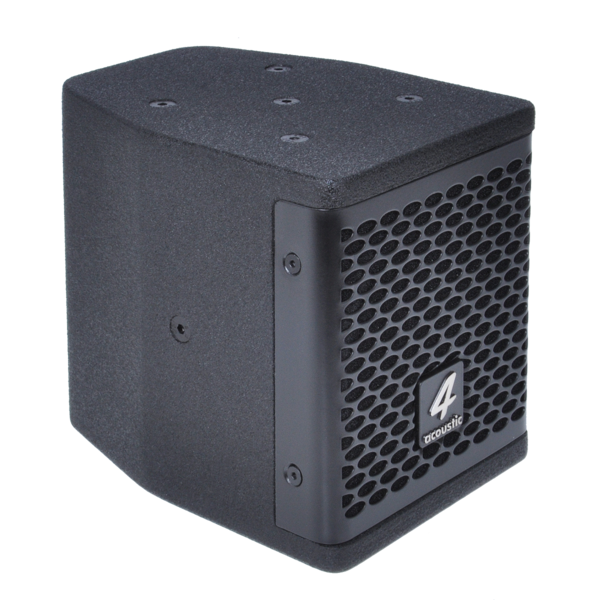

Suspension/Mounting 12xM6 suspension
Coating anti-scratch Polyurethane coating
Dimensions (h/w/d) 165x140x185 mm
Net weight 3,1 Kg

Picture Gallery

Accessories

Order Code GS1 (EAN) Code Description

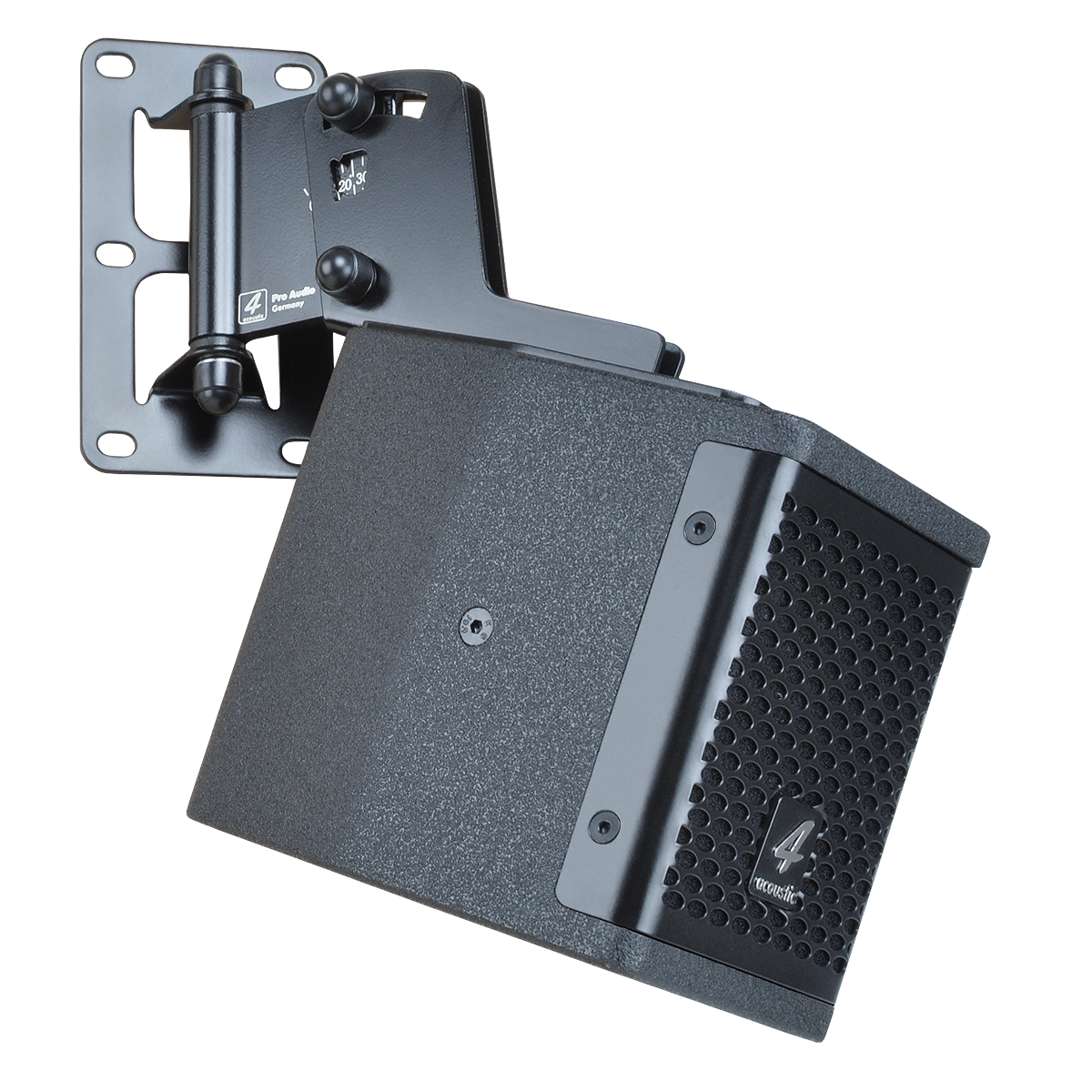

WH-105C 4260318511308 Wall mounting kit for HCS-105C
HCS-105C-CP 4260318511322 Connecting plate for 3 x HCS-105C
KA-SP1-50 4260318511339 50 Meter Speaker cable 2x1,5qmm
KA-SP1-100 4260318511346 100 Meter Speaker cable 2x1,5qmm
