PCS-218BP Double 18“ bandpass subwoofer
PCS-218BP Double 18“ bandpass Sub-Bass

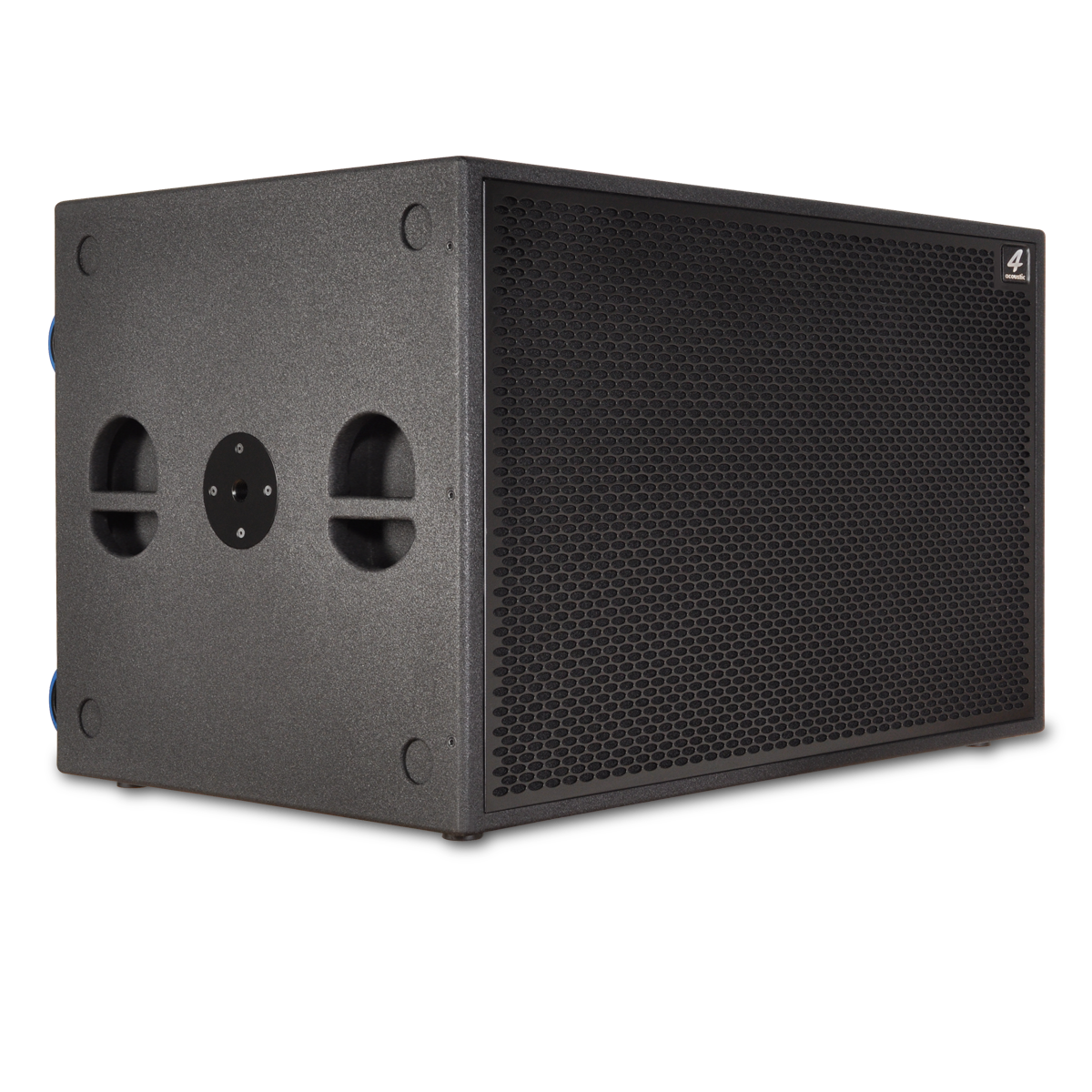

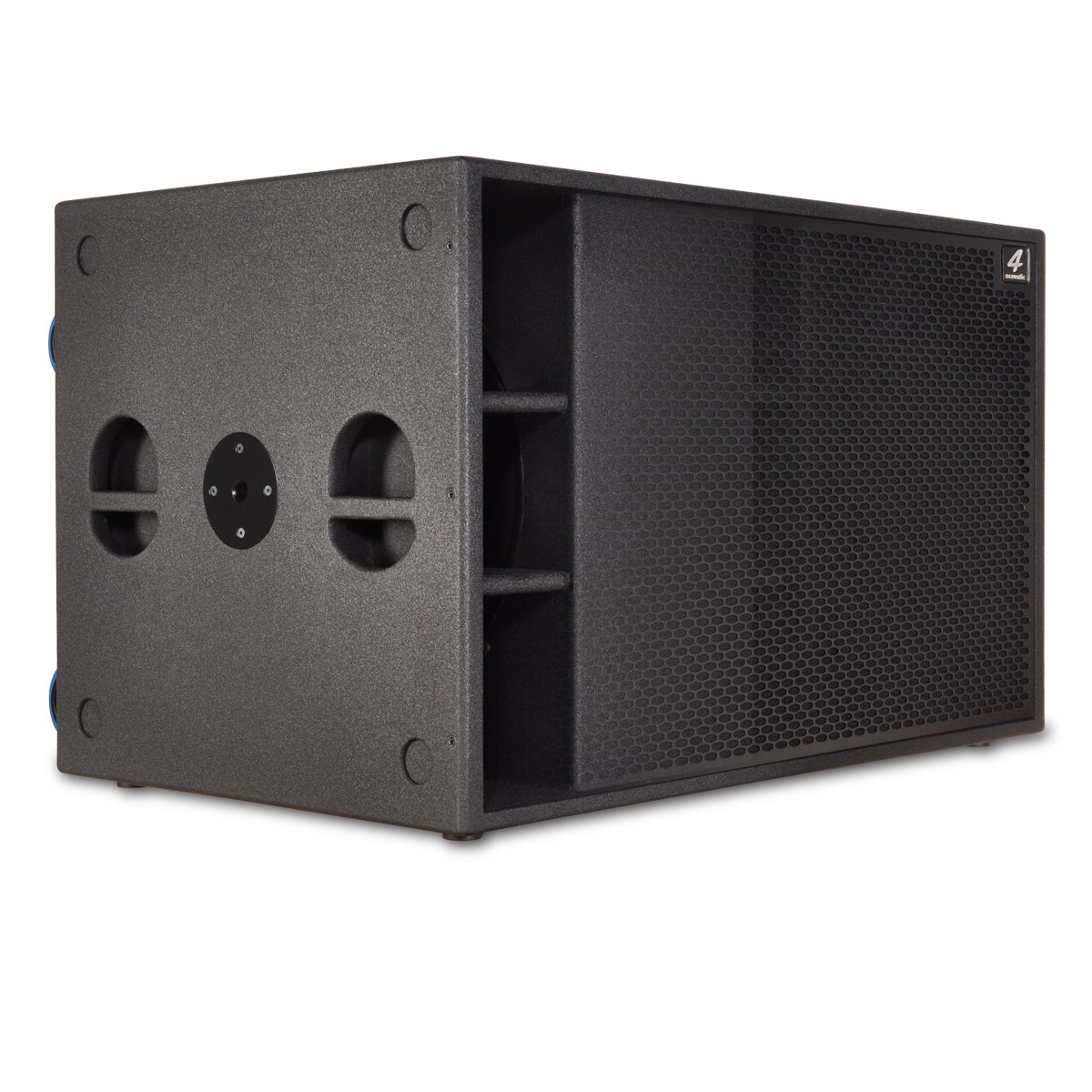

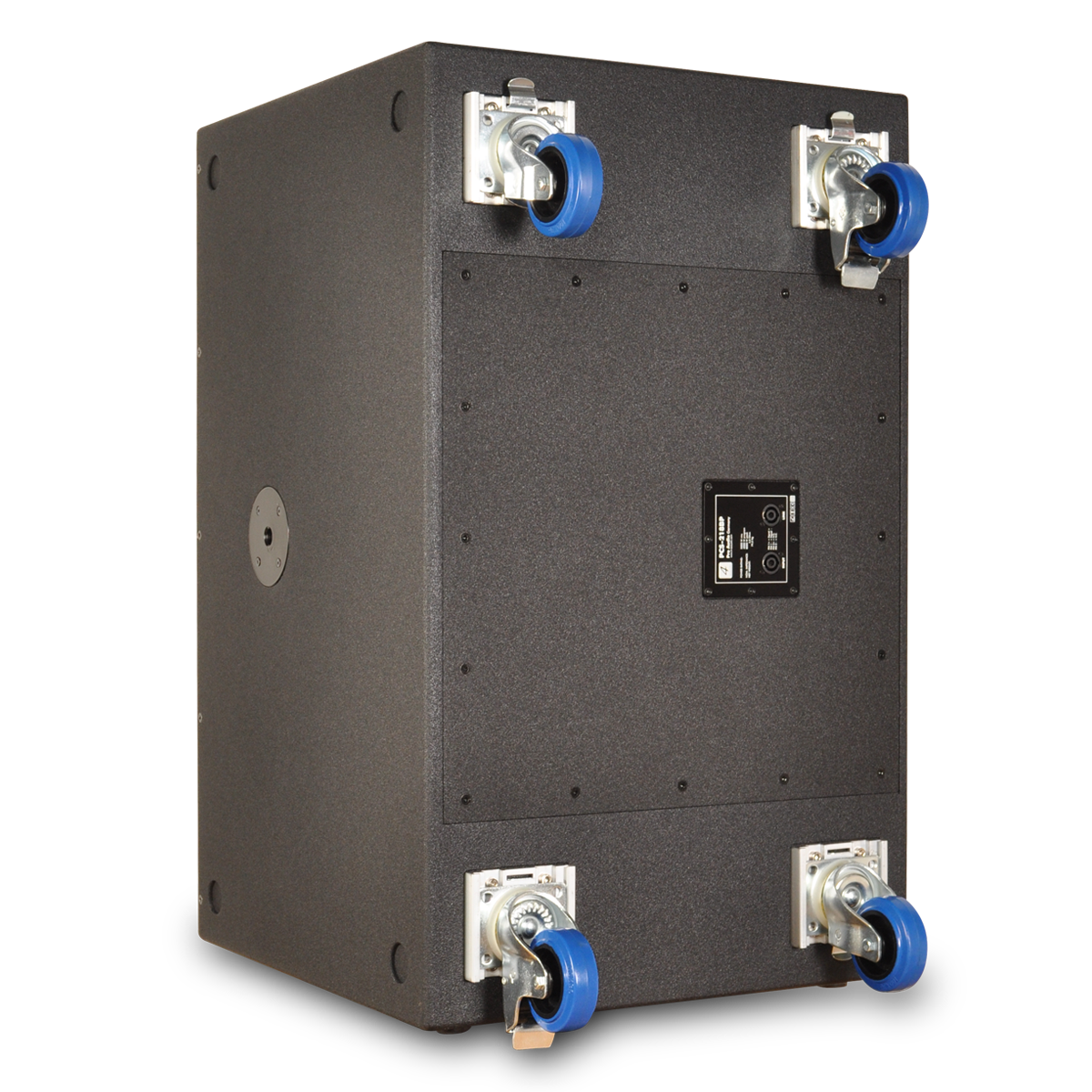

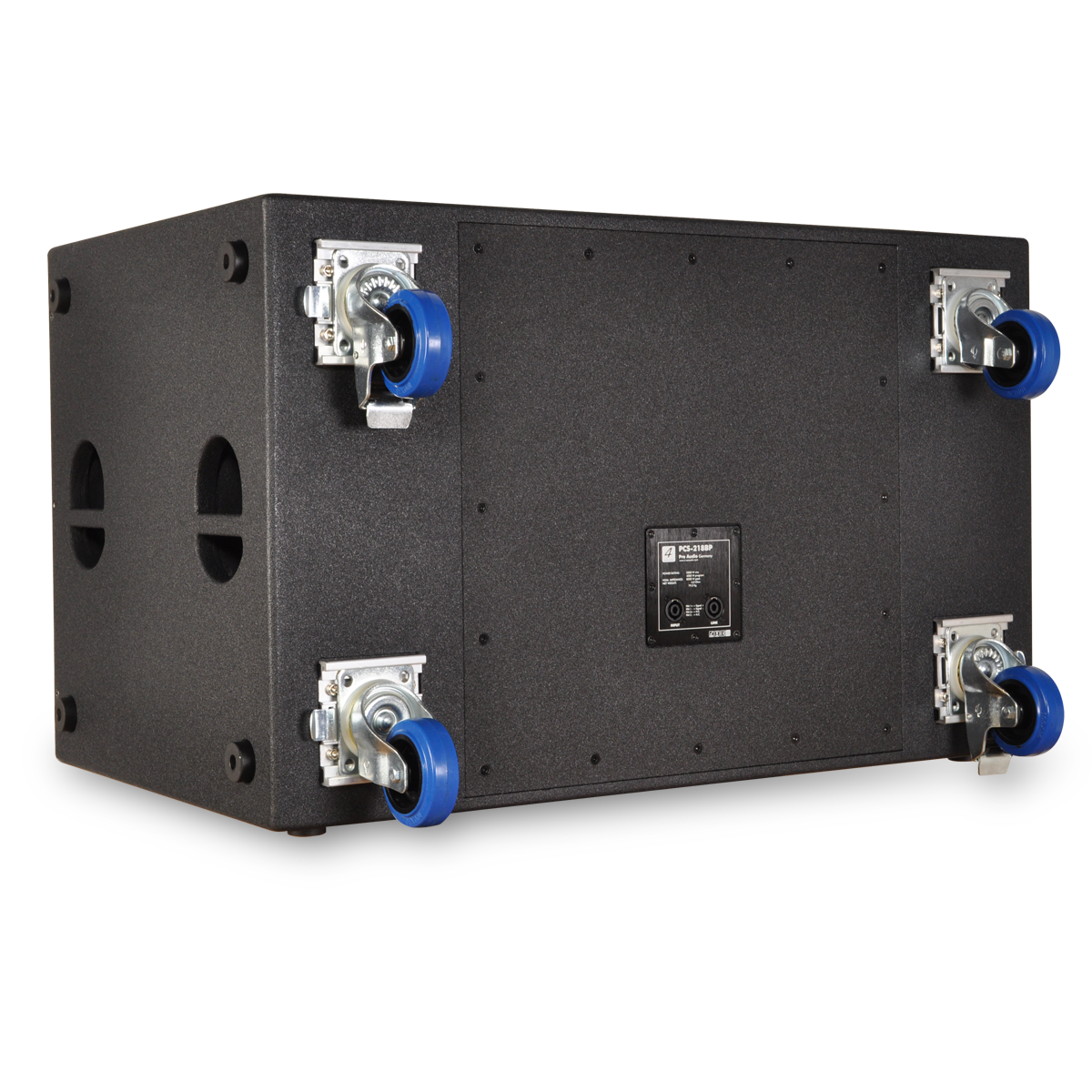

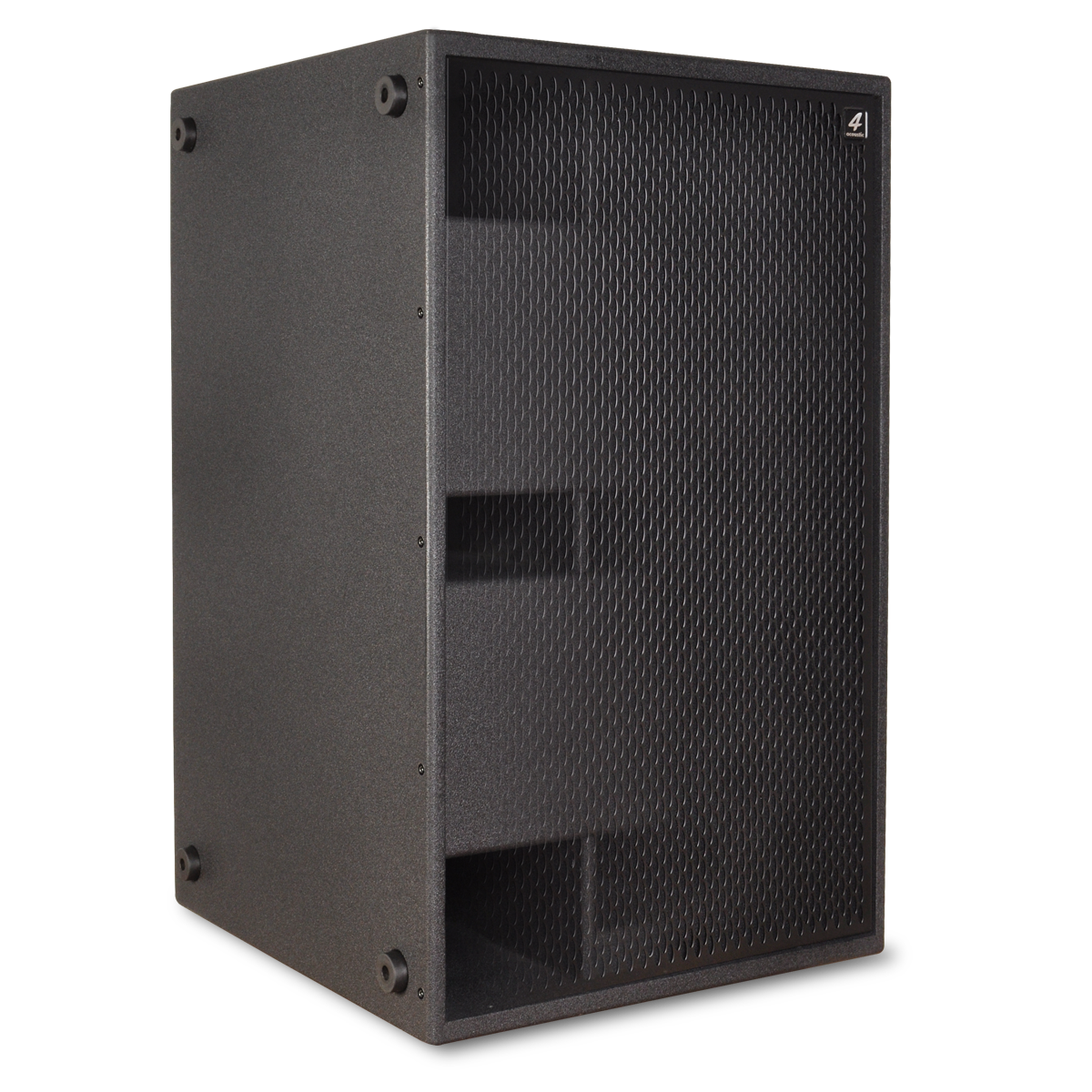

Incredibly compact dimensions and a maximum sound pressure up to 140dB. The field of application of these subs ranges from universal reusable systems to powerful ground stack systems for line array sound reinforcement. The housings are made of 18 and 25 mm birch plywood and coated with an extremely high loading capacity Polyurethane varnish in sand structure. A highquality 1.5mm steel grille with acoustic foam protects the speaker from damage. The back panel is made of 4 mm thick, black brushed aluminum and equipped with two 4-pin parallel wired speaker sockets. For a perfect handling of the cabinet ergonomically shaped handles and strong 100mm Blue Wheel s are provided.
PCS-218BP GS1 (EAN) CODE: 4260318510455
Technical Details
| Model Name | PCS-218BP |
|---|---|
| GS1 (EAN) CODE | 4260318510455 |
| System Type | 2x18“ Bandpass Sub-Bass |
| Power Rating | 2000 W AES 4000 W program 8000 W peak |
| Frequency Range (-10 dB) | 38 Hz - 120 Hz |
| Sensitivity | 103 dB 1w/1m |
| Maximum SPL | 140 dB |
| Woofer | 2 x STG-18BP-F |
| Suspension/Mounting | 2 x M20 threaded top hat |
| Nominal Impedance | 4,0 Ohm |
| Input Connectors | 2 x Neutrik NL4 Socket parallel 1+/1- |
| Housing | Birch Multiplex |
| Coating | Water-resistant Polyurea coating |
| Dimensions (h/w/d) | 590x960x600 mm |
| Net weight | 73,0 kg |
Accessories
| Order Code | GS1 (EAN) Code | Description |
|---|---|---|
| STG-WH100 | 4260318511131 | 100mm blue wheel Set (two pcs. with brake) |
| PCS-218NB-BAG | 4260318511483 | Nylon protection transport cover bag for PCS-218NB |
| STG-M20T | 4260318511049 | Adjustable M20 threaded distance Tube 1,0 Meter to 1,5 Meter |
| KA-SP4-0.5 | 4260318511155 | 0,5 Meter speaker cable 4x2,5qmm |
| KA-SP4-05 | 4260318511193 | 5 Meter Speaker cable 4x2,5qmm |
| KA-SP4-10 | 4260318511209 | 10 Meter Speaker cable 4x2,5qmm |
| KA-SP4-15 | 4260318511216 | 15 Meter Speaker cable 4x2,5qmm |
| KA-SP4-20 | 4260318511223 | 20 Meter Speaker cable 4x2,5qmm |
