PCS-210L

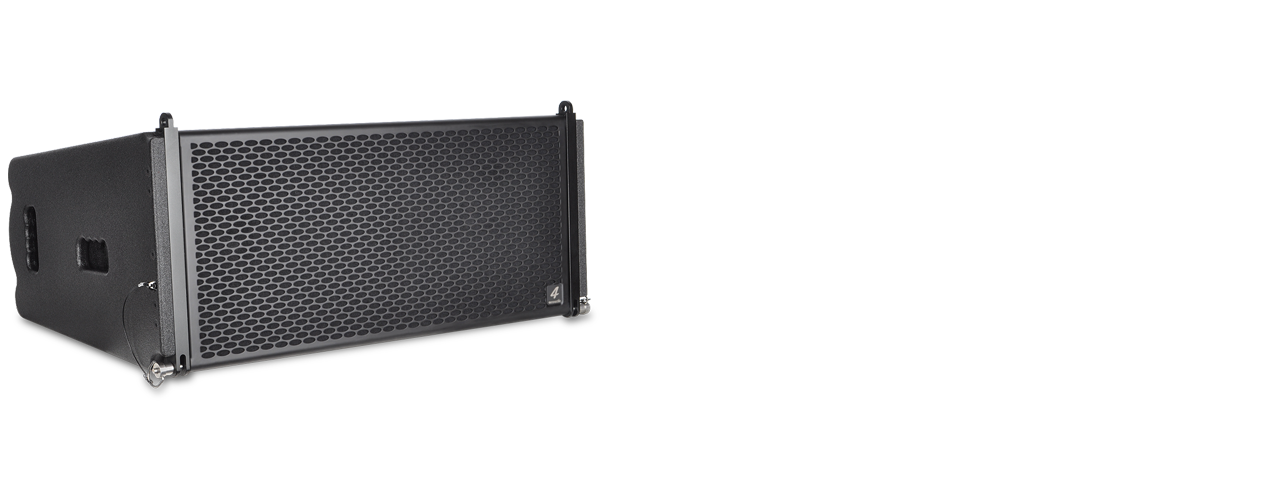

PCS-210L  2x10“/2x1“ 2-Way Line Array Module

PCS-120L 2x10“/2x1“ Line Array Module

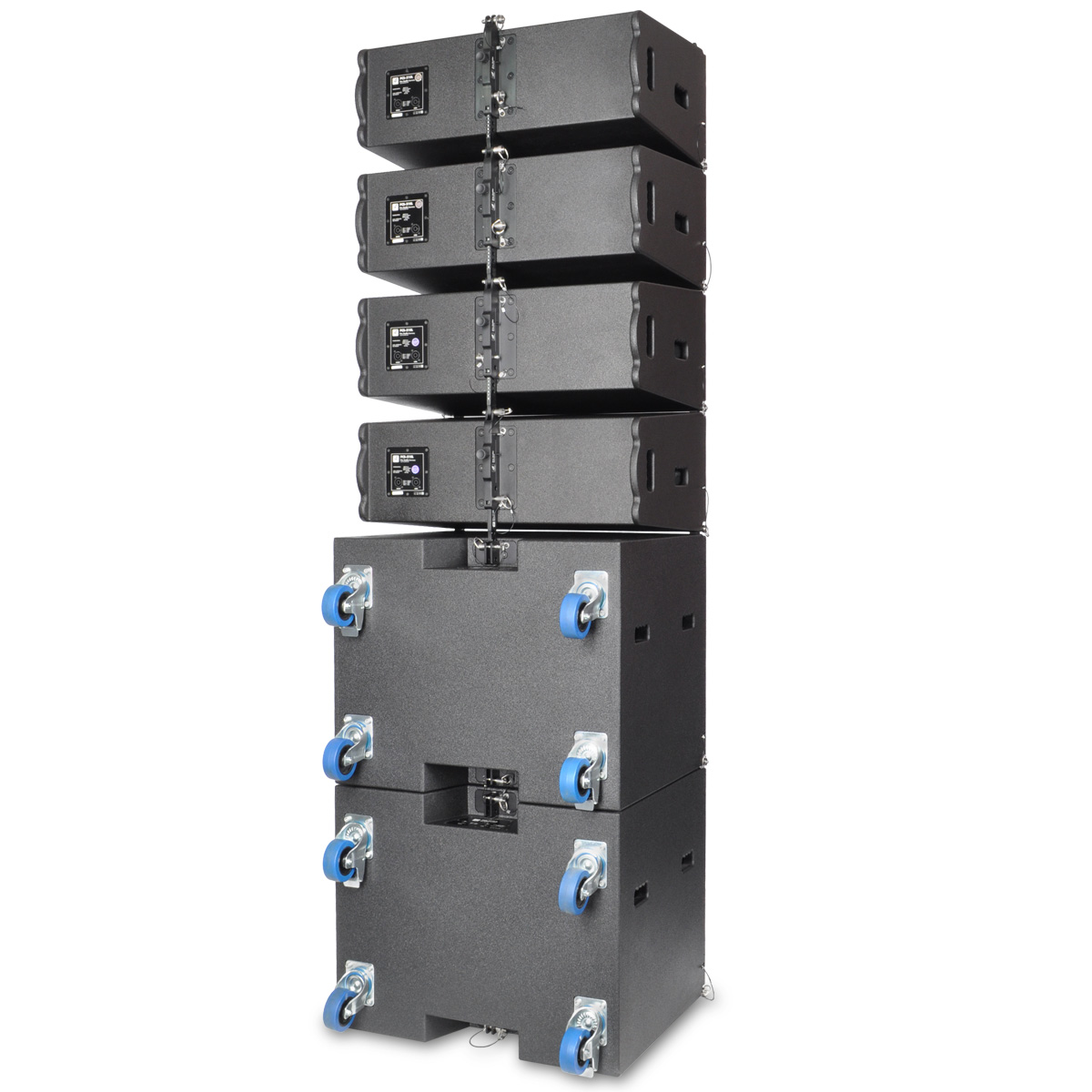

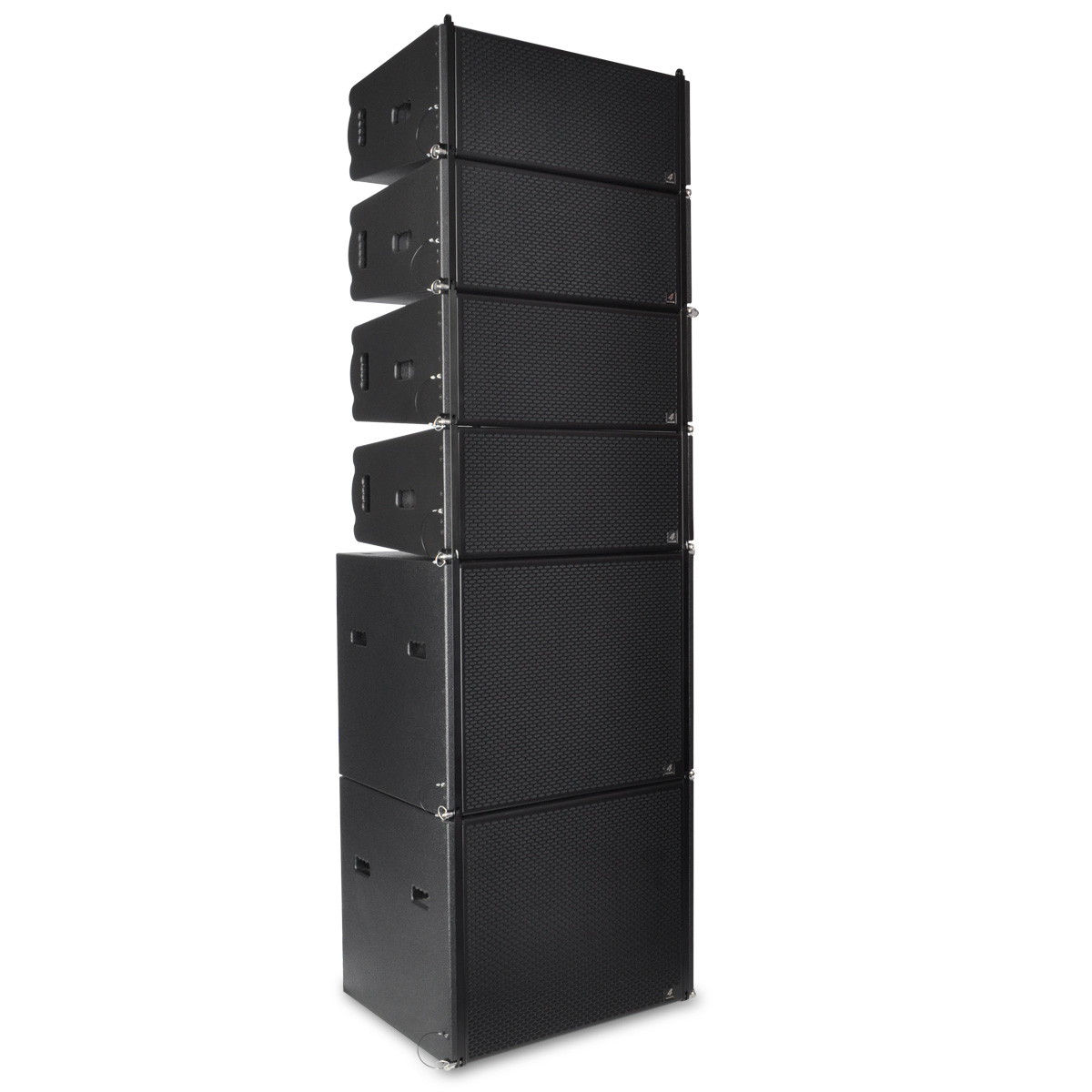

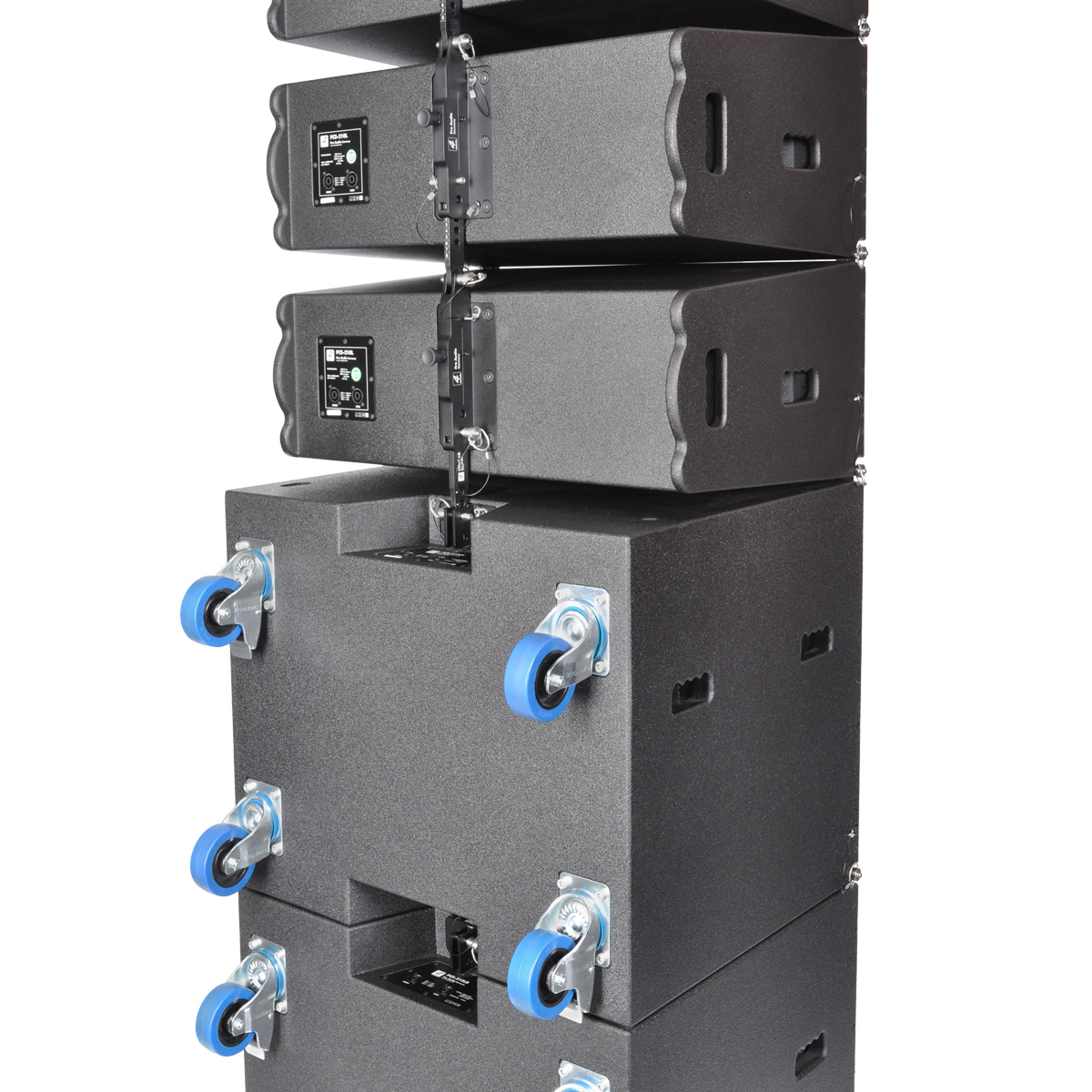

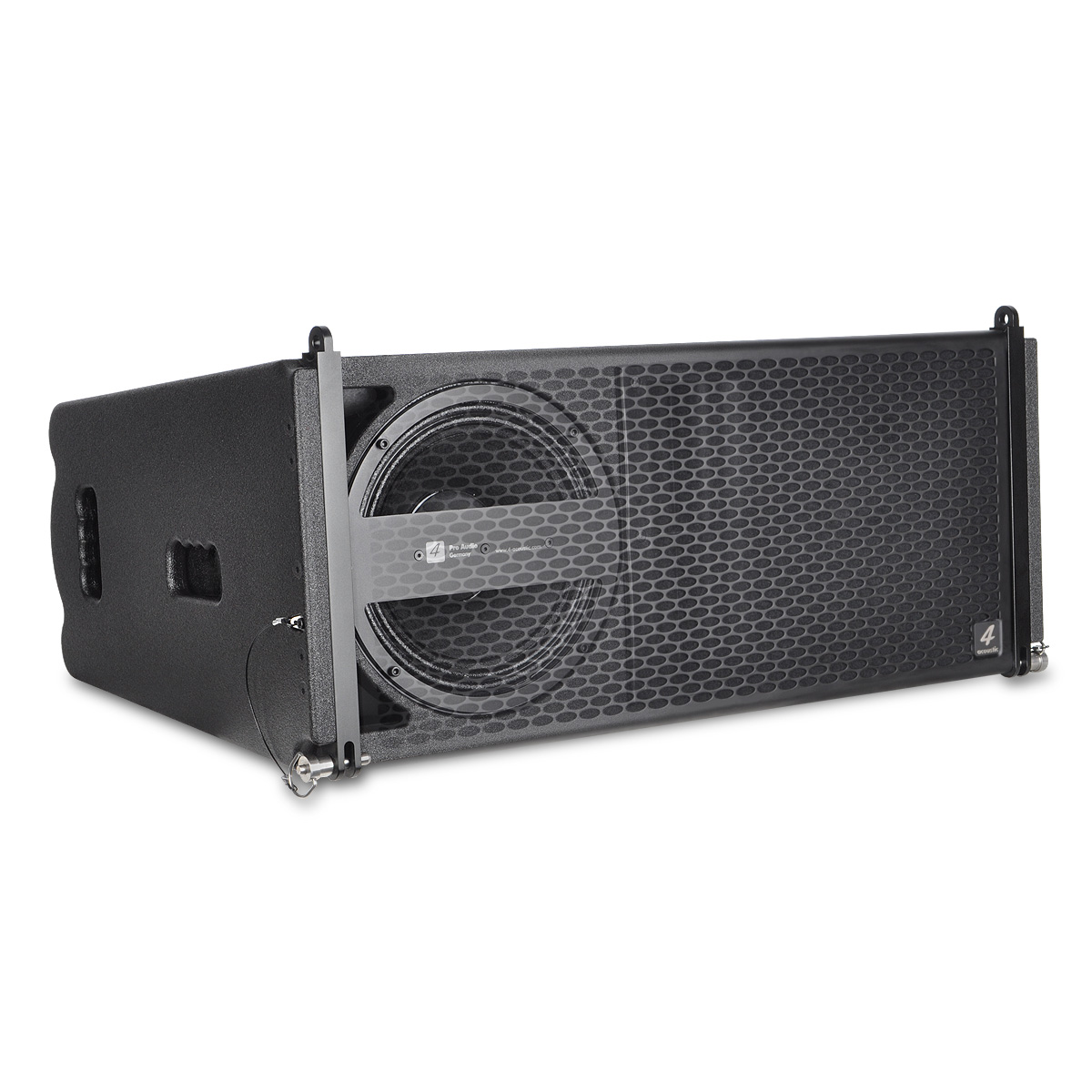

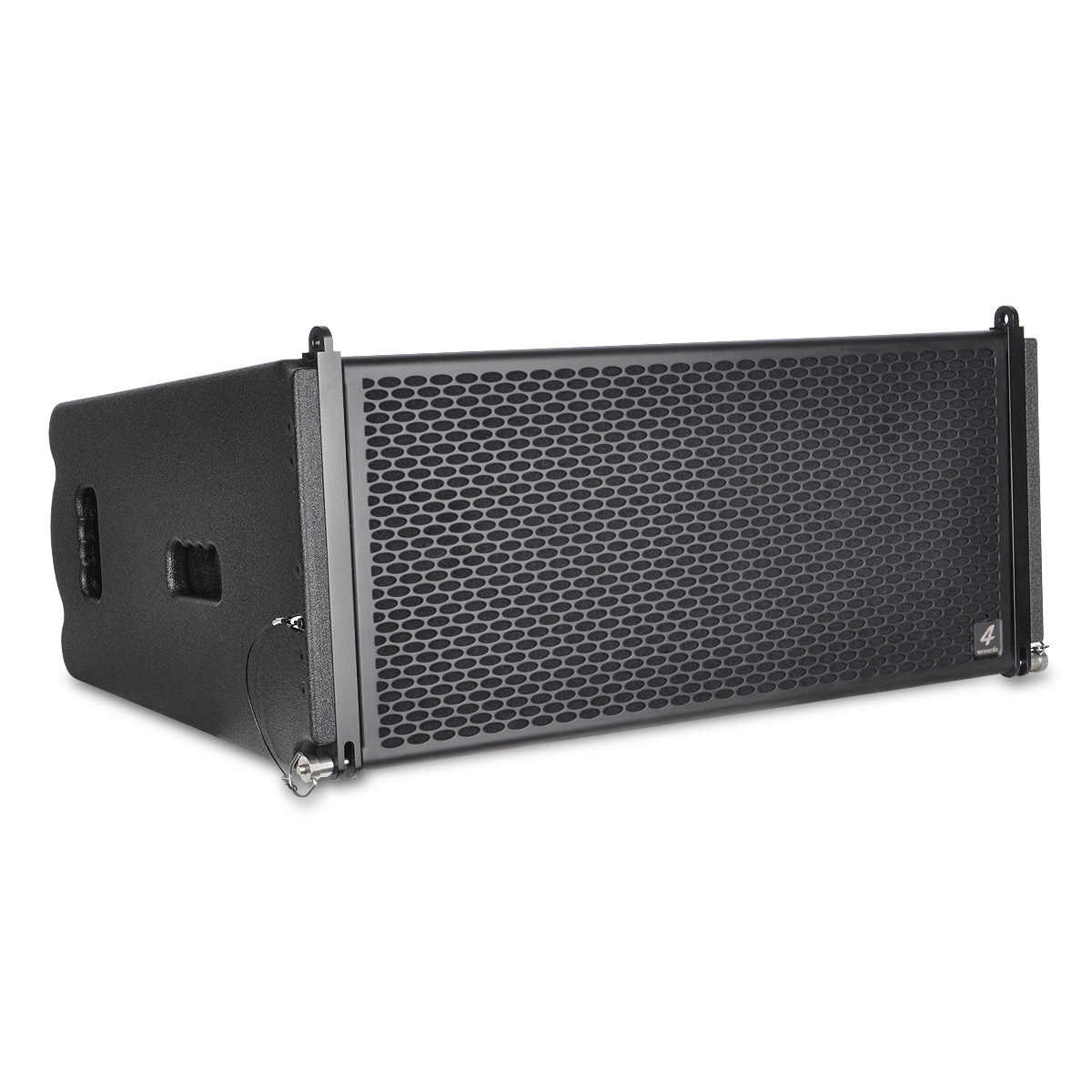

PCS-210L is a compact size, high power speaker to use in vertical line array columns up to 24 units per flight frame. The mechanical design offers a vertical adjustment from 0° to 10° with a resolution of 1,0° per step. For an easy setup of the vertical angel PCS-210L is equipped with a simple but clever mechanical brake. The entire flyware is made of high quality, extreme resilient aluminum components. This two way passive system is comprised of two 10” Neodymium woofers in dipole arrangement and two centrally mounted 1” drivers connected to an accurate calculated wave guide. The maximum SPL of a single unit is 136 dB. The coverage pattern is 10°x120° (v x h). The shock-proof and wheather-resistant housing is made of best quality Baltic multiplex wood and covered with a strong, black water-resistant Polyurea coating. Four integrated handles will support an easy transport and installation. The front side of the speaker is protected by a 1,5 mm strong, black metal grill covert with black color acoustic foam. The flight frame construction allows hanging and standing installation on PCS subwoofers. The compact size and 2-way passive design guarantee a maximum of flexibility in use with our DSP system controller and DSP integrated system amplifiers.

PCS-210L GS1 (EAN) CODE: 4260318510646

Technical Details

Model Name PCS-210L
GS1 (EAN) CODE 4260318510646
System Type 2x10“/2x1“ 2_Way Line Array Module
Power Rating 800 W AES
1600 W program
3200 W peak
Frequency Range (+/- 3 dB) 75 Hz - 20 kHz
Coverage Pattern (hxv) 120°x10°
Sensitivity 104 dB 1w/1m
Maximum SPL 136 dB
Woofer 2 x STG-10L 350W AES, 3“ voice coil, neodymium
Driver 2 x STG-45NB 50W AES, 1,75“ voice coil, neodymium
Nominal Impedance 8 Ohm

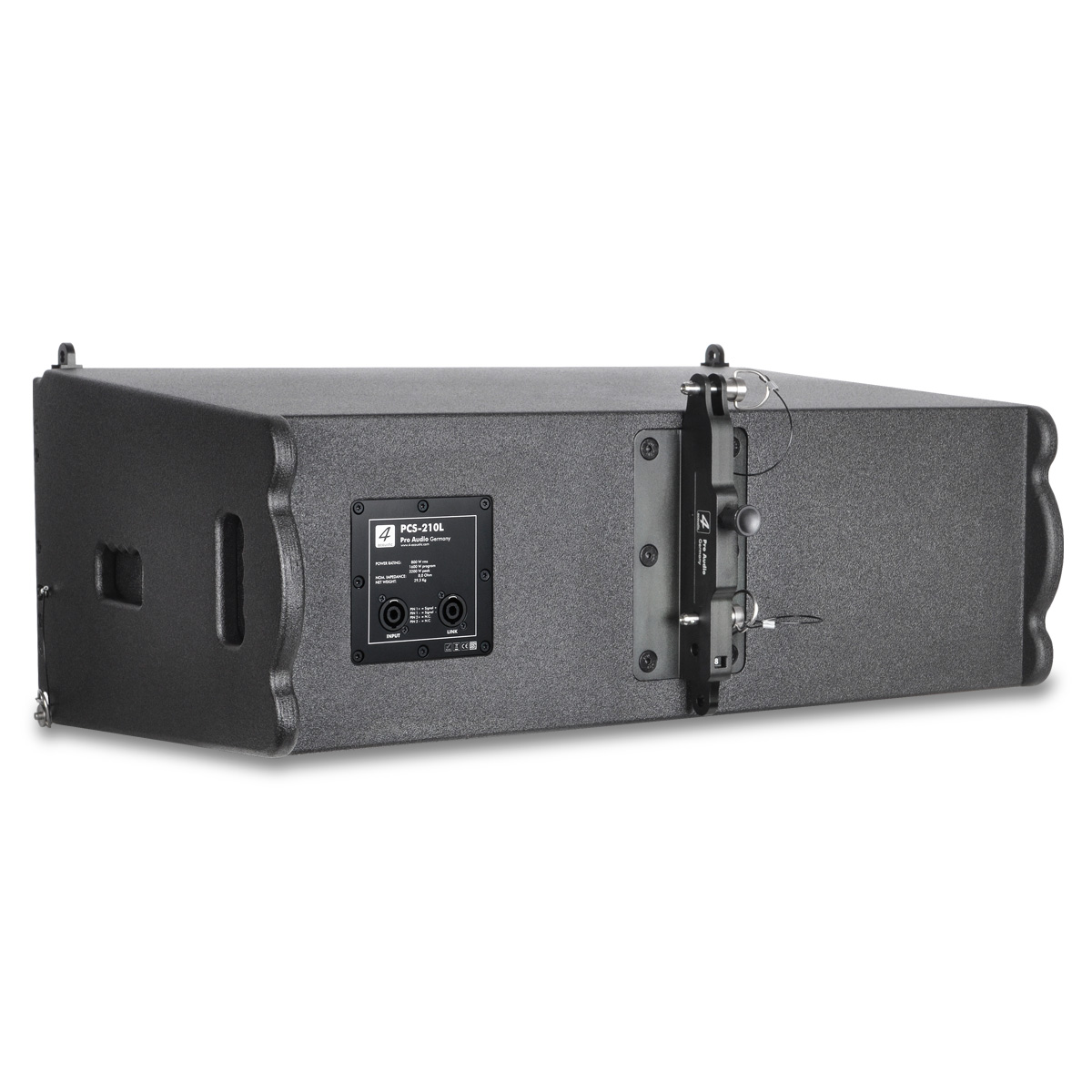

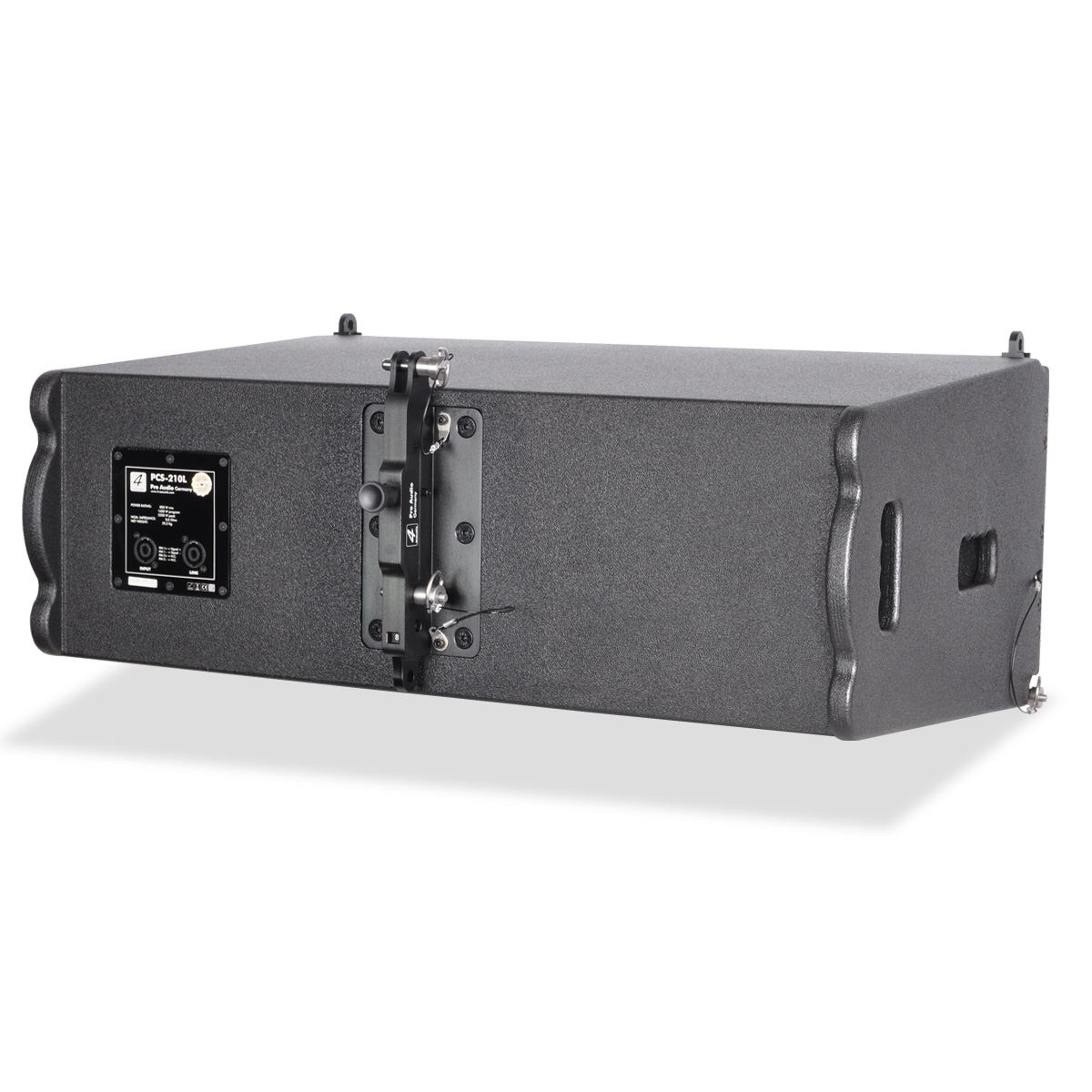

Input Connectors 2 x Neutrik NL4 Socket
parallel 1+/1-
Housing Birch Multiplex
Coating Water-resistant Polyurea coating
Dimensions (h/w/d) 319x750x515 mm
Net weight 28,0 kg

Picture Gallery

Accessories

Order Code GS1 (EAN) Code Description
PCS-210L-FFR 4260318510653 Flight Frame for PCS-210L or PCS-215LB
PCS-210L-FFR-L 4260318510660 Flight Frame Light for PCS-210L

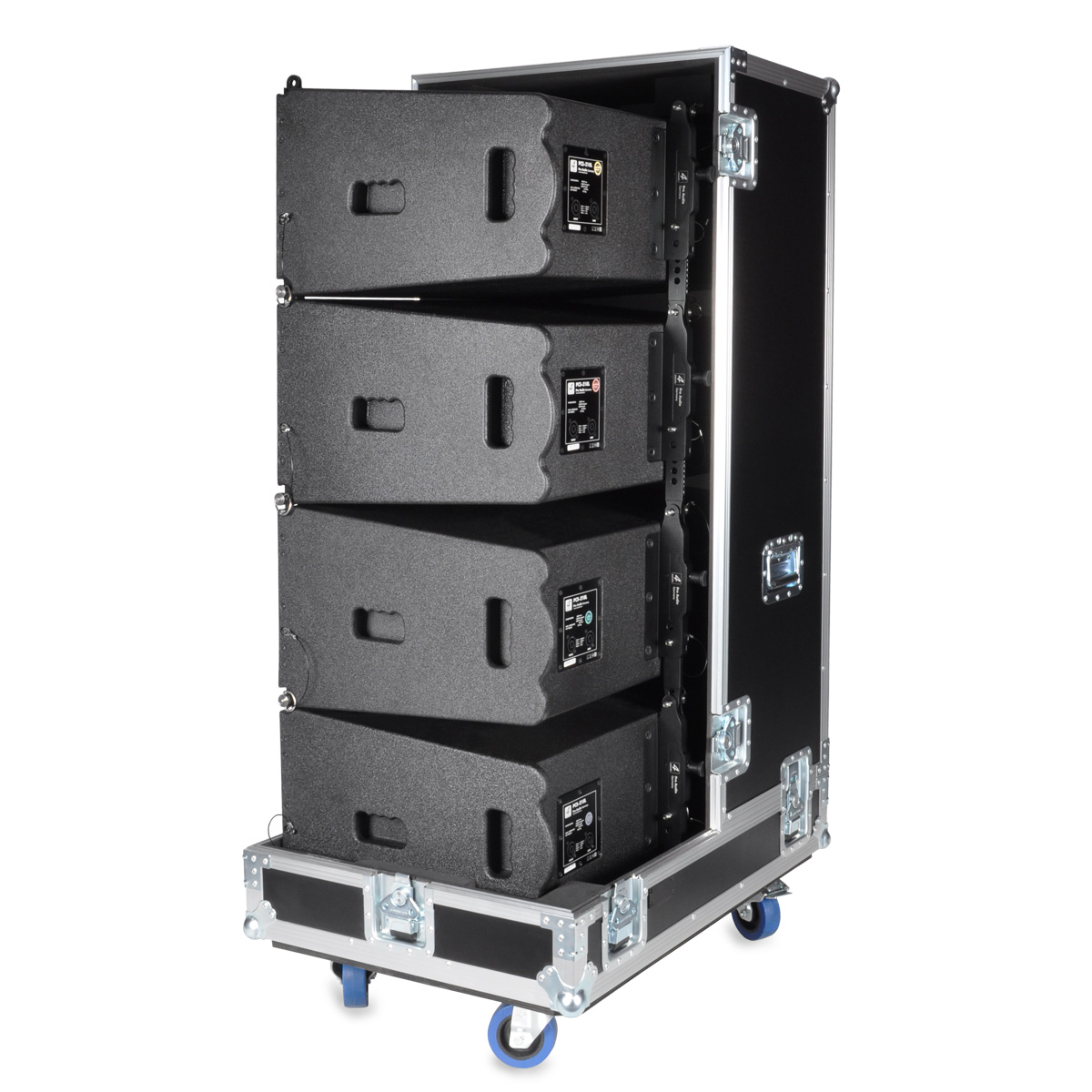

PCS-210L-FC 4260318511414 Flight Case with wheels for 4 pcs. PCS-210L modules
KA-SP2-0.5 4260318510929 0,5 Meter speaker cable 2x2,5qmm
KA-SP2-05 4260318510967 5 Meter Speaker cable 2x2,5qmm
KA-SP2-10 4260318510974 10 Meter Speaker cable 2x2,5qmm
KA-SP2-15 4260318510981 15 Meter Speaker cable 2x2,5qmm
KA-SP2-20 4260318510998 20 Meter Speaker cable 2x2,5qmm
