PCS-J Series

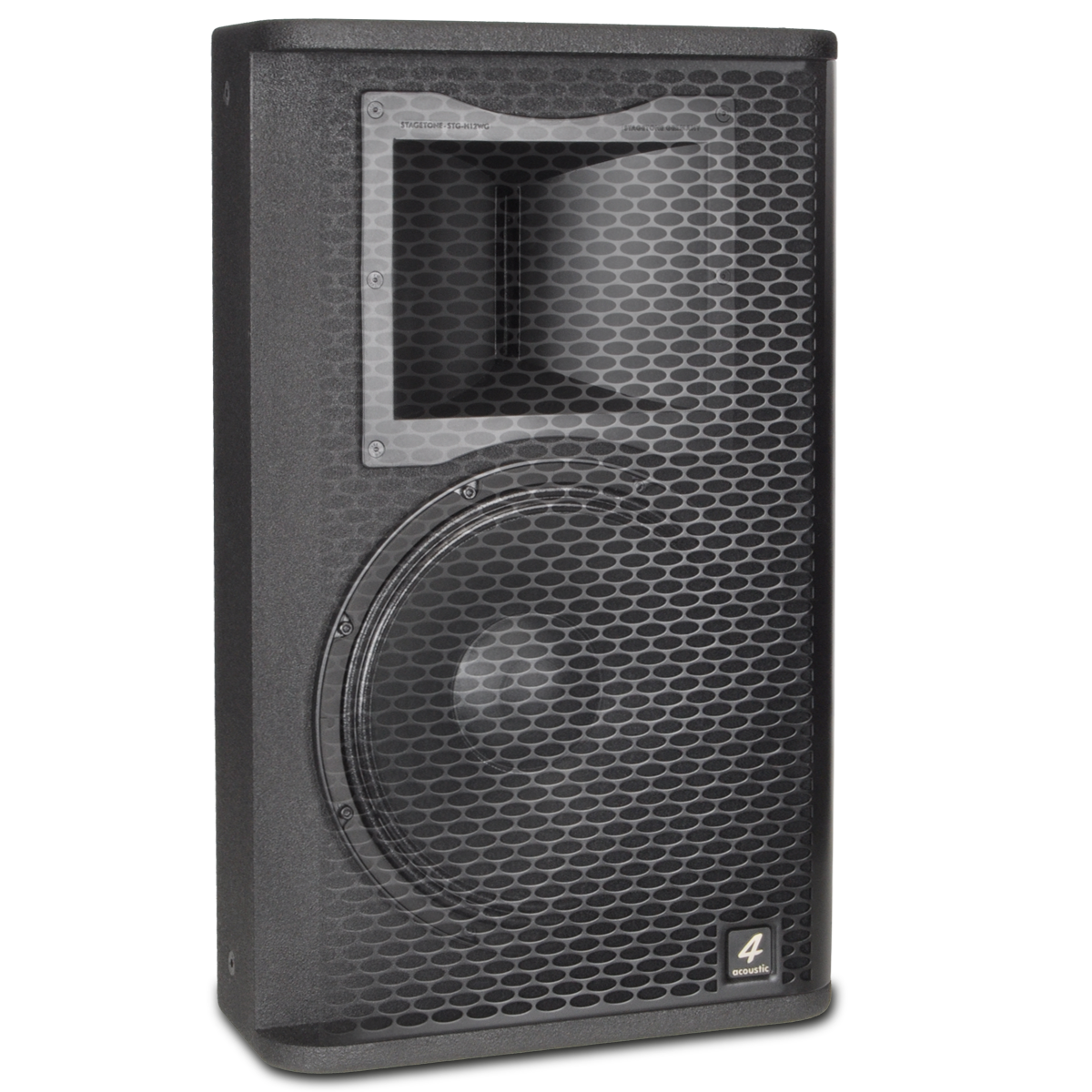

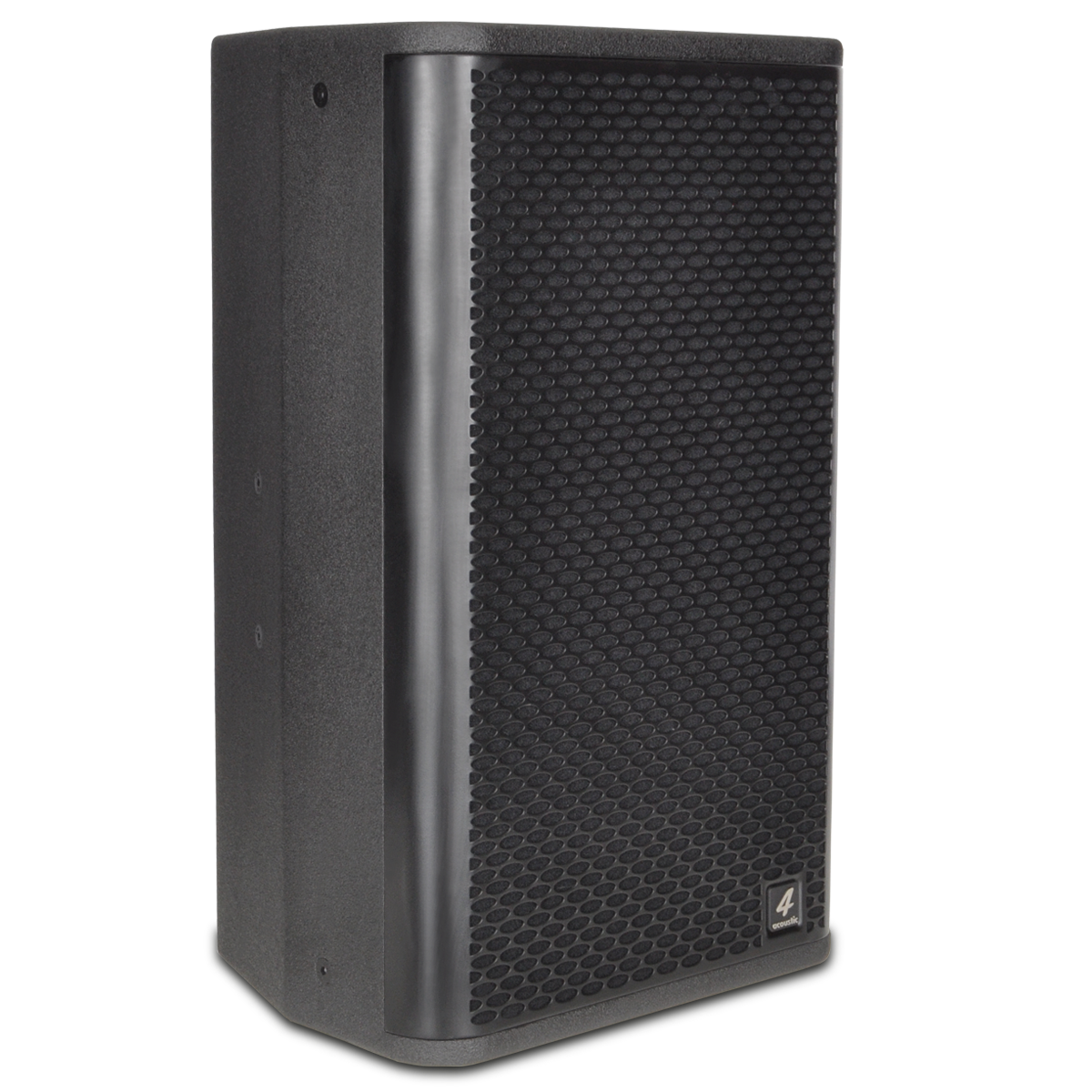

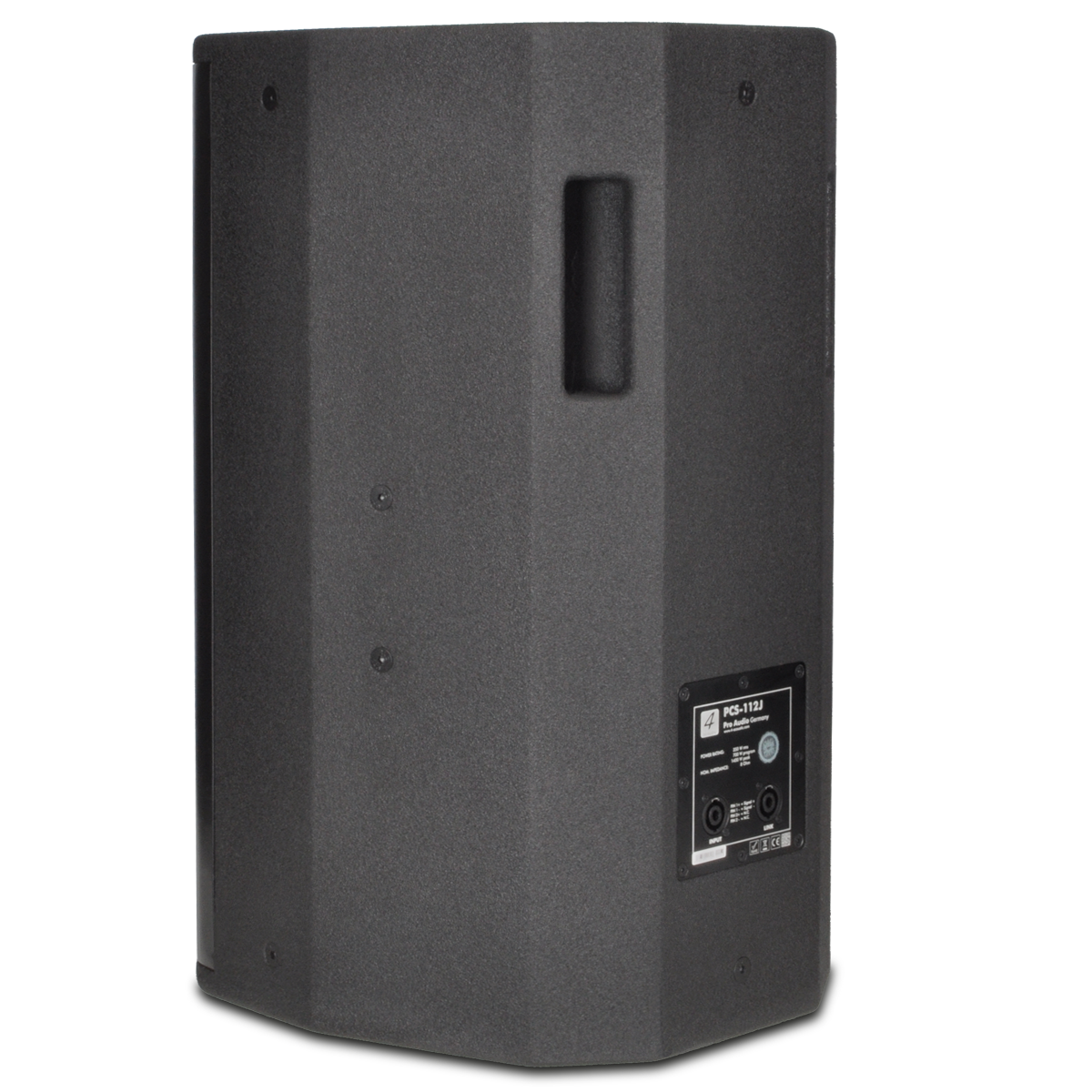

PCS-J Professional KTV Speaker

PCS-J Professional KTV Speaker

The PCS-J loudspeaker series is primarily designed for the Asian KTV market. The PCS-J series loudspeakers consist of two models: PCS-110J and PCS-112J in its portfolio. It utilizes a totally newly designed 100° x 40° KTV horn with optimized 1” waveguide, equipped with rich clear sound out to 20 KHz reproducing neodymium driver. The woofers maintain newly designed die-cast chassis and newly formulated paper cone. The specially formulated cone pulp allows this driver to give a warm and smooth response throughout the bass frequency range. The PCS-J Series is the ideal Karaoke loudspeaker system to provide transparent and natural treble, warm and smooth mid-frequency, and powerful bass for clear and elastic drum sounds. Totally nineteen M8 suspension points and a 35 mm pole socket offer a wide range of installation and hanging possibilities in vertically or horizontal orientation.

PCS-10J GS1 (EAN) CODE: 4260318511780

PCS-12J GS1 (EAN) CODE: 4260318511797

Technical Details

Model Name PCS-110J PCS-112J
GS1 (EAN) CODE 4260318511780 4260318511797
System Type 1x10“ + 1“ KTV Speaker 1x12“ + 1“ KTV Speaker
Power Rating 300 W AES
600 W program
1200 W peak
350 W AES
700 W program
1400 W peak
Frequency Range (+/- 3 dB) 49 Hz - 20 kHz 41 Hz - 20 kHz
Coverage Pattern (hxv) 100°x40° 100°x40°
Sensitivity 99 dB 1w/1m 102 dB 1w/1m
Maximum SPL 128 dB 133 dB
Nominal Impedance 8 Ohm 8 Ohm
Input Connectors 2 x Neutrik NL4
Socket parallel 1+/1-
2 x Neutrik NL4
Socket parallel 1+/1-
Housing Birch Multiplex Birch Multiplex
Suspension/Mounting 35 mm pole socket
19 x M8 suspension
VSL mounting base
35 mm pole socket
19 x M8 suspension
VSL mounting base
Coating Anti-scratch black coatingg Anti-scratch black coating
Dimensions (h/w/d) 550x330x313 mm 630x385x342 mm
Net weight 18,5 Kg 23,8 Kg

Picture Gallery

Accessories

Order Code GS1 (EAN) Code Description
STG-STD 4260318511032 Tripot Speaker Stand
KA-SP2-05 4260318510967 5 Meter Speaker cable 2x2,5qmm
KA-SP2-10 4260318510974 10 Meter Speaker cable 2x2,5qmm
KA-SP2-15 4260318510981 15 Meter Speaker cable 2x2,5qmm
KA-SP2-20 4260318510998 20 Meter Speaker cable 2x2,5qmm
